State-of-the-Art Machining & Fabricating Equipment

LOT

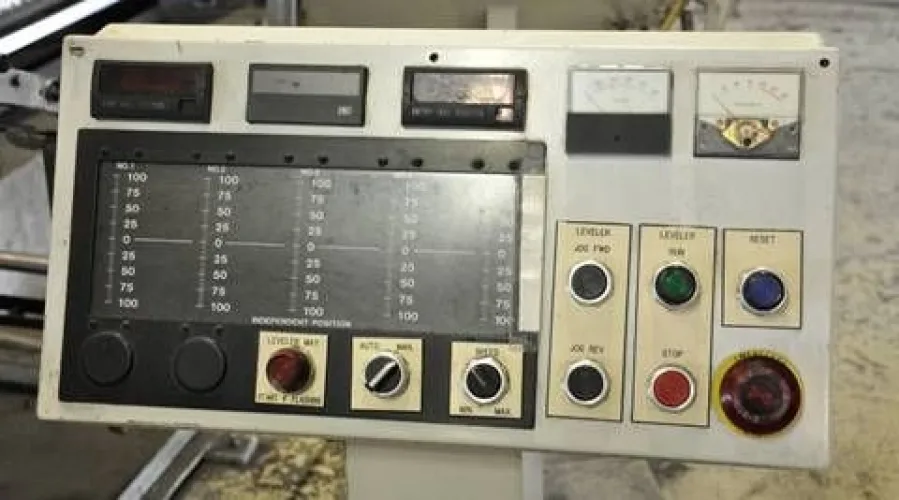

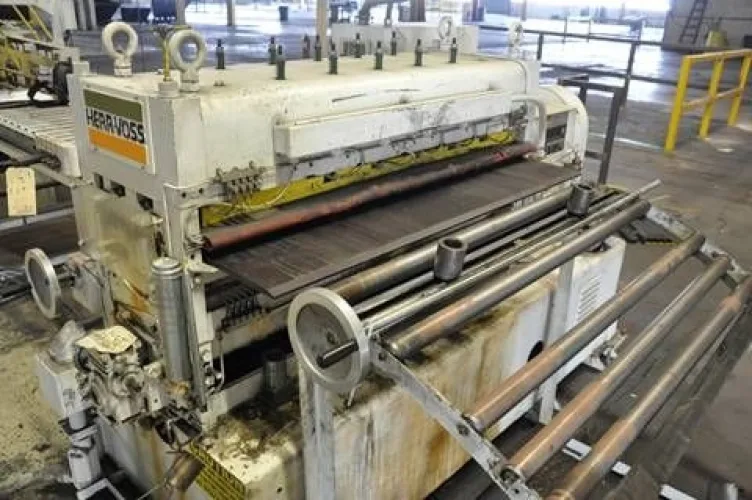

HERR VOSS HIGH PRECISION LEVELER, MDL. VMLB 54/1-156-17/7-4 HI/RH, S/N 54927-001, MFG 1998 | CAPACITY: .033" X 42"; WIDTH: 42" MAX.; CAPACITY: @ 42": 0.016" - 0.033" - @ 36": 0.040" - @ 20": 0.055"; NUMBER OF WORKING ROLLS: 17; ROLL DIAMETER: 1.156"; LINE SPEED: 250 FPM; DIMENSIONS (W X D X H): 96" X 90" X 61"; WEIGHT: 3,000 LBS; MOTOR: 20 HP | EQUIPPED WITH: CROSS TILT; INDIVIDUAL BACK UPS; ONE SHOT LUBE SYSTEM; REMOTE PEDESTAL CONTROL; MANUAL HEIGHT ADJUSTMENT | LOCATED IN: SOUTH EL MONTE, CA

LOT

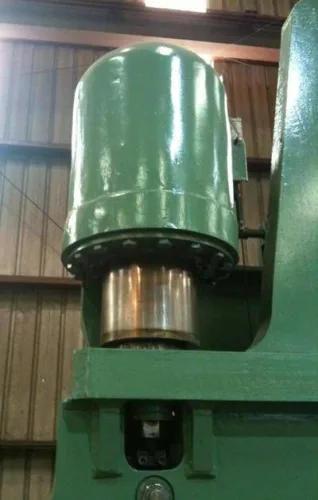

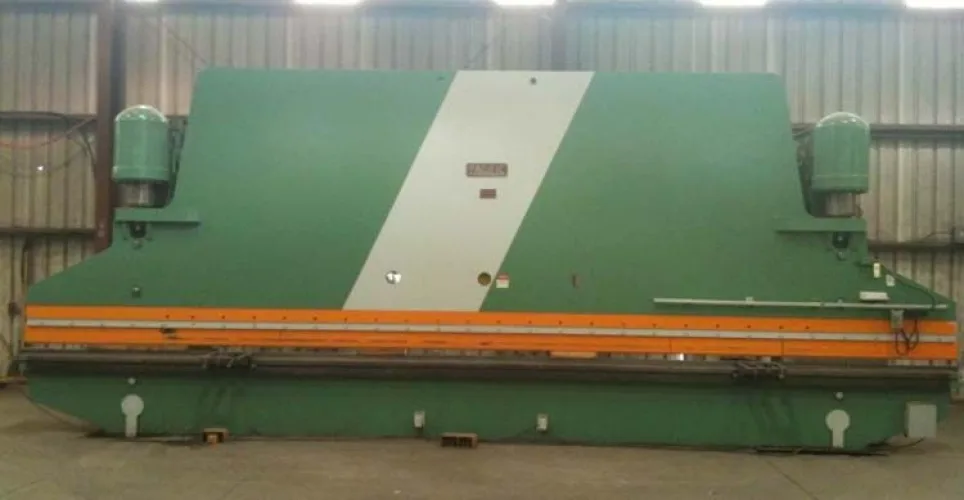

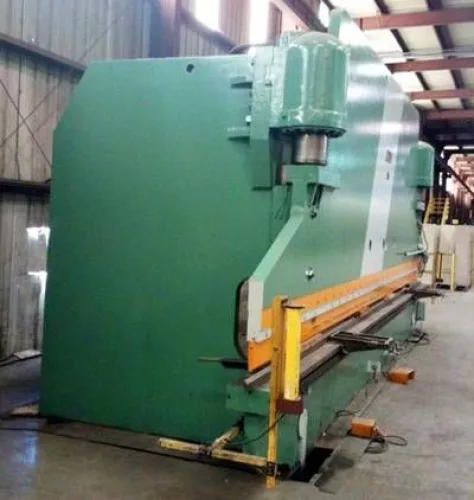

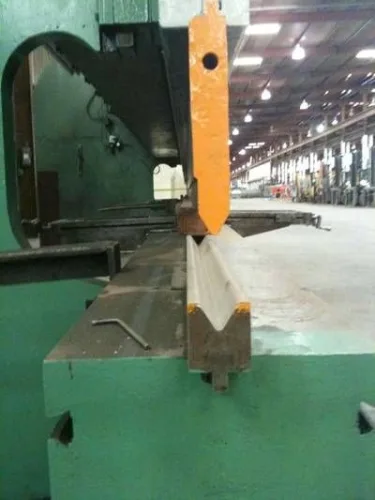

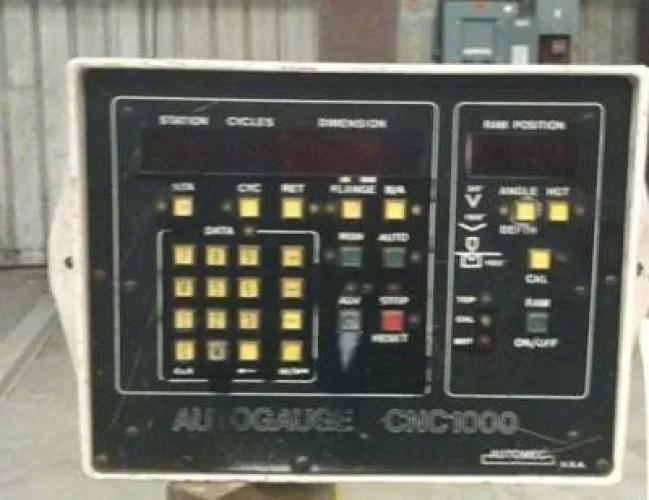

PACIFIC CNC HYDRAULIC PRESS BRAKE, MDL. K400- 30, S/N 5400, MFG 1972 | CAPACITY: 0400 TON X 30'; TONNAGE: 400; LENGTH OF BED & RAM: 30'; DISTANCE BETWEEN HOUSINGS: 22' 4"; RAM STROKE: 0" - 12"; OPEN HEIGHT: 20"; RAM SPEEDS: APPROACH: 114 IPM - PRESSING: 25 IPM - RETURN: 147 IPM; THROAT: 15"; DIMENSIONS (L X D X H): 24" X 85" X 127"; WEIGHT (APPROX): 120,000 LBS; MOTOR: 40 HP | EQUIPPED WITH: AUTOMEC CNC 1000 CNC BACK GAUGE; AUTO LUBE SYSTEM; DRILLED & MACHINED FOR FLANGES; 2 - ELECTRIC FOOT PEDALS *NOTE: THIS MACHINE REQUIRES A PIT FOR THE BED* | LOCATED IN: LOCKEFORD, CA

LOT

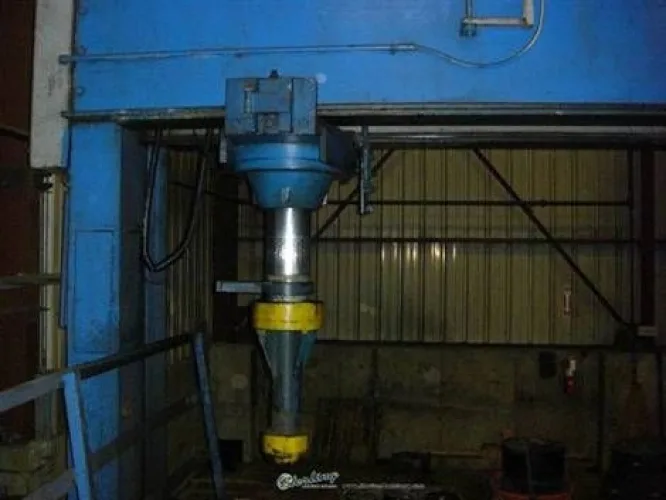

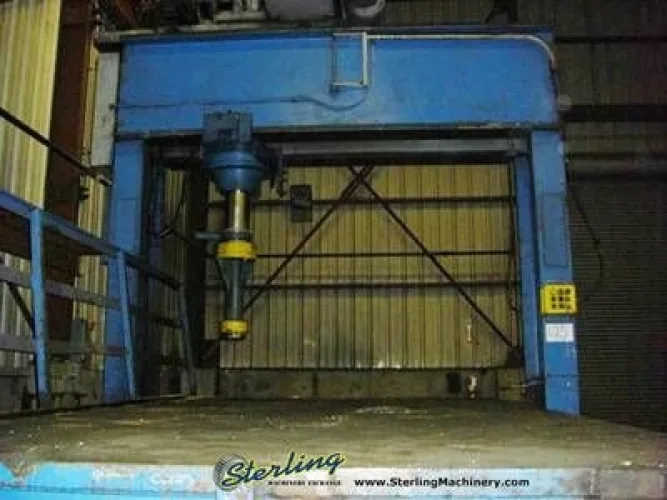

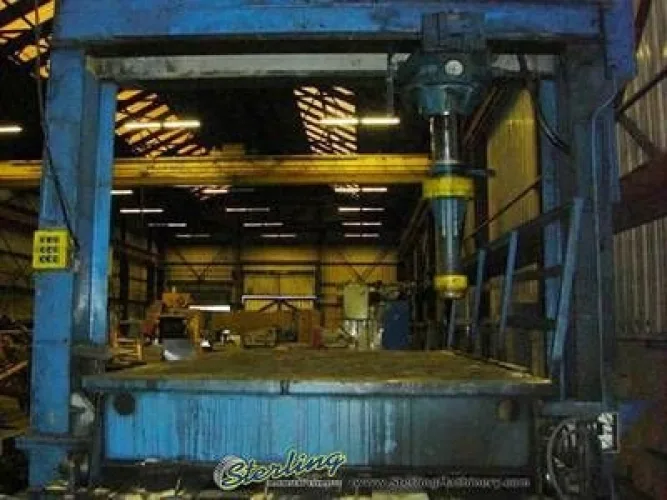

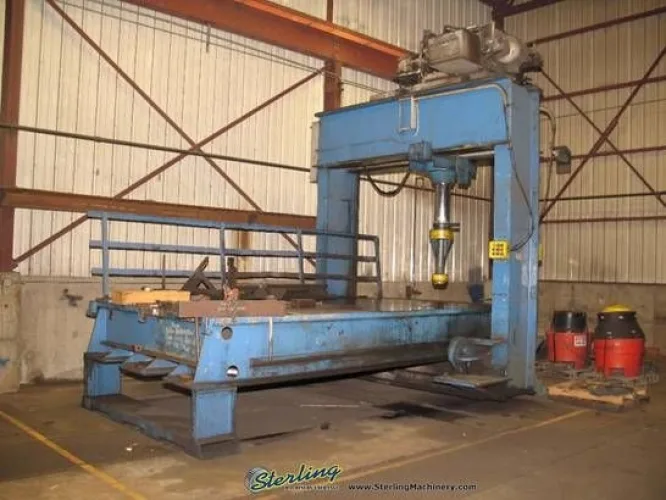

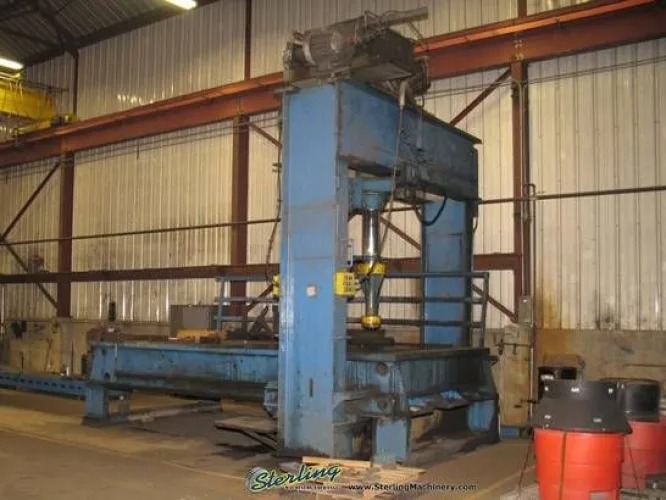

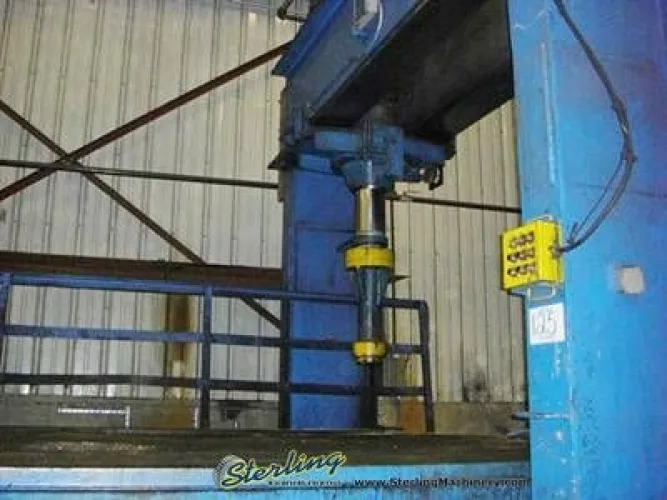

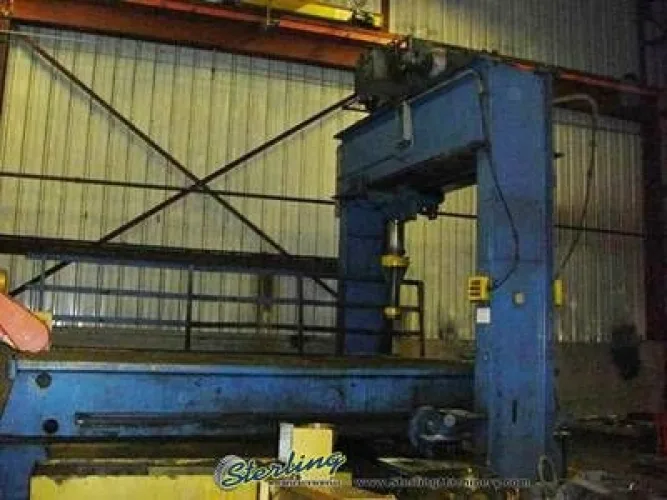

DAKE HYDRAULIC TRAVELING H-FRAME STRAIGHTING PRESS | CAPACITY: 150 TON X 13"; TONNAGE: 150; RAM STROKE: 13"; HEIGHT - TABLE TO RAM: 20" - 33"; H-FRAME LONGITUDINAL TRAVEL: 148"; CROSS RAM TRAVEL: 108"; TABLE SIZE: 9' X 18'; DISTANCE BETWEEN H-FRAME: 130"; RAM PISTON DIAMETER: 9"; DIMENSIONS (L X W X H): 18' X 13'6" X 17'6"; WEIGHT: 65,000 LBS; MOTOR: 15 | EQUIPPED WITH: HAND CONTROLS; PRESSURE GAUGE; POWER H-FRAME TRAVERSE | LOCATED IN: GRANITE FALLS, WA

LOT

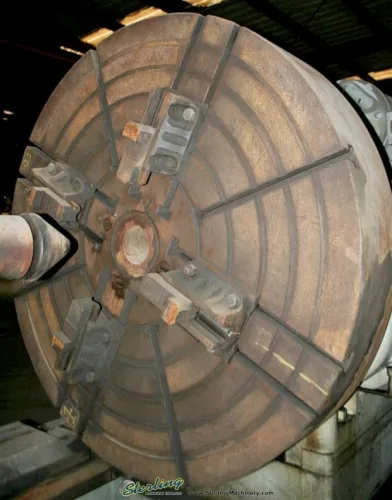

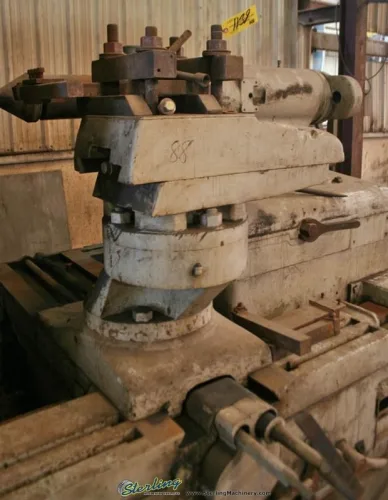

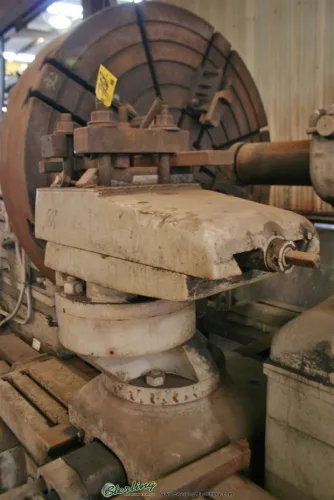

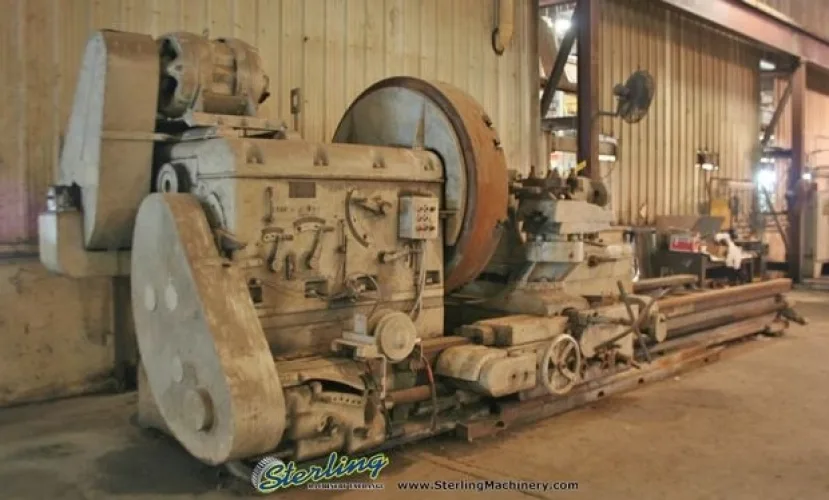

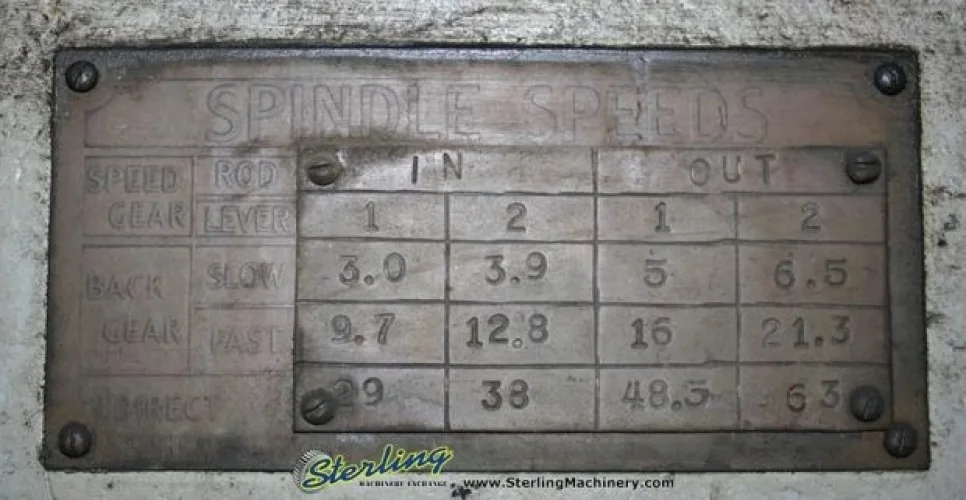

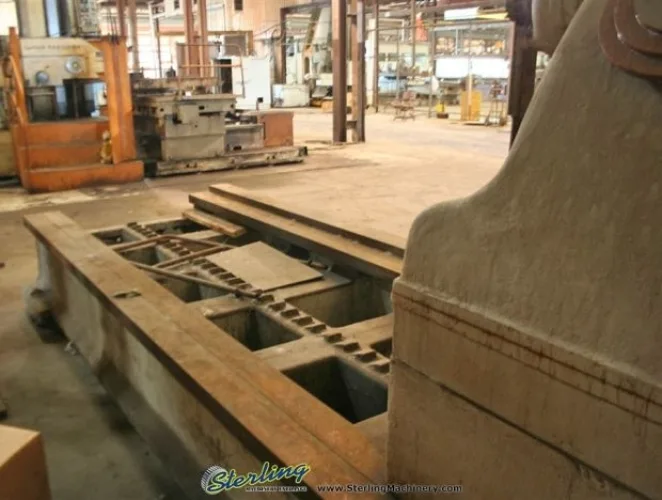

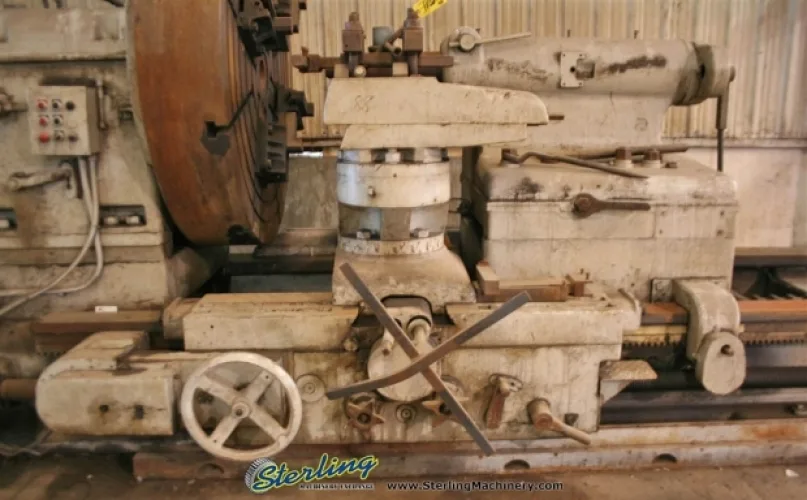

BETTS ENGINE LATHE | CAPACITY: 84" X 156"; SPINDLE SPEEDS (12): 3 - 63 RPM; SWING OVER BED: 84"; SWING OVER CROSS SLIDE: 70"; DISTANCE BETWEEN CENTERS: 156"; HOLE THRU SPINDLE: 2-1/2"; MOTOR: 30 HP | EQUIPPED WITH: 62" 4-JAW FACE PLATE | LOCATED IN: MCALLEN, TX

LOT

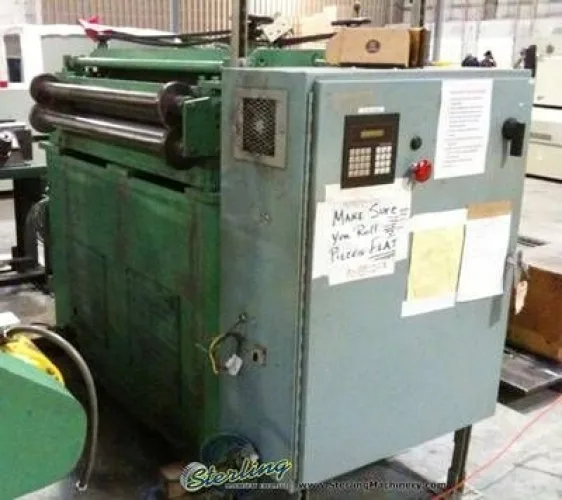

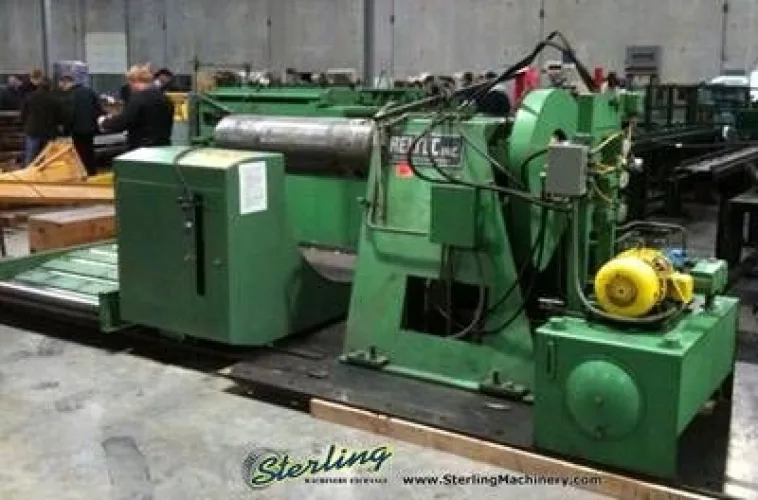

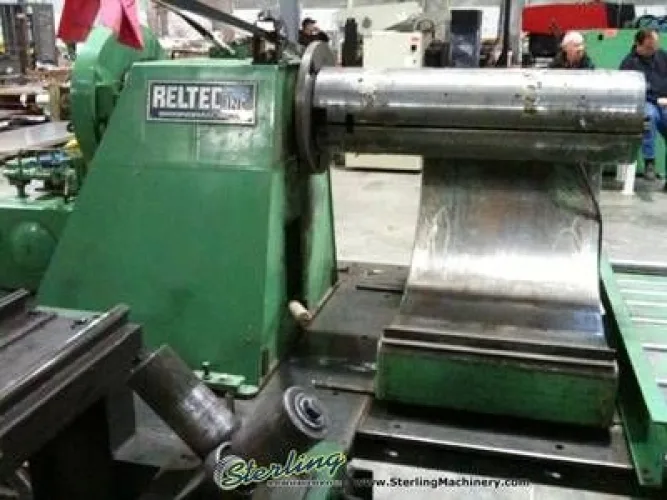

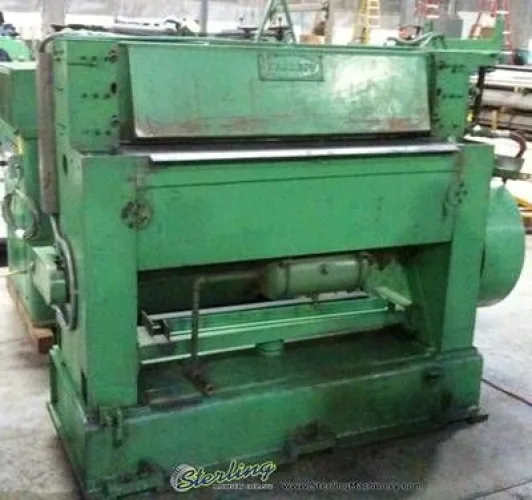

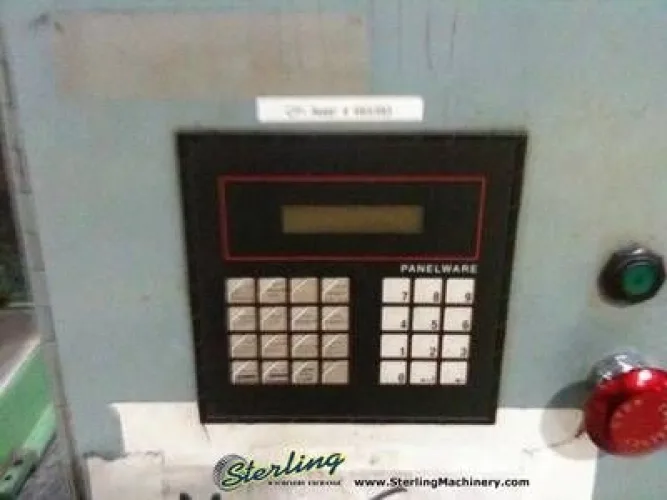

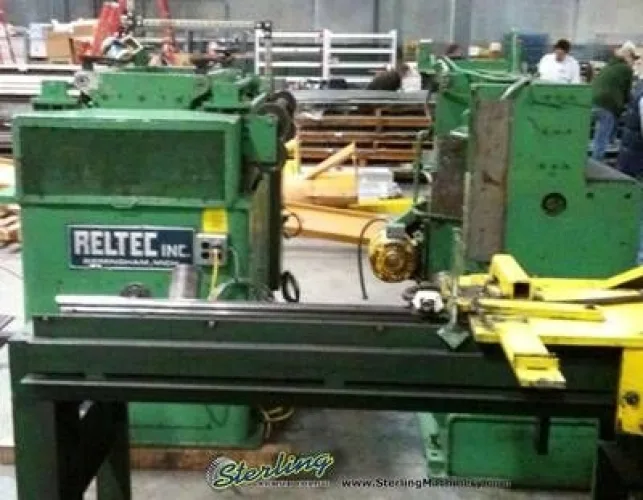

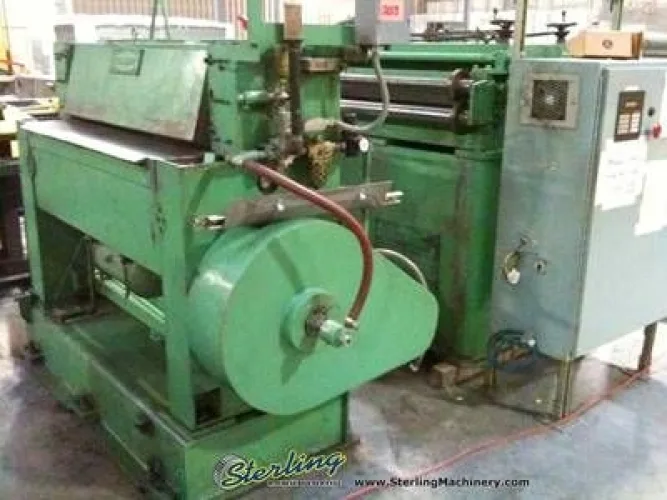

RELTEC CUT TO LENGTH LINE, MDL. 414 – COMPLETE WITH: *** RELTEC REEL & HYDRAULIC COIL CAR, MDL. 1000 | CAPACITY: 10,000 LBS; MAX. WIDTH: 48"; INTERNAL DIAMETER RANGE: 15" - 20"; MAX. OUTSIDE DIAMETER: 90"; COIL CAR LIFT: 12"; DIMENSIONS (REEL) (W X D X H): 80" X 140" X 62"; MOTOR: 5 | EQUIPPED WITH: HYDRAULIC EXPANSION; LOOP CONTROL ARM *** SEACREST POWER SHEAR | CAPACITY (MILD STEEL): 14 GA; MAX. CUTTING WIDTH: 52"; STROKES PER MINUTE: 125; DIMENSIONS (W X D X H): 90" X 43" X 70"; MOTOR: 3 | EQUIPPED WITH: AIR CLUTCH *** RELTEC STRAIGHTENER | CAPACITY: 0.020" - 0.080"; MAX. WIDTH: 48"; STRAIGHTENING ROLL DIAMETER (7): 2-1/4"; PINCH ROLL DIAMETER (4): 4"; MOTOR: 3; DIMENSIONS (W X D X H): 67" X 45" X 64" | EQUIPPED WITH: HUMP TABLE; MANUAL PINCH ROLLS; MANUAL HEIGHT ADJUSTMENT | LOCATED IN: SOUTH EL MONTE, CA

LOT

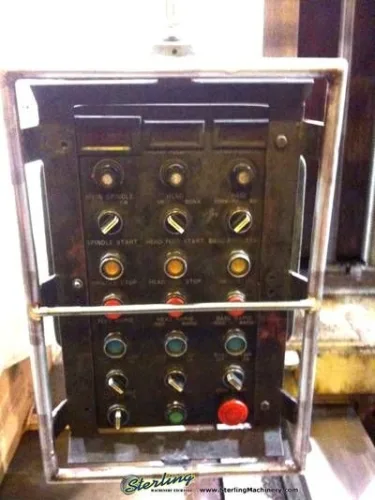

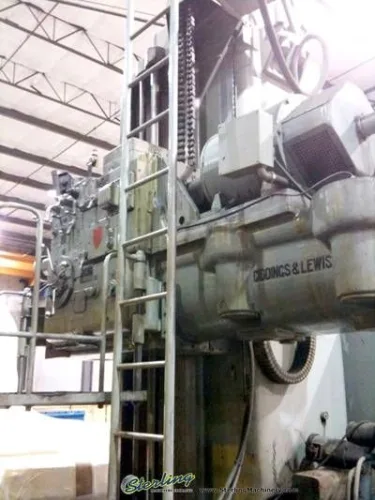

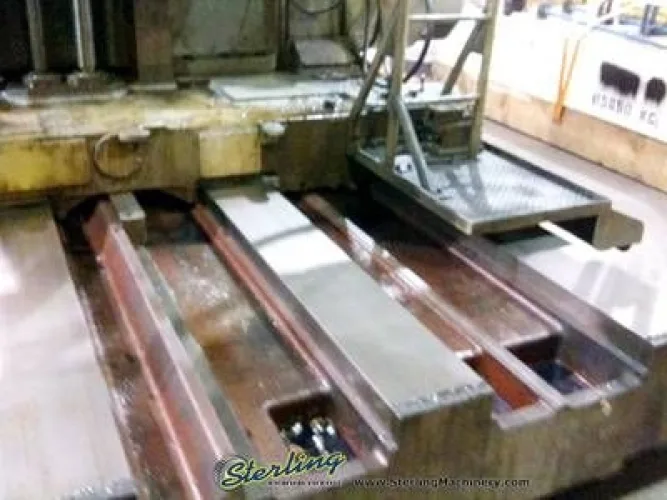

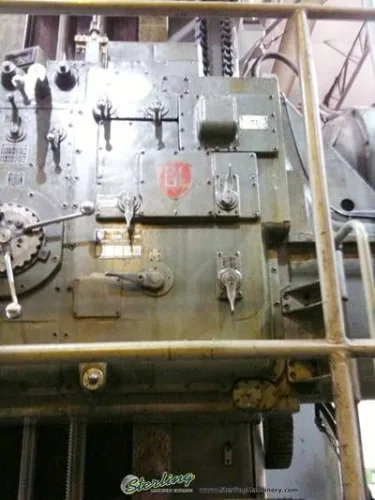

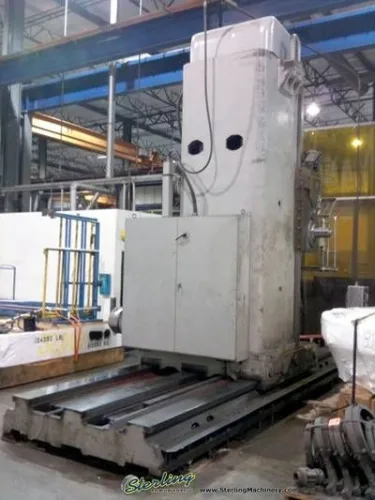

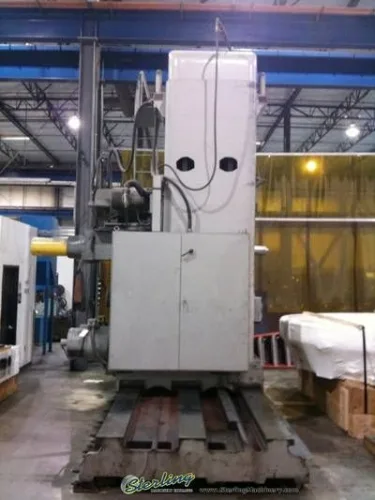

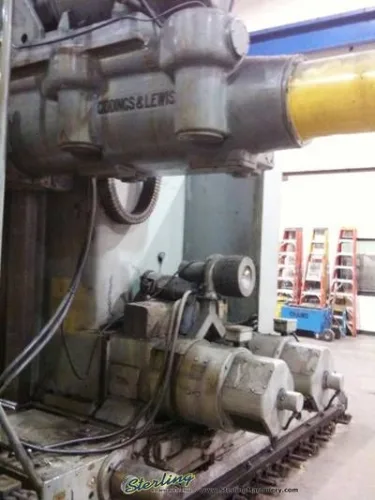

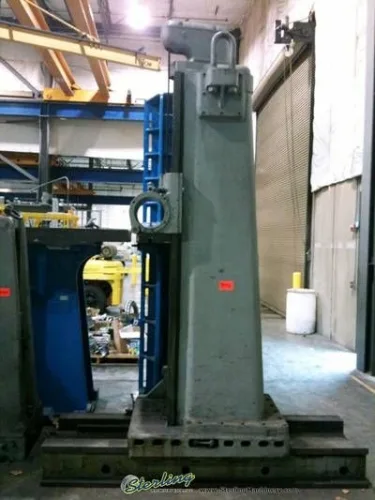

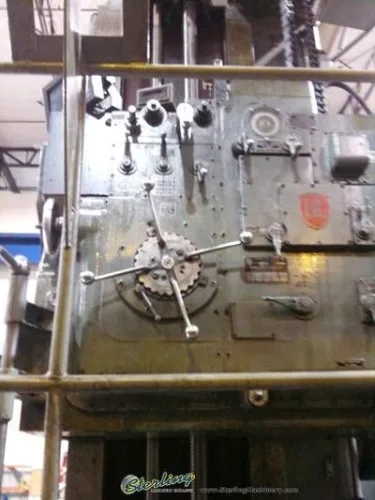

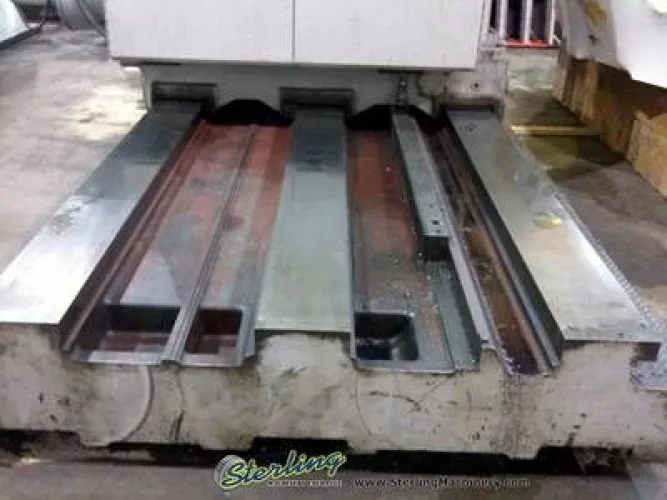

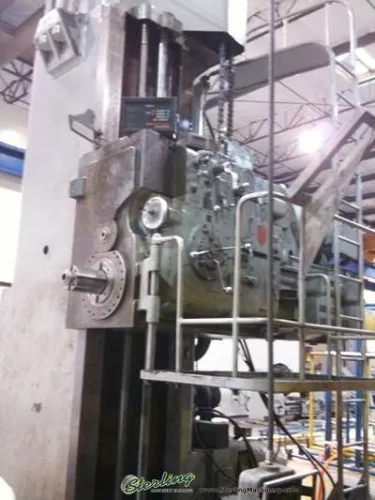

G & L HORIZONTAL BORING MILL (FLOOR TYPE), MDL. 560 - F, S/N 8892 | CAPACITY: 006”; SPINDLE DIAMETER: 6" MAIN 2-1/2 " SUB SPINDLE; SPINDLE NOSE: MAIN SPINDLE: #7 MT - SUB SPINDLE: #4 MT; SPINDLE SPEEDS: MAIN SPINDLE: 5 - 400 RPM - SUB SPINDLE: 20 - 1,600 RPM; SPINDLE TRAVEL: MAIN: 60" - SUB SPINDLE: 15"; FEEDS: 0.005" - 0.500 IPR; RAPID TRAVERSE RATE: 120 IPM; HEADSTOCK VERTICAL TRAVEL: 96"; HORIZONTAL TRAVEL OF COLUMN: 148"; DIMENSIONS (L X D X H): 19' X 13'6" X 18'; WEIGHT (APPROX.): 78,000 LBS; MOTOR: 40 HP | EQUIPPED WITH: TRIPLE WAY MACHINE; TAILSTOCK; PENDANT CONTROL; DIGITAL READ OUT SYSTEM; LADDER | LOCATED IN: TUALATIN, OR **** Click here to view machine running. ****
