200-Ton Macrodyne Downacting Hydraulic Press, Model: MP2-200, S/N: 9894-MP-200, Year: 1998

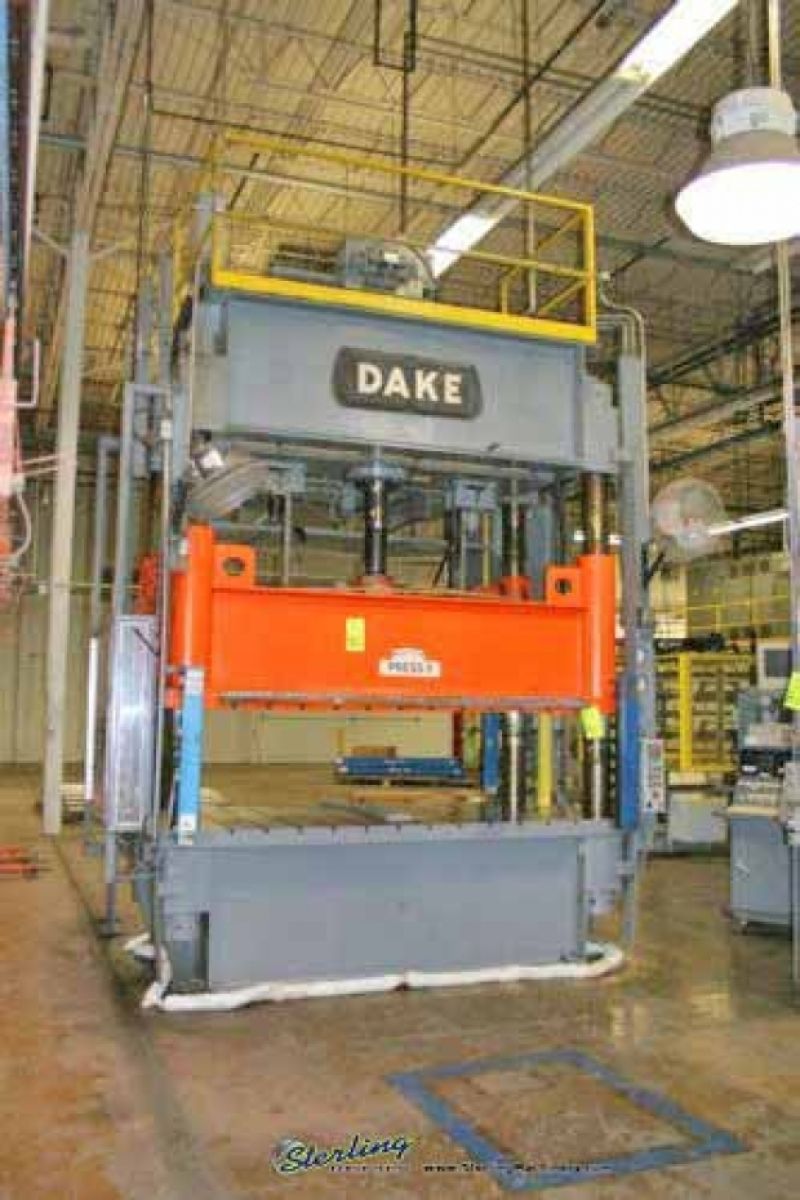

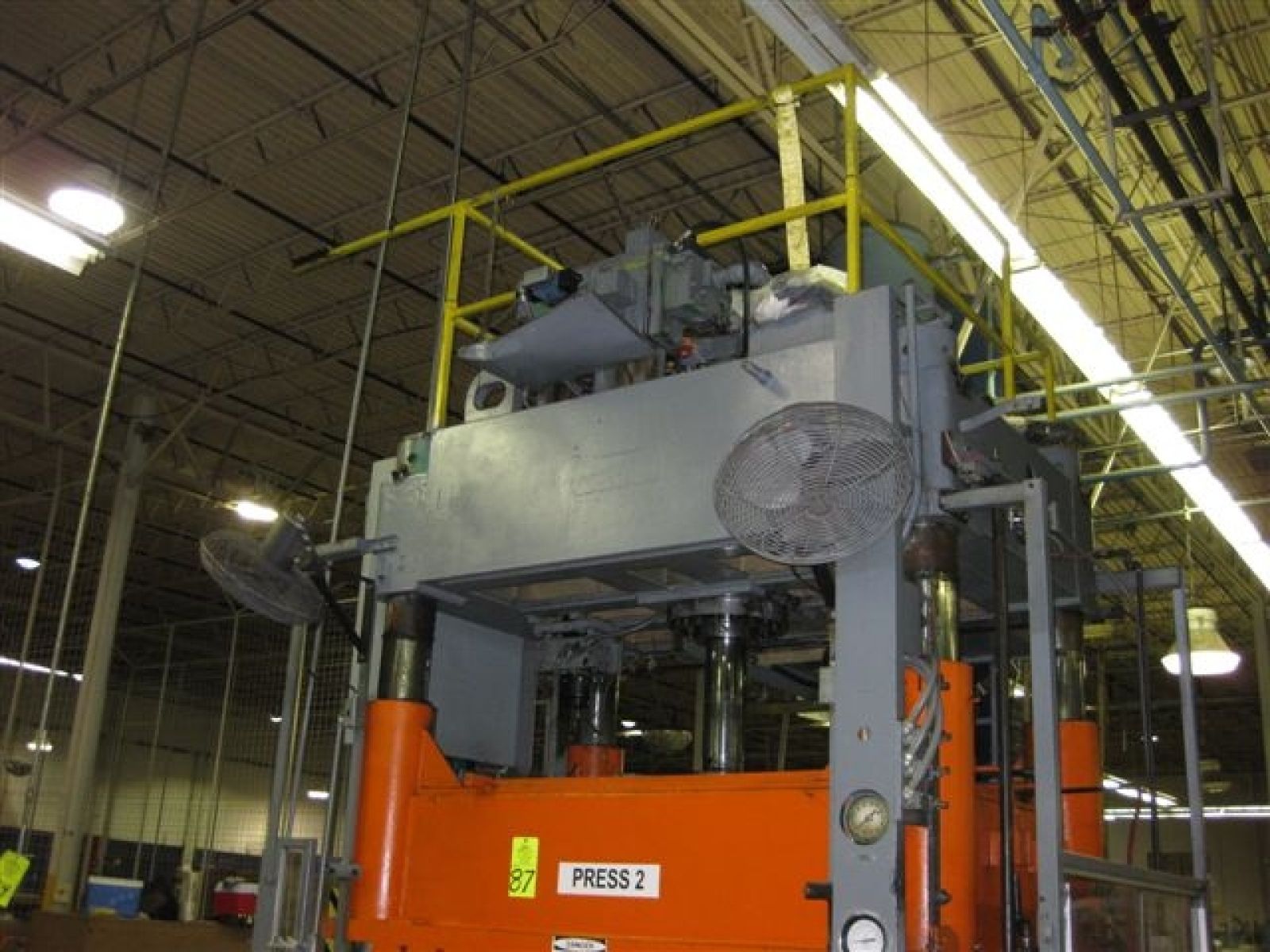

150-Ton Dake Downacting Hydraulic 4-Post Press, Model: 927-824, S/N: 183006, Year: 1984
100-Ton Macrodyne Downacting Hydraulic Press, Model: MPT-100, S/N: 99115-MPT-100, Year: 1999
96-Ton Vremac Double Action Hydraulic Press, Model: 100 FS, S/N: 964284, Year: 1996
200-Ton Macrodyne Mdl: MP2-200 Downacting Hydraulic Press
150-Ton Dake Mdl: 927-824 Downacting Hydraulic 4-Post Press
100-Ton Macrodyne Mdl: MPT-100 Downacting Hydraulic Press
96-Ton Vremac Mdl: 100 FS Double Action Hydraulic Press

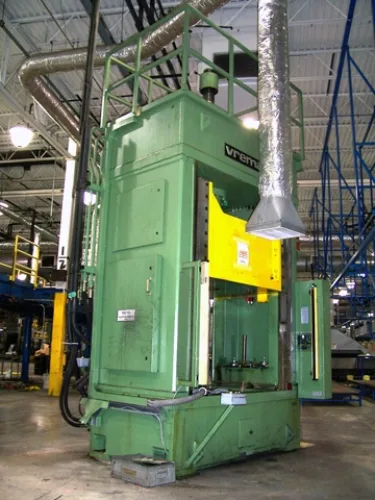

Vremac Double Action Hydraulic Press:
Manufacturer: Vremac
Model: 100 FS
S/N: 964284
Year: 1996
Specifications:
Tonnage 96
Bed Slide 50" x 60.2"
Tonnage Upper Cylinder 96
Stroke Upper Cylinder 17.7"
Tonnage Lower Cylinder 33.7
Stroke Lower Cylinder 5.9"
Tonnage Ejector Cylinder 33.7
Stroke Ejector Cylinder 1.38"
Daylight 33.5"
Drawing Cushion Area 35.4" x 51.2"
Speeds
Upper Cylinder 177 IPM Rapid
59 IPM Working
330 IPM Return
Lower Cylinder 70.8 IPM Up
177.2 IPM Down
Ejector Cylinder 82.6 IPM Up 47.2 IPM Down
Equipped With:
Controls
40 Horsepower:(Main Hydraulic Pump)
10 Horsepower:(Ejector Pump)

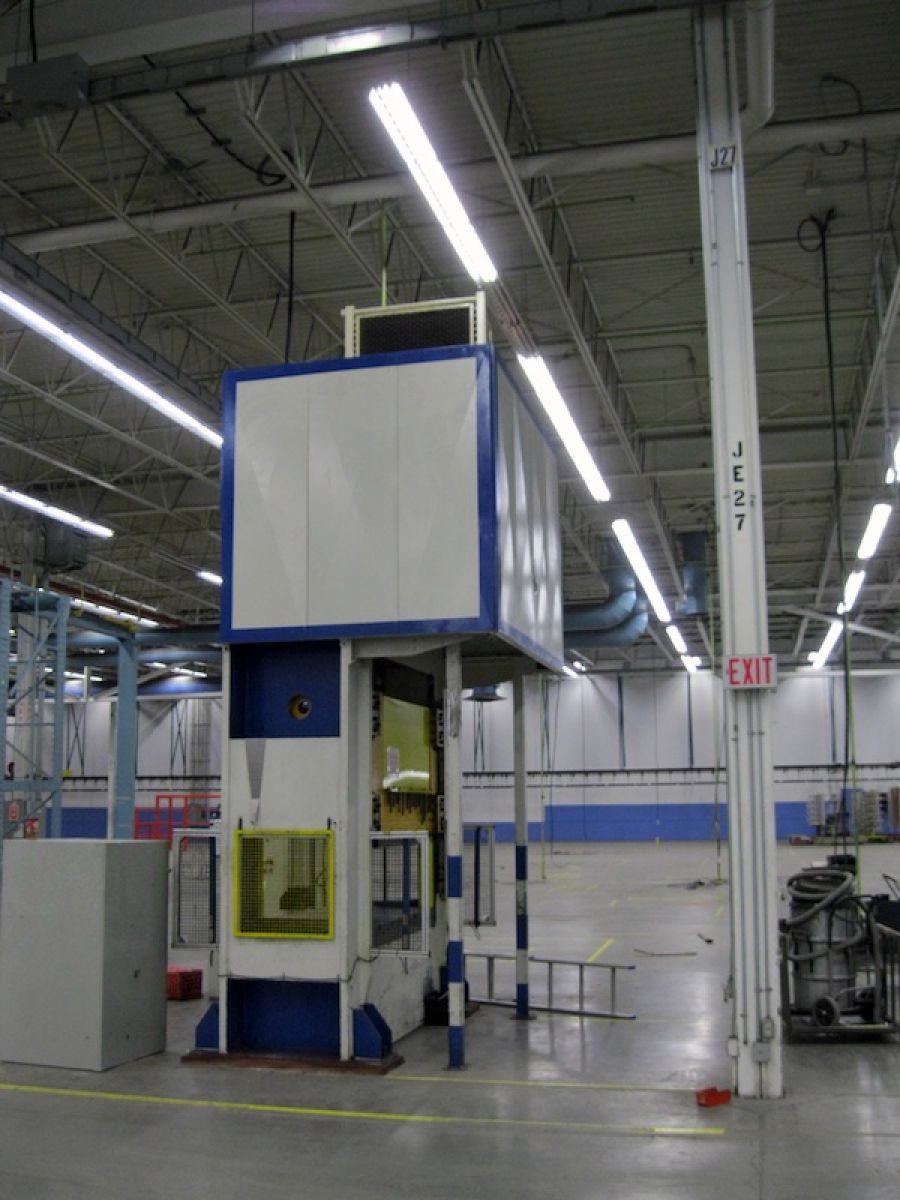

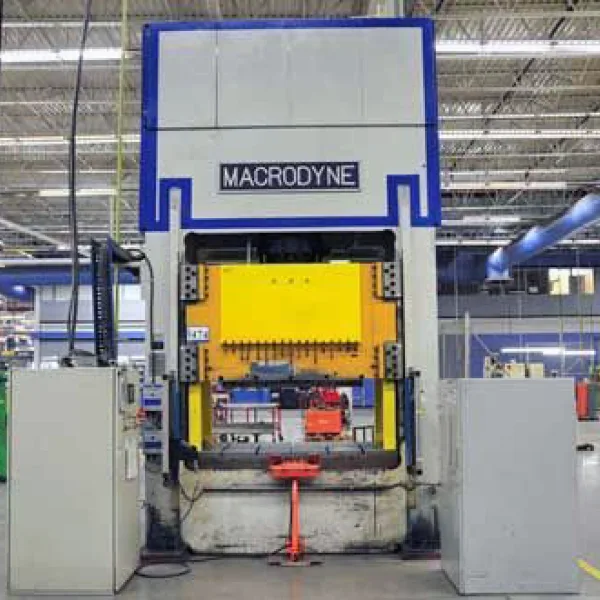

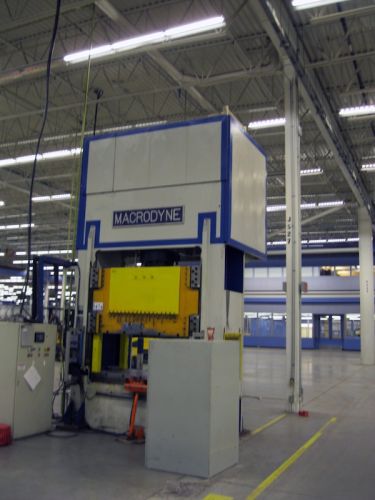

Macrodyne Downacting Hydraulic Press:
Manufacturer: Macrodyne
Model: MP2-200
S/N: 9894-MP-200
Year: 1998
Specifications:
Tonnage 200
Maximum Stripping Capacity 10 Ton
Stroke 18"
Daylight Opening 24"
Shut Height 6"
Bed Platen Size (L-R x F-B) 72" x 36"
Slide Size (L-R x F-B) 72" x 41.675"
Floor To Top Of Bolster 36"
Speeds 230 IPM Fast Advance
25 IPM Pressing
230 IPM Rapid Retract
Hydraulics Top Mounted
Main Cylinder 15" Bore Diameter
11" Rod Diameter
Double Acting
Equipped With:
Welded Steel Frame Design
8-Point Slide/Platen Guiding
Bolster Plate T-Slotted
Slide T-Slotted
Electrics With Allen Bradley # SLC 5/04 Controls
Flush Floor Design
Horsepower 50
Location: Calgary, AB Canada

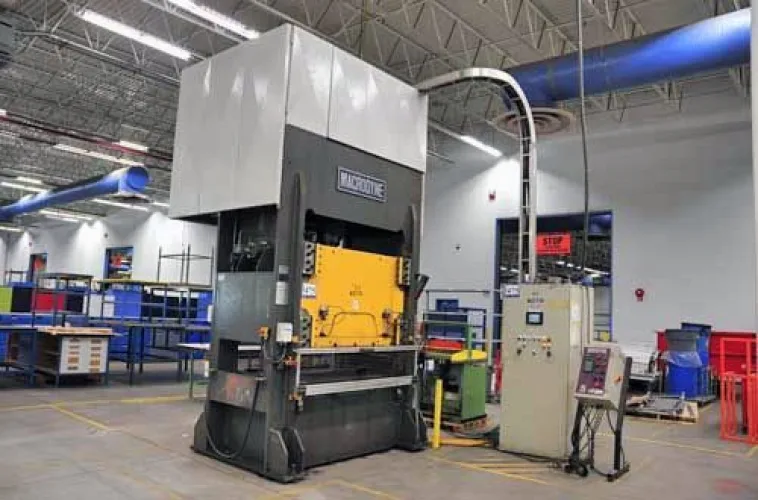

Macrodyne Downacting Hydraulic Press:
Manufacturer: Macrodyne
Model: MPT-100
S/N: 99115-MPT-100
Year: 1999
Specifications:
Tonnage 100
Net Lifting Capacity 5 Tons
Stripping Capacity 10 Tons
Stroke 6"
Daylight 12"
Shut Height 6"
Bed Platen & Slide Size (L-R x F-B) 64" x 40"
Window 28" Wide
Top Of Bolster To Floor 36"
Speeds:
Fast Advanace 2" @200 IPM
Pressing 0.5" @ 20 IPM
Rapid Retract 2.5" @ 250 IPM
Hydraulics:
Top Mounted
Main Cylinder:
Bore Diameter 9"
Rod Diameter 7"
Doubleacting
Equipped With:
T-Slotted Slide
T-Slotted Bolster Plate
Welded Steel Frame Style
8-Point Slide/PPlaten Guiding
Flush Floor Design
Electrics W/ Allen Bradley # SLC5/04 Controls
Horsepower 30-1800 RPM Pump Motor
Location: Calgary, AB Canada
