R-L 24'' BROOKES SLITTER: 10hp Drive Motor @ 1750rpm; Driving 3'' diameter arbor w/ Keyways; Cutting Capacity: 20 Cuts of .024'' Mild steel/ 2 Cuts of .150'' Mild steel; Entry Side Guide Unit: (3) large dia. Fiber covered rolls; (1) entry 3'' dia. Roll; Coil Loading Car: 6000lb. capacity; Paper Rewinder: Motor driven shaft manually expanded to grip cardboard cores; L-R Littell Uncoiler: Mdl: 60-24; 6000lbs capacity; 16'' to 20'' I.D. coils; 24'' coil width capacity; air operated band type tension brake; Dual Paper Rewind Stand: (2) 6'' dia. Independently hydraulically driven expanding shafts; 2500lb max capacity for each shaft; L-R Recoiler: 4'' dia. X 32” L shaft w/ keyway and back plate; 4000lb capacity;
R-L 28'' SLITTER: 75hp U.S. DC Motor @ 850; 4 ½'' arbor(s) dia.; Cutting Capacity: 20 Cuts of .060'' Mild steel/ 3 Cuts of .187'' Mild steel; Entry Side Guide Unit: Pressure pads; Two Frames; one per each side of the incoming strip; each containing (2) vertically held rotatable rolls and adjustable to make contact with the strip edges; R-L Coil Tech Coil Tension Unit: (2) Felt pressure pads; R-L Coil Tech Recoiler: 16'' drum x 30'' face; 10k capacity; Emerson 40hp DC motor @ 850/2550rp; Tooling bar w/6'' diameter separator discs and 4'' diameter spacers; Transfer Horn: Single arm horn; 10k capacity x 30''wide; Loopco Coil Transfer Car: 10k Capacity
R-L WEAN 53'' REMOVABLE HD. SLITTER: 65hp GE DC Motor @ 850/2550rpm; 6'' Arbor diameter w/ Keyways; Driven Knife Speeds = 216 & 650fpm using an 11'' Dia. Knife; Cutting Capacity: 20 Cuts of 18ga. Mild steel/ 3 Cuts of 7ga. Mild steel; Entry Side Guide Unit: Two Frames; one per each side of the incoming strip; each containing (3) vertically held rotatable rolls and adjustable to make contact with the strip edges; Two motor driven 6'' dia. Pinch rolls

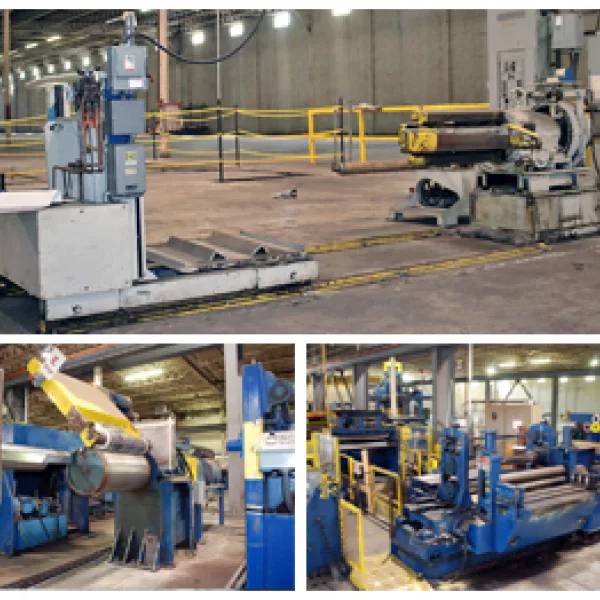

NO RESERVE AUCTION - METAL PROCESSING EQUIPMENT: R-L 24" BROOKES SLITTING LINE, R - L 28" SLITTING LINE & R - L 53" WEAN REMOVABLE HD SLITTING LINE

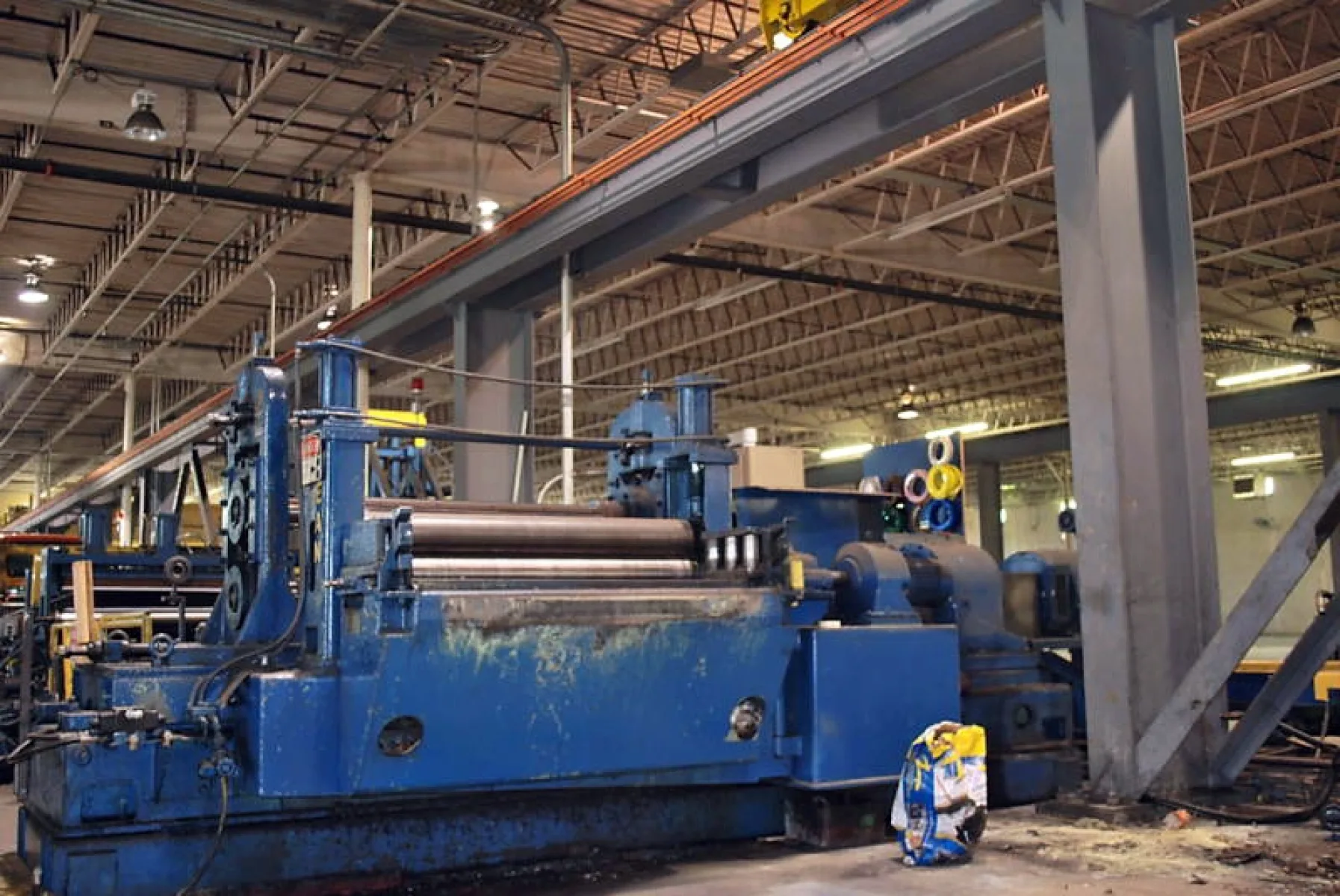

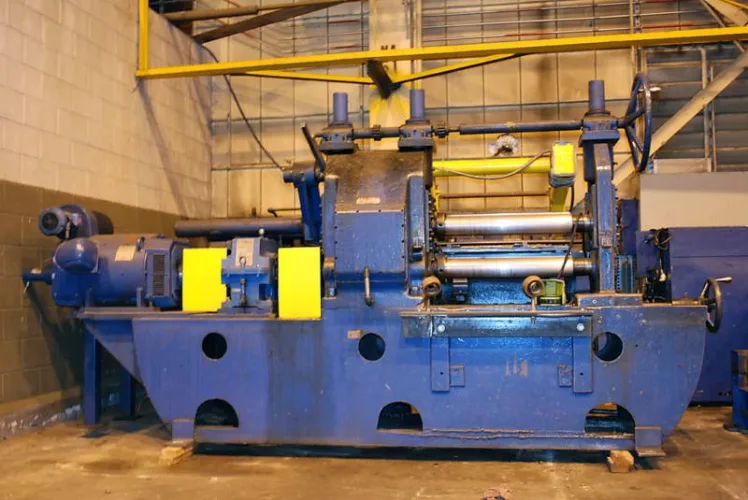

R-L Wean 53" Removable HD. Slitter: Driven and Pull-thru w/ Overrunning Clutches; 65hp GE DC Motor @ 850/2550rpm connected to an Intermediate Nuttall Gear Reducer of 11.3 Ratio; 6" Arbor diameter w/ Keyways; Driven Knife Speeds = 216 & 650fpm using an 11" Dia. Knife; Pull-Thru speeds dependent on recoiler drive system; Arbors vertically adjusted by overhead jackscrews; Outboard housing moved into and out of arbors by hand wheel and connected machine screw.
Cutting Capacity: 20 Cuts of 18ga. Mild steel/ 3 Cuts of 7ga. Mild steel (Customer to determine speeds for different gauges and number of cuts)
Entry Side Guide Unit: Two Frames, one per each side of the incoming strip, each containing (3) vertically held rotatable rolls and adjustable to make contact with the strip edges; Two motor driven 6" dia. Pinch rolls; Upper roll raised and lowered by cylinders; Entry pass line roll by customer if required

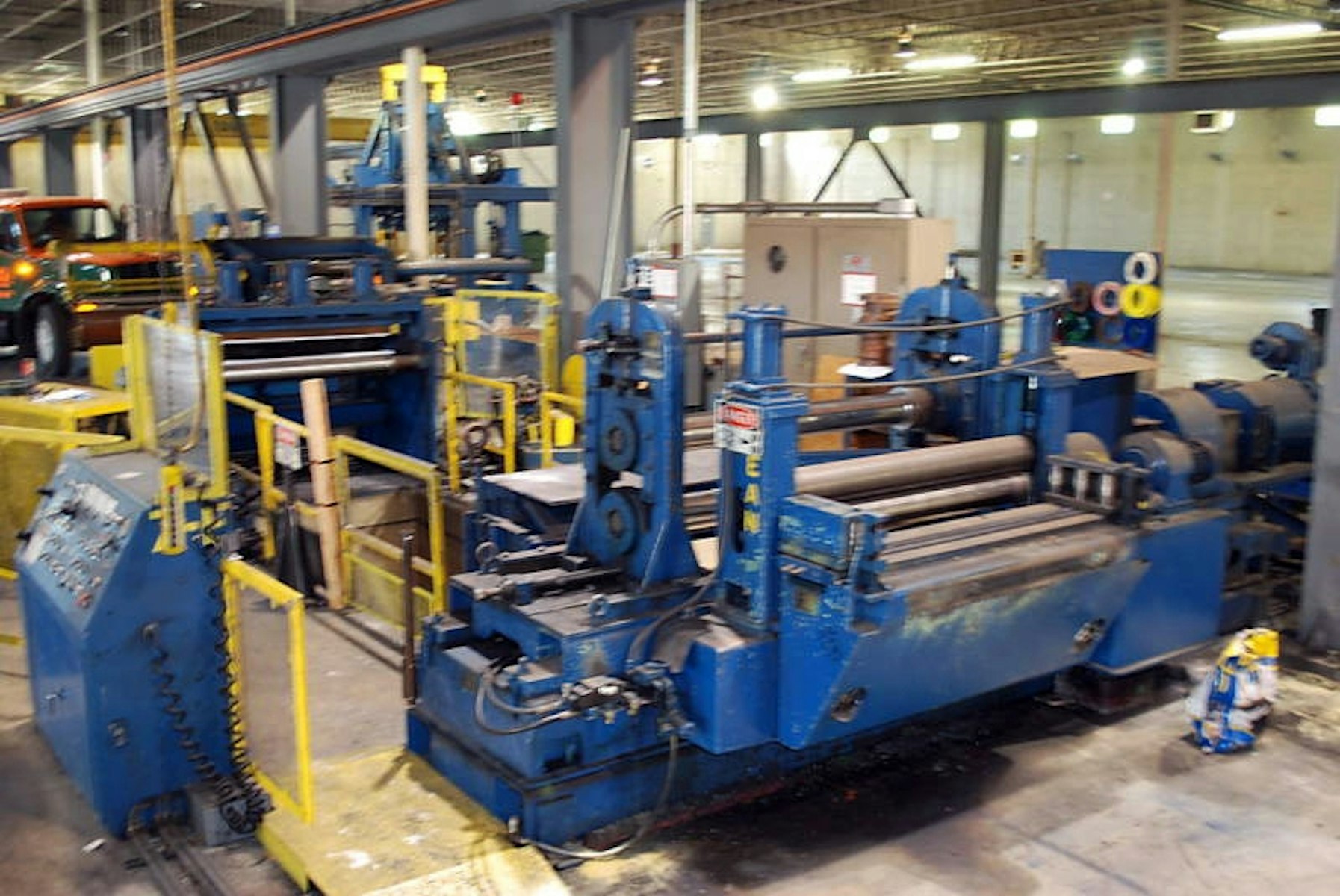

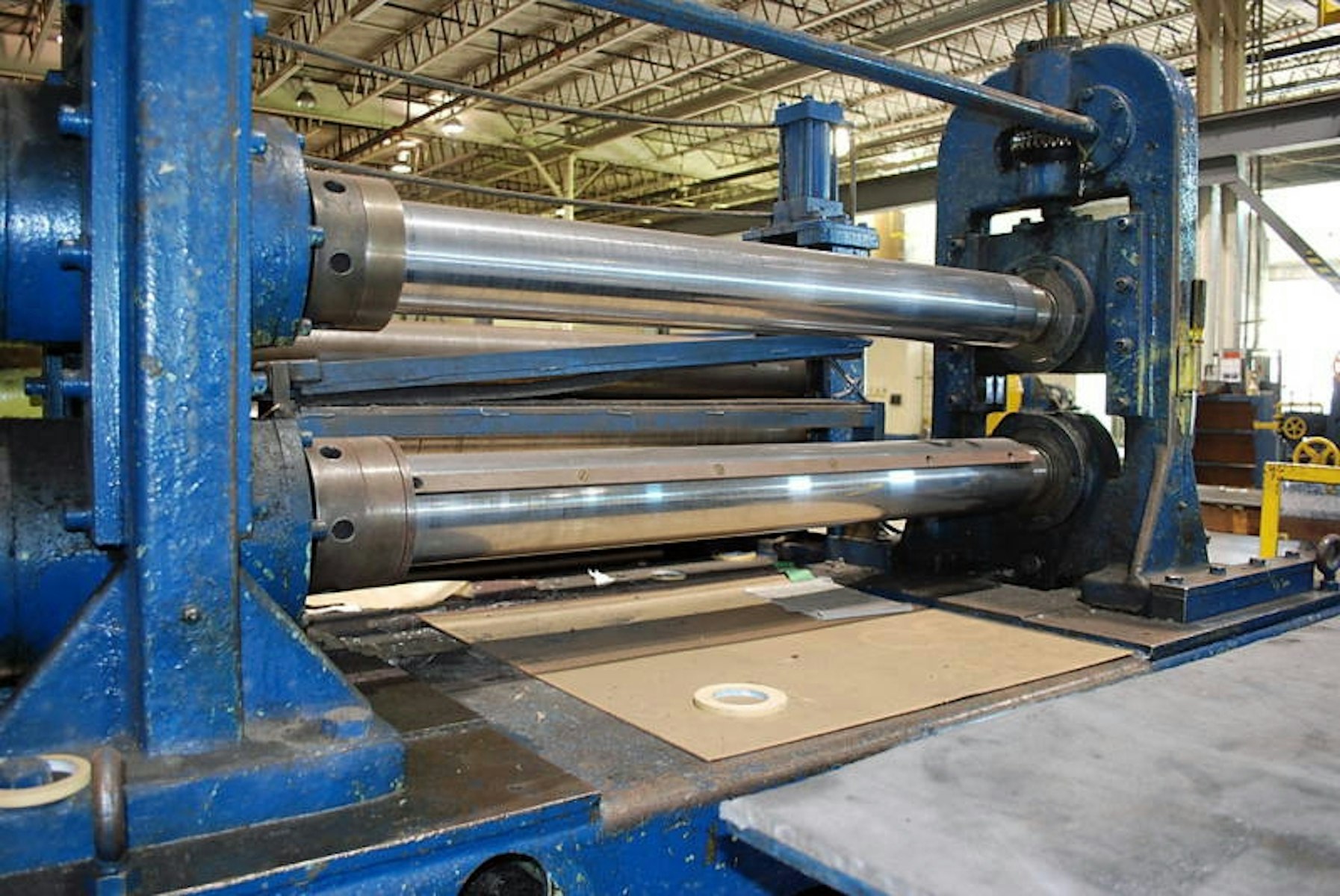

R-L 28" Slitter: Driven and Pull-thru w/ Overrunning Clutches; 75hp U.S. DC Motor @ 850 coupled to an intermediate Foote-Jones gear reducer @ 3.375:1 ratio; 4 ½" arbor(s) dia. W/ keyways; Pull-thru speed dependent on recoiler drive systems; Upper Arbor vertically adjusted by overhead jackscrews; Outboard housing moved into and out of arbors by hand wheel and connecting screw
Cutting Capacity: 20 Cuts of .060" Mild steel/ 3 Cuts of .187" Mild steel (Customer to determine speeds for different gauges and number of cuts)
Entry Side Guide Unit: Pressure pads, upper pad manually adjustable; Two Frames, one per each side of the incoming strip, each containing (2) vertically held rotatable rolls and adjustable to make contact with the strip edges

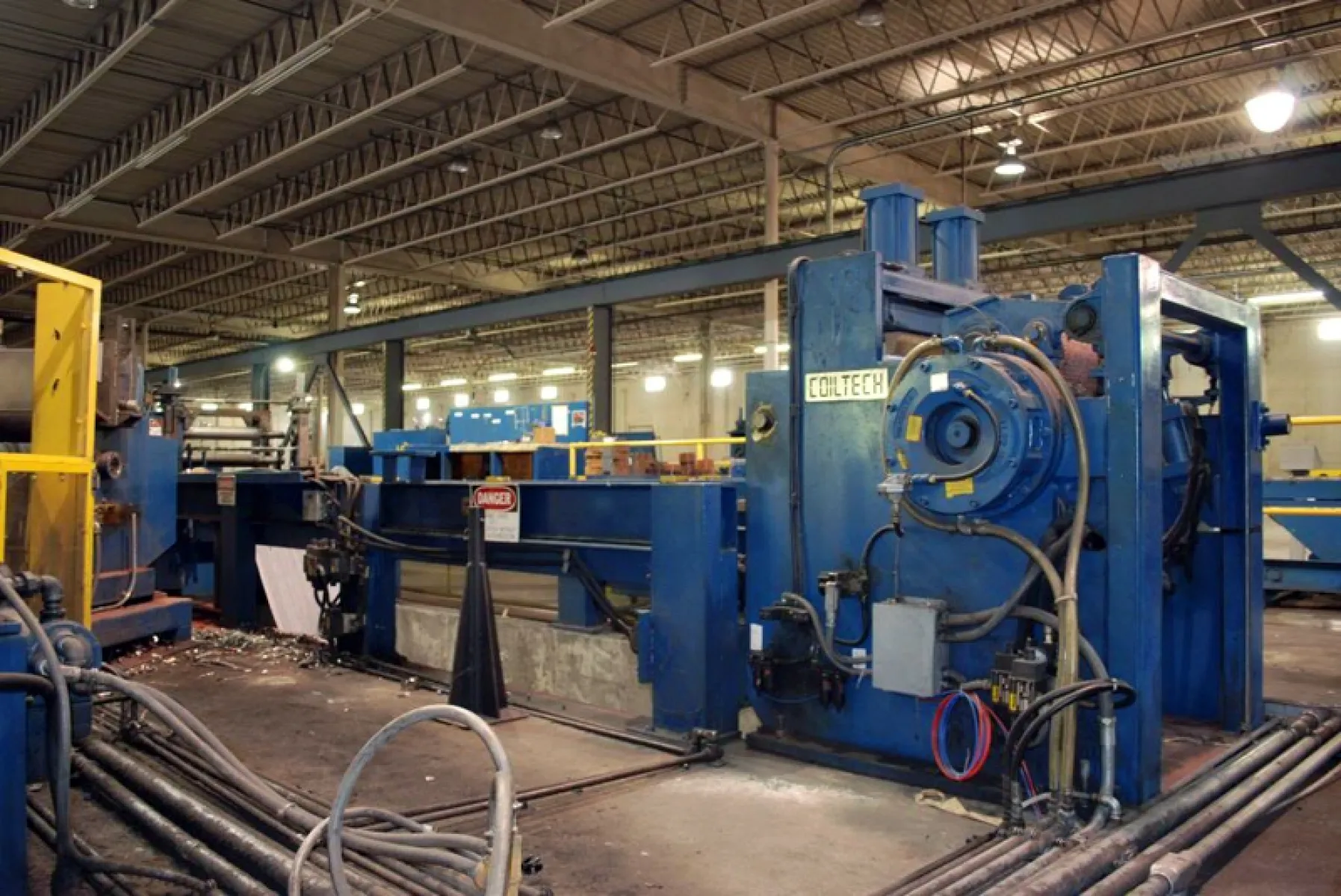

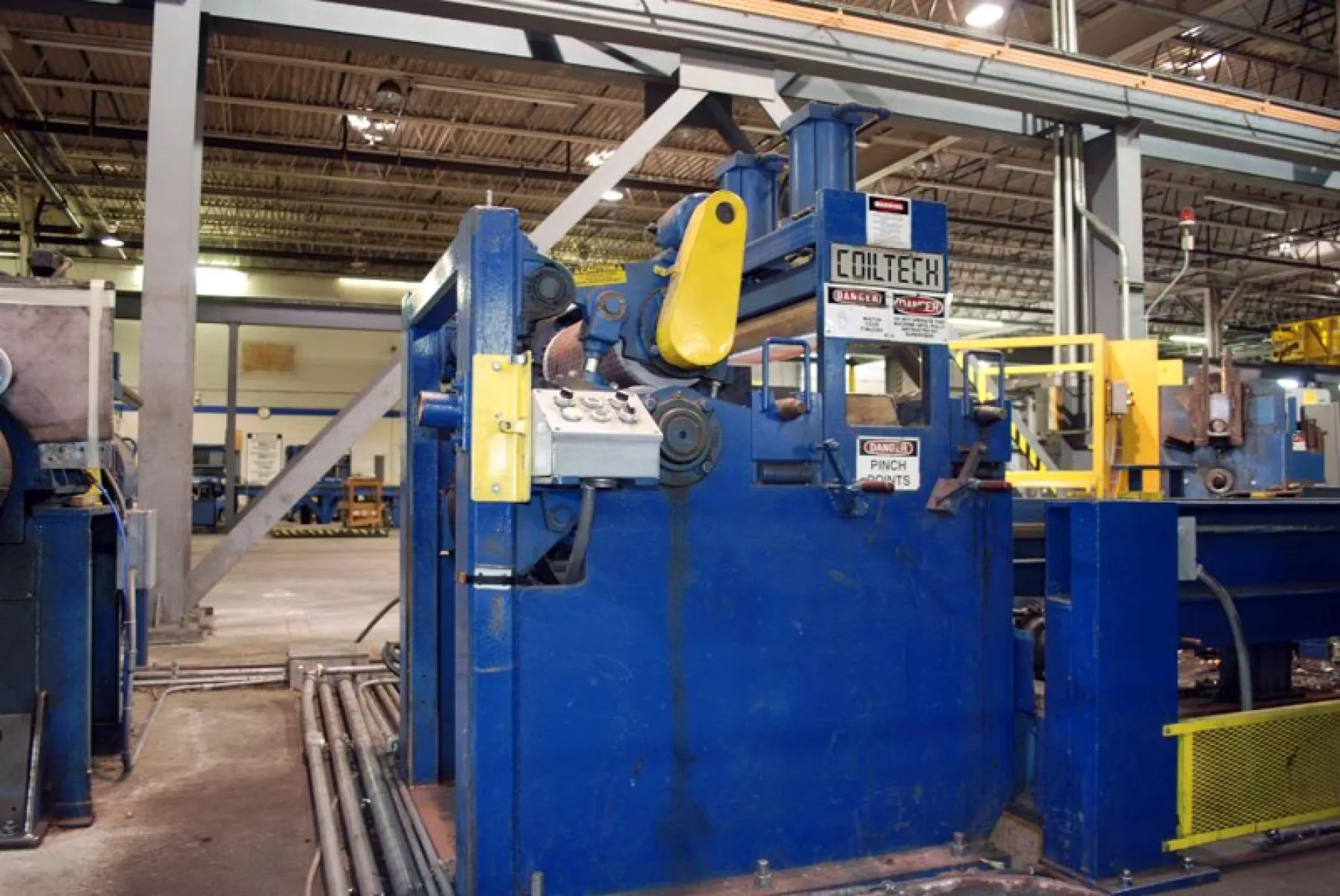

R-L Coil Tech Coil Tension Unit: Welded and machined containing; entry strip separator tooling bar w/tooling; (2) Felt pressure pads; Lower Pad is stationary, upper pad is raised and lowered by (2) large size air cylinders; Exit strip separator and direct coupled to a water cooled Wichita Brake; upper roll is pivoted up and down by (2) cylinders and is motor driven for feed-up of slit strips; Rolls are joined together by spur gearing in the down position; electrical operating buttons mounted to side of housing

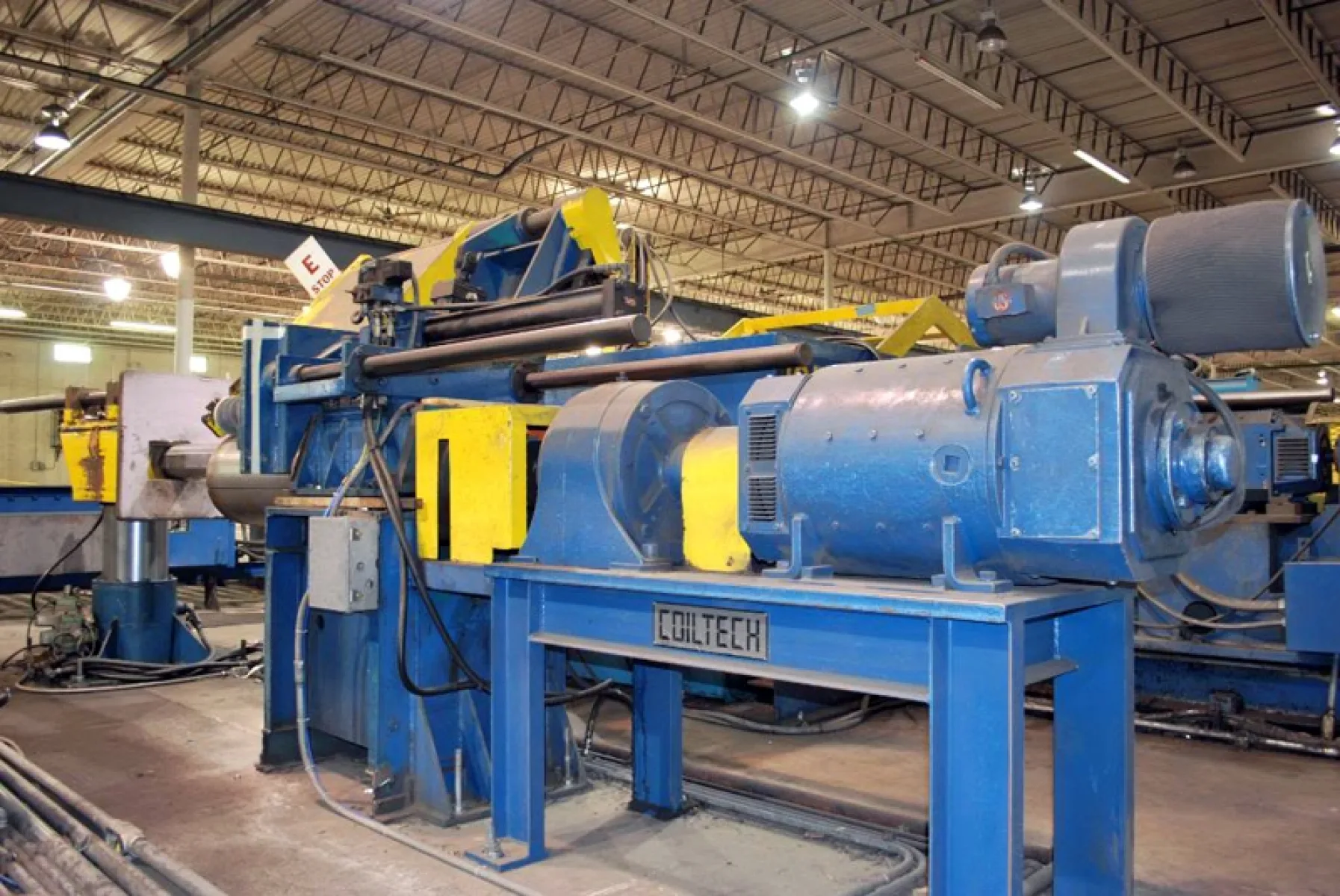

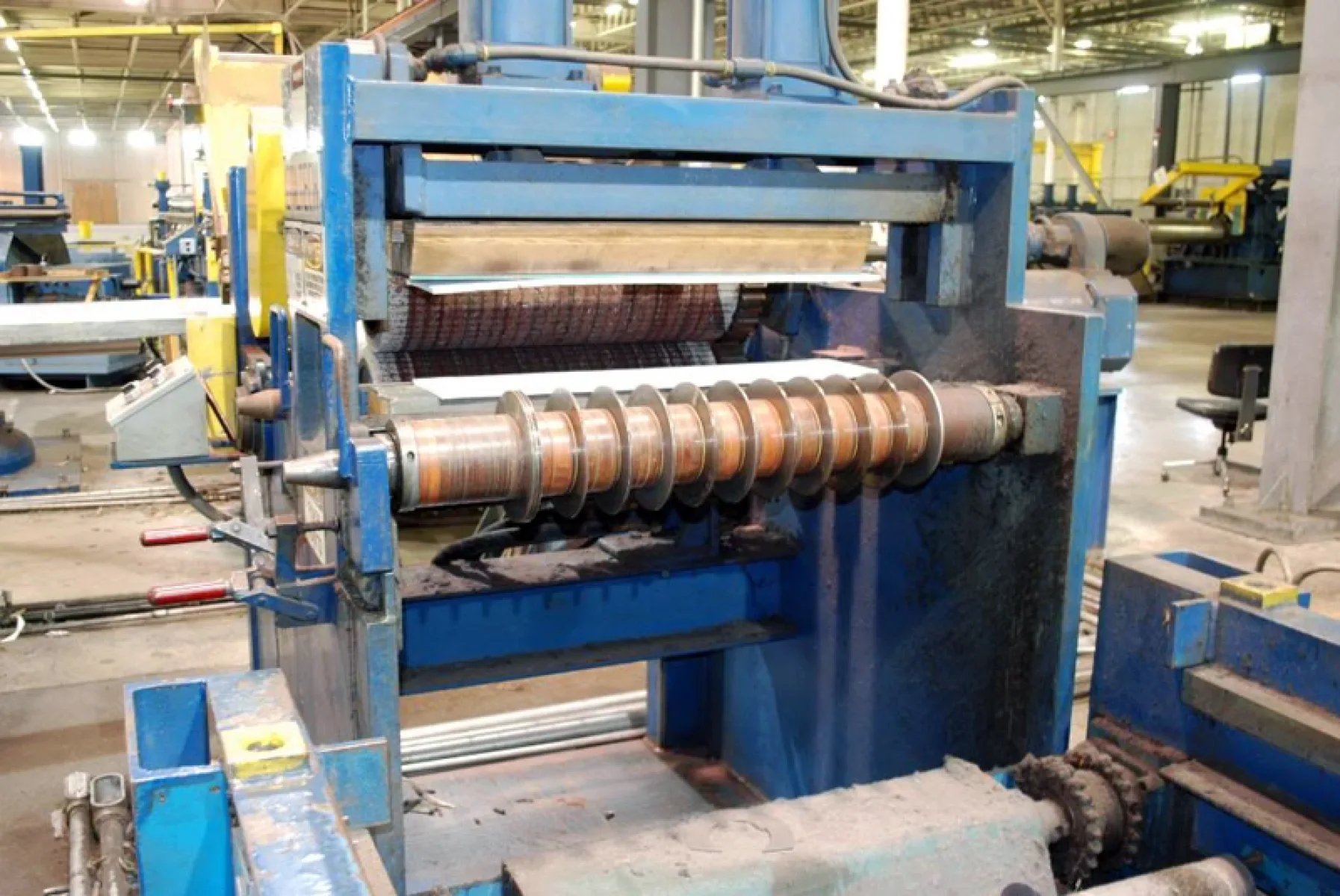

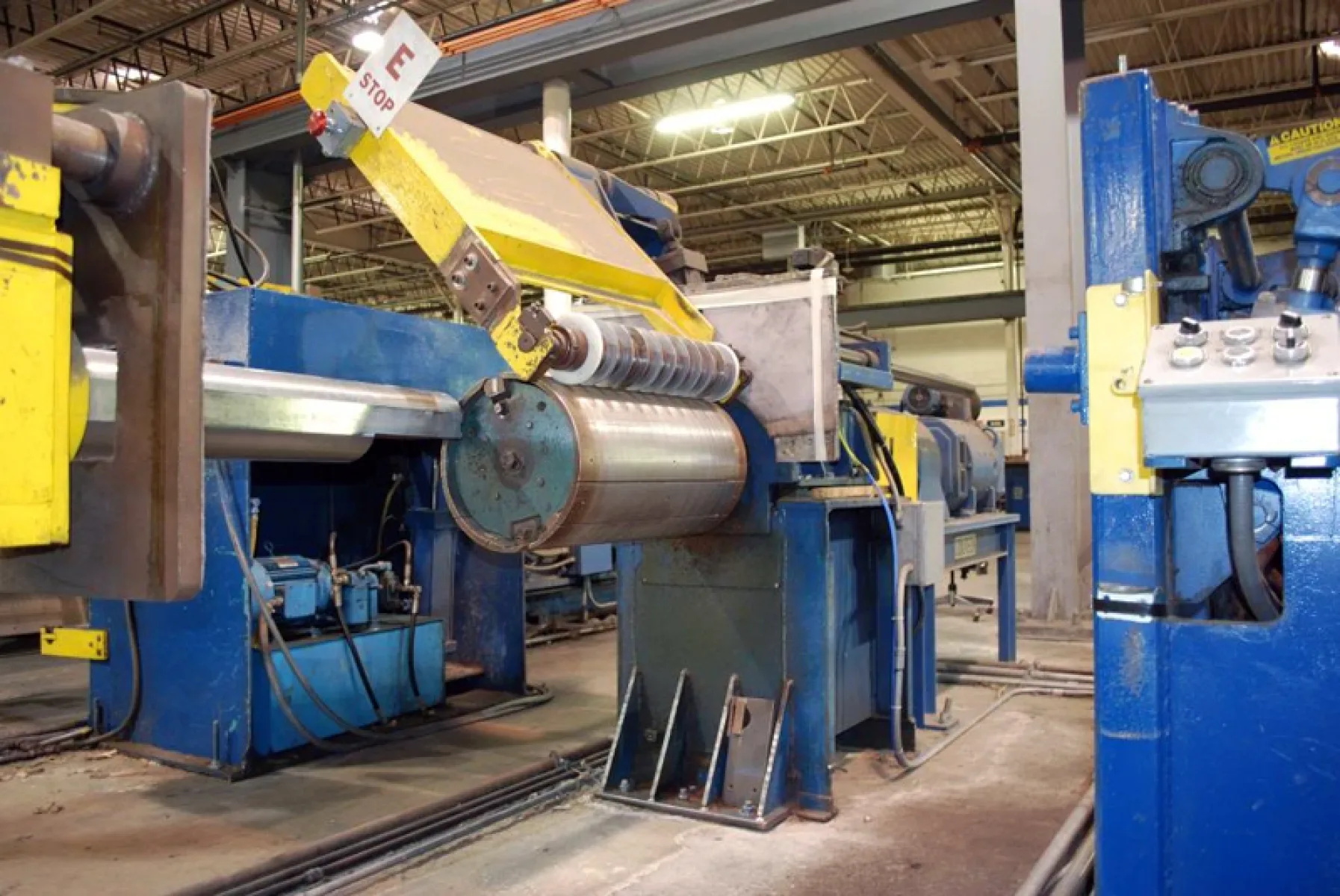

R-L Coil Tech Recoiler: 16" drum x 30" face; 10k capacity; Manual expand, collapse and gripping; Emerson 40hp DC motor @ 850/2550rpm coupled to an intermediate; Foote-Jones Gear reducer @ 7.59:1 Ratio: Minimum bare drum running speed – 469fpm; Cylinder operated overarm separator unit; Tooling bar w/6" diameter separator discs and 4" diameter spacers; Pusher plate hydraulically

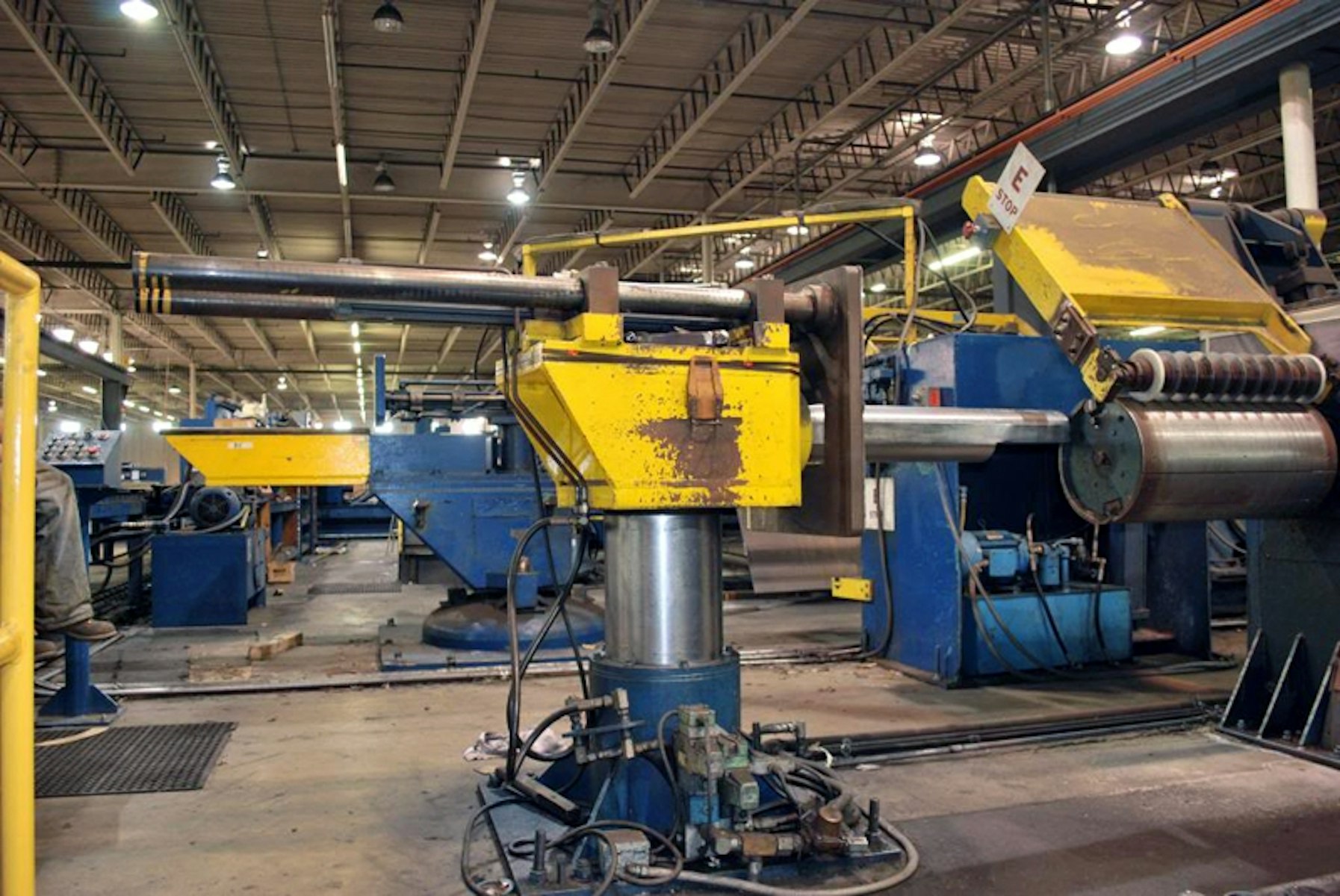

Transfer Horn: Single arm horn; 10k capacity x 30" wide; manually rotated; hydraulic push off plate; horn is raised and lowered hydraulically

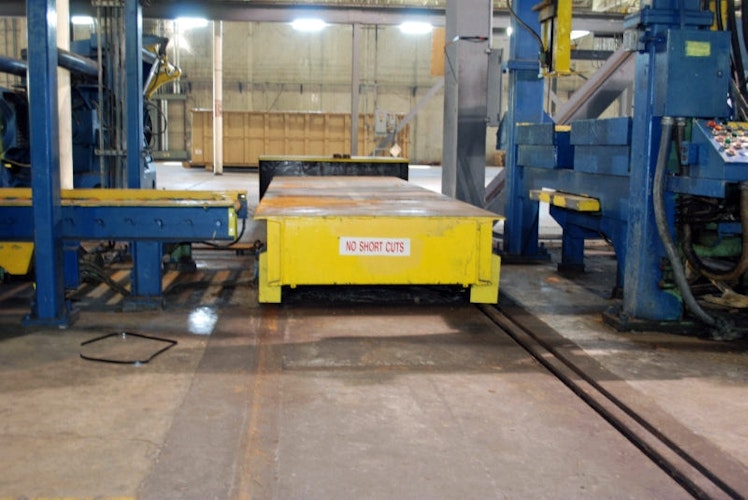

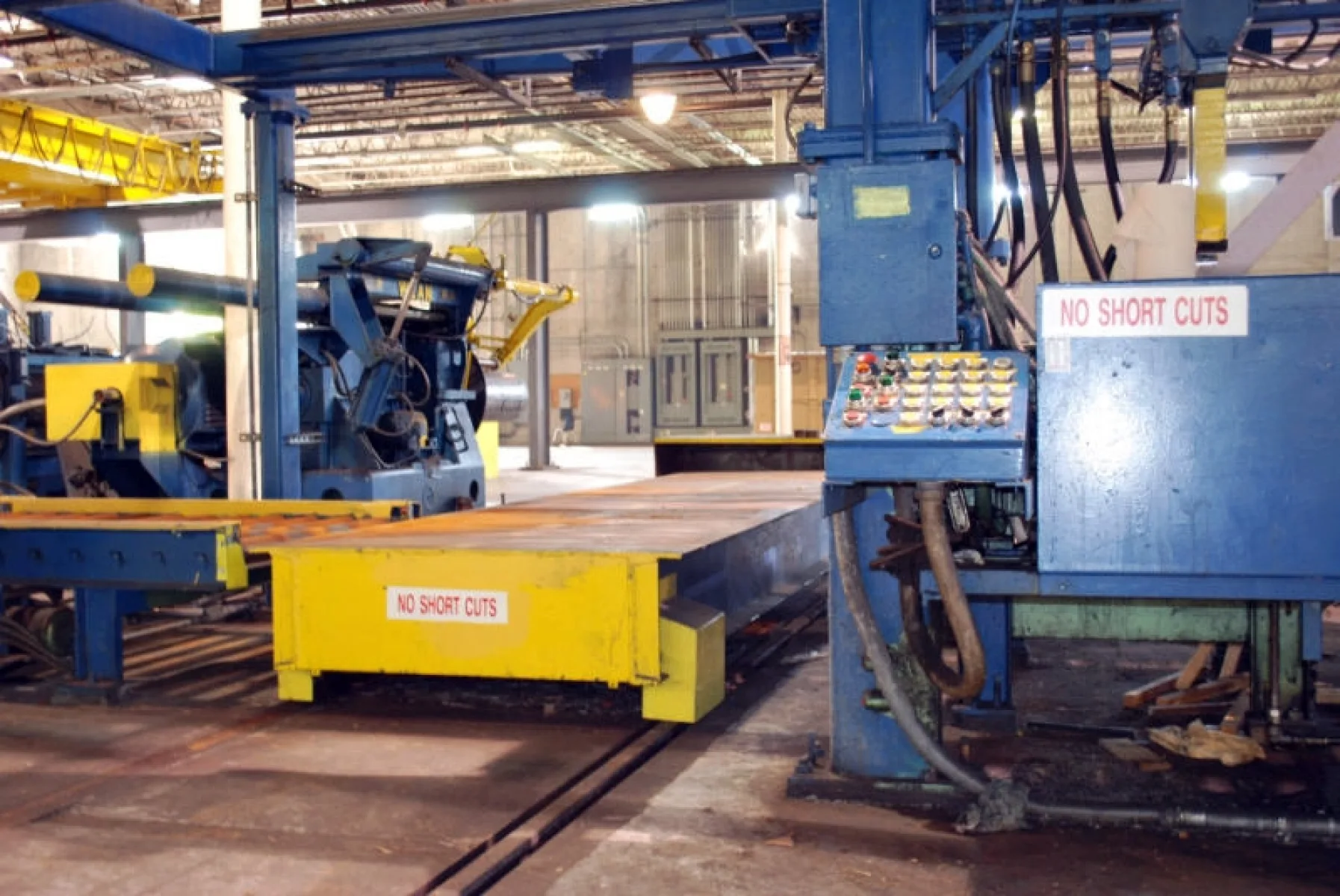

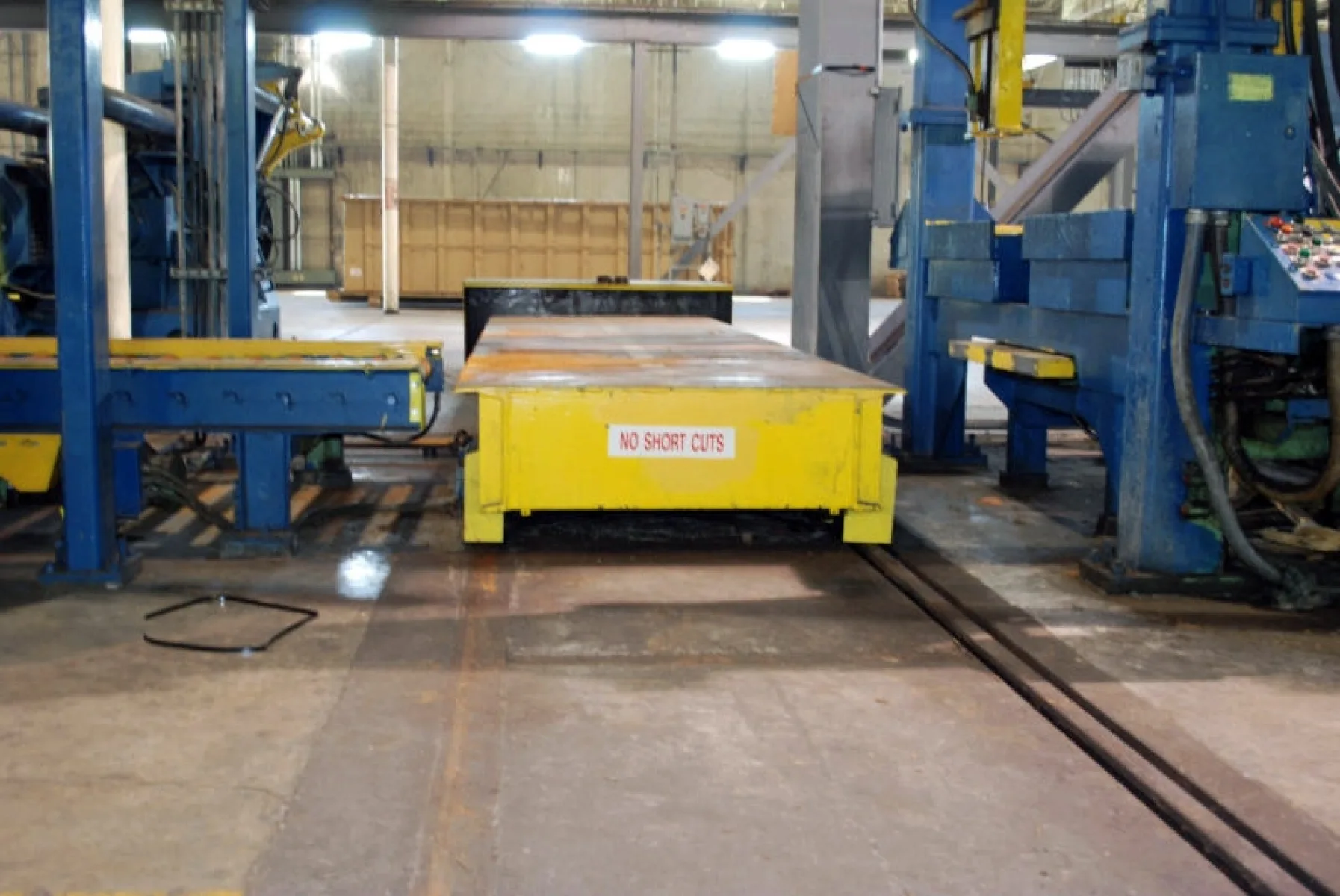

Loopco Coil Transfer Car: 10k Capacity; Driven

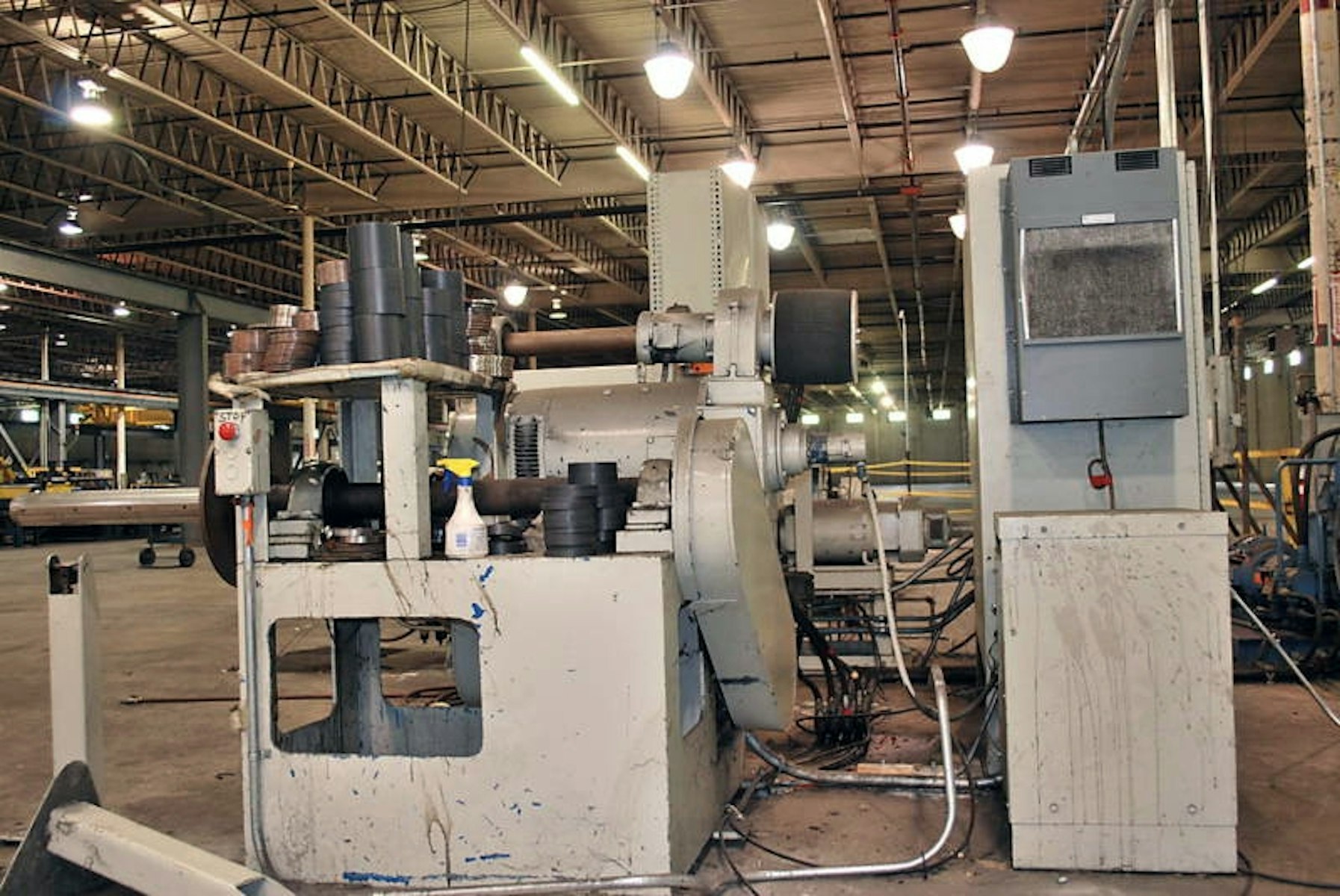

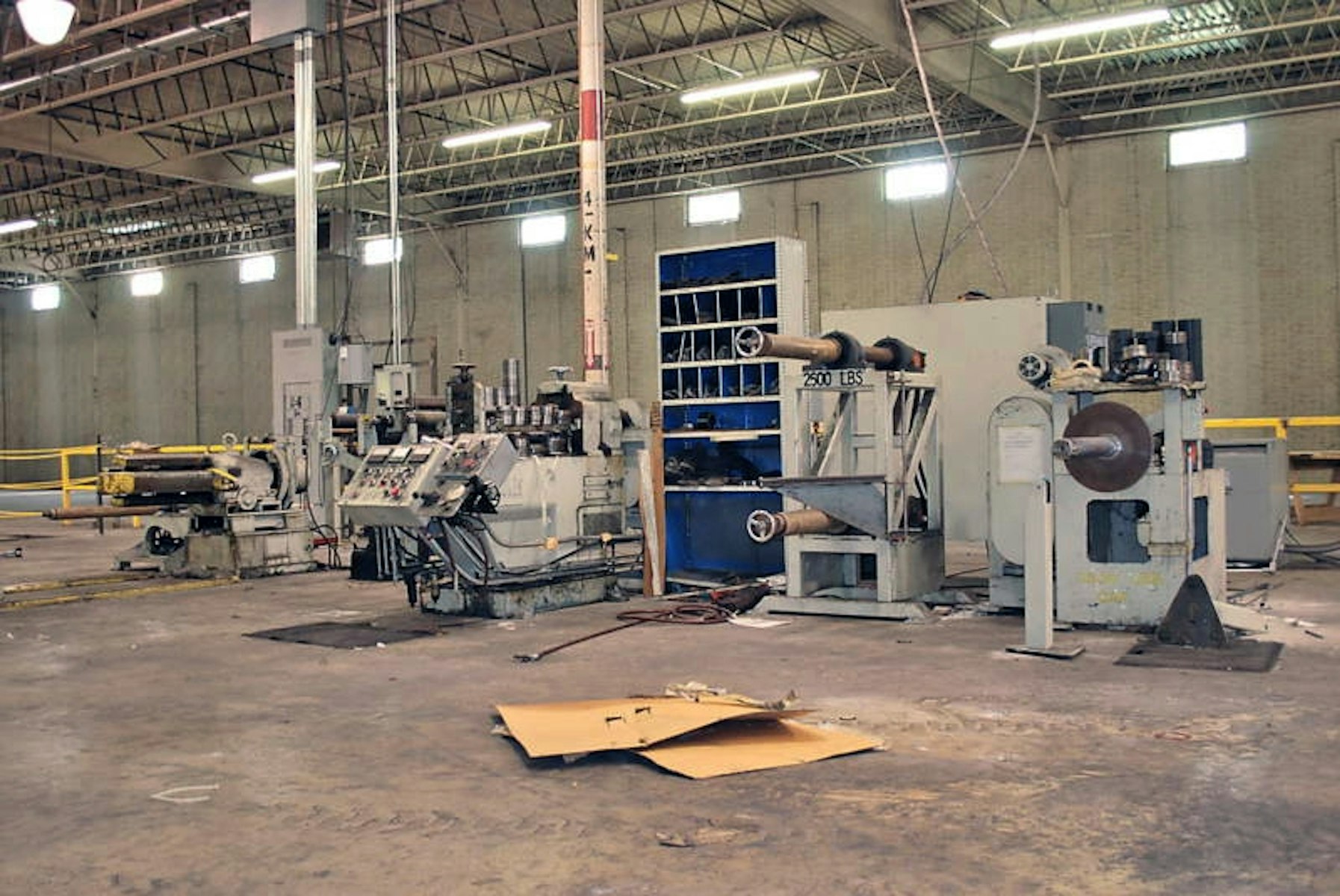

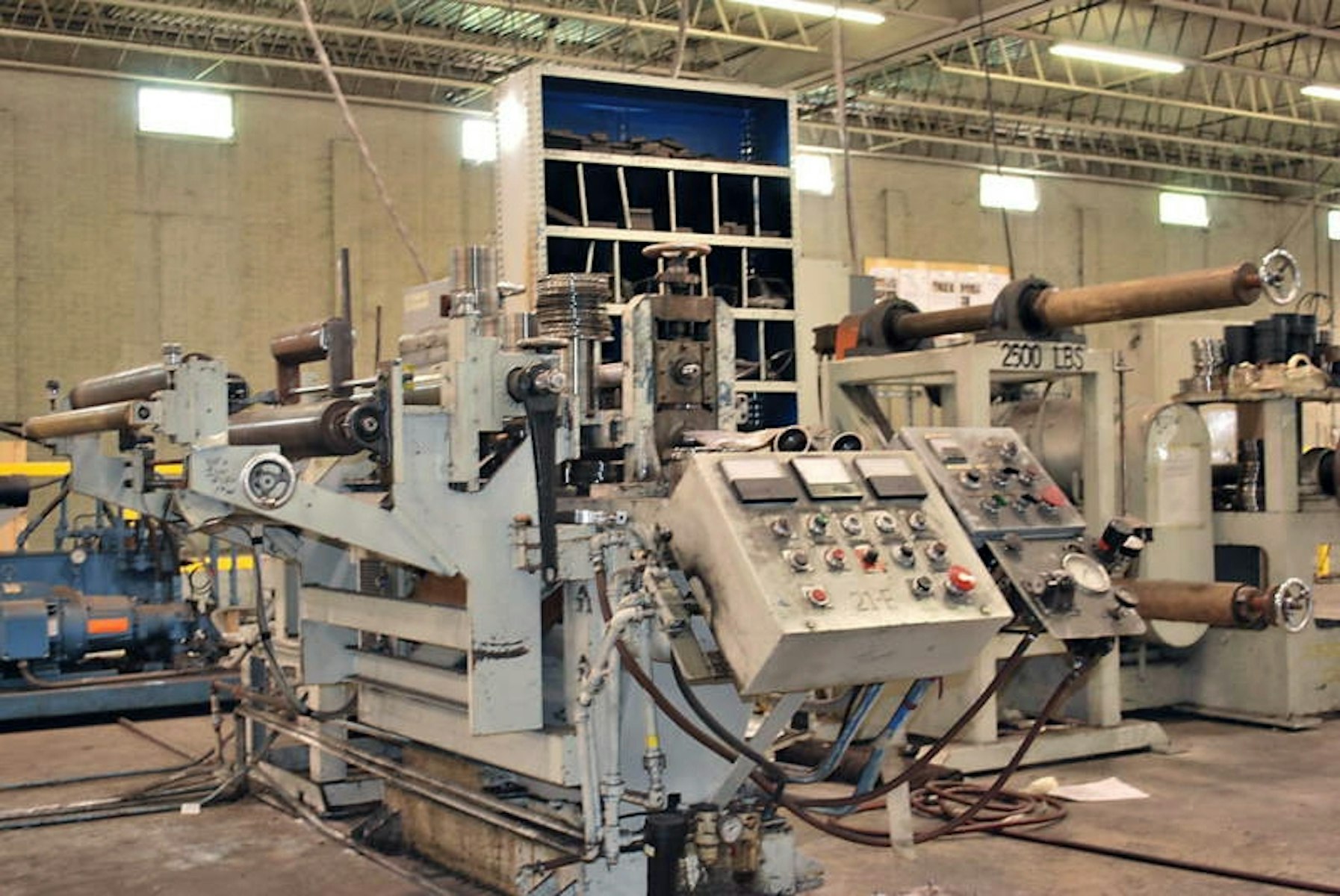

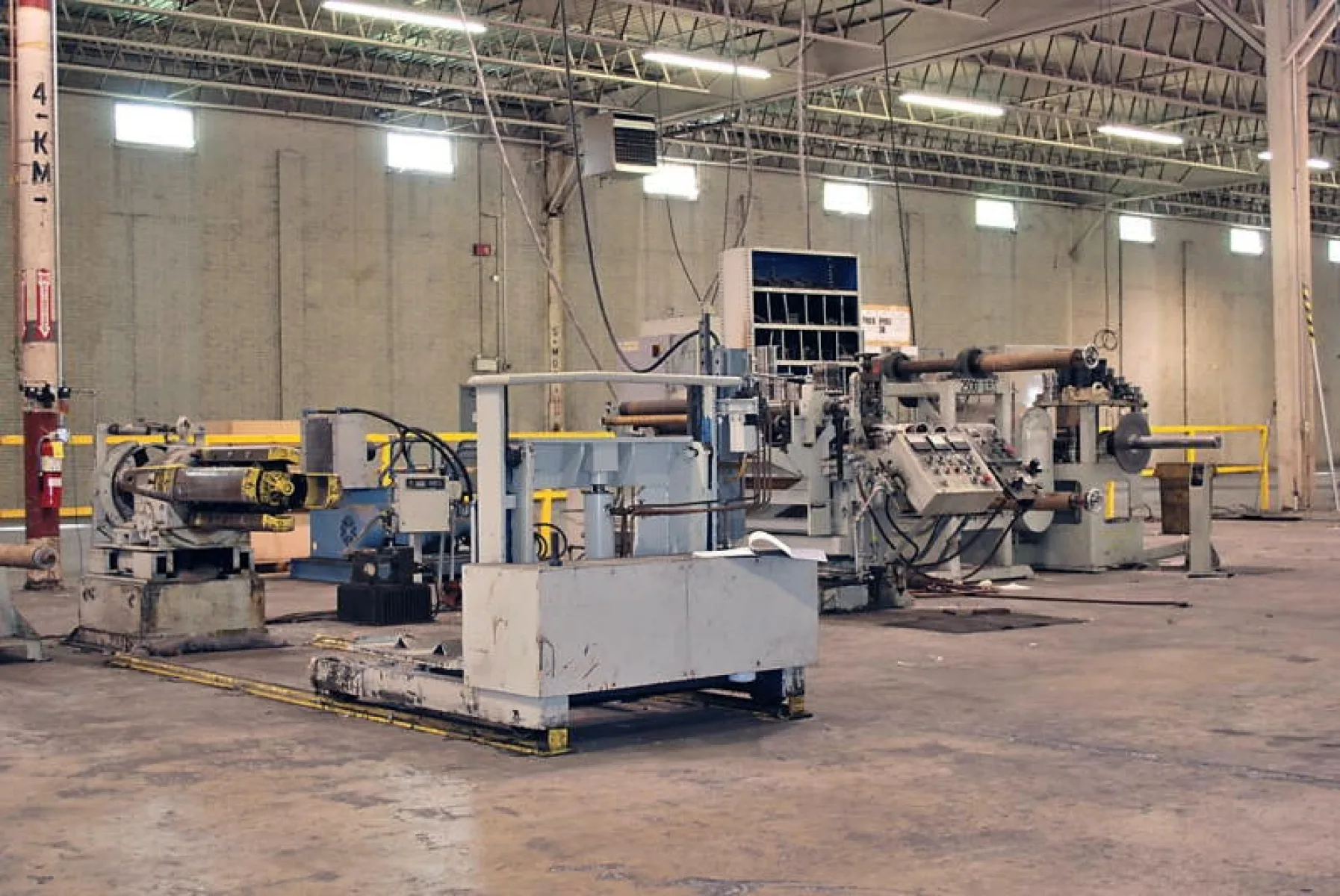

R-L 24" Brookes Slitter: Driven and Pull-thru w/ Overrunning Clutch; 10hp Drive Motor @ 1750rpm connected to chain and sprocket; Driving 3" diameter arbor w/ Keyways; Pull-Thru speeds dependent on recoiler drive system; Upper arbors vertically adjusted by screw arrangement; Outboard housing moved in and out of arbors manually; meters and controls mounted on slitter base.
Cutting Capacity: 20 Cuts of .024" Mild steel/ 2 Cuts of.150" Mild steel (Customer to determine speeds for different gauges and number of cuts)

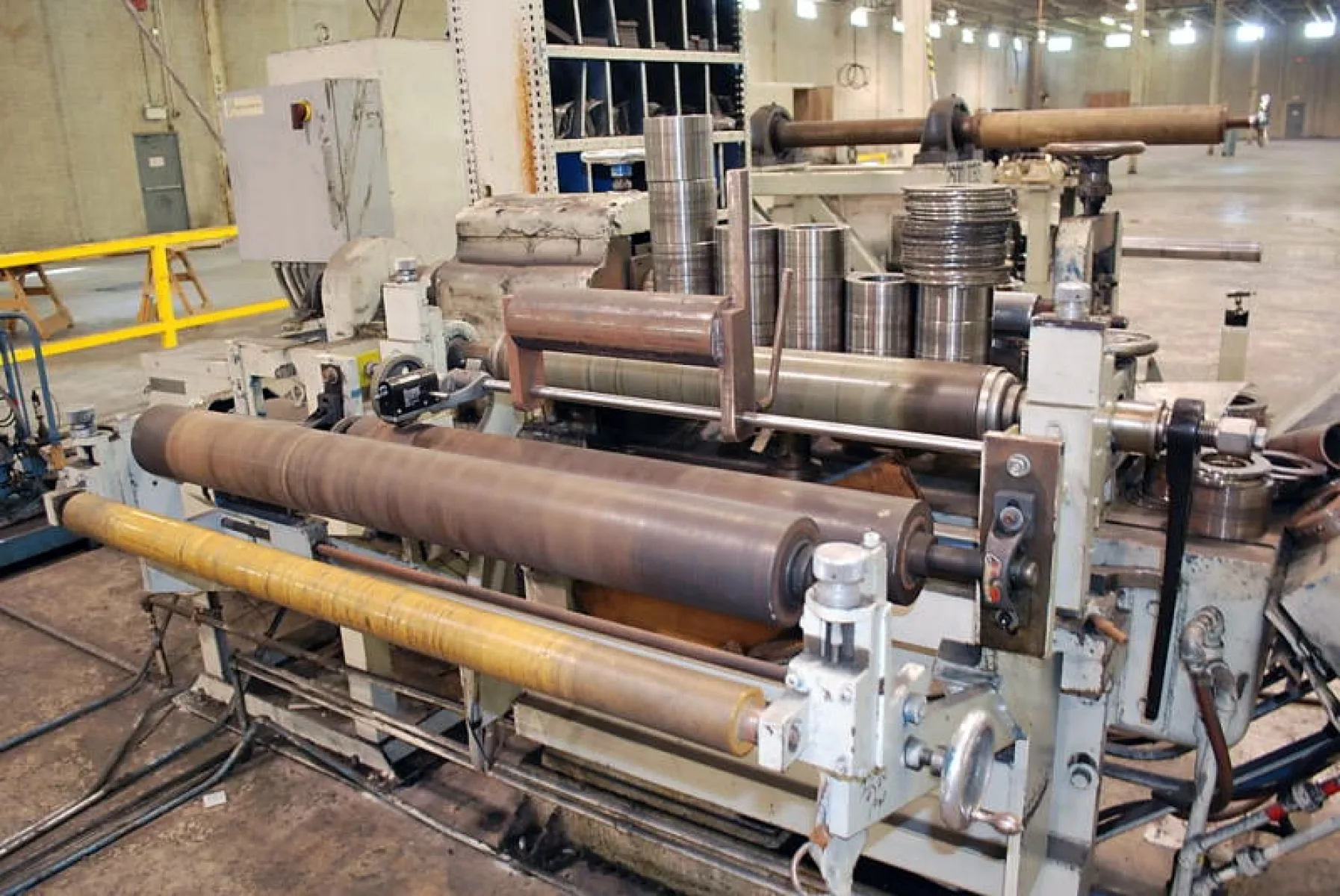

Entry Side Guide Unit: (3) large dia. Fiber covered rolls offset to help lay material flat before entering slitter knives; entry and exit roll adjustable up and down manually; (1) entry 3" dia. Roll; strip edge guided by an adjustable electric eye; wheel sheet length counter adjustable across strip; complete entry side guide unit frame can be pivoted away from slitter base

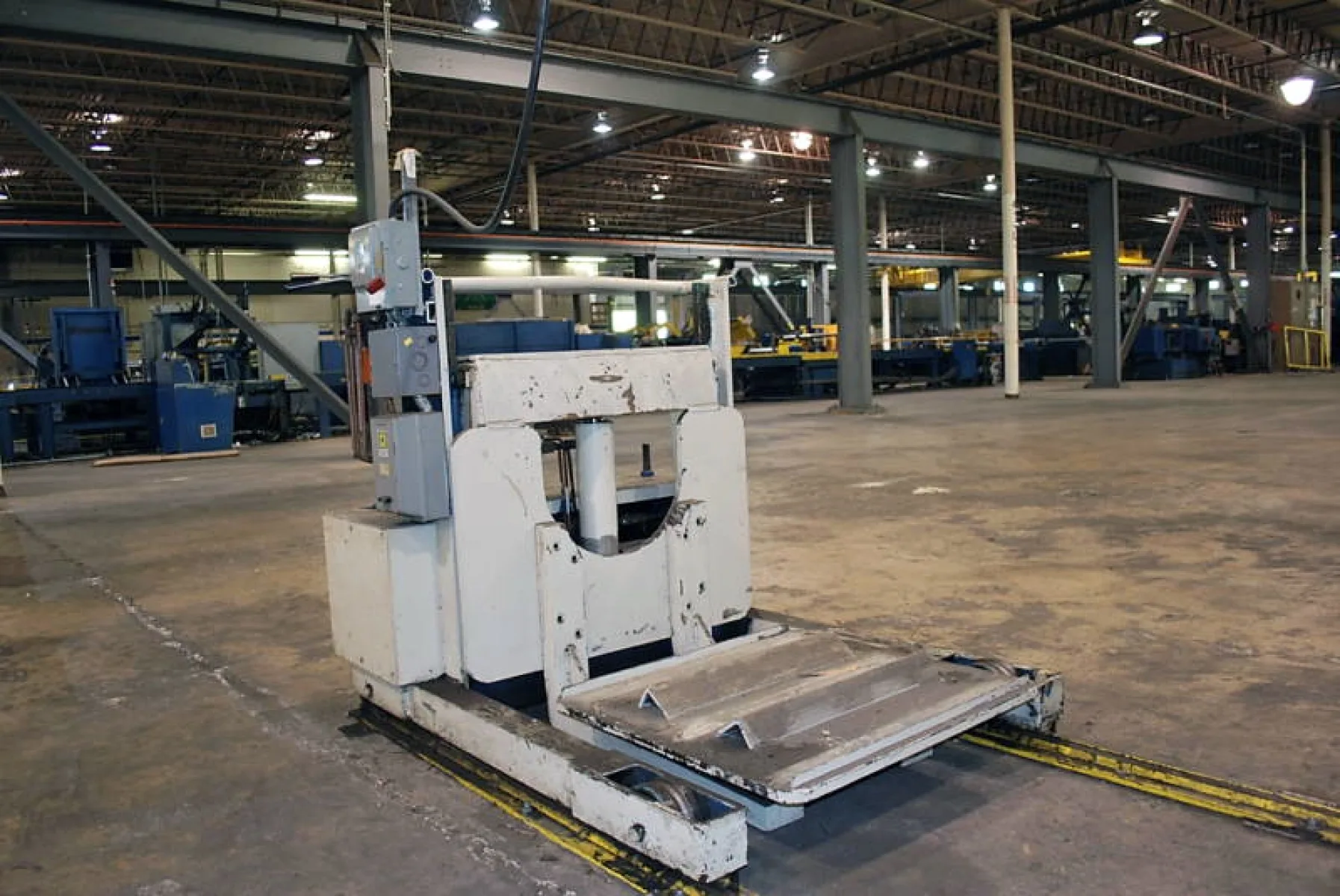

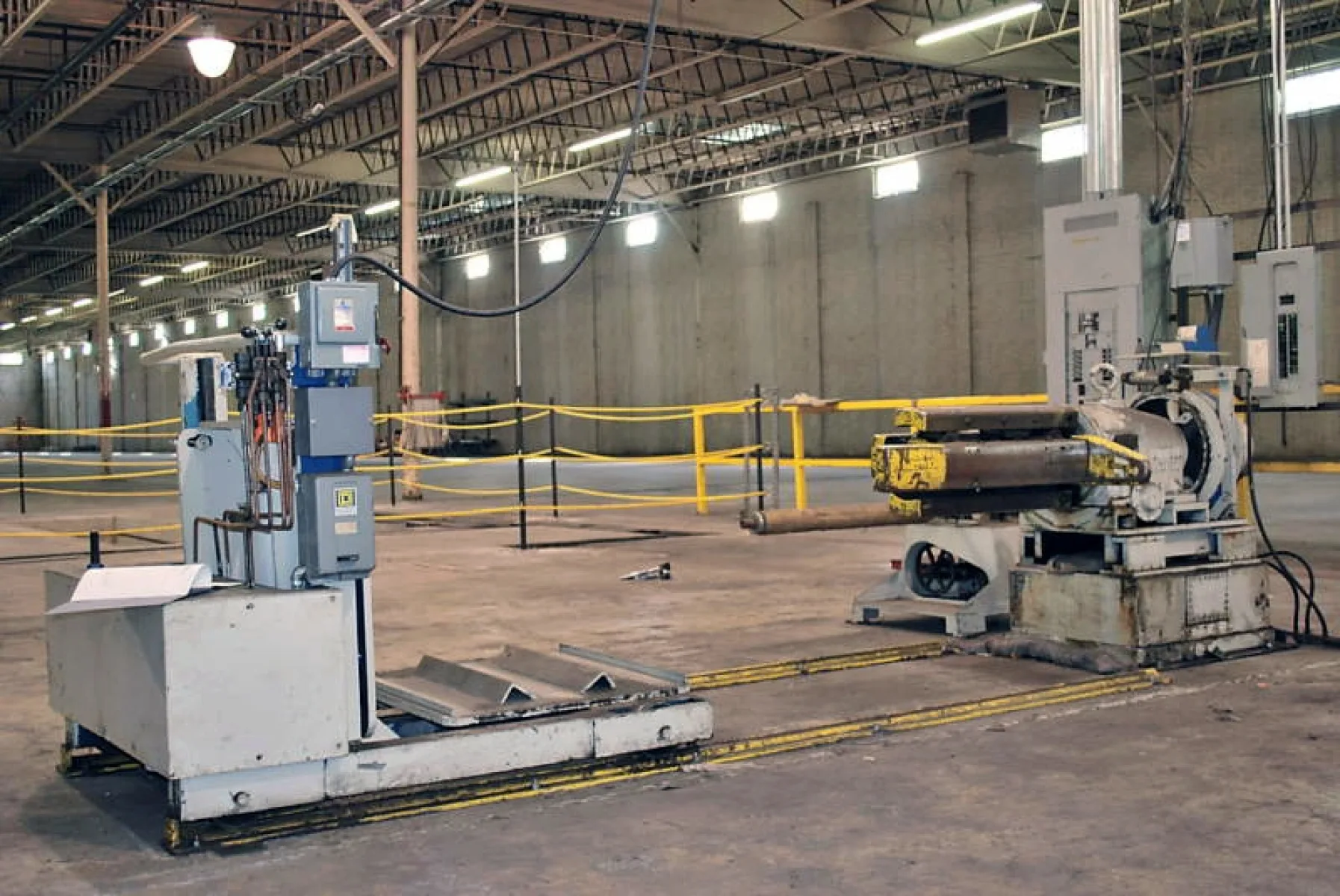

Coil Loading Car: 6000lb. capacity; traversing "L" shape inner and outer frames; outer frames traverses on (4) "v" shaped wheels and tracks; rear wheels are hydraulically driven; inner frame receives coils on its "v" style rotatable lifting platform; inner frame is raised and lowered by a hydraulic cylinder; unit supplied with pushbutton station and hydraulic components
Paper Rewinder: Free standing base; motor driven shaft manually expanded to grip cardboard cores; cores are used to rewind interleaved paper from uncoiler coils; tension adjustable brake

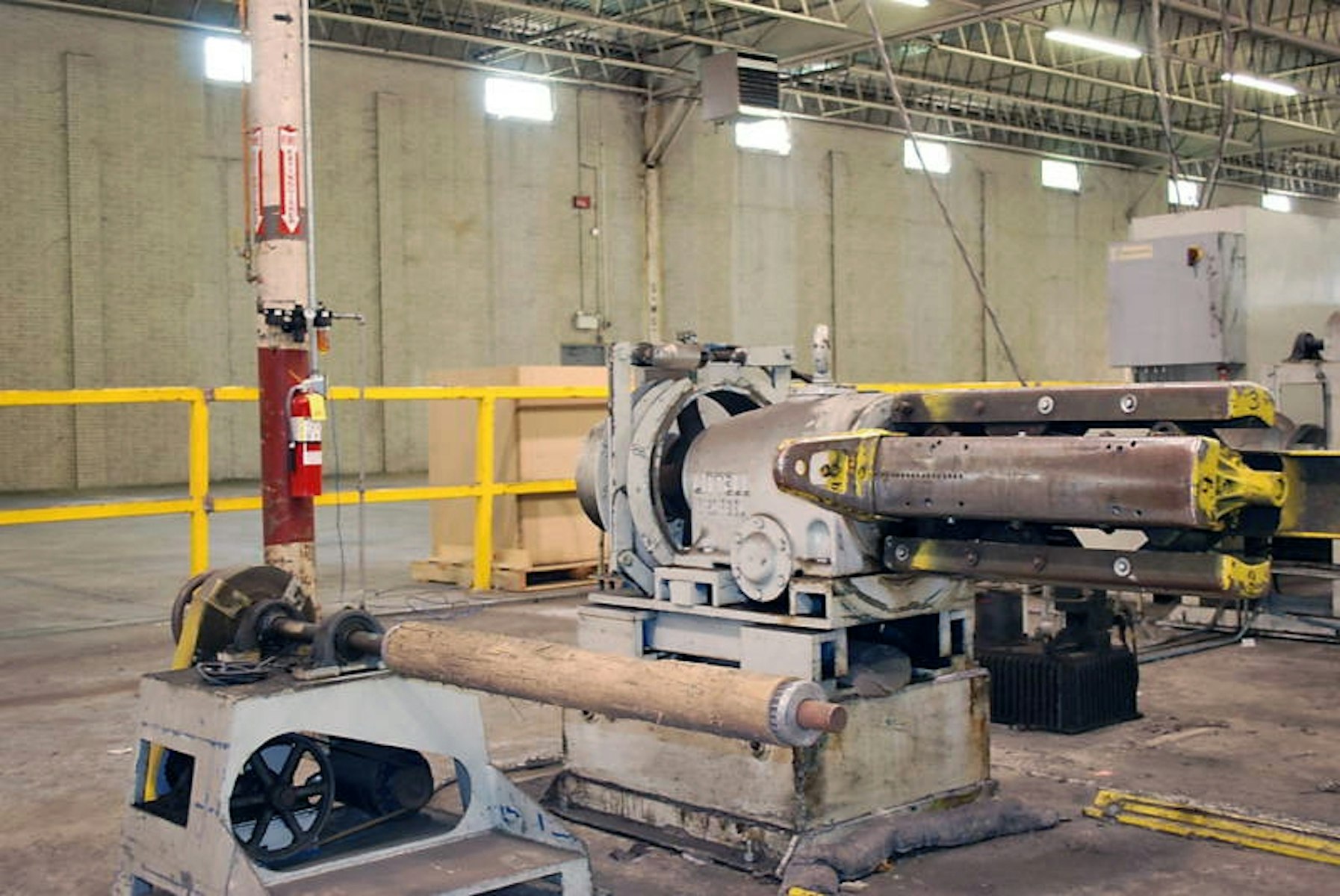

L-R Littell Uncoiler: Mdl: 60-24; 6000lbs capacity; (4) segment type with 27" face width; expand and collapse by hydraulic cylinder; 16" to 20" I.D. coils; 24" coil width capacity; air operated band type tension brake; traversing base by hydraulic cylinder; floor to center of reel – 30"
Dual Paper Rewind Stand: (2) 6" dia. Independently hydraulically driven expanding shafts; each shaft grips and releases the inside dia. Of a cardboard core for rewinding and dispensing of wound material; 2500lb max capacity for each shaft; frame measures 30"L x 30"W x 52"T
L-R Recoiler: 4" dia. X 32" L shaft w/ keyway and back plate (a recoiler drum must be added to this unit to be usable); DC motor coupled to a gear reducer connected w/ chain and sprocket to main drive; 4000lb capacity; speed of line determined by operator per cuts of metal; controls @ slitter unit
