In Conjunction With Maynards Industries
TRANSFER PRESS • STRAIGHT SIDE DOUBLE CRANK & 4-POINT PRESSES • DOUBLE ACTION PRESSES • GAP FRAME PRESSES • KNUCKLE JOINT PRESS • FEED LINES • FEED EQUIPMENT • SPOT WELDERS • ROBOTS • CMM • BORING MILL • LATHES • RADIAL DRILL • GRINDERS • SAWS • VERTICAL MILLING • FABRICATING • LIFT TRUCKS • FLOOR SWEEPER • GANTRY HOIST • WASHERS • FILTER PRESS & PUMPS • AIR COMPRESSORS • SCRAP REMOVAL CONVEYORS • MISCELLANEOUS EQUIPMENT
BY ORDER OF COURT APPOINTED RECEIVER, CASE# CV-13-19489: NATIONAL AUTO RADIATOR MANUFACTURING CO. LTD: INCLUDING: (45) PRESSES UP TO 1200-TON, (6) SERVO FEED LINES, MACHINE & FABRICATION SHOP, ROBOTS, HUGE CMM, SCRAP REMOVAL SYSTEMS, WELDERS, FORKLIFTS & MORE
In Conjunction With Maynards Industries
TRANSFER PRESS

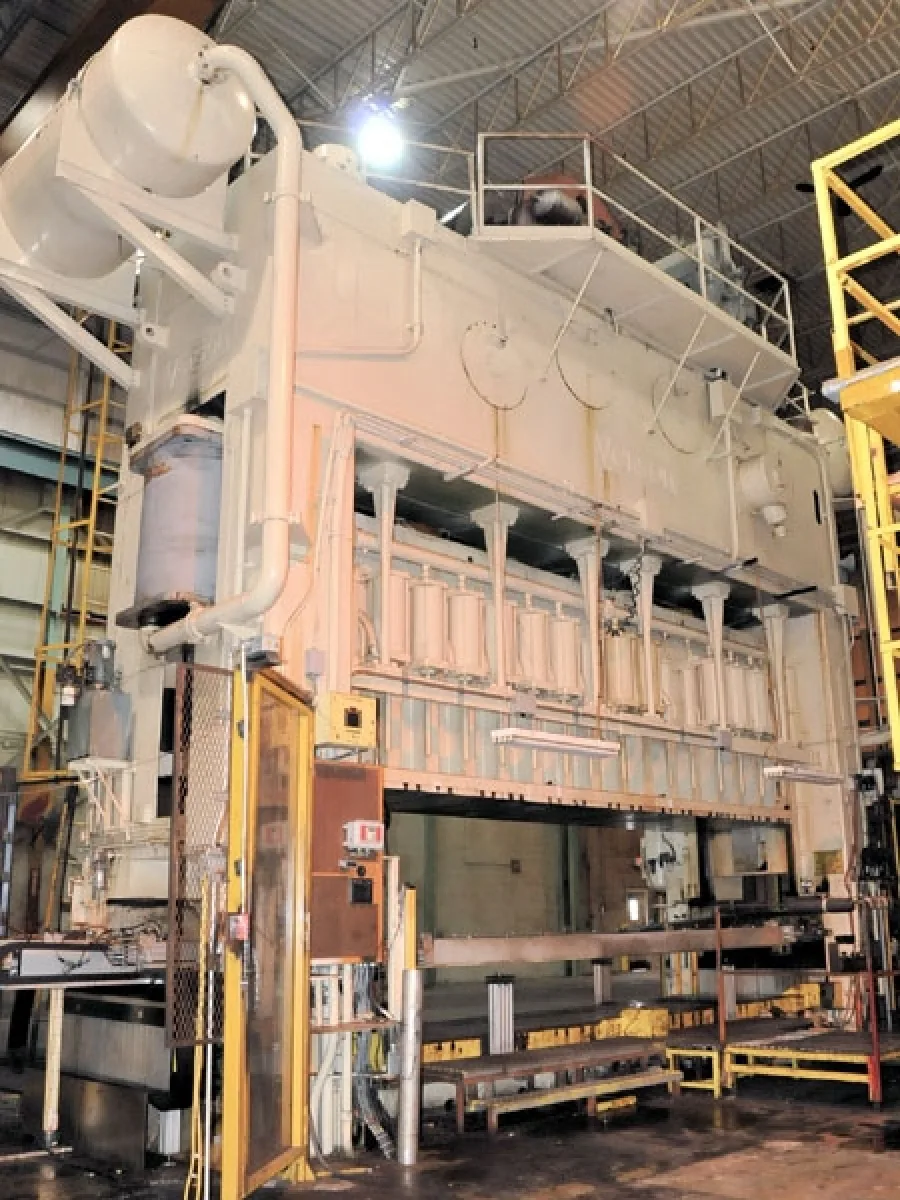

1200-Ton Verson Mdl: TS2-1200-256-54T, 54" X 256" Bed & Slide, 28" Stroke, 44" Shut Height, 12" Motorized Slide Adj., 10-20 SPM, 70" Windows, Air Clutch & Brake, Rolling Bolster, Allen Bradley Panelview 1000 Control, Loadguard Load Monitor, S/N 13559 Equipped With (2003) A.AMS Servo Electronic 12-Axis, 23 Station Programmable Transfer System

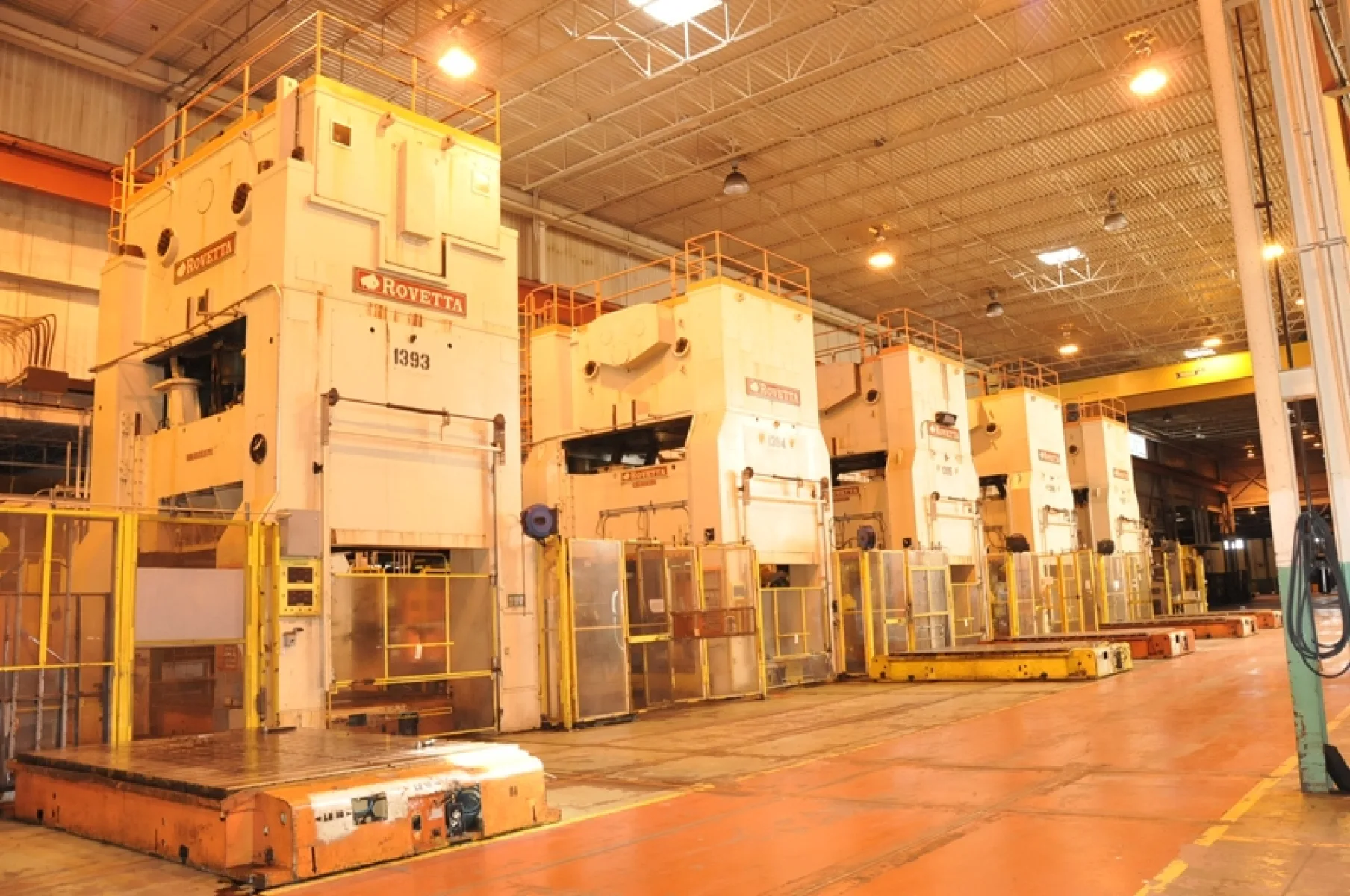

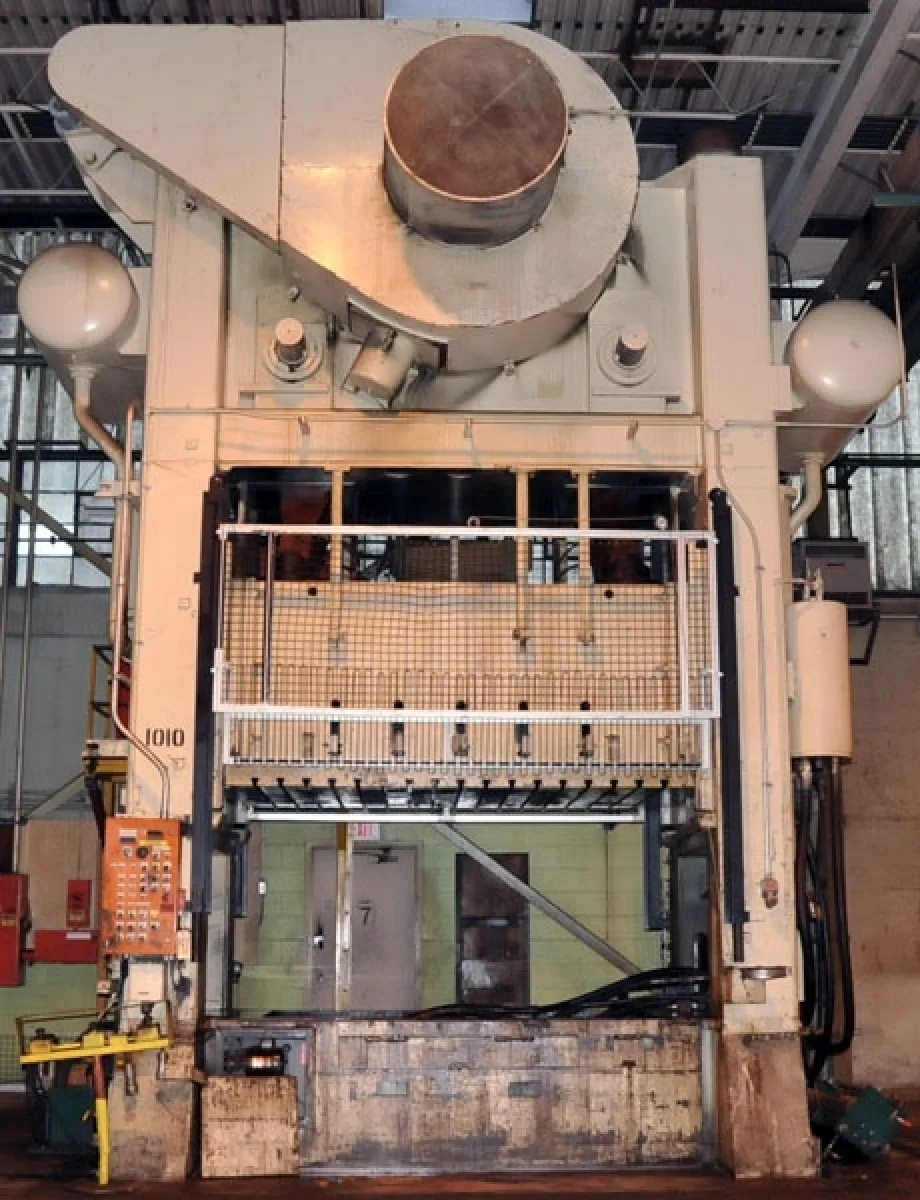

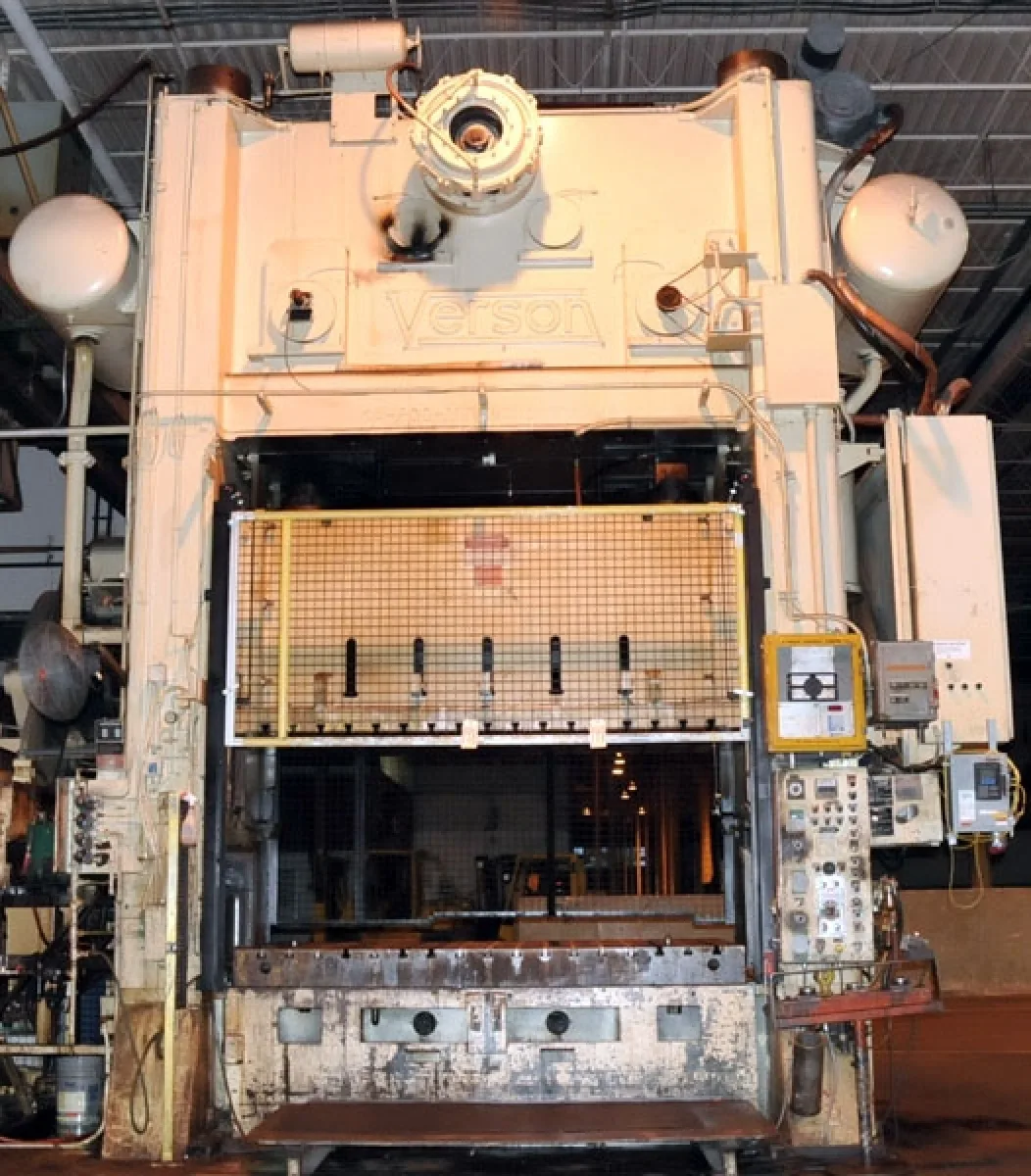

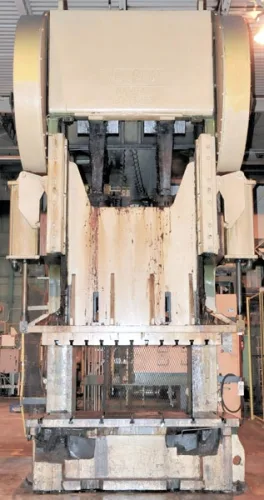

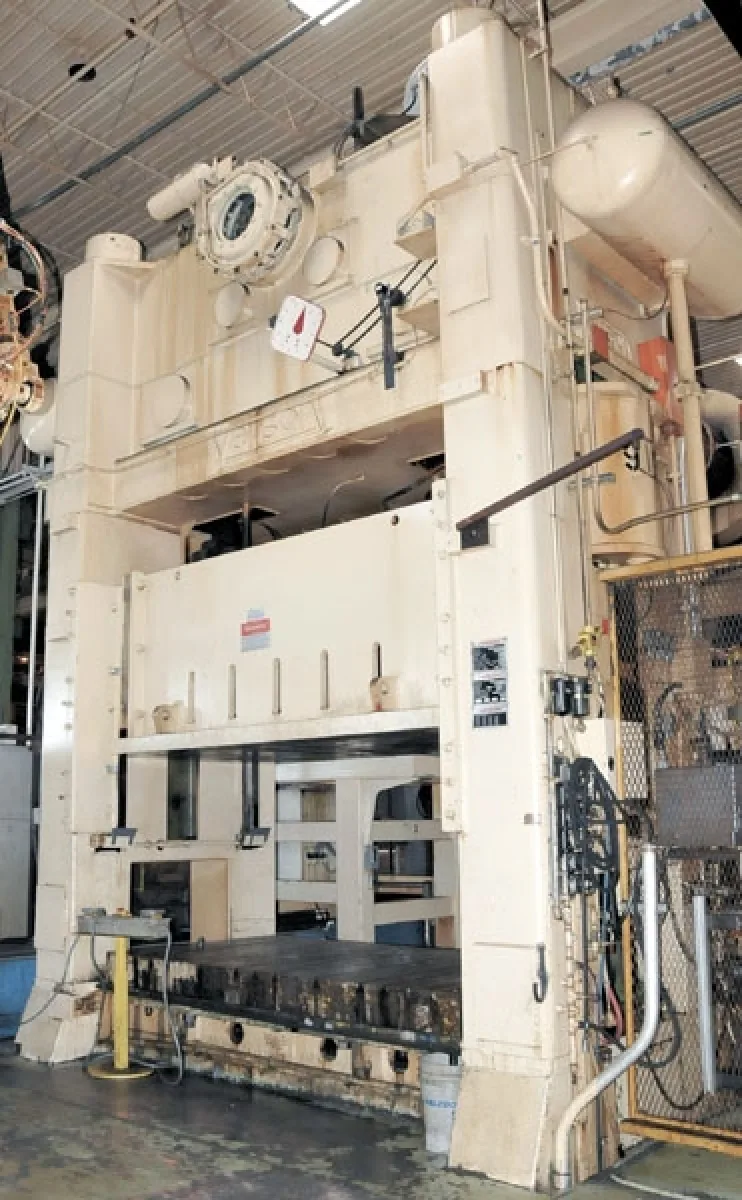

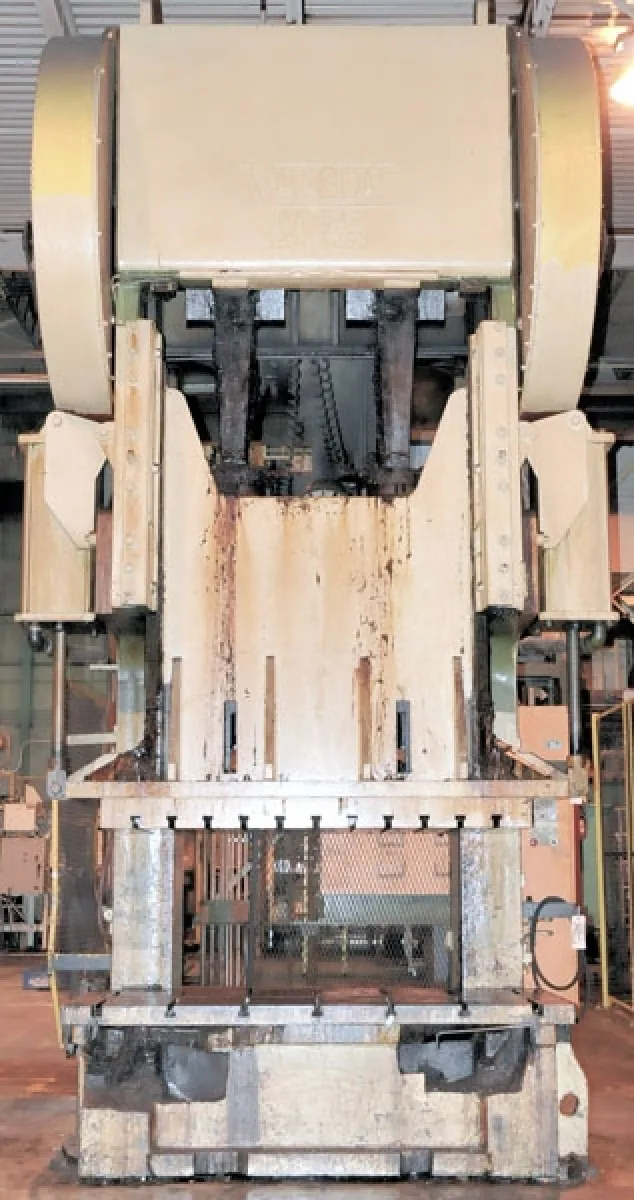

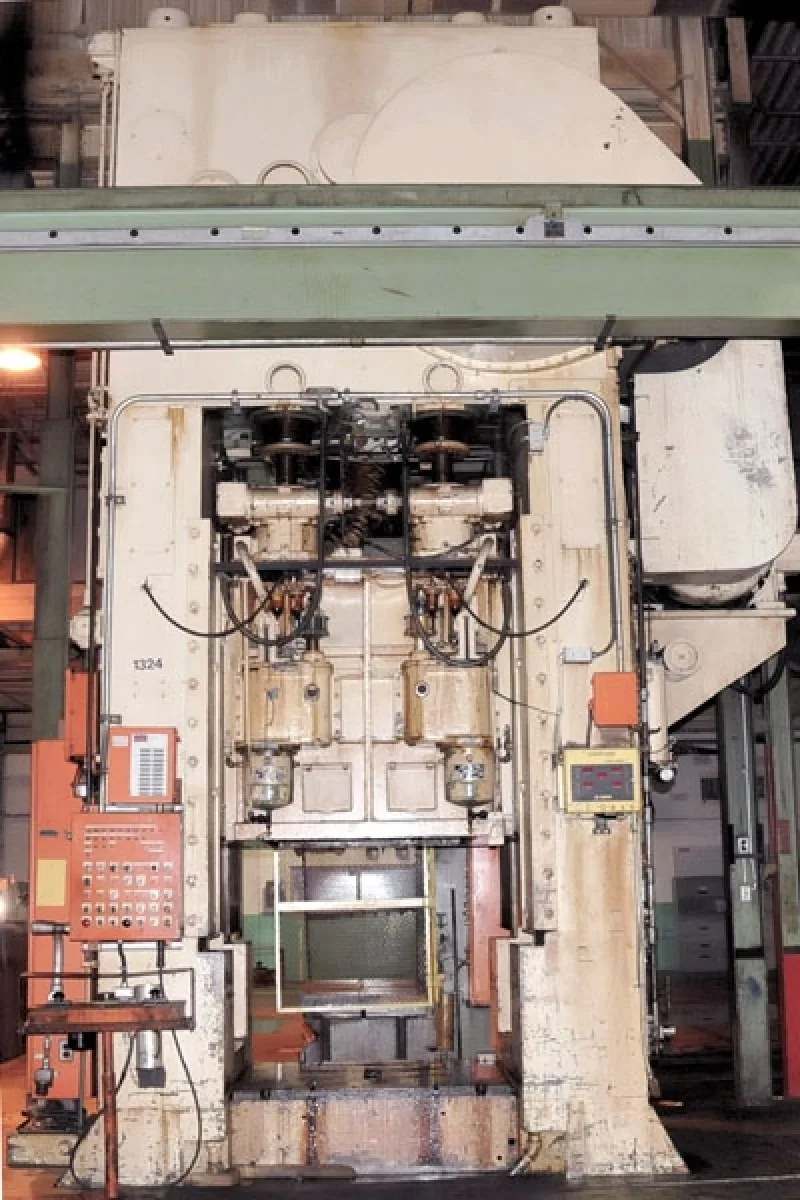

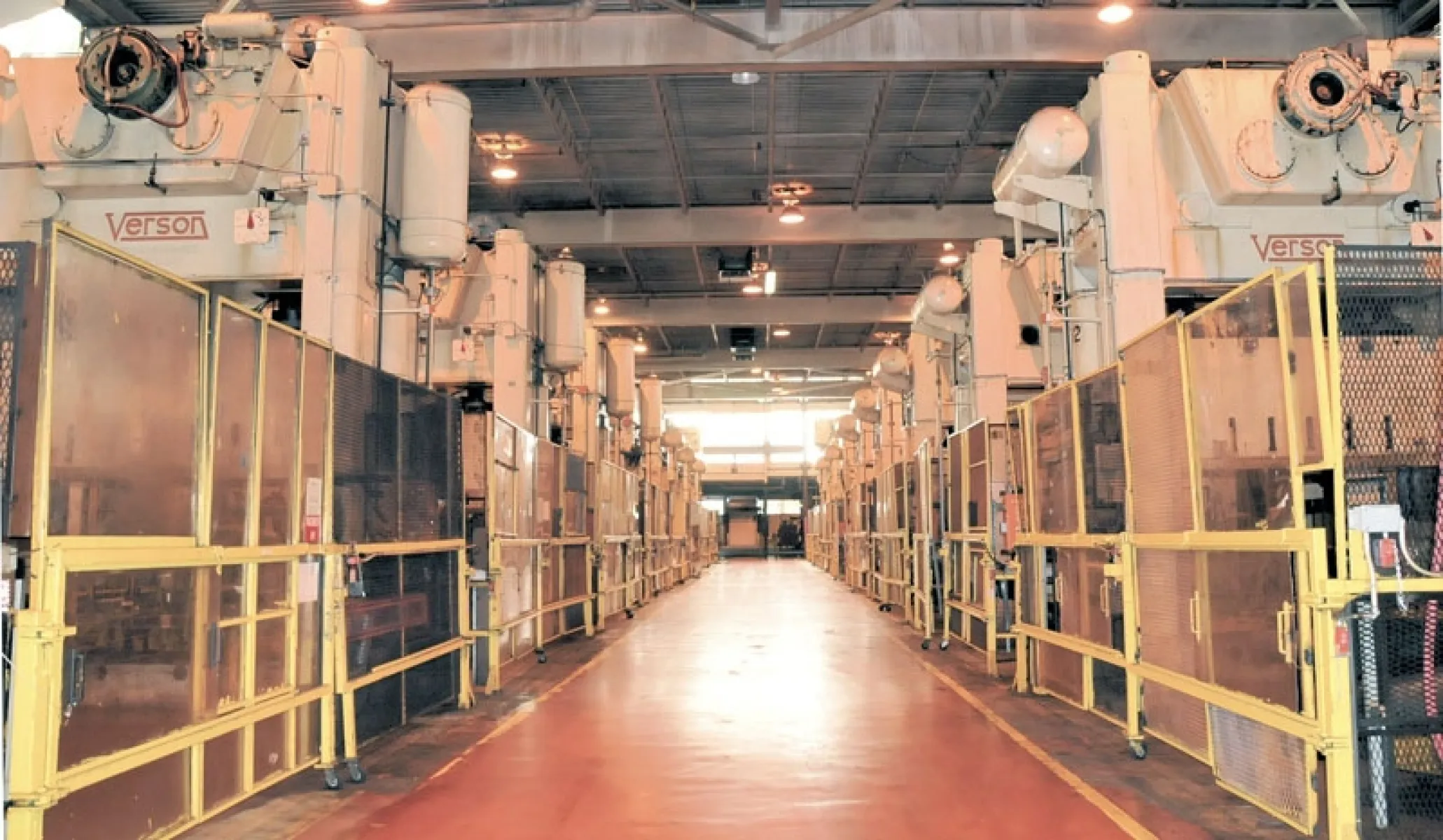

STRAIGHT SIDE DOUBLE CRANK & 4-POINT PRESSES

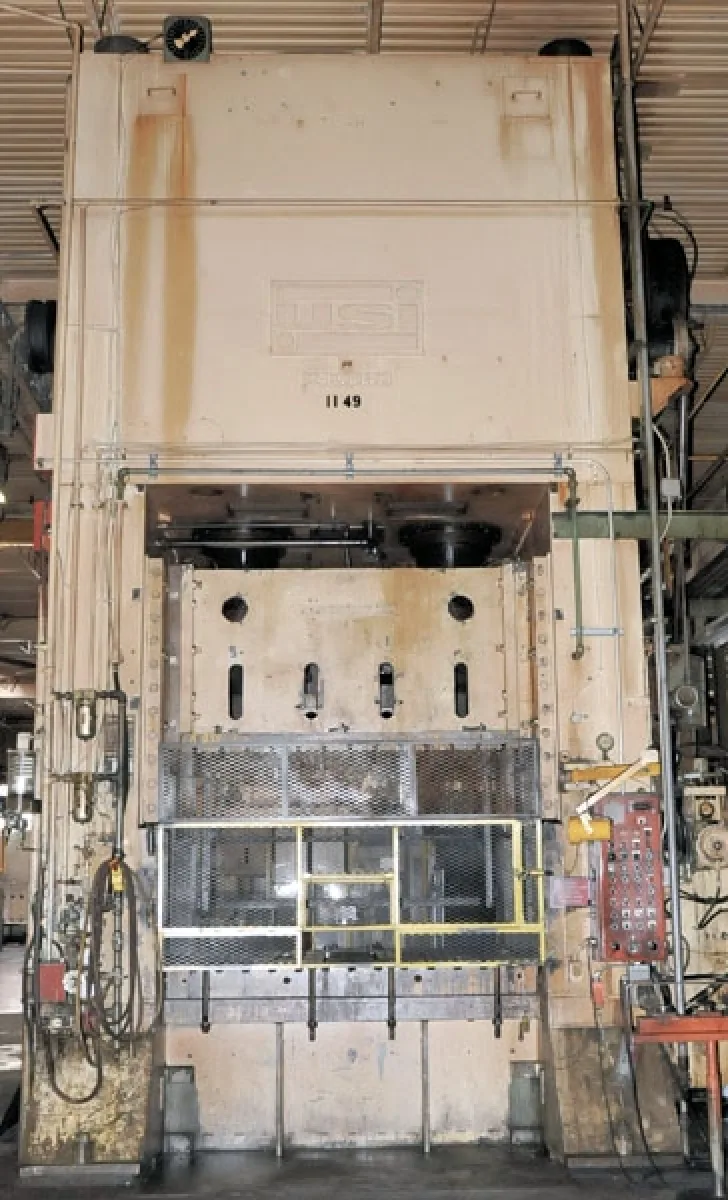

1000-Ton USI Clearing Mdl: S2-1000, 72" X 84" Bed & Slide, 8" Stroke, 10-18 SPM, 50" Shut Height, 6" Motorized Adj., 54" Window, Air Clutch & Brake, Crank Driven Roll Feed, S/N 10-1484

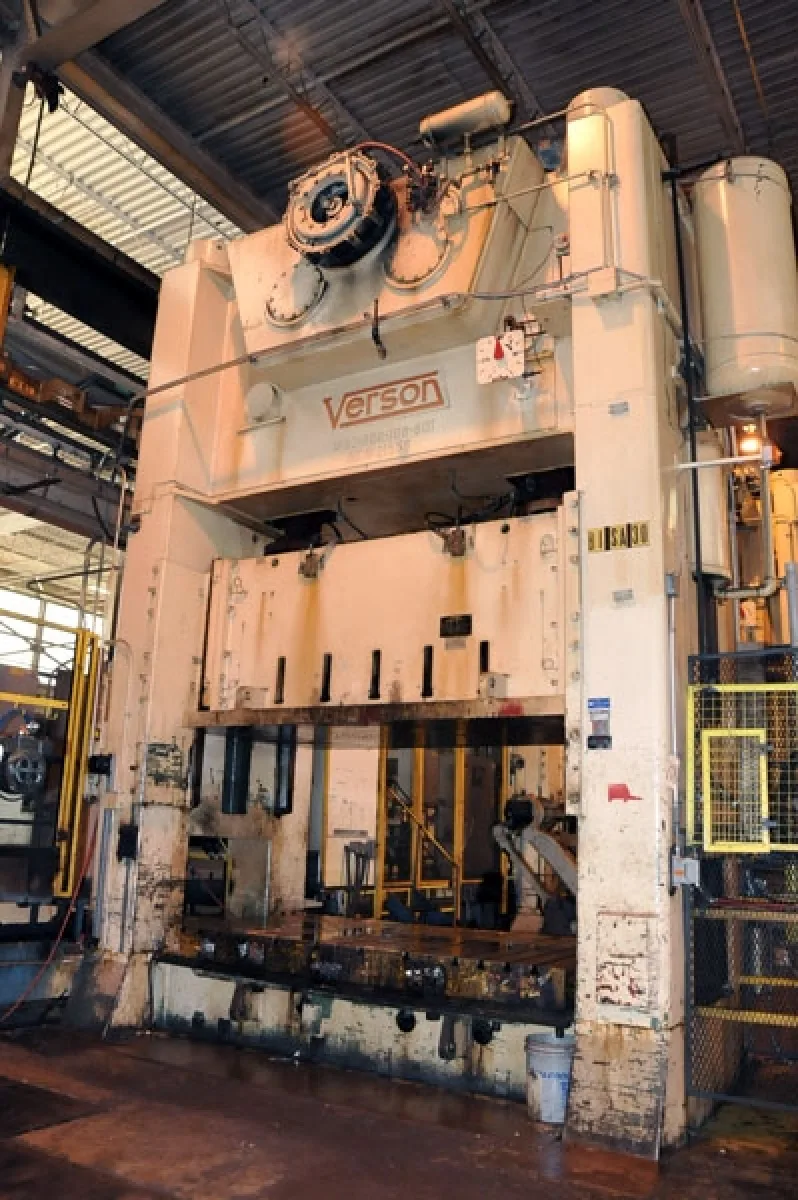

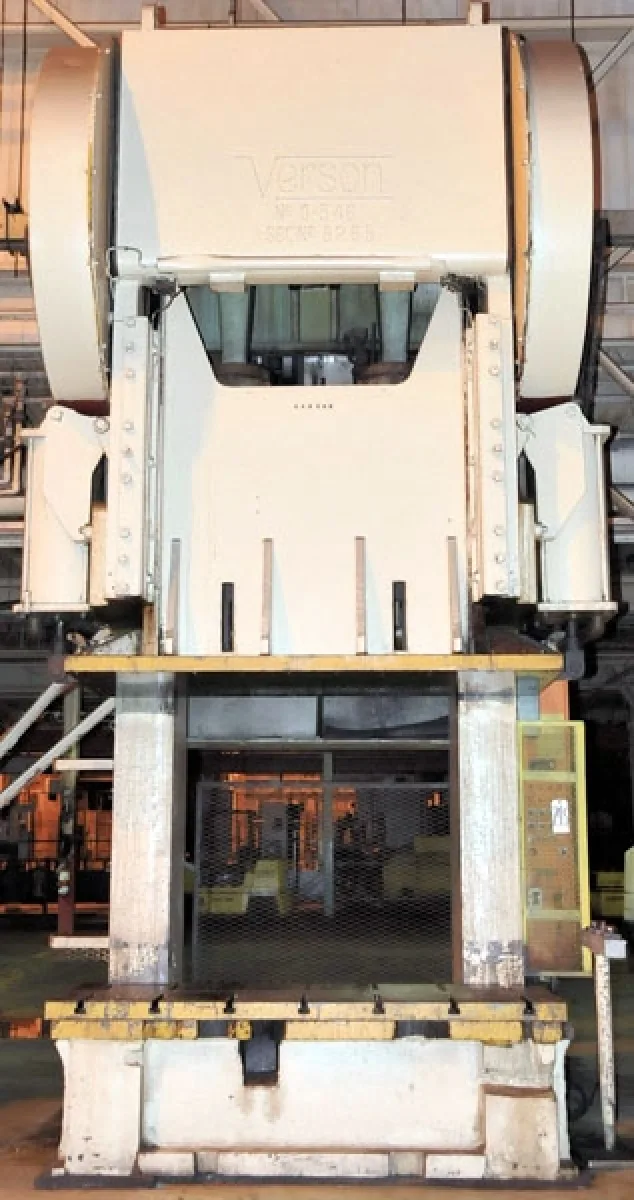

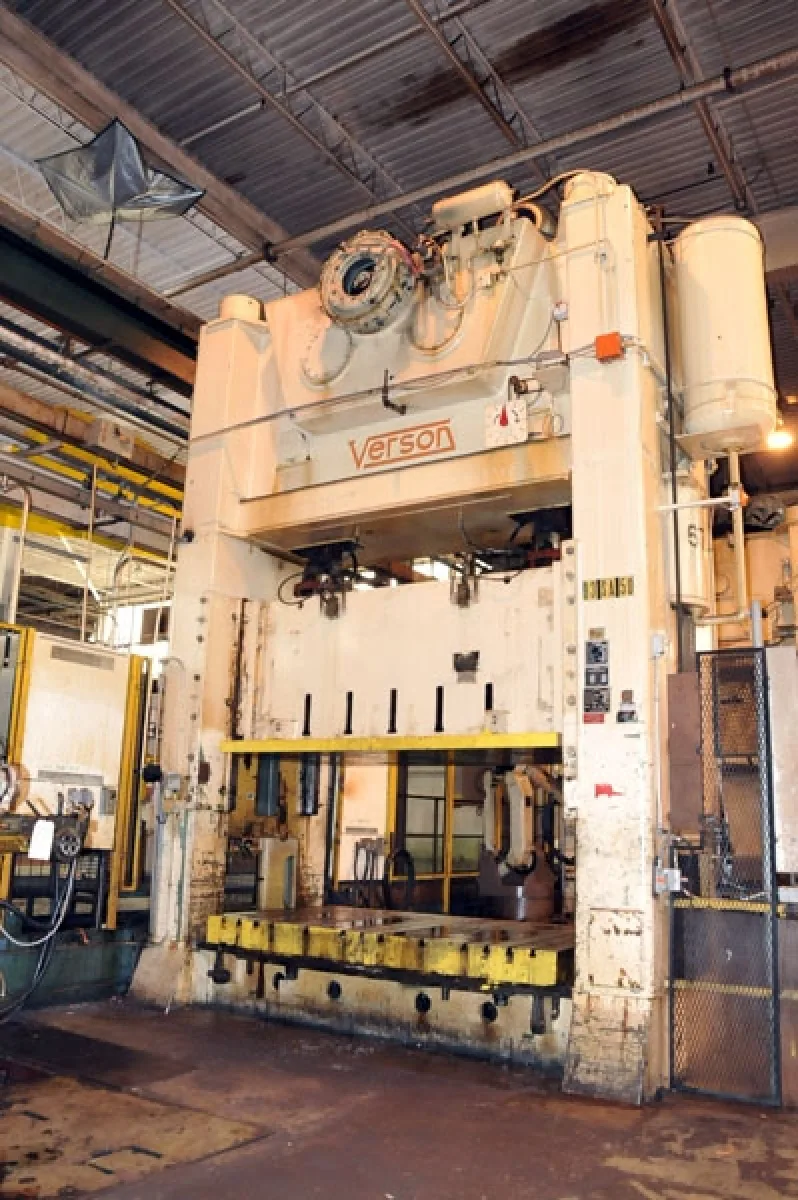

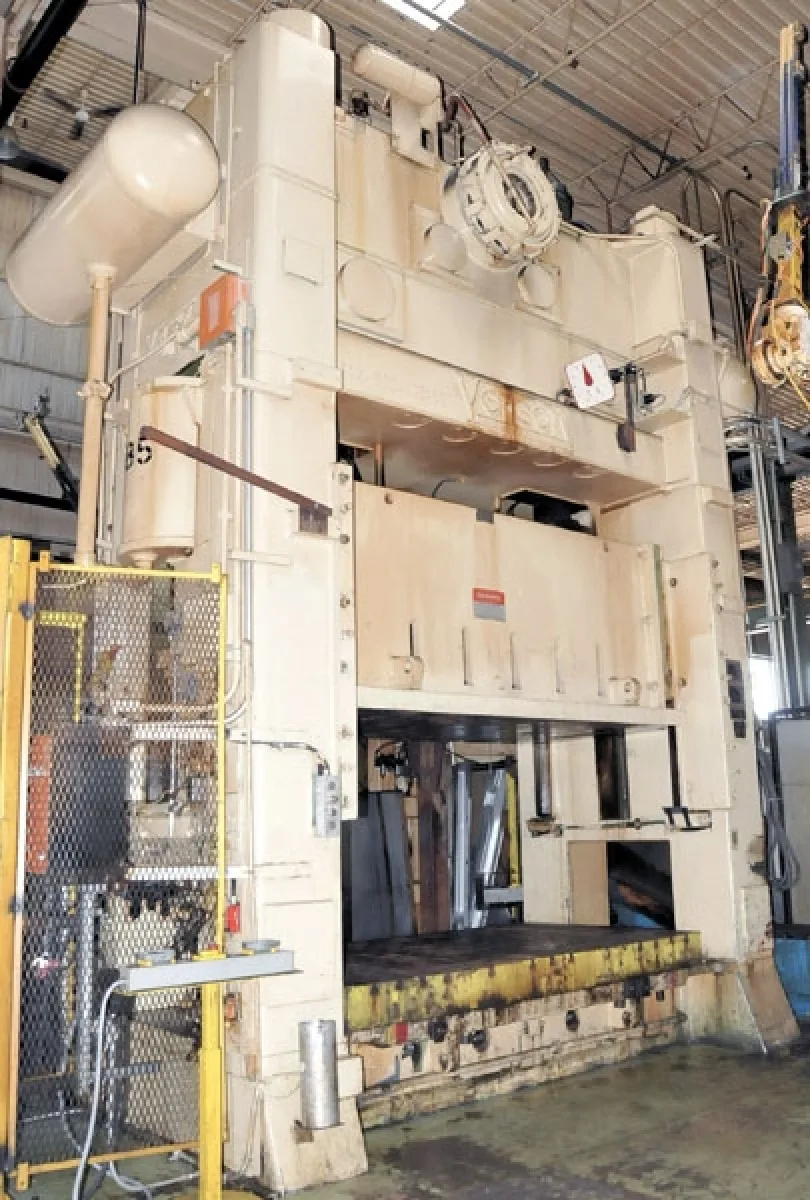

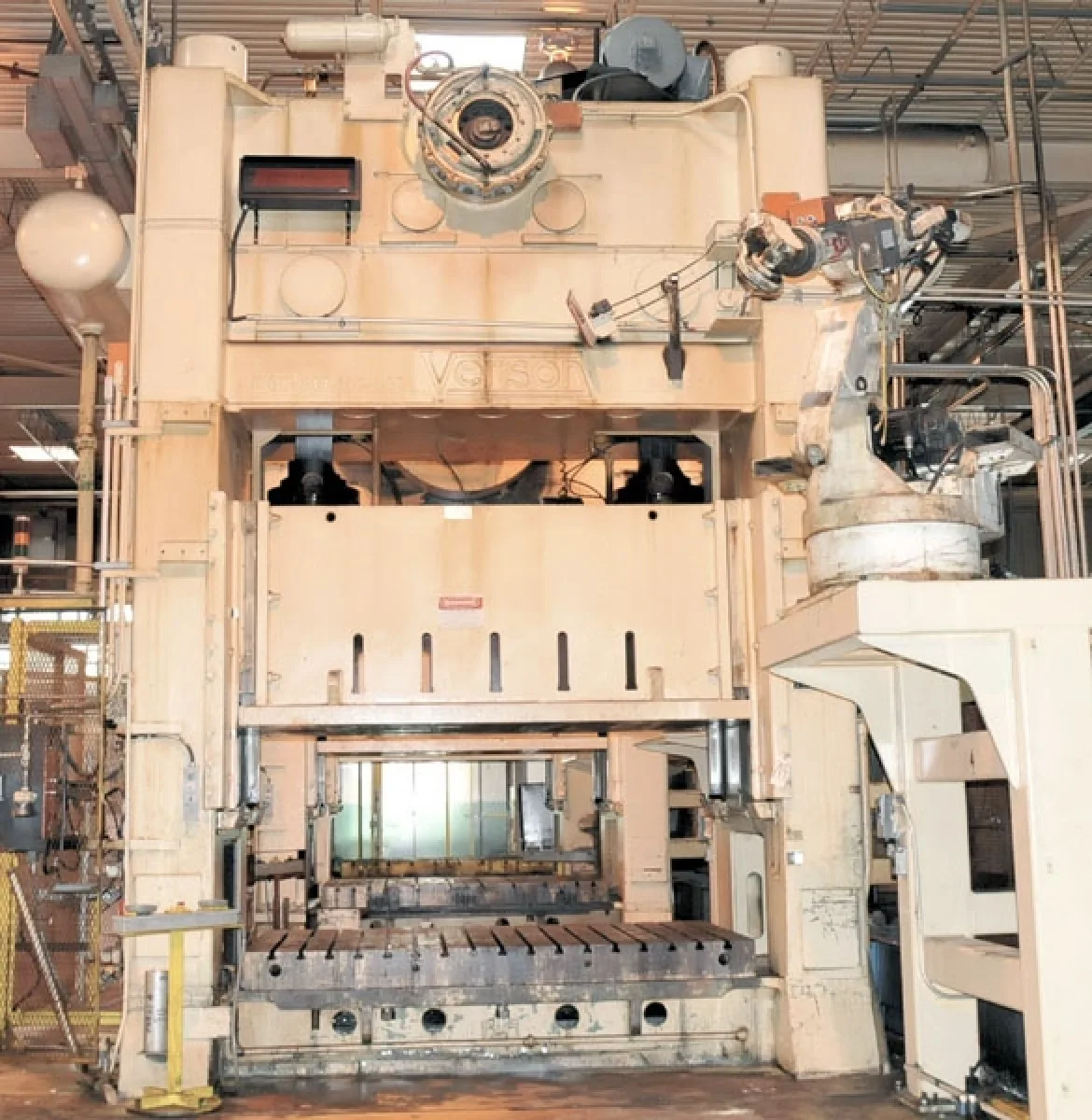

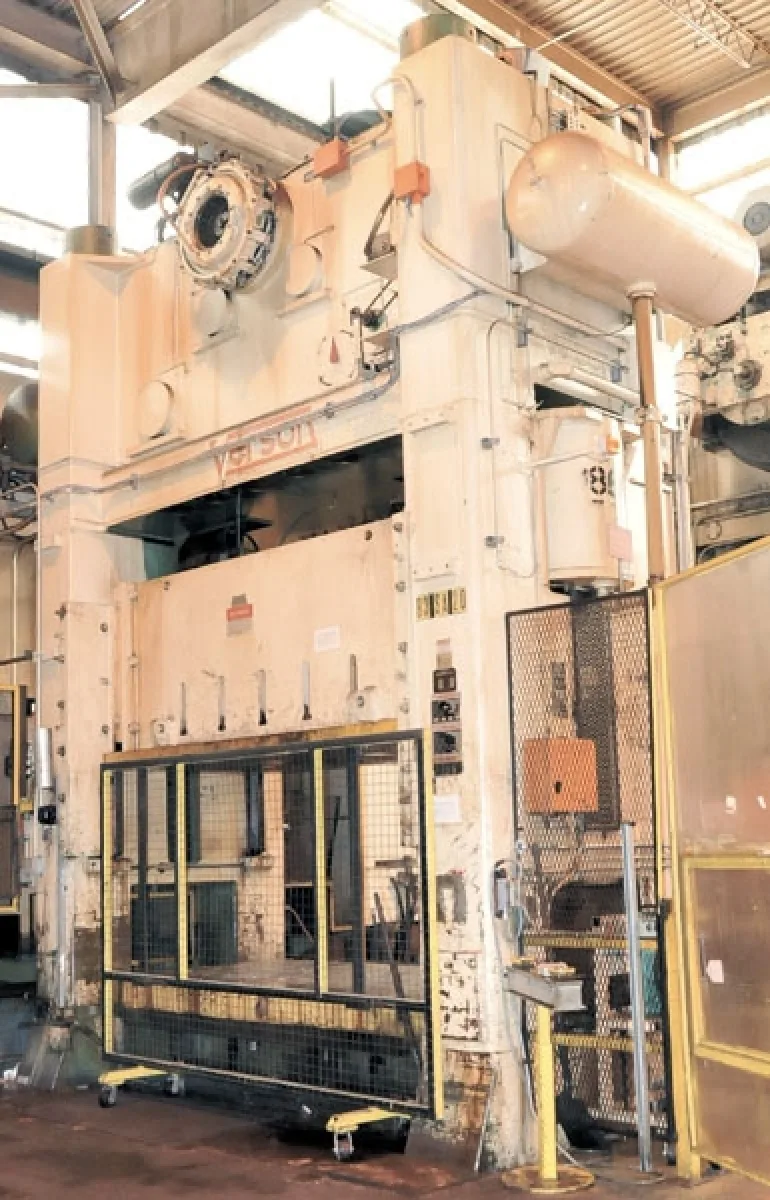

(2) 800-Ton Versons Mdl: S4-800, 60" X 108" Bed & Slide, 16" Stroke, 10-30 SPM, 48" Shut Height, 10" Motorized Slide Adj., 41" Windows, Air Clutch & Brake, Air Cushions, S/N 25619 & 25620
(2) 800-Ton Versons Mdl: S2-800, 72" X 108" Bed & Slide, 16" Stroke, 18 SPM, 40" Shut Height, 10" Motorized Adj., Air Clutch & Brake, Air Cushions, 35" Windows, S/N 23669 & 23670
(13) 800-Ton Versons Mdl: S2-800, 60" X 108" Bed & Slide, 16" Stroke, 18 SPM, 40" Shut Height, 10" Motorized Adj., Air Clutch & Brake, Air Cushions, 35" Windows, S/N 24277, 24276, 24275, 24173, 24172, 24169, 23670, 23669, 22439, 22438, 22069, 22068 & 22057
(3) 800-Ton Versons Mdl: S2-800, 60" X 108" Bed & Slide, 16" Stroke, 14 SPM, 40" Shut Height, 10" Motorized Adj., Air Clutch & Brake, Air Cushions, 35" Windows, S/N 21559, 21558 & 21557
750-Ton Bliss Mdl: S2-750, 36" X 72" Bed & Slide, 12" Stroke, 20 SPM, 42" Shut Height, 8" Motorized Adj., Air Clutch & Brake, 25" Window, Crank Driven Roll Feed
700-Ton Verson Mdl: S2-700, 60" X 108" Bed & Slide, 16" Stroke, 14 SPM, 40" Shut Height, 10" Motorized Adj., Air Clutch & Brake, Air Cushions, 35" Windows, S/N 21352

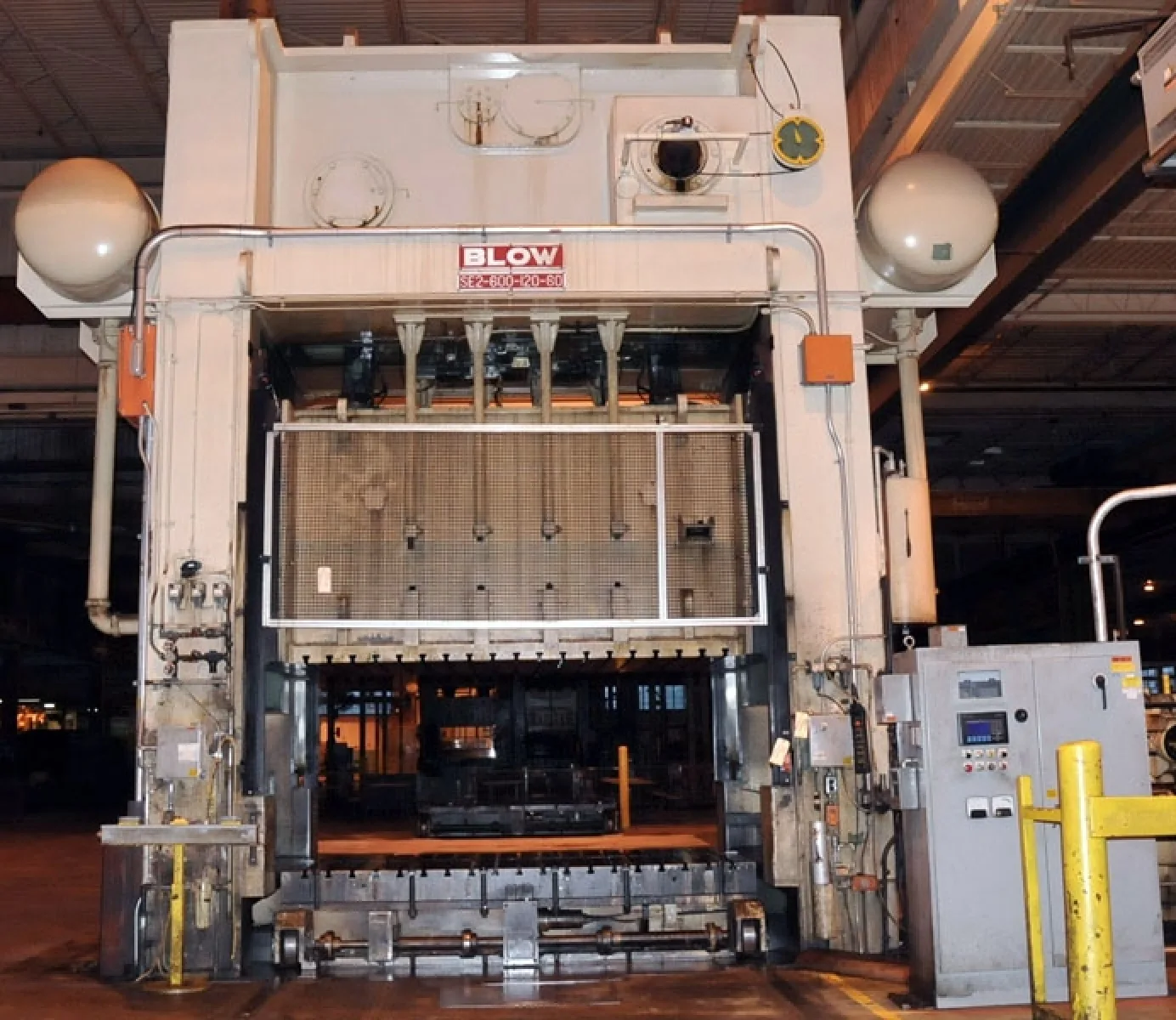

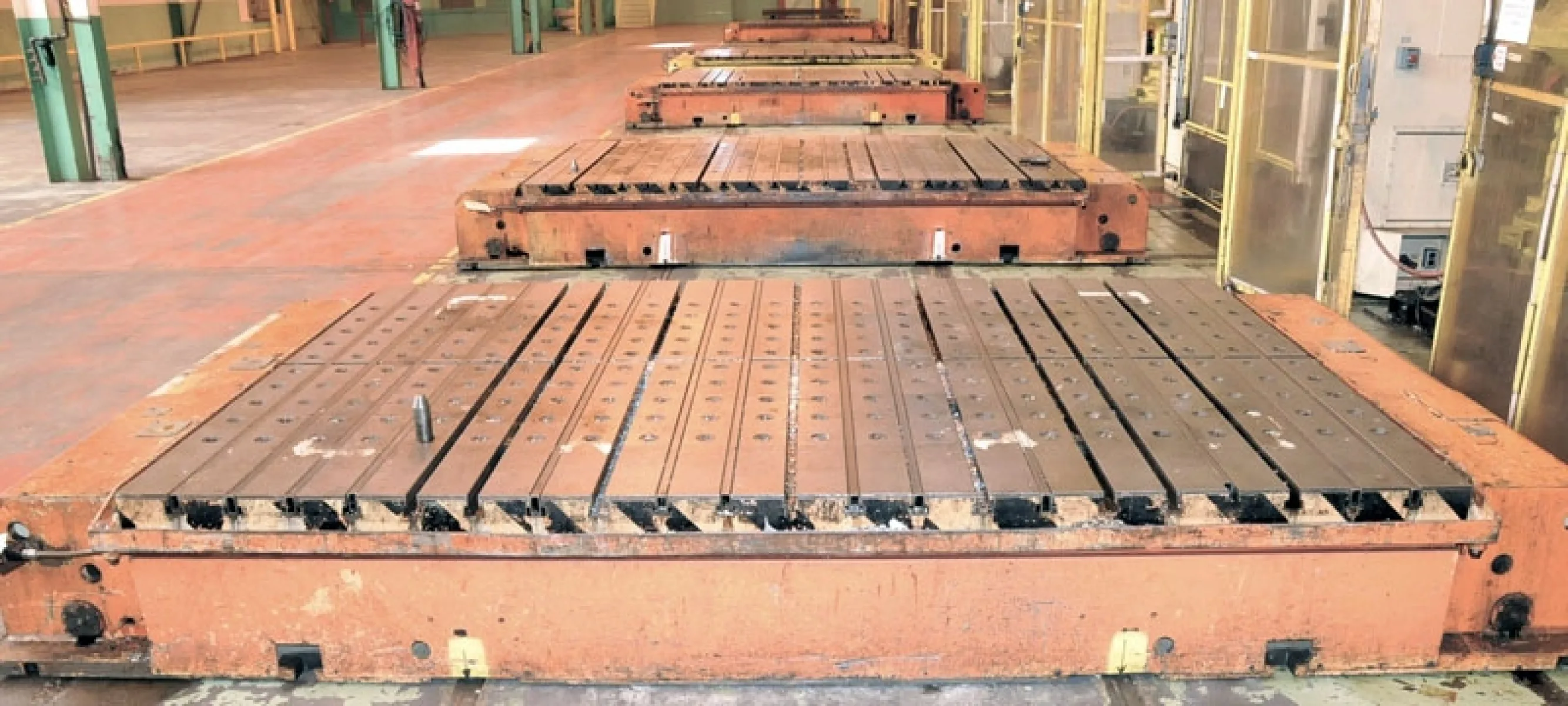

600-Ton Blow Mdl: SE2-600, 60" X 120" Bed & Slide, 24" Stroke, 13-26 SPM, 40" Shut Height, 16" Motorized Adj., Air Clutch & Brake, 64" Windows, (2) Rolling Bolsters, S/N E2D-600-10-88
500-Ton Danly Mdl: S2-500, 48" X 60" Bed & Slide, 16" Stroke, 25 SPM, 44" Shut Height, 16" Motorized Adj., Air Clutch & Brake, Air Cushions, Floor Standing, S/N 72312305

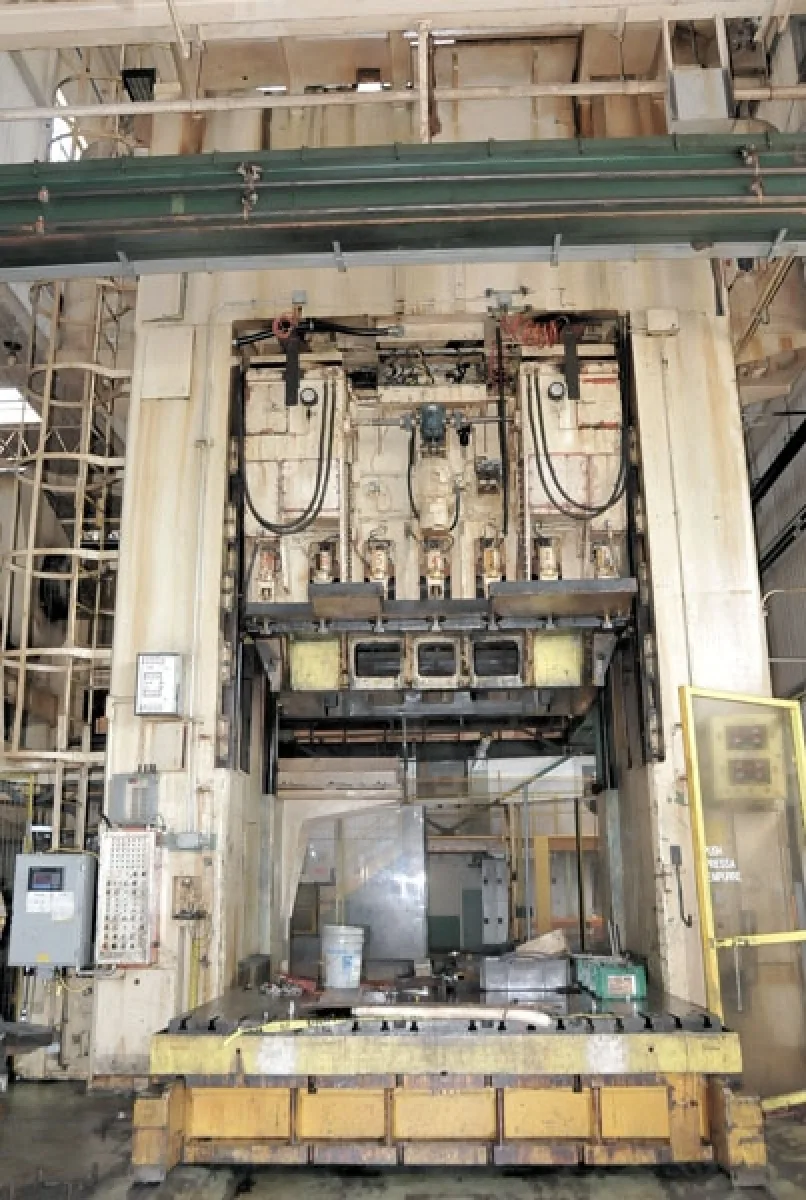

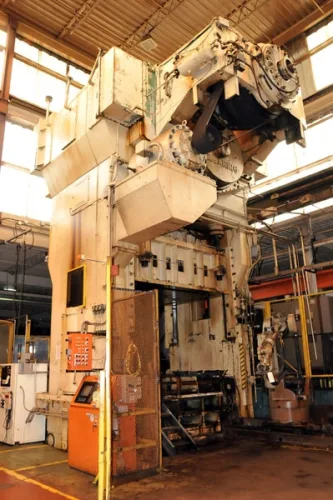

DOUBLE ACTION PRESSES
1300-Ton Danly Mdl: D4-800-120X84MB, 800-Ton Inner Slide 66" X 102", 500-Ton Blankholder 84" X 120", Strokes 42"/36", Shut Heights 98"/88", Motorized Adj., 5"/10", 84" X 120" Bed & Rolling Bolster, Air Clutch & Brake, 14 SPM, Allen Bradley Panelview PLC Controls, S/N 66243901
1000-Ton Clearing Mdl: D2-600-400-108-84, 600-Ton Inner Slide, 400-Ton Blankholder, Strokes 42"/36", Shut Heights 82"/72", Motorized Adj. 12"/12", 84" X 108" Bed, Air Clutch & Brake, 16 SPM, Allen Bradley Panelview PLC Control,
700-Ton Clearing Mdl: D2-450-250, 450-Ton Inner Slide, 250-Ton Blankholder, Strokes 37"/32", Shut Heights 86"/84", Motorized Adj. 12"/12", 60" X 108" Bed, Air Clutch & Brake, 16 SPM, Allen Bradley Panelview PLC Control,
650-Ton Clearing Mdl: D2-650-84-48, 400-Ton Inner Slide, 250-Ton Blank Holder, Strokes 24"/18", Shut Heights 54"/48", Motorized Adj., 20"/20", 48" X 84" Bed, Air Clutch & Brake, 16 SPM, S/N 53-17819
575-Ton Clearing Mdl: DF2-350-108, 350-Ton Inner Slide, 225-Ton Blankholder, Strokes 37"/32", Shut Heights 74"/72", 60" X 108" Bed, Air Clutch & Brake, 16 SPM,
800-Ton USI Clearing Mdl: D1-400-54-54, 400-Ton Inner Punch, 400-Ton Blankholder, Strokes 22"/15", Shut Heights 42"/40", 54" X 54" Bed,Air Clutch & Brake, Air Cushion, 9-12-15 SPM, 35" Window, Loadguard TLG4500 Load Monitor, Systek Controls, S/N 10-1696

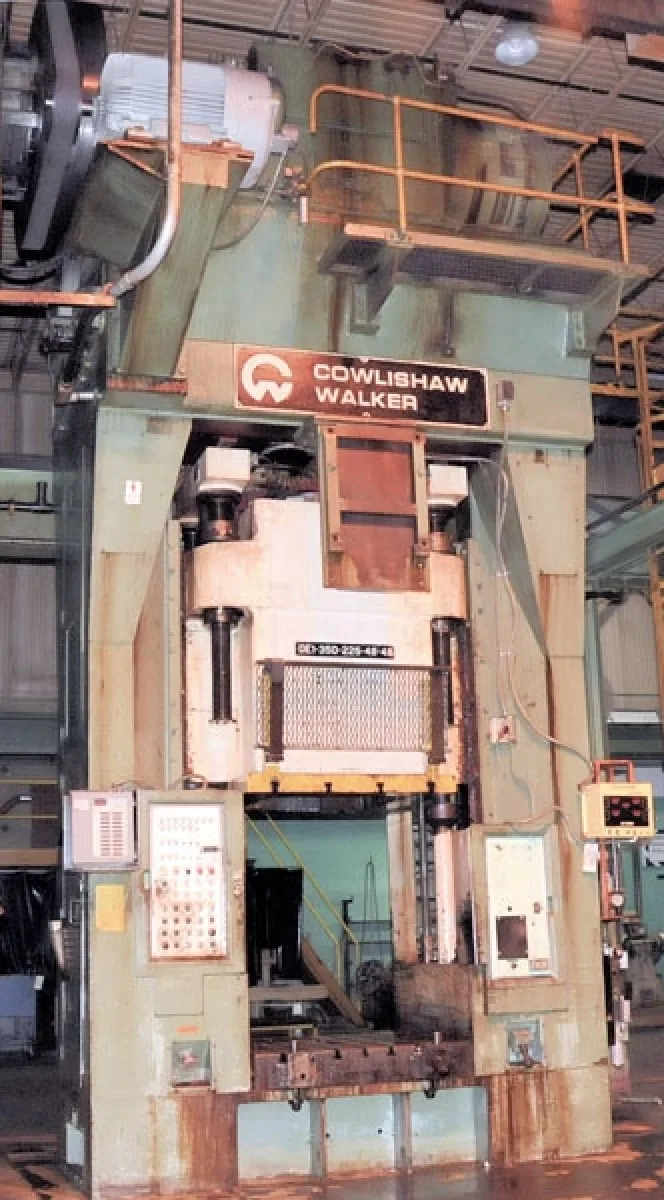

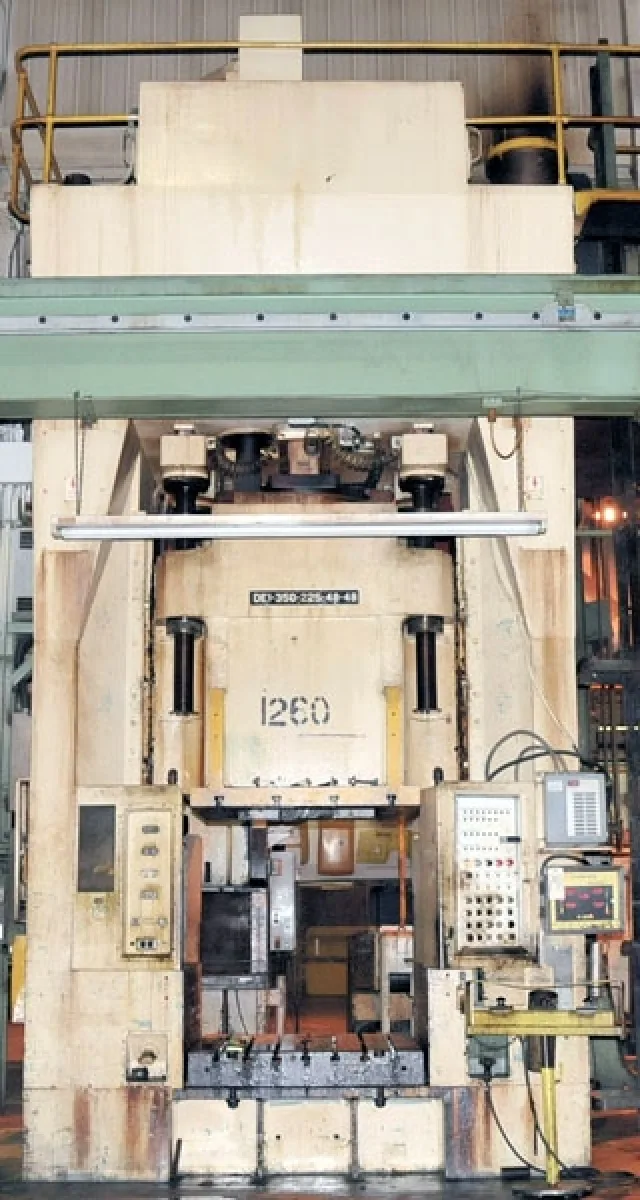

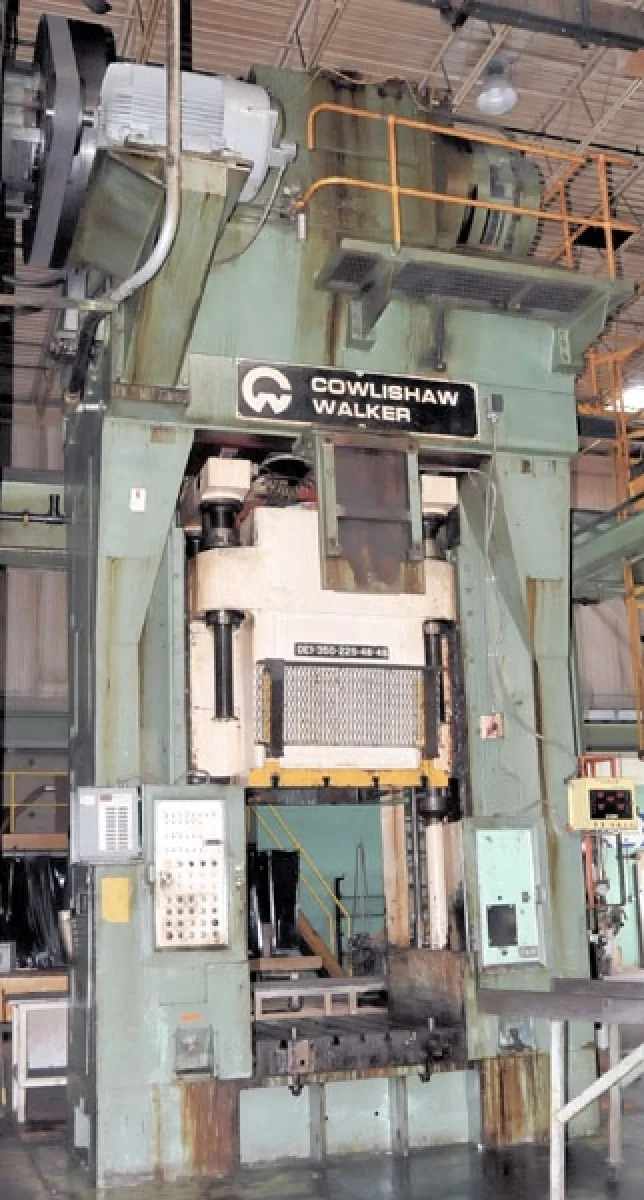

(2) 575-Ton Cowlishaw Walker Mdl: DE1-350-225-48-48, 350-Ton Inner Punch, 225-Ton Blankholder, Strokes 25"/17", Shut Heights 51 1/2"/49 1/2", Motorized Adj. 27"/20", 48" X 48" Bed, Air Clutch & Brake, Air Cushion, 16 SPM, Systek Controls, Loadguard TLG4500 Load Monitor, S/N 7259 & 7258

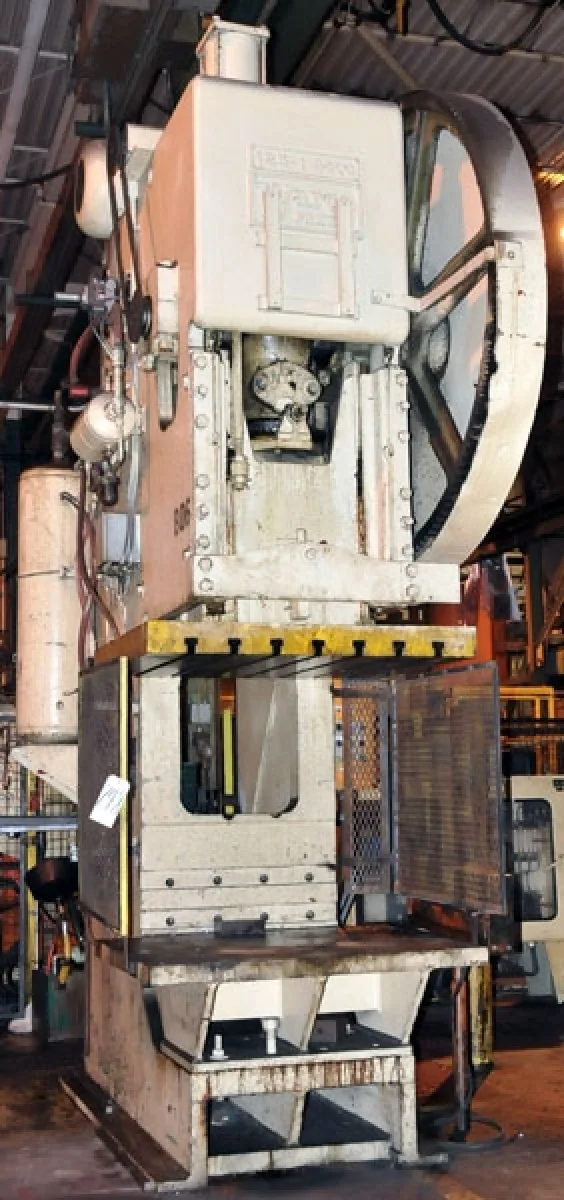

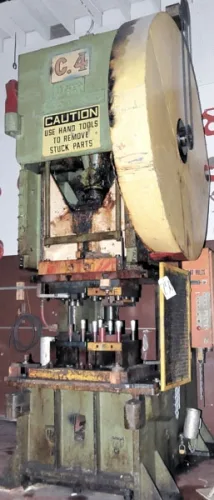

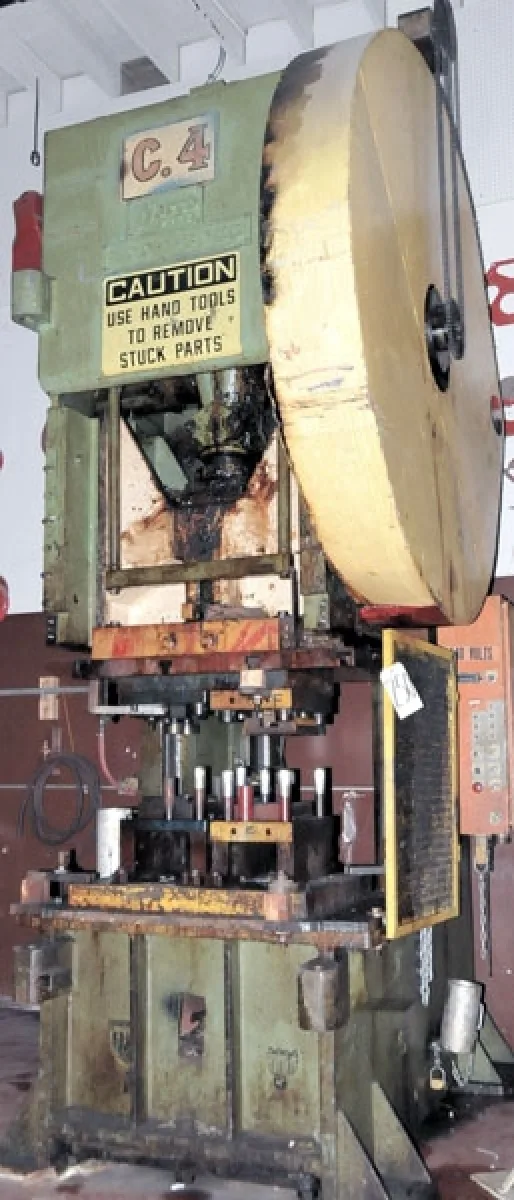

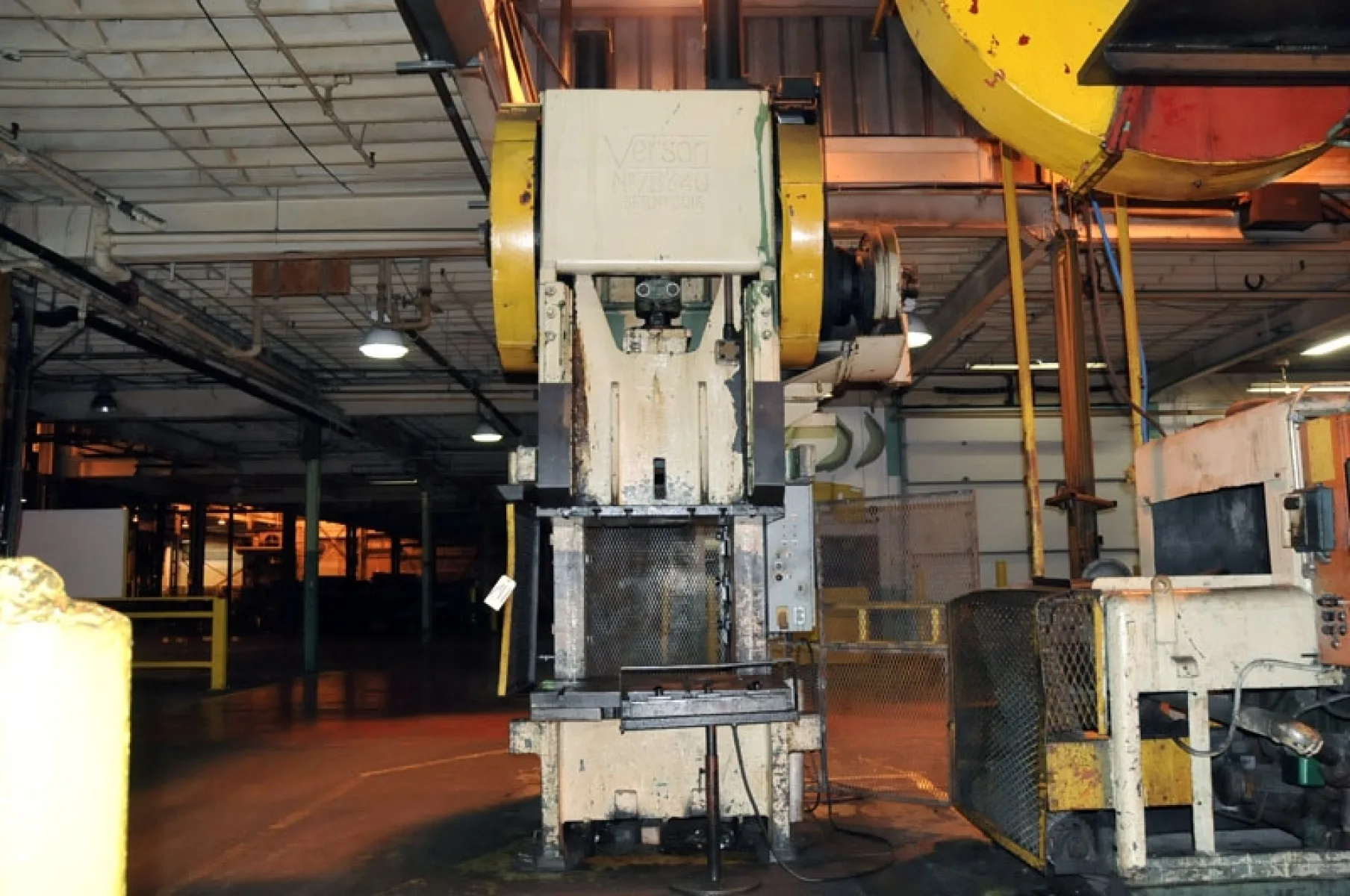

GAP FRAME PRESSES

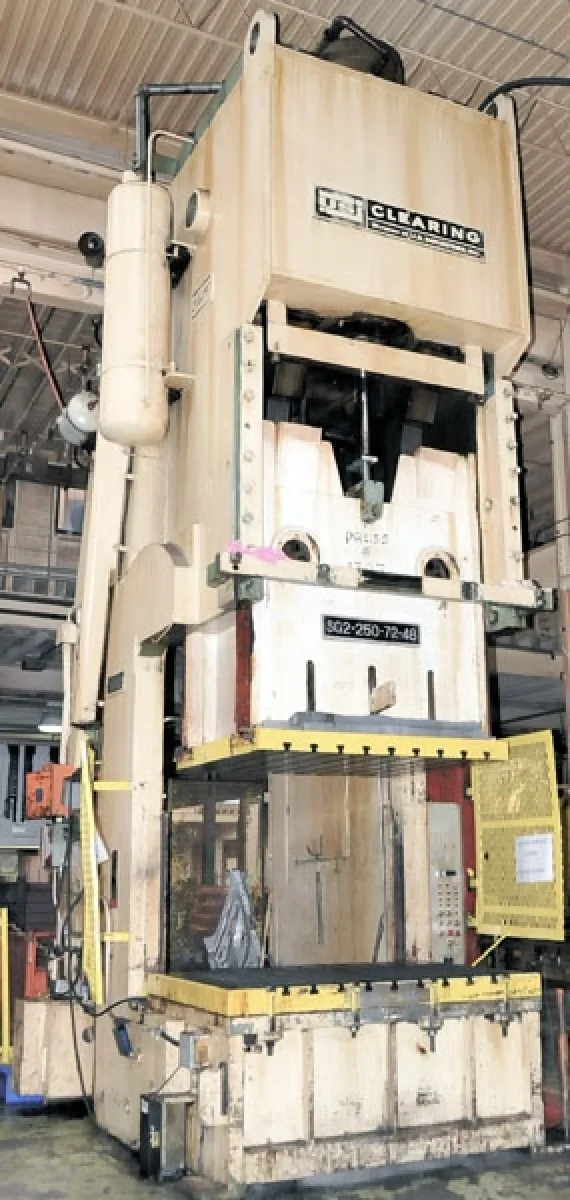

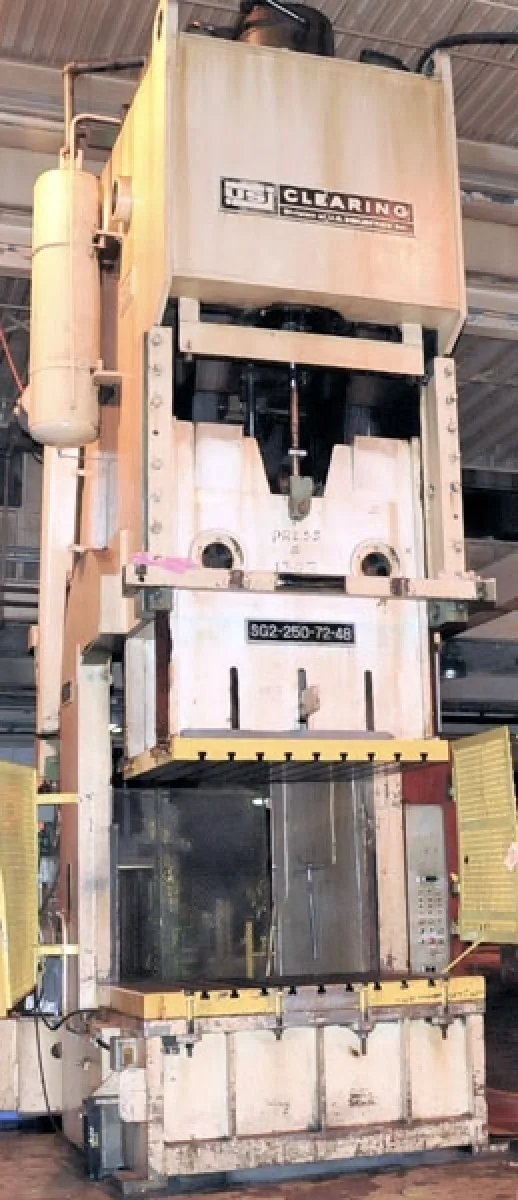

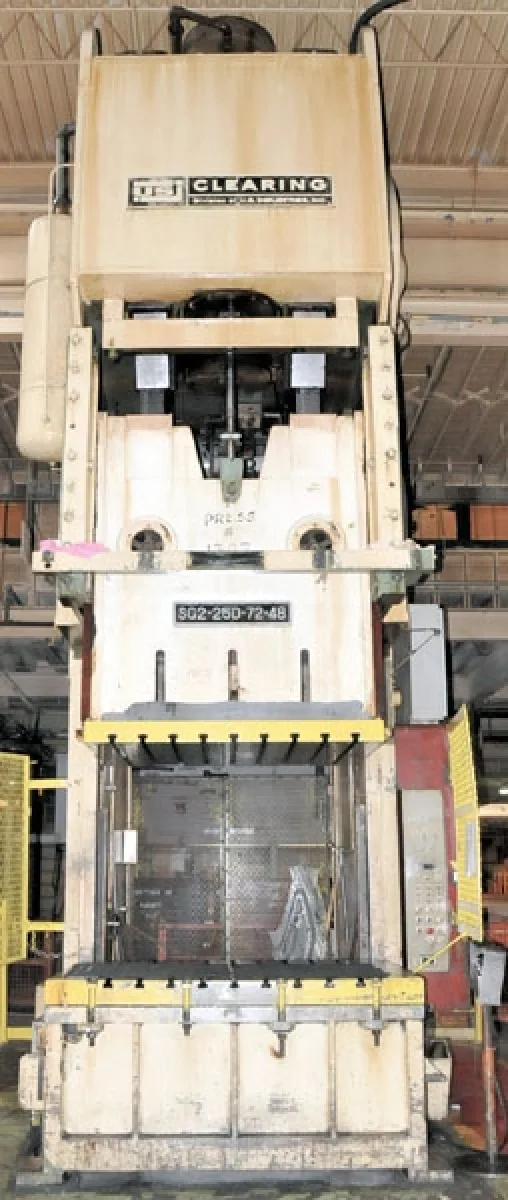

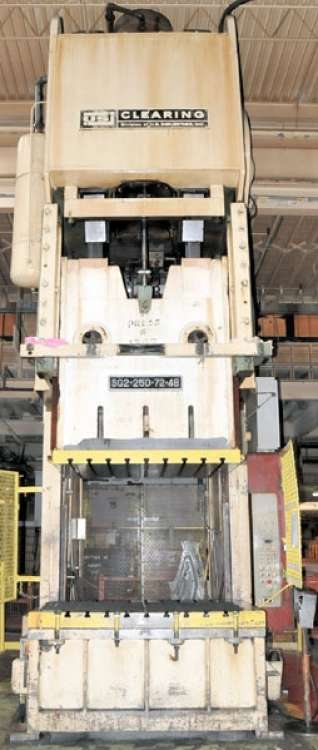

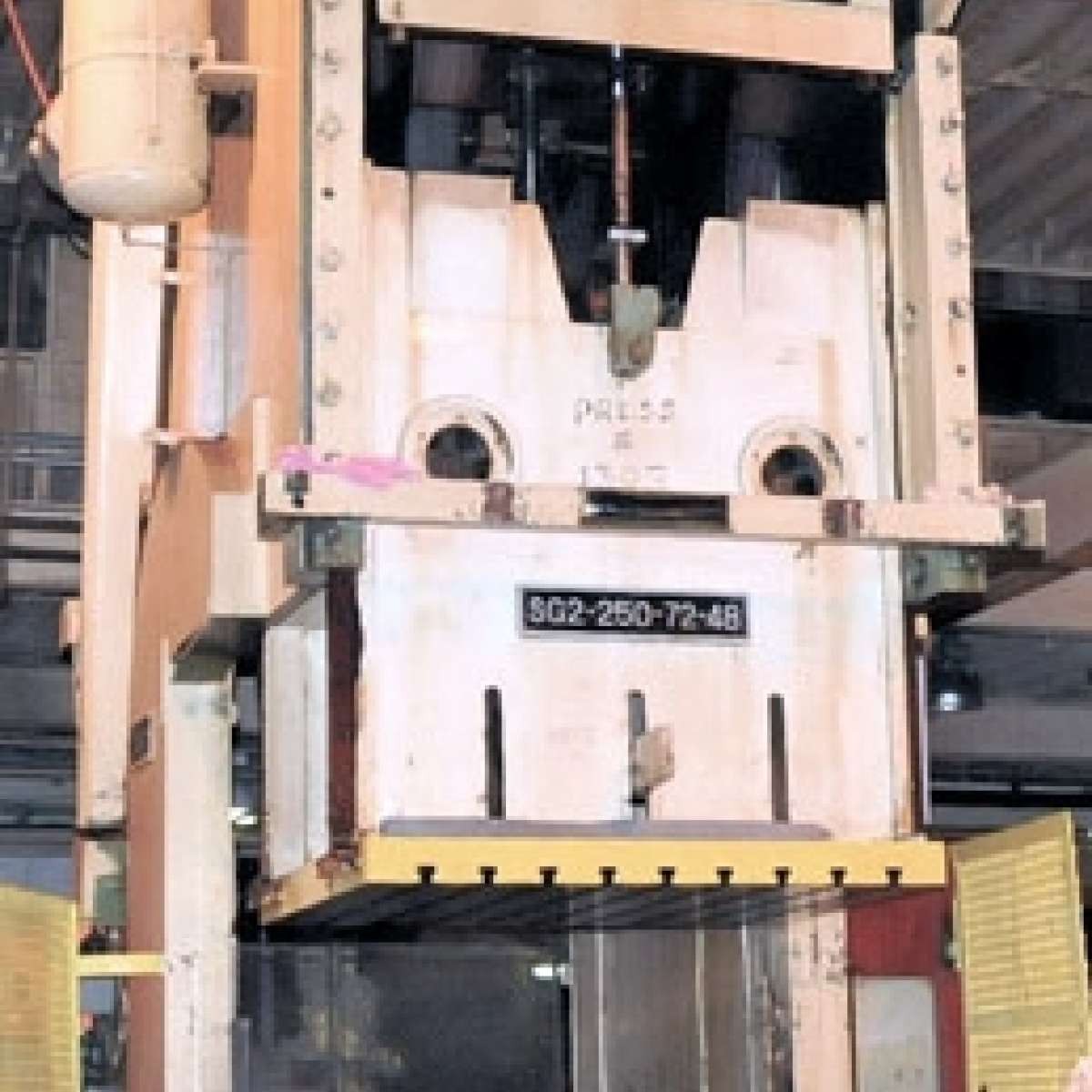

250-Ton USI Clearing Mdl: SG2-250, 48" X 72" Bed, 26" Stroke, 25 SPM, 48" Shut Height, 8" Motorized Adj., Air Clutch & Brake, S/N 51-1370
(3) 250-Ton Versons Mdl: 8-54G, 36" X 84" Bed, 20" Stroke, 25 SPM, 38" Shut Height, 6" Motorized Adj., Air Clutch & Brake, S/N 8261, 8263 & 8265

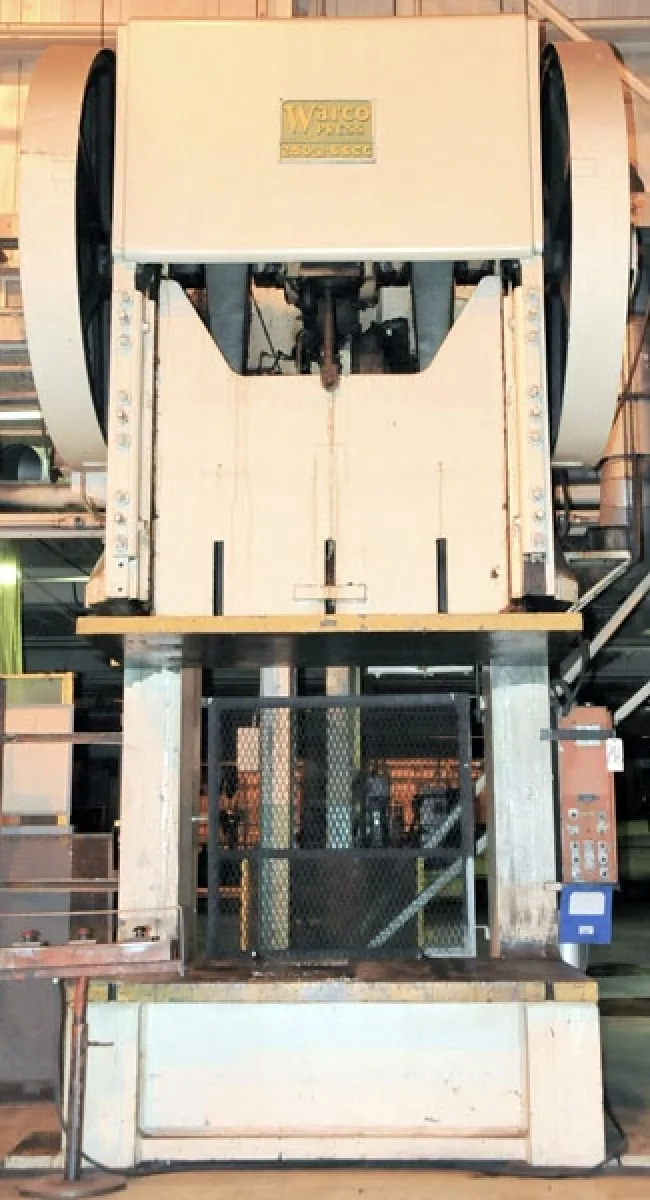

250-Ton Warco Mdl: 250-2-66CG, 48" X 84" Bed, 20" Stroke, 25 SPM, 38" Shut Height, 6" Motorized Adj., Air Clutch & Brake,
215-Ton Verson Mdl: 7B34G, 36" X 50" Bed, 12" Stroke, 30 SPM, 24" Shut Height, 6" Motorized Adj., Air Clutch & Brake, S/N 3016
(2) 125-Ton Warco Mdl: 125-1-24CG, 36" X 36" Bed, 12" Stroke, 30 SPM, 30" Shut Height, 4" Motorized Adj., Air Clutch & Brake, S/N 55P-3351
100-Ton Warco Mdl: 100-1-30CG, 26" X 34" Bed, 10" Stroke, 25 SPM, 24 1/2" Shut Height, 4" Adj., Air Clutch & Brake, S/N 47961
KNUCKLE JOINT PRESS

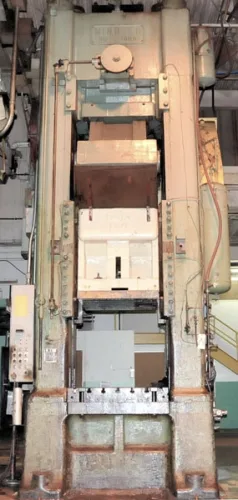

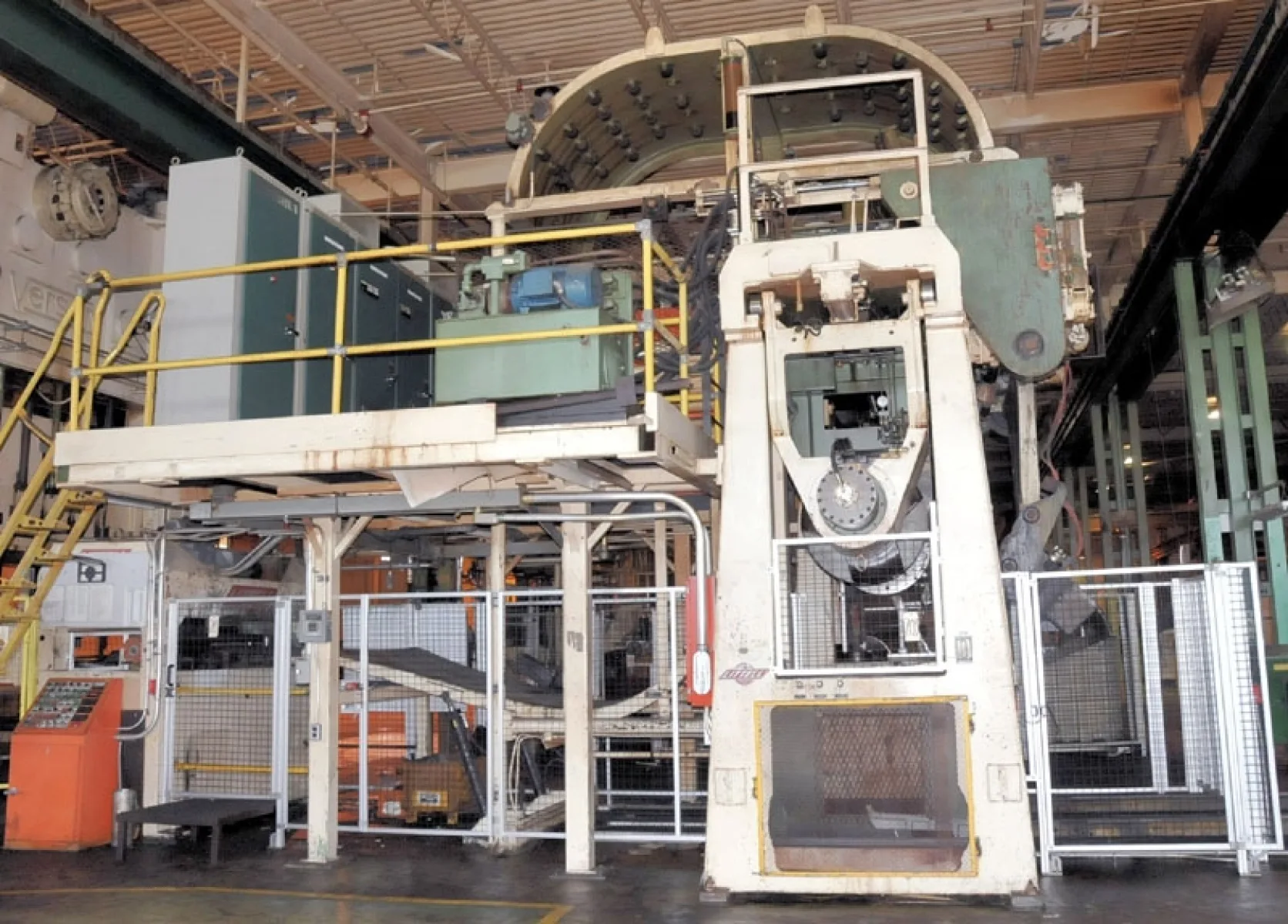

1000-Ton Minster Mdl: 90-1000, 42" X 42" Bed, 36" X 30" Slide, 14" Stroke, 20 SPM, 36" Shut Height, 1/2" Adjustment, Air Clutch & Brake, S/N 4902

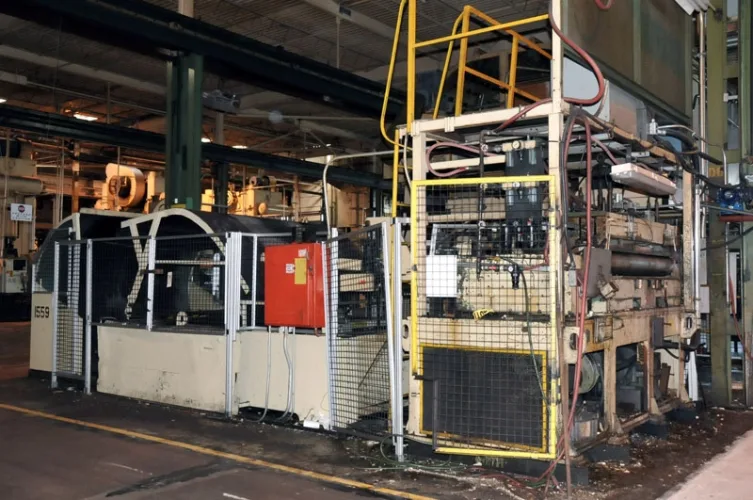

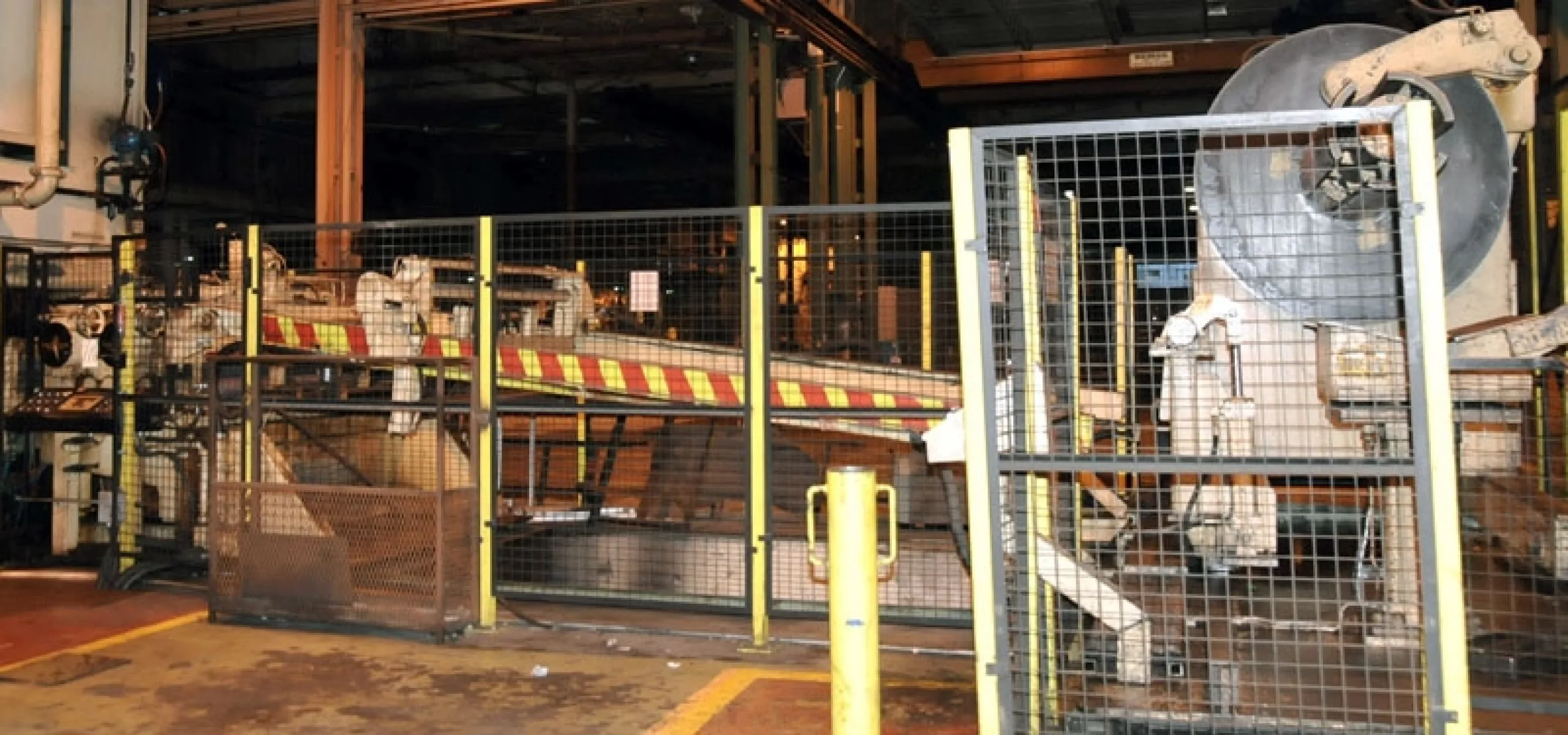

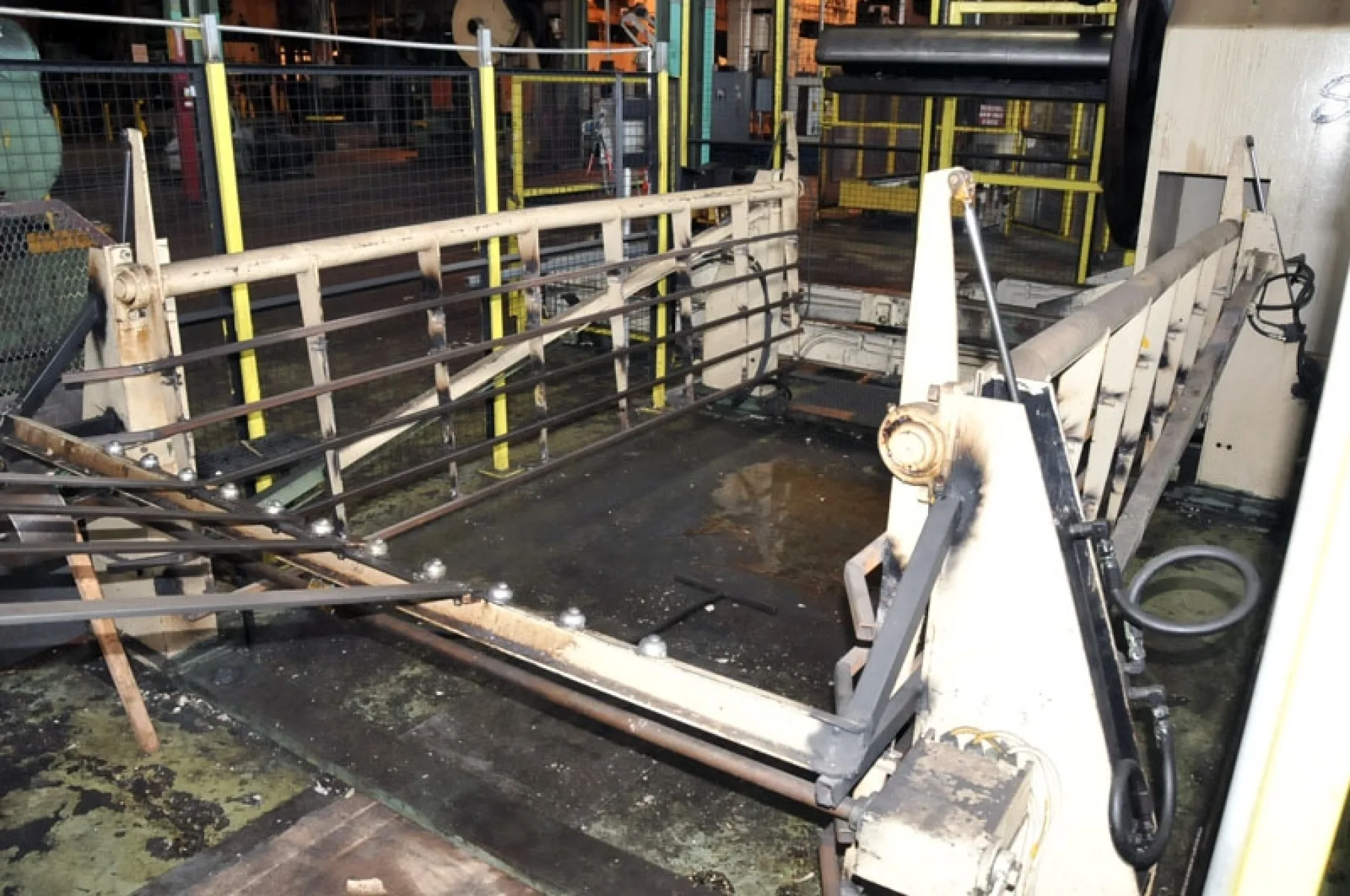

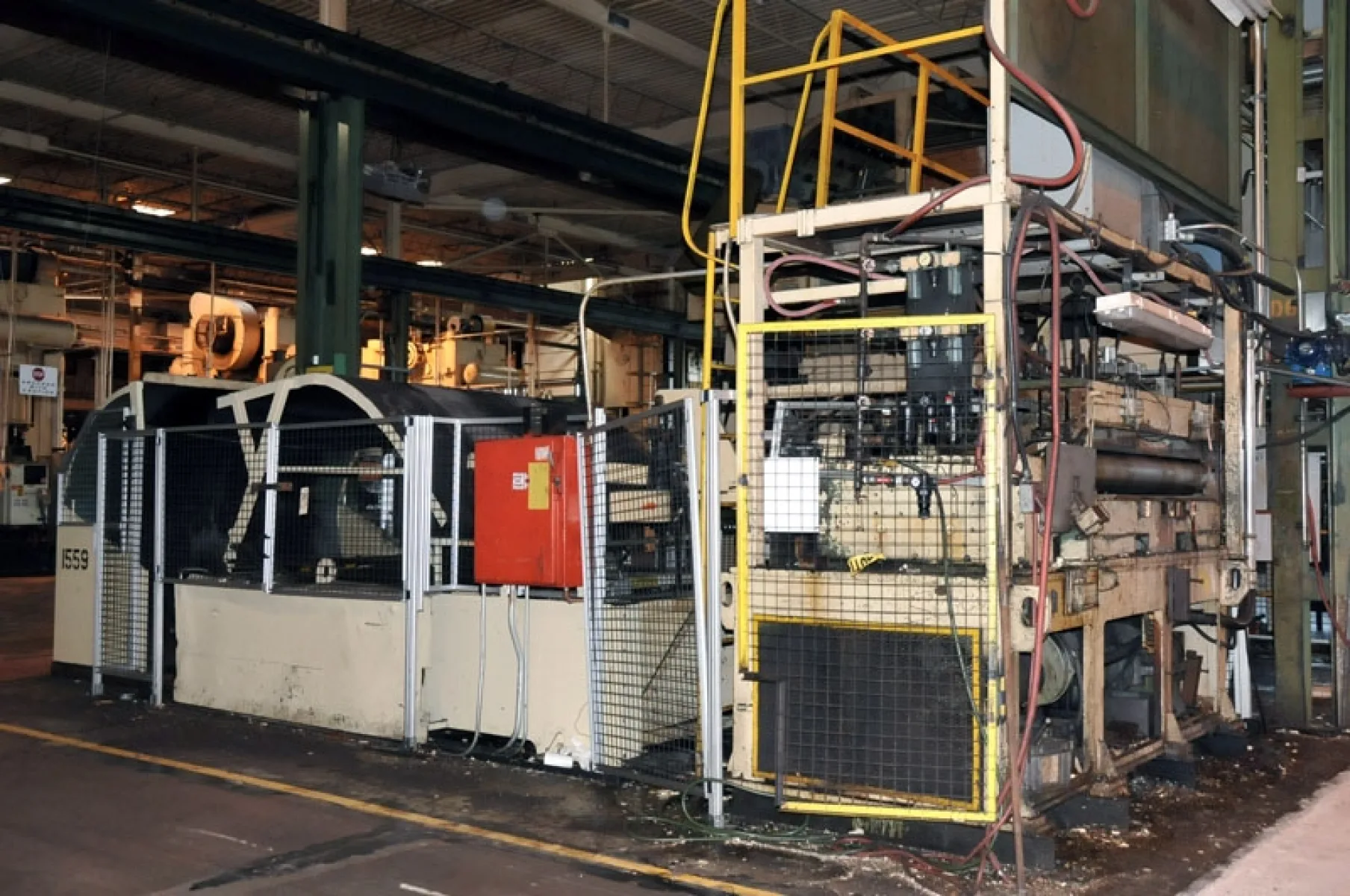

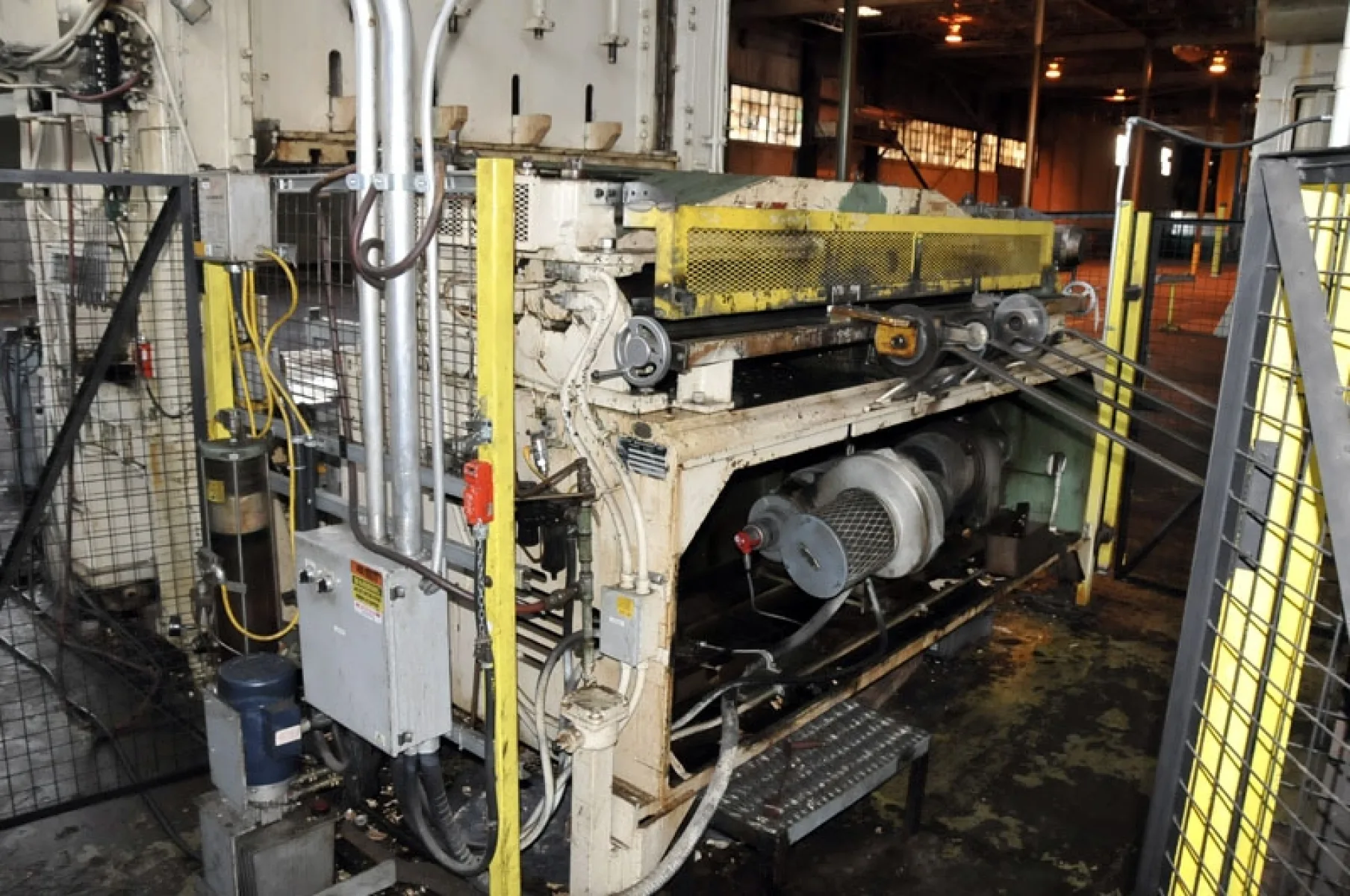

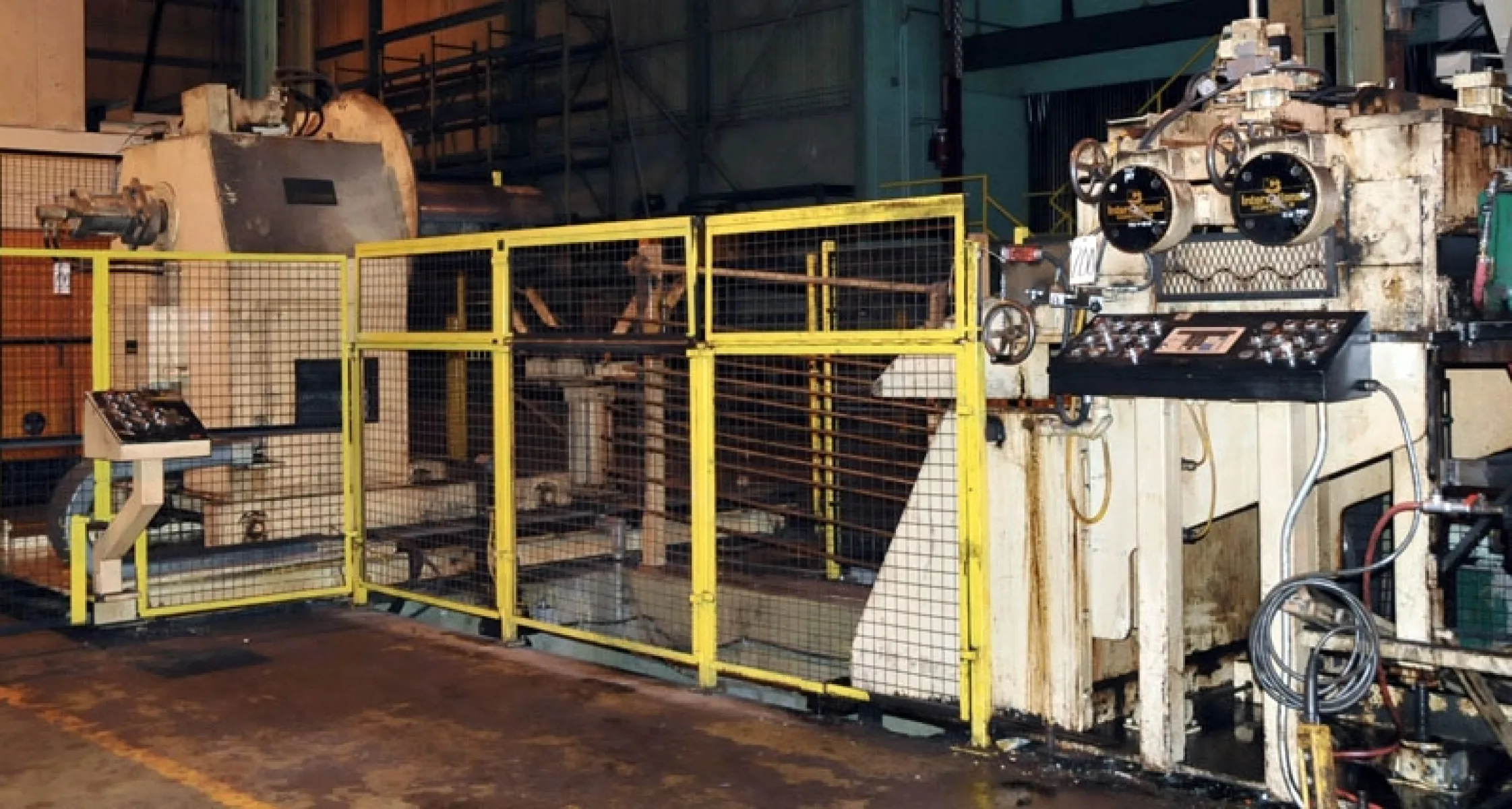

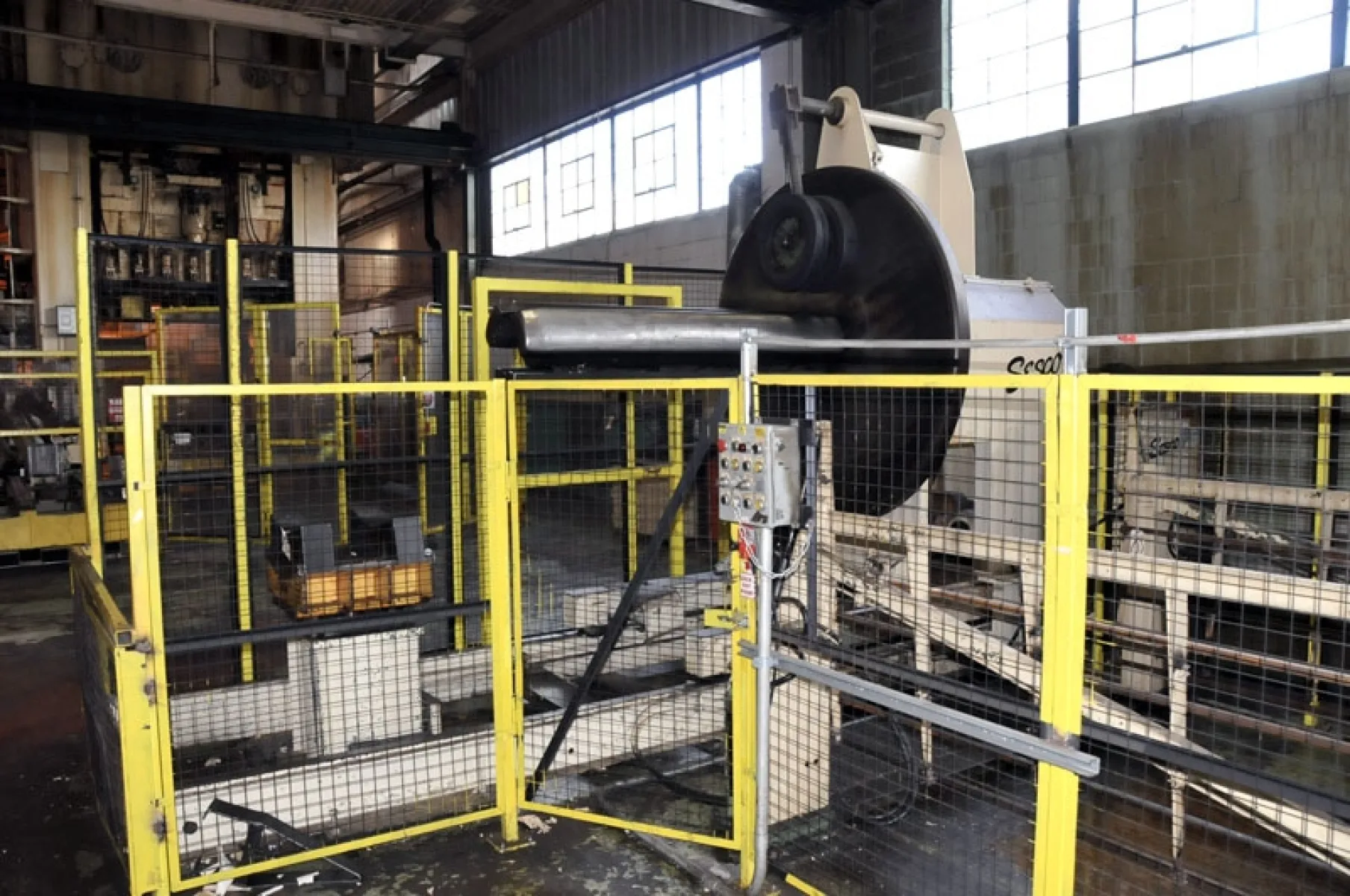

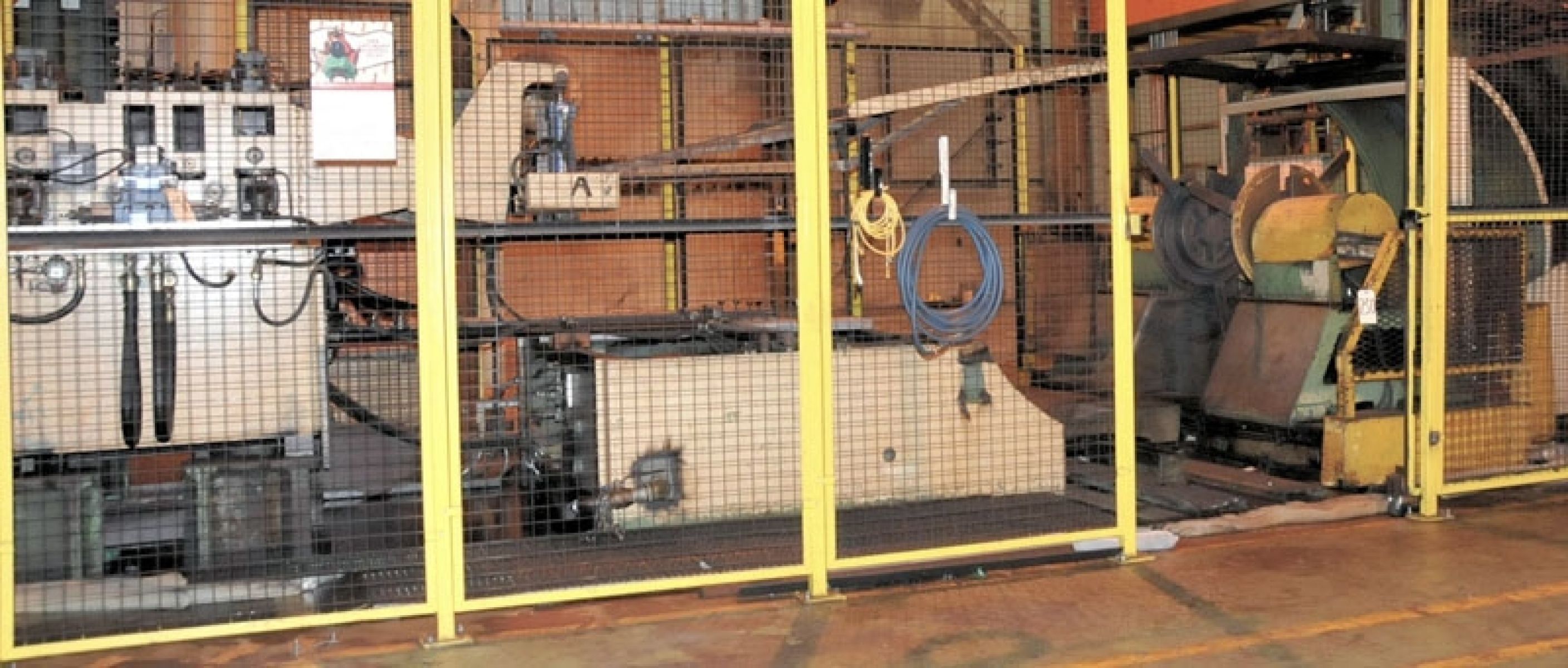

FEED LINES

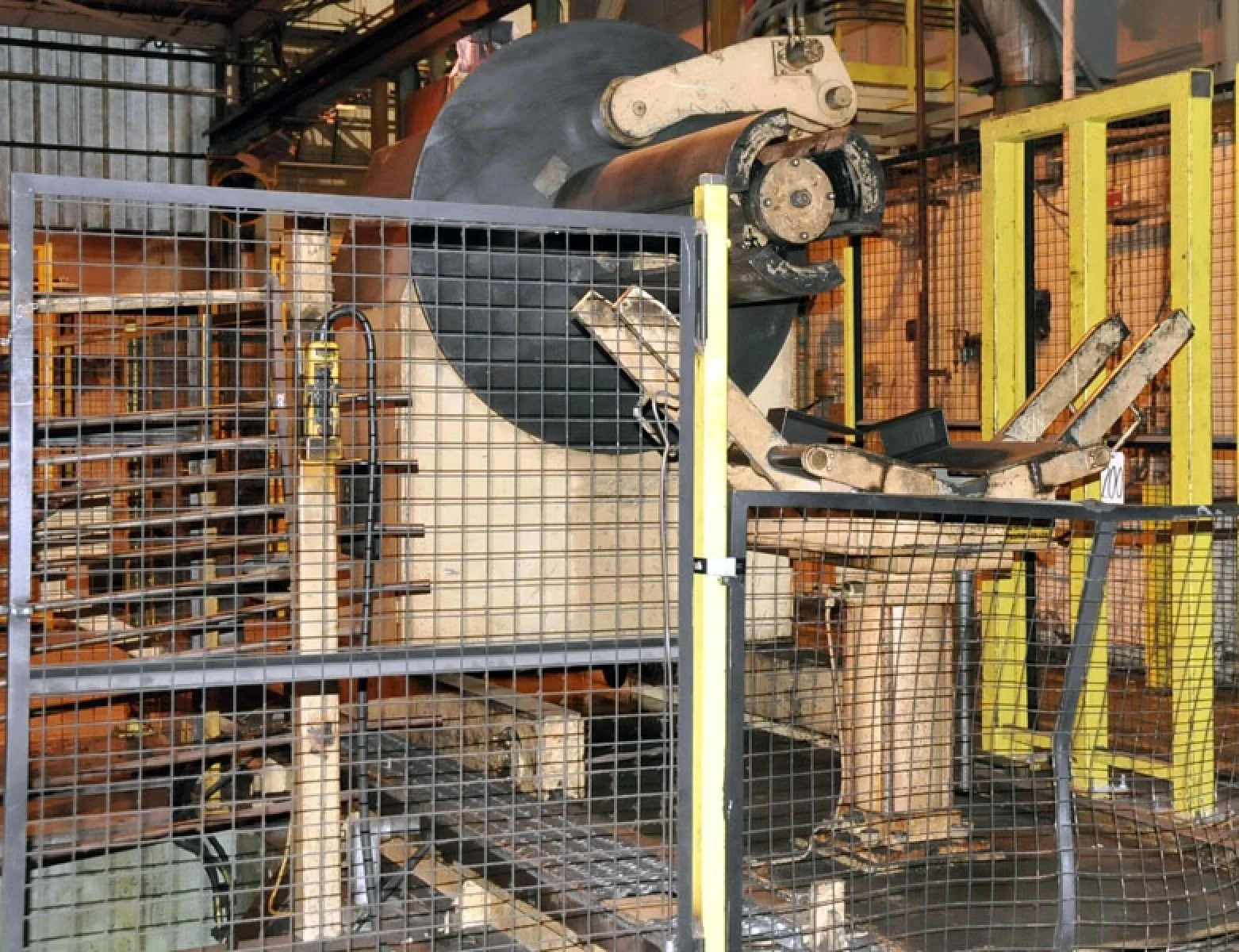

60,000# X 72" X .090" Littell Double Cone Uncoiler, Coil Car, Hold Down Arm, 7 Roll Straightener, Bridge Type Loop Over, Roll Feeder, S/N 77103-69
20,000# X 60" X .080" Sesco Mdl: 49-81, Coil Cradle With Overhead Loop, Ramp, Roll Feeder/Straightener, S/N 12859-1
20,000# X 72" X .125" Sesco Mdl: 55-398, Traveling Reel, Coil Car, Hold Down Arm, S/N 15105-2, Alcos Machinery/Littell 92" Servo Feed/Straightener Mdl: PF-92, S/N CS-85-1819
(1992) 20,000# X 48" X .125" International Controls, Reel, Coil Car, Hold Down Arm, Servo Feed/Straightener, S/N 4122
(1997) 20,000# X 60" X .125" International Controls, Reel, Coil Car, Hold Down Arm, Servo Feed/Straightener, S/N 5180
20,000# X 48" X .125" Anclay Mdl: FSCT, Cone Type Uncoiler, Coil Car, Servo Feed/Straightener, S/N A-061
FEED EQUIPMENT
20,000# Littell Cradle Straightener 28" X .156" Capacity, 76" O.D., S/N 33441-48
20,000# Littell Cone Type Uncoiler 48" Wide, S/N 70985-62

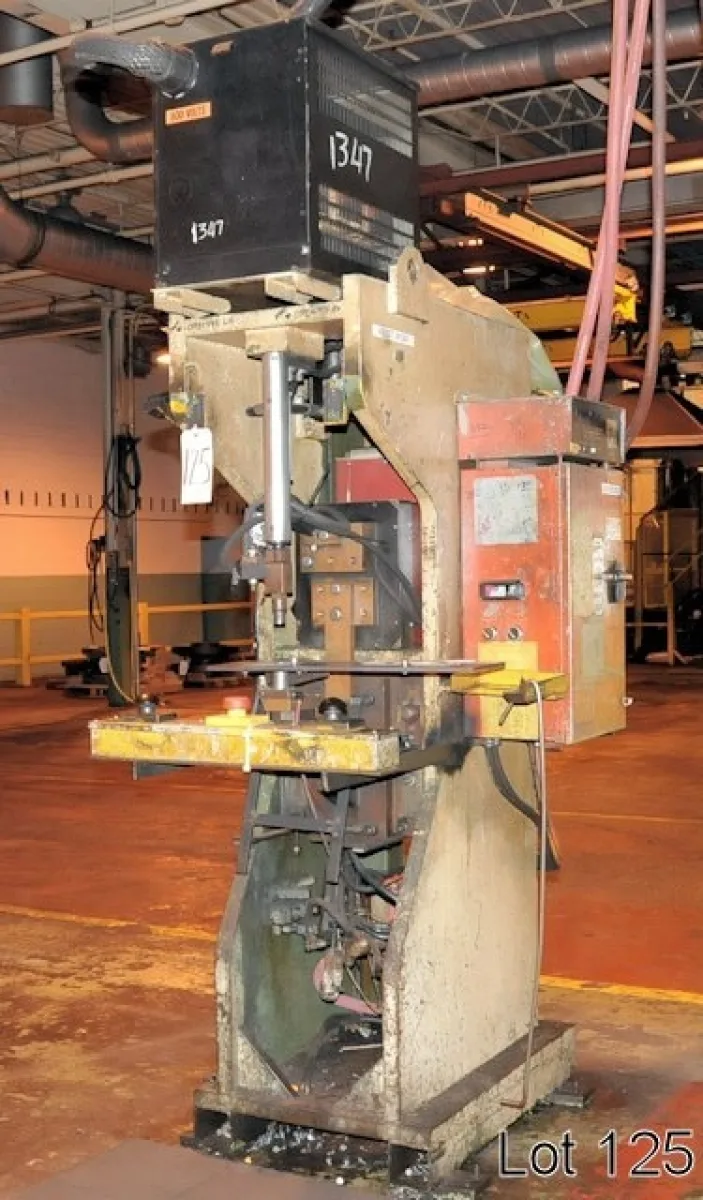

SPOT WELDERS

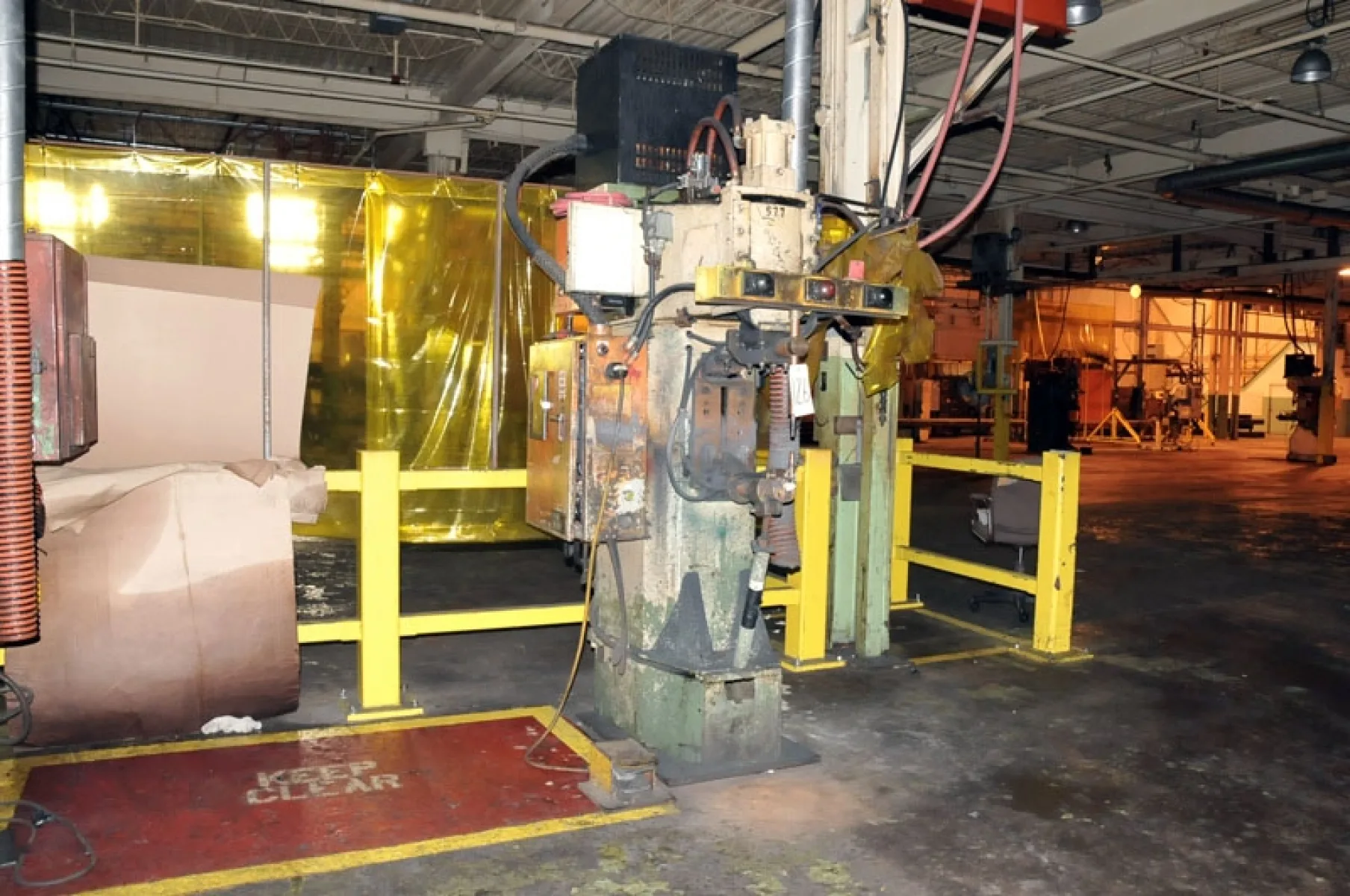

200 KVA Narmco Robotron Controls

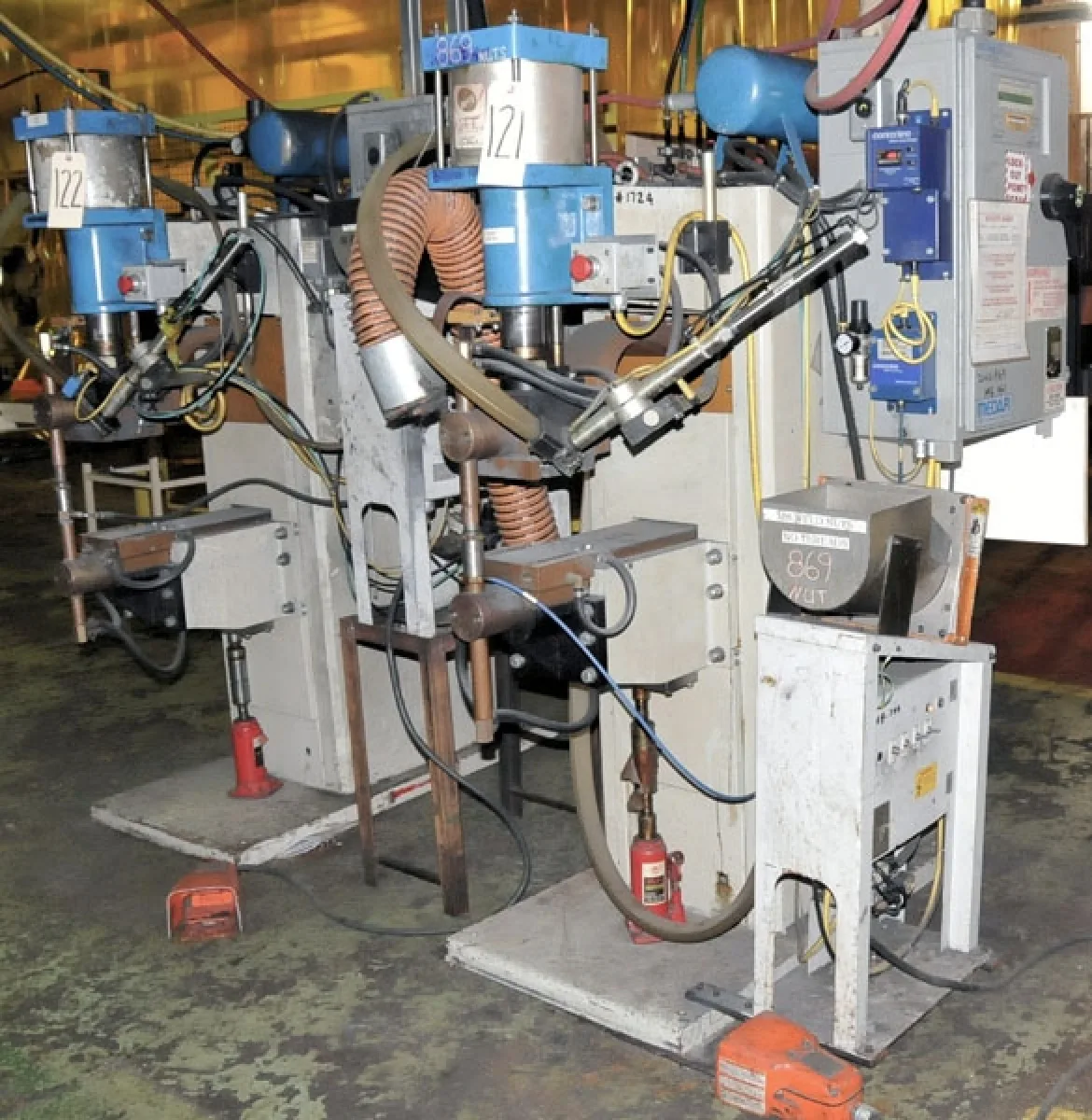

(2) 150 KVA Rainbow Press Type, Medweld Mdl: 200S Control, 19" Throat, Part Feeder, S/N 10204412 & 10208492
150 KVA Federal Press Type, S/N 13765
100 KVA Thompson Press Type, 12" Throat, S/N 17491

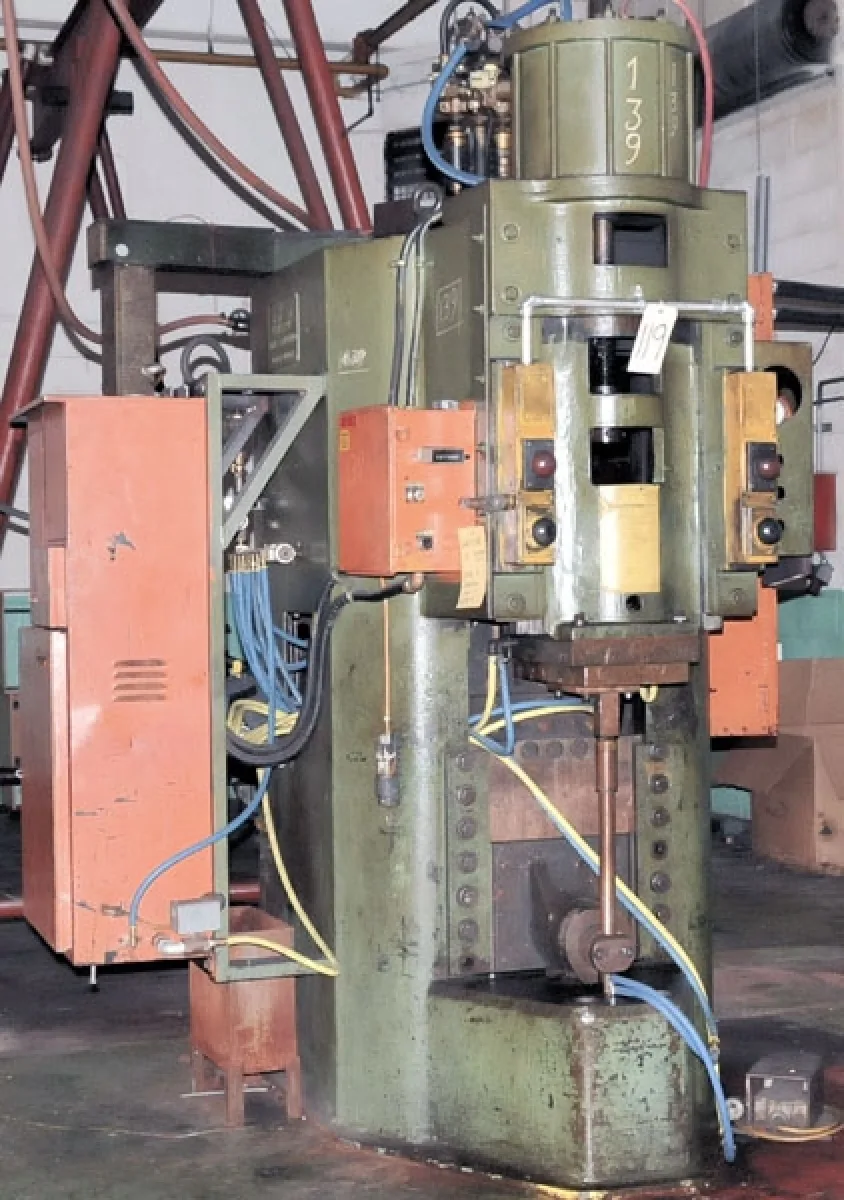

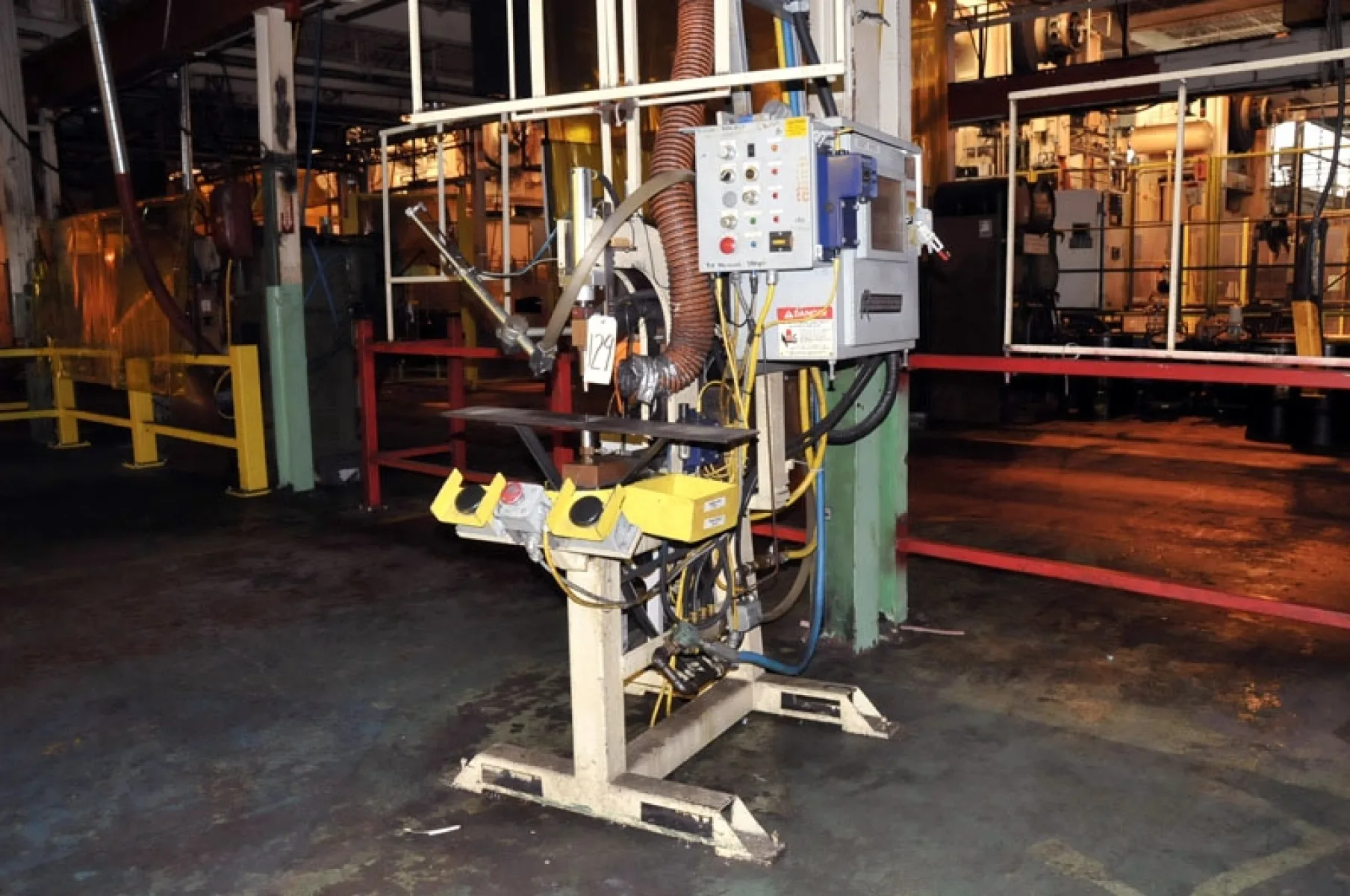

100 KVA Nut Welder, Robotron Control, S/N 9412048
Narmco, Medweld 300S Control, 12" Throat
Taylor Winfield 18" Rocker Arm
Federal Rocker Type, Medar Control

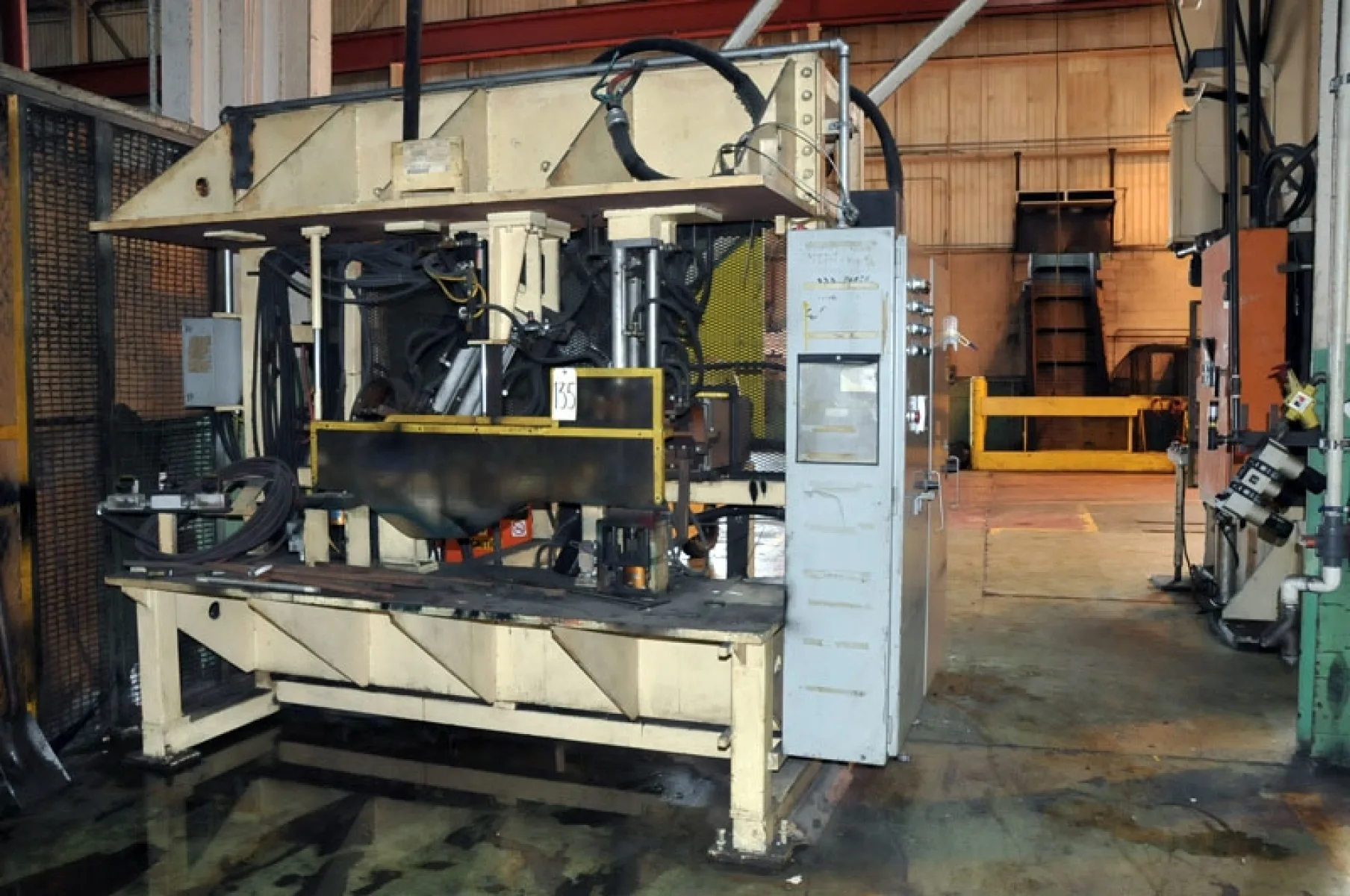

H-Frame Assembly Welding Station, (2) Roman Weld Power Sources, 200/100 KVA, S/N 9707157

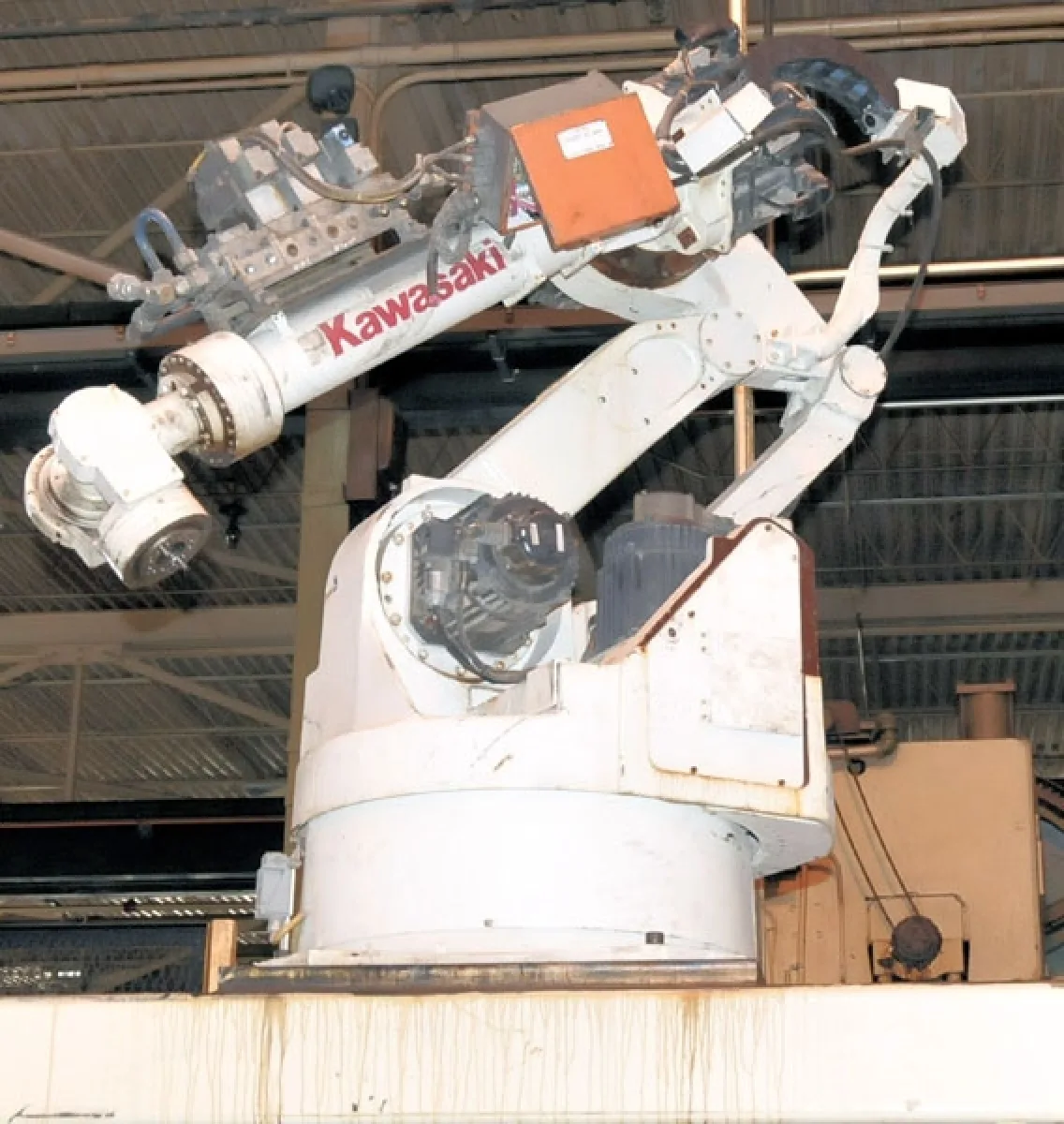

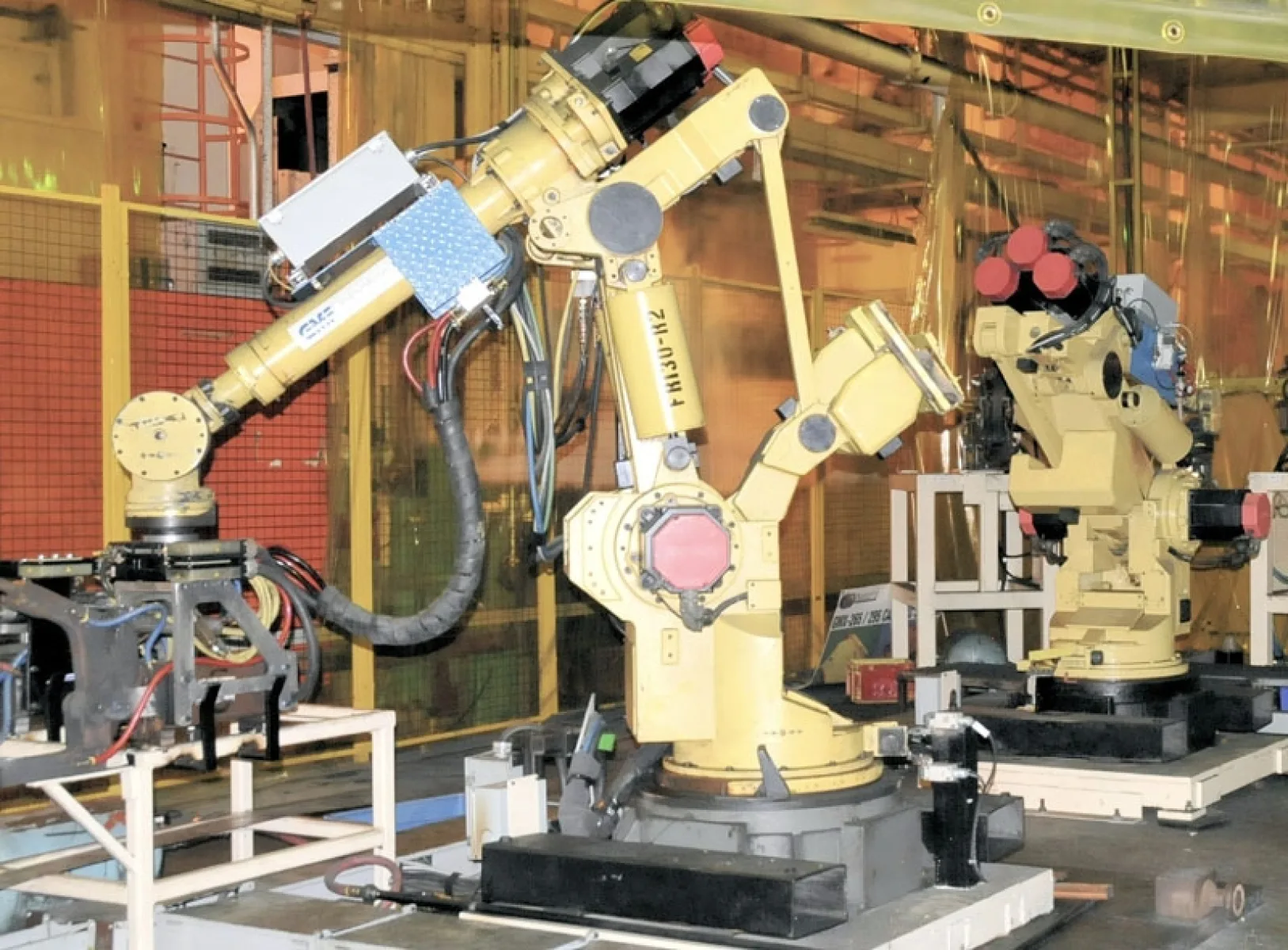

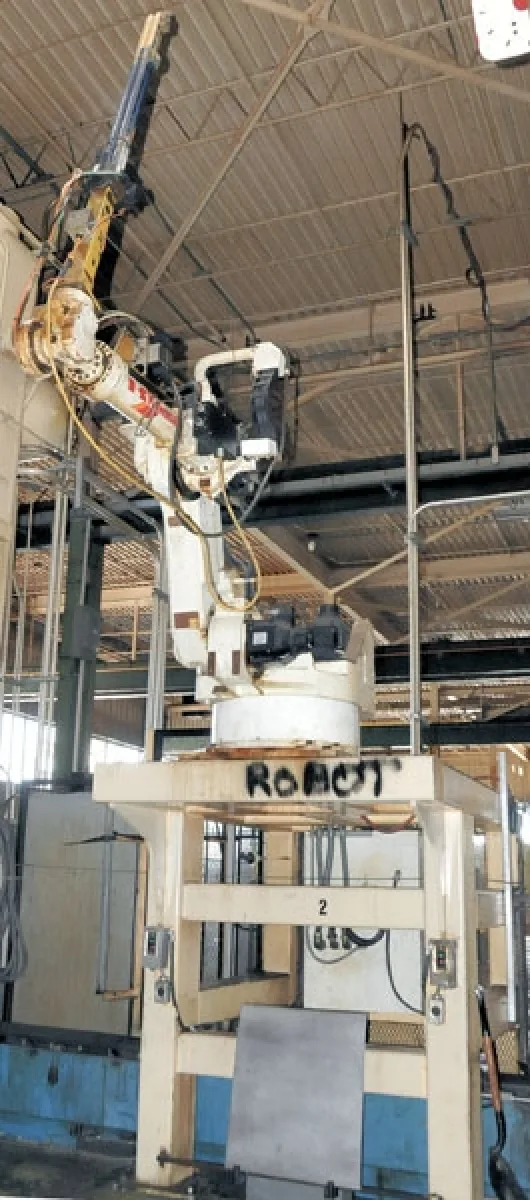

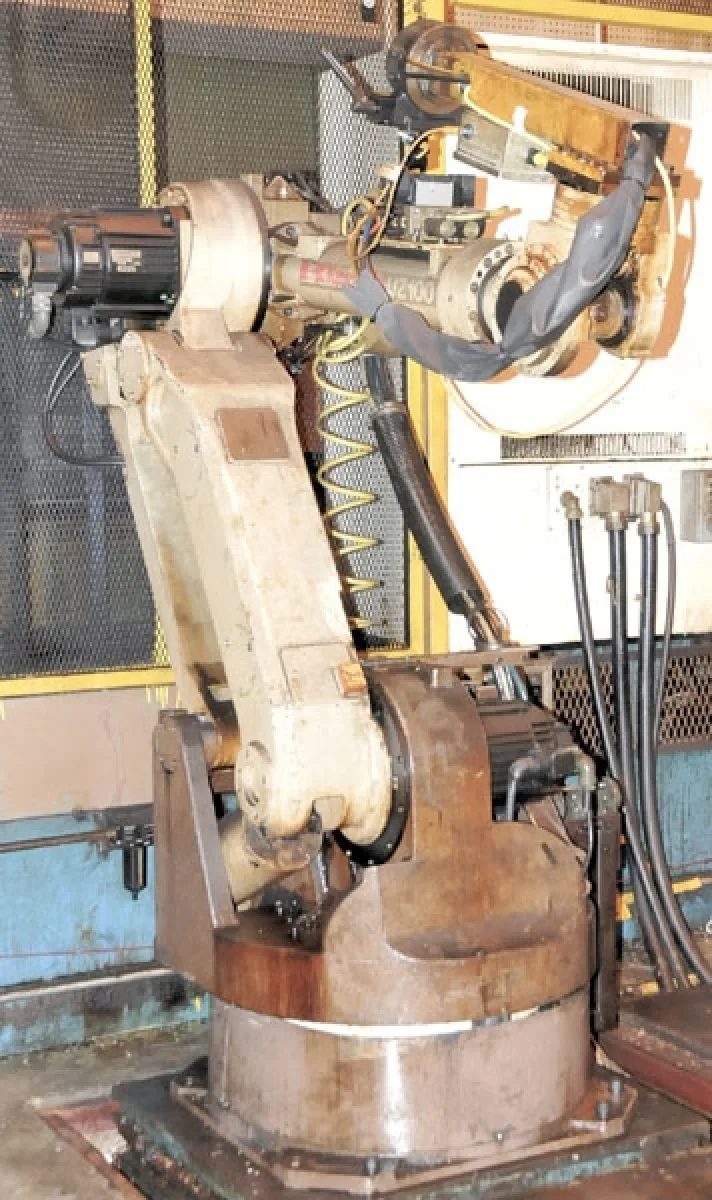

ROBOTS

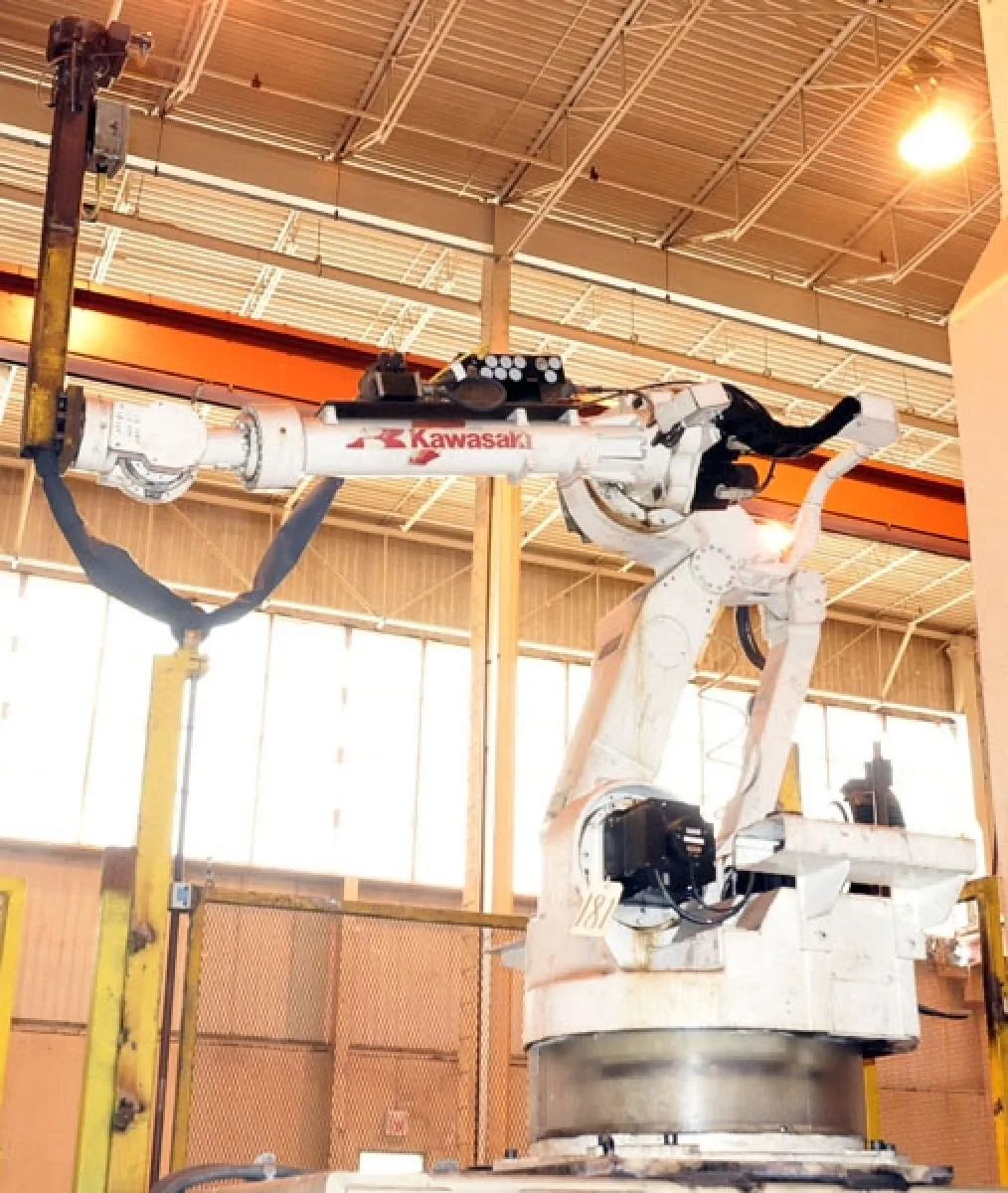

(20) (1992-94) Kawasaki Mdl: U200, 6-Axis
(6) (1995-97) Kawasaki Mdl: U2120, 6-Axis
(1997) Kawasaki Mdl: UX120FA720, 6-Axis

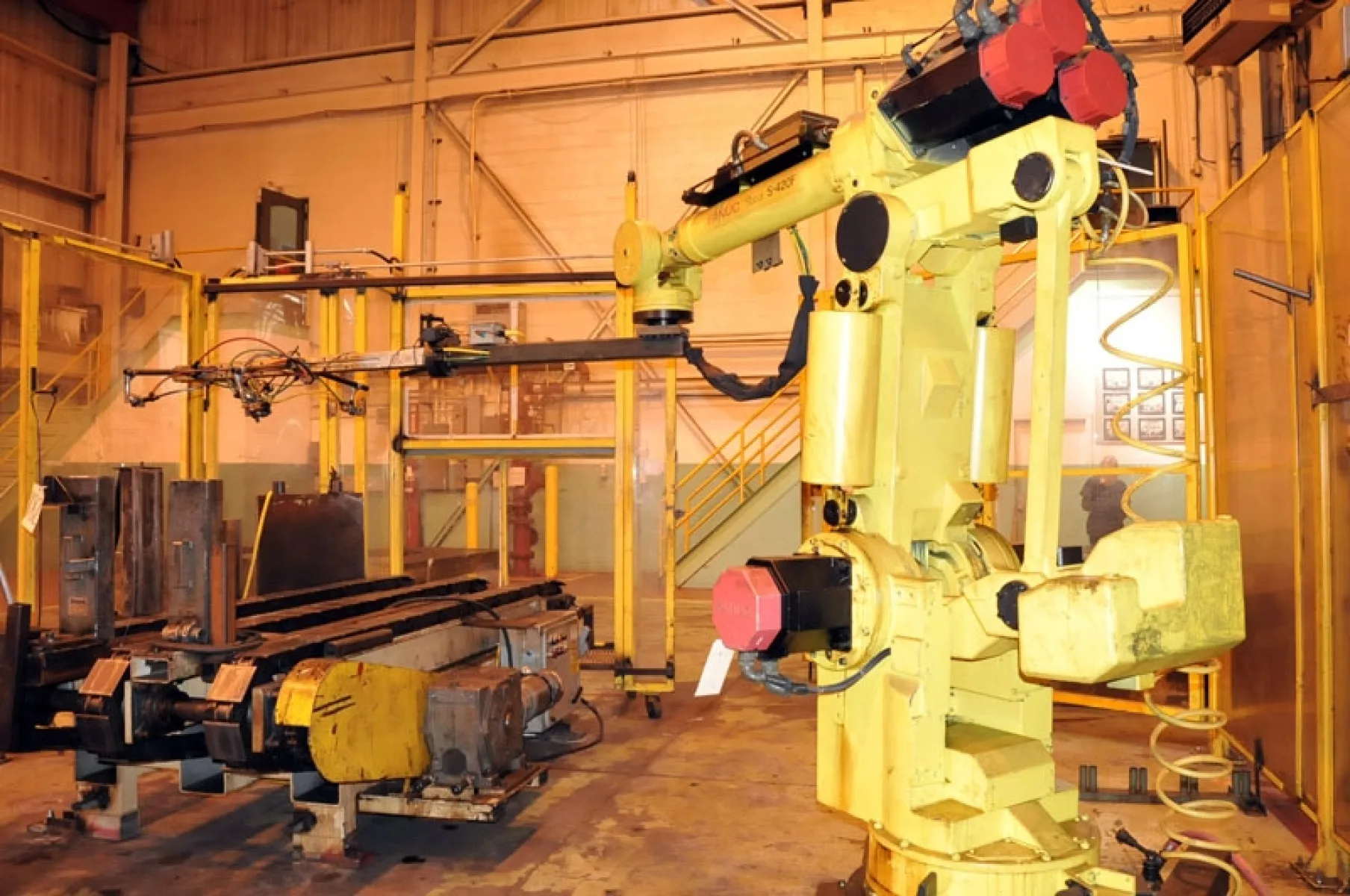

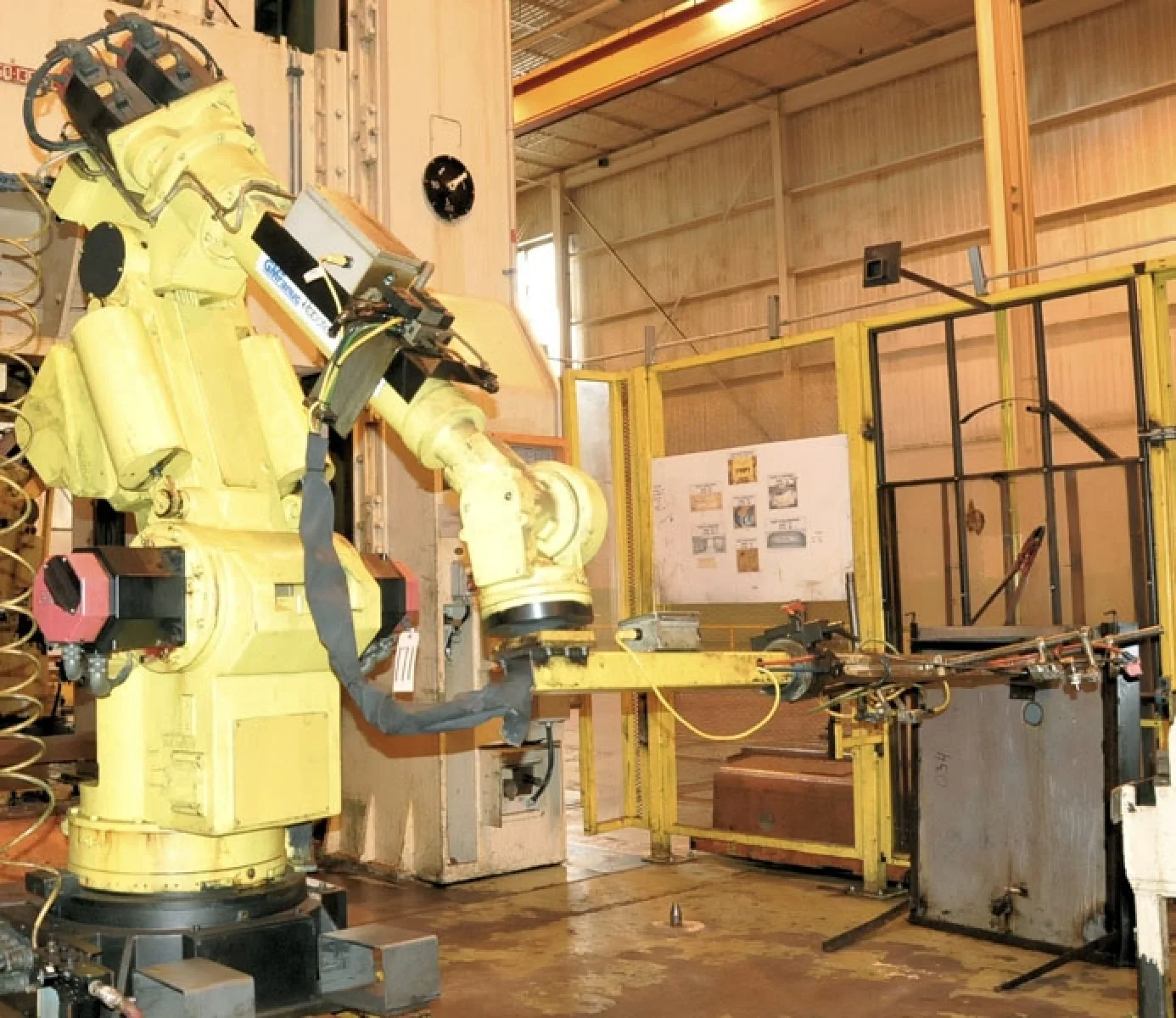

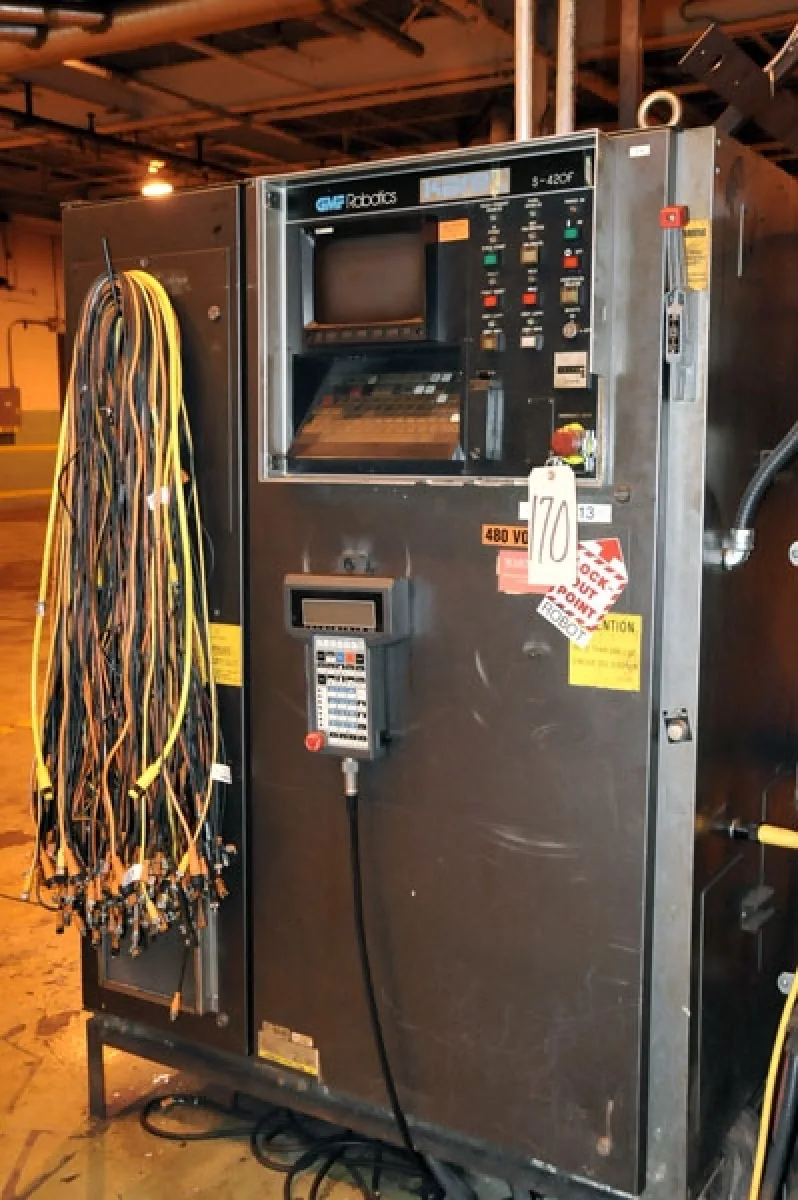

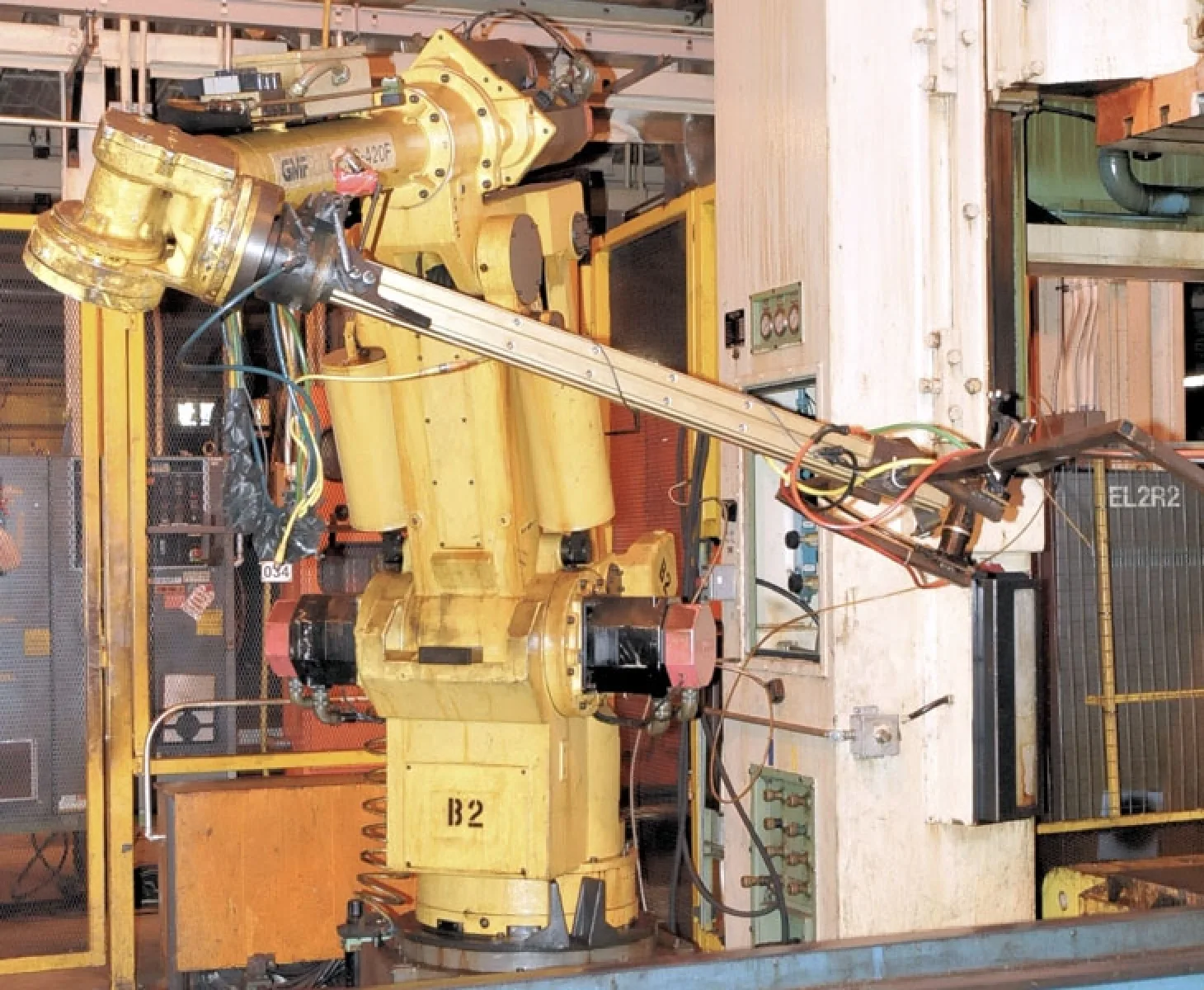

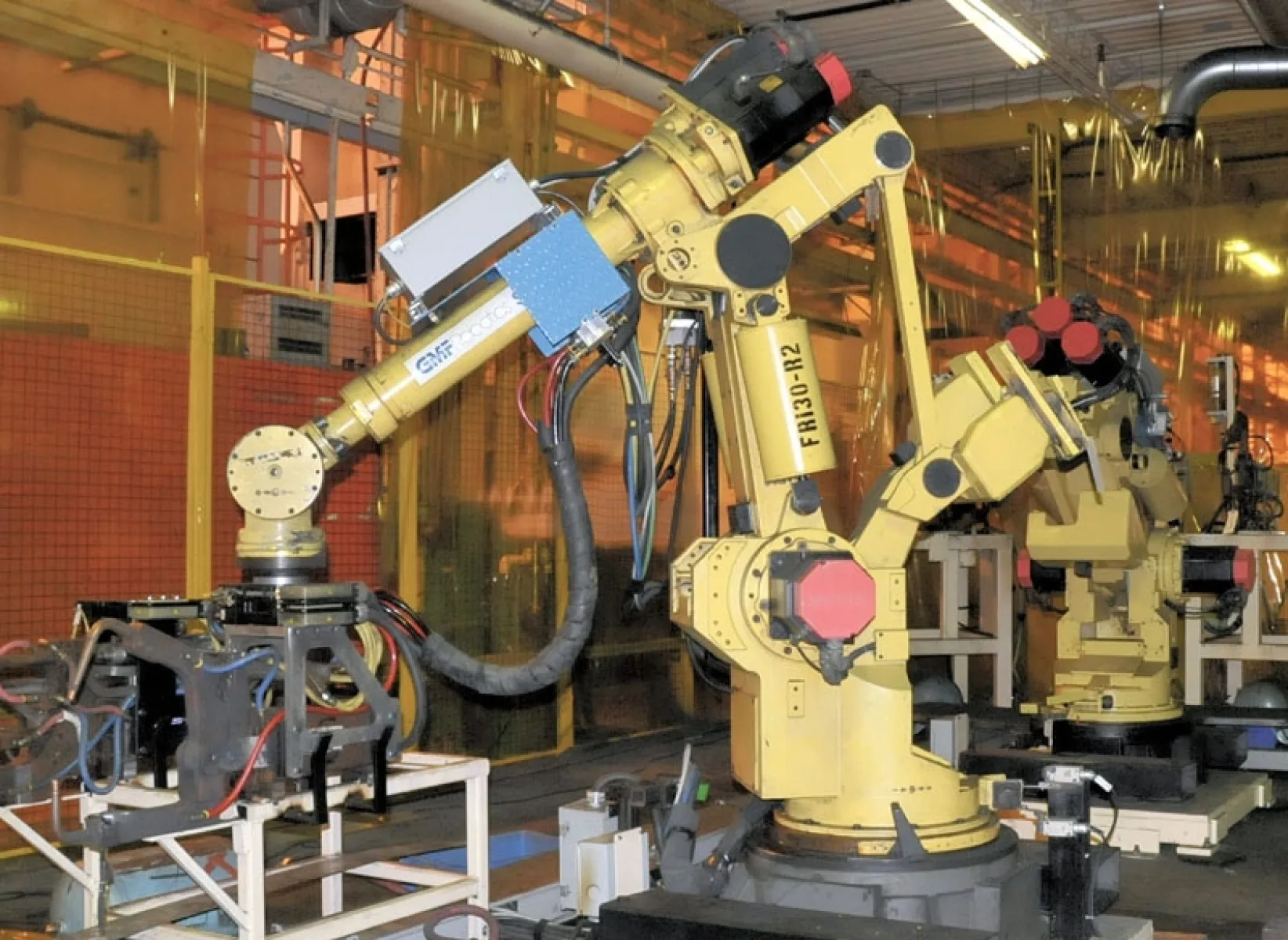

(11) (1987-91) GMF Mdl: S420, 6-Axis
(1989) GMF Mdl: S400, 6-Axis
CMM

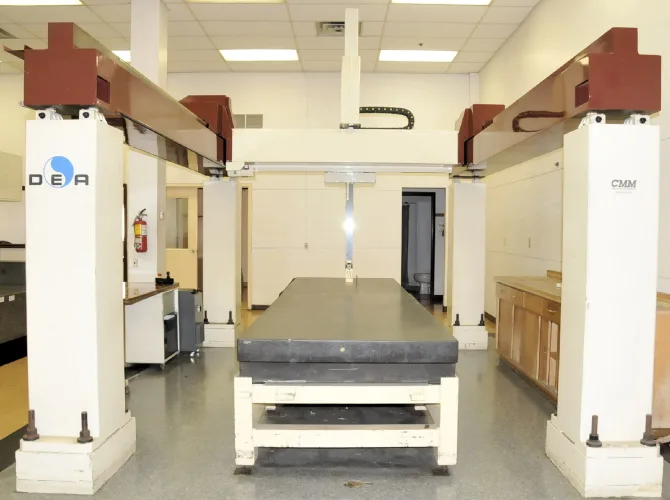

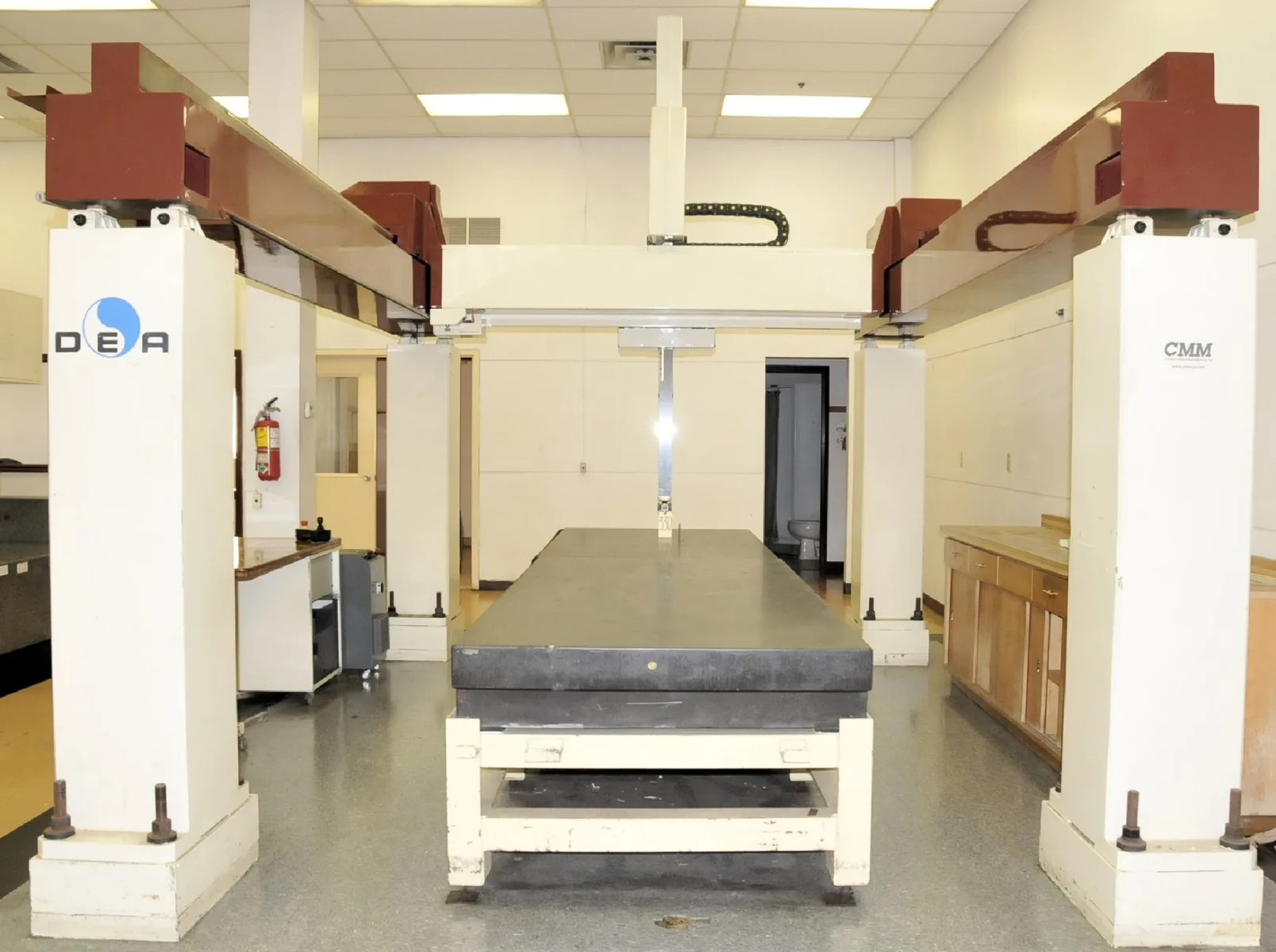

(2007) DEA Bridge Type, Mdl: BETA24.06, S/N 24.06.062, Measuring Range 144" L, 88" W, 72" H, Granite Plates 48" L-R X 168" F-B, DEA Controller S/N S0789, Renishaw PH10 Probe, PC-DMIS Software, Computer & Dongle

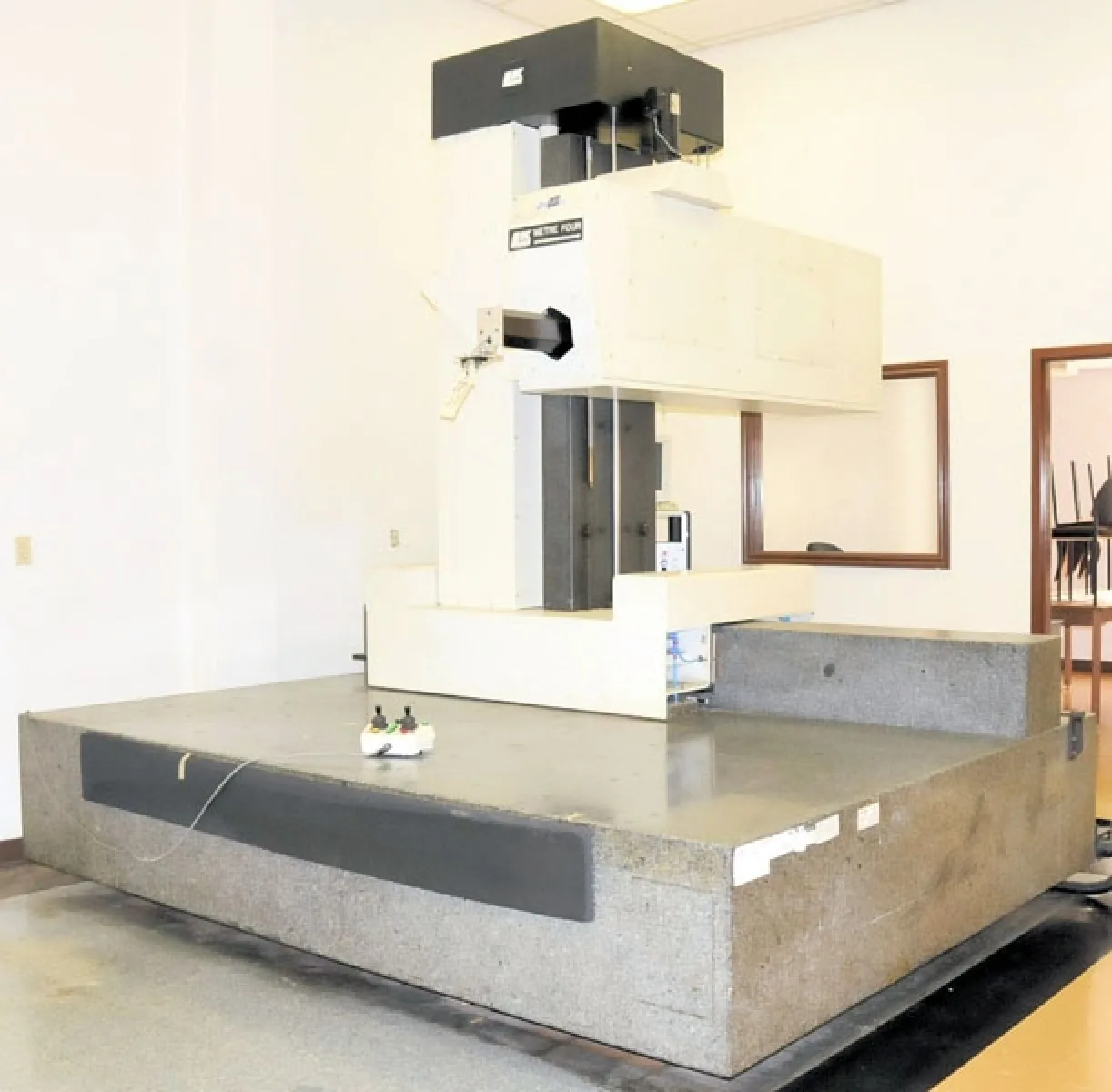

LK Metre 4 Horizontal CMM
BORING MILL
Union Mdl: BFT80 Table Type Horizontal, 3 1/8" Spindle, 44" X 39" Power Rotary Table, Facing Head, Speeds 8 – 1250 RPM, (2) Digital Read Out Controllers, Angle Plates, S/N 24718

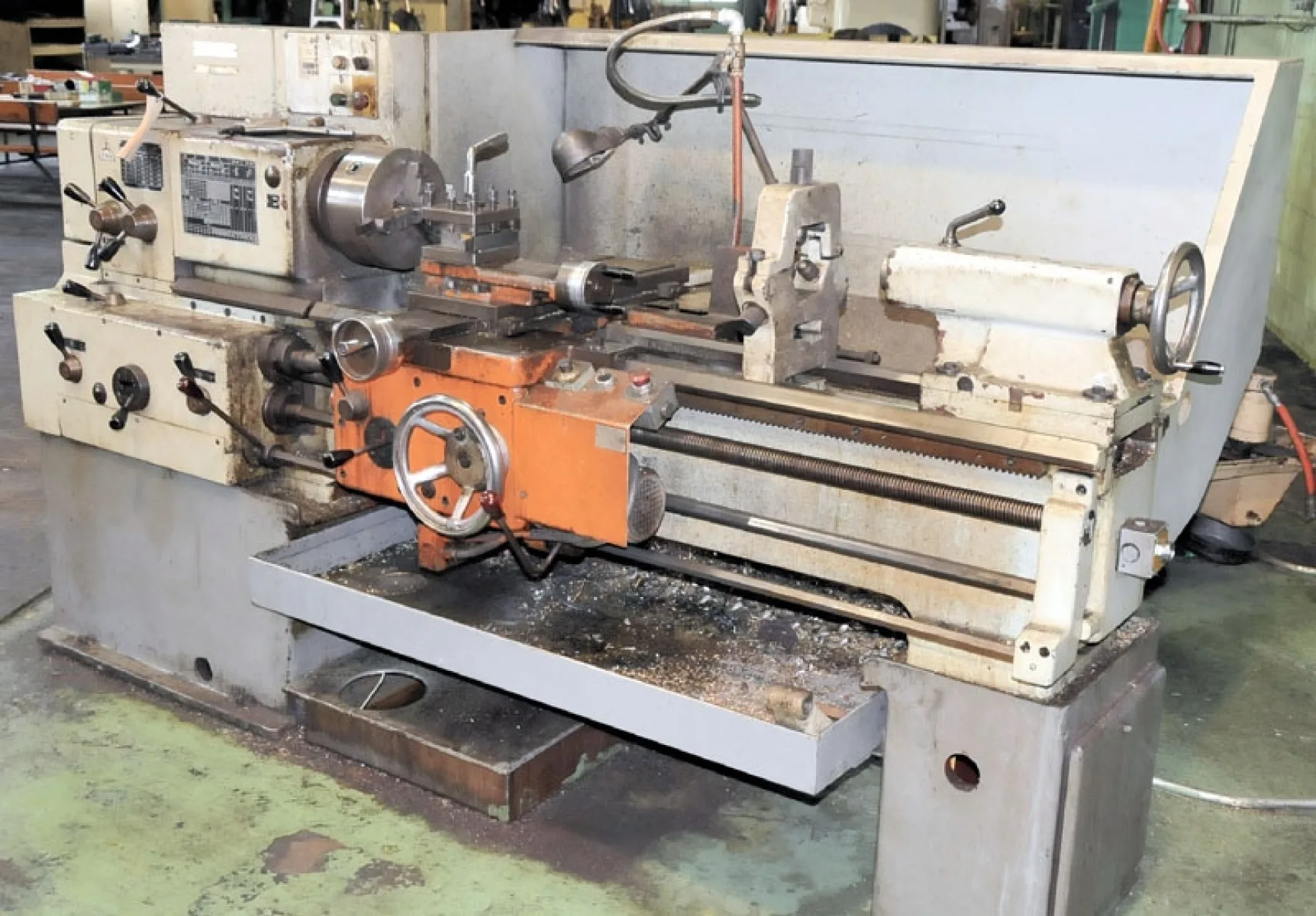

LATHES

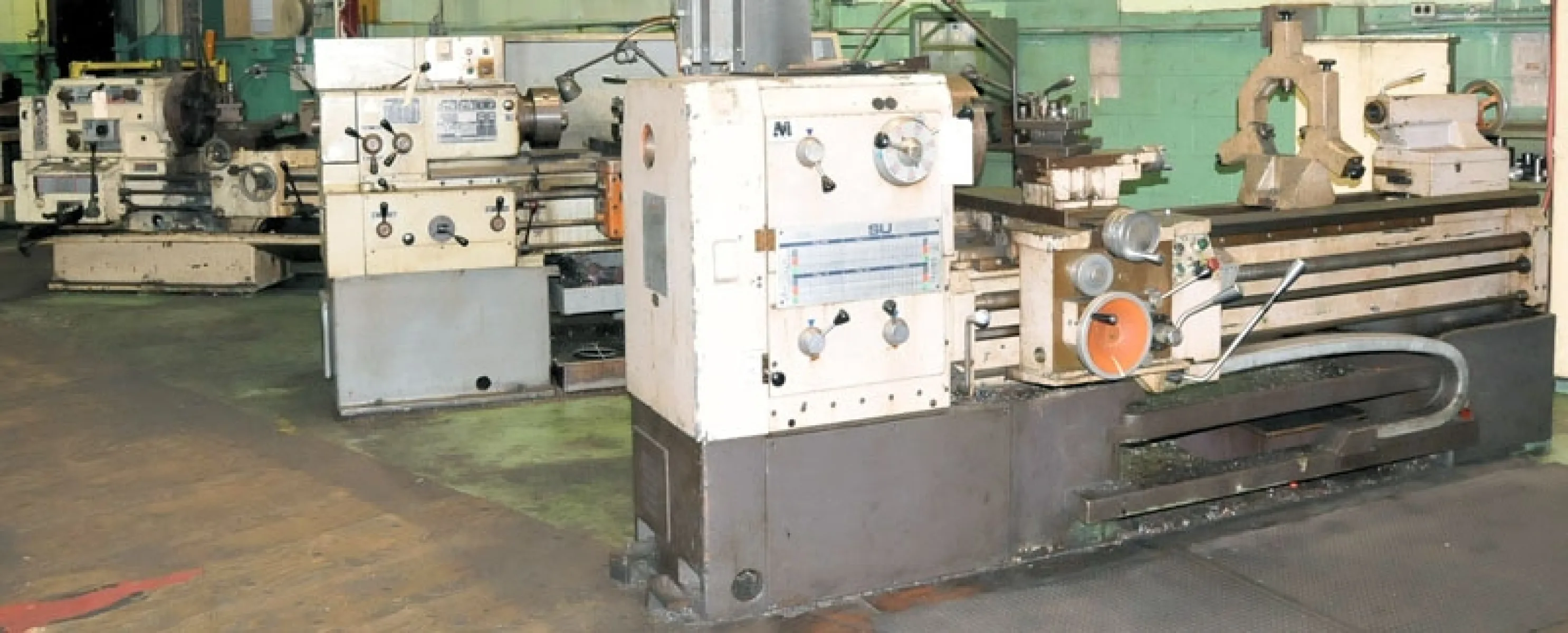

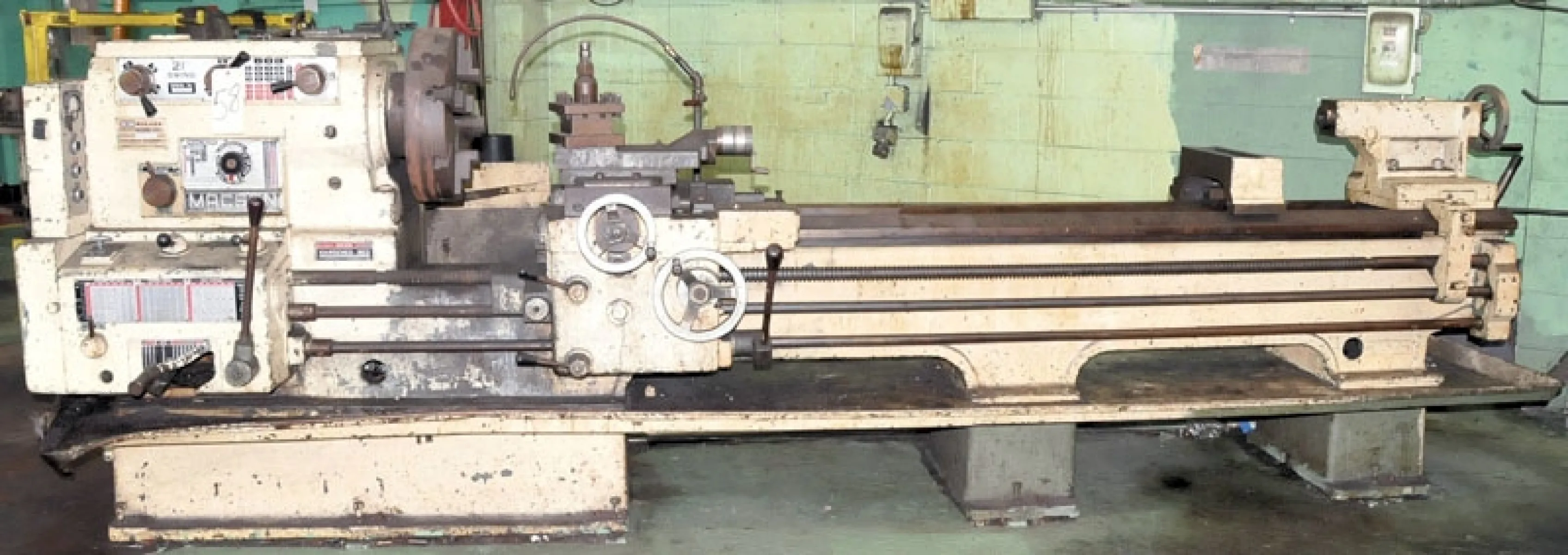

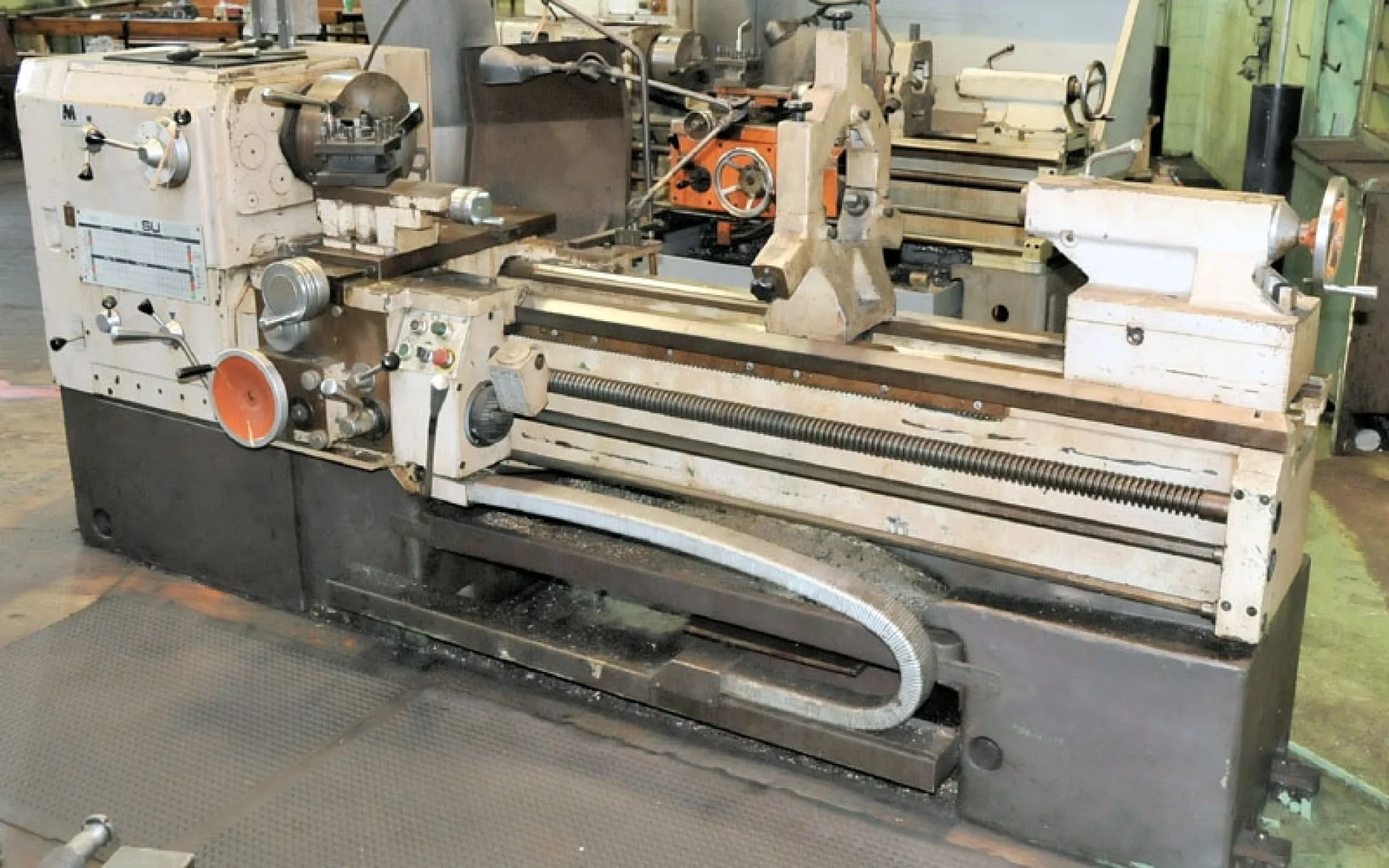

24/36" X 100" Mascon Gap Bed, 3 1/4" Bore, Speeds To 1100 RPM, Threading, Chuck, Steady Rest, Tail Stock, S/N 704725
26/36" X 70" Sofia Gap Bed, 2 3/4" Bore, Speeds To 2000 RPM, Threading, Steady Rest, Tail Stock, S/N CV582-1500-89177
19/29" X 50" TOS Gap Bed, 1 3/4" Bore, Speeds To 2000 RPM Threading, Chuck, Steady Rest, Tail Stock, S/N 440100, 920545
RADIAL DRILL

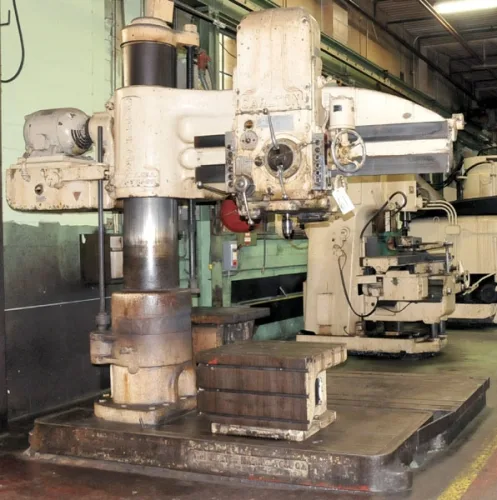

5' X 15" Carlton Spindle Speeds 12-1200, (2) Box Tables, Vise, Drills, Steel Riser, S/N 4112
GRINDERS

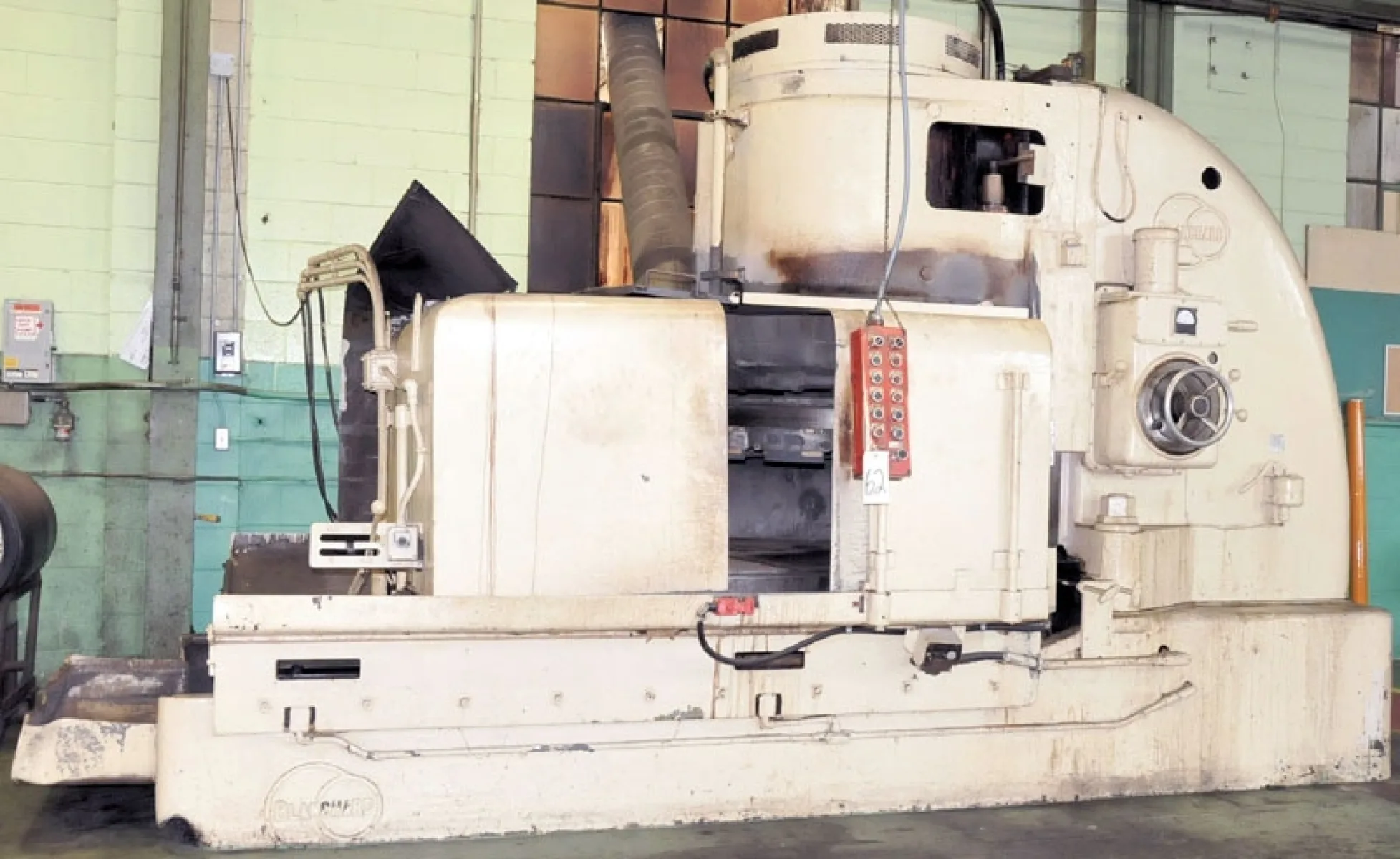

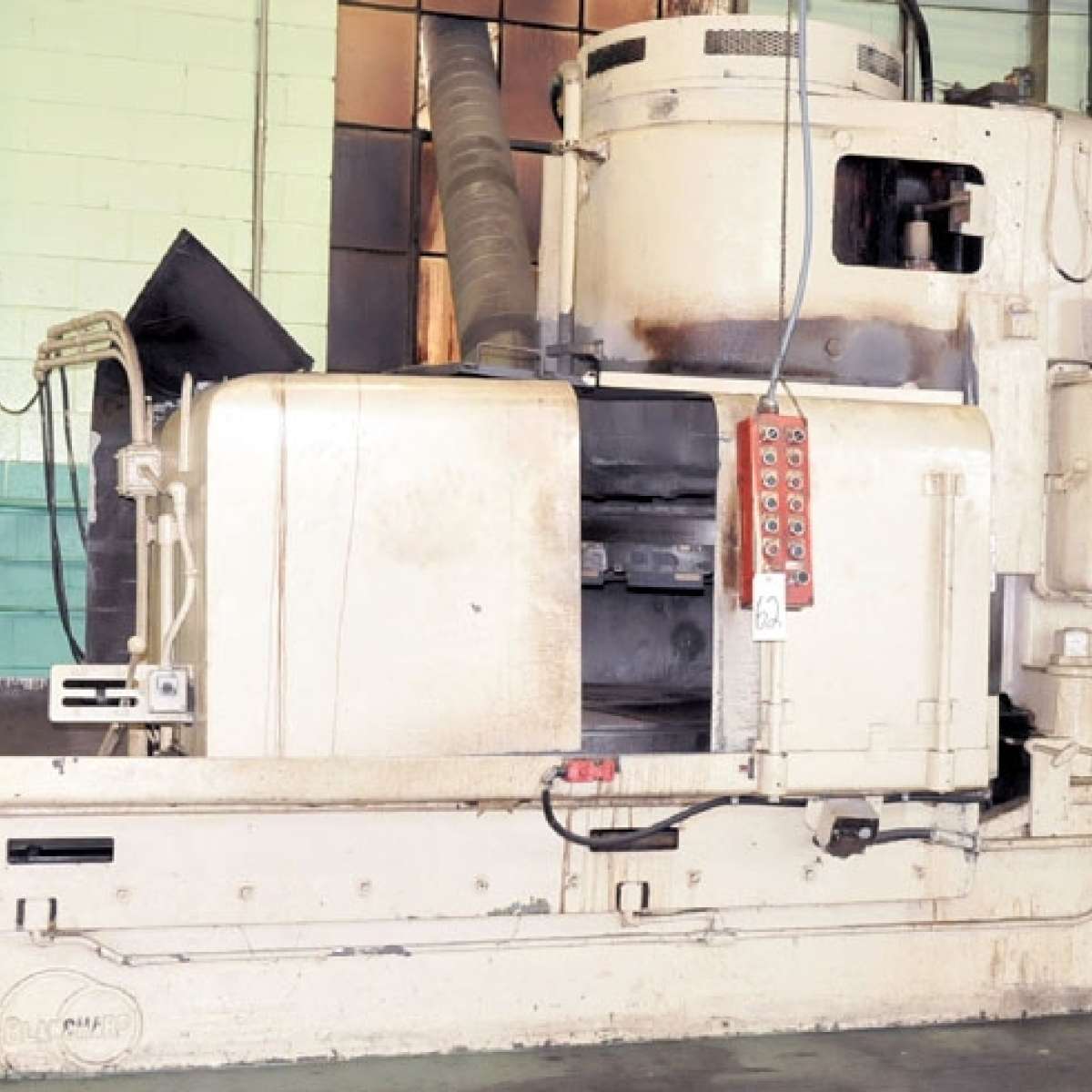

Blanchard 60" Vertical Spindle Rotary, 36" Dia. Segmented Wheel, 75 HP Motor

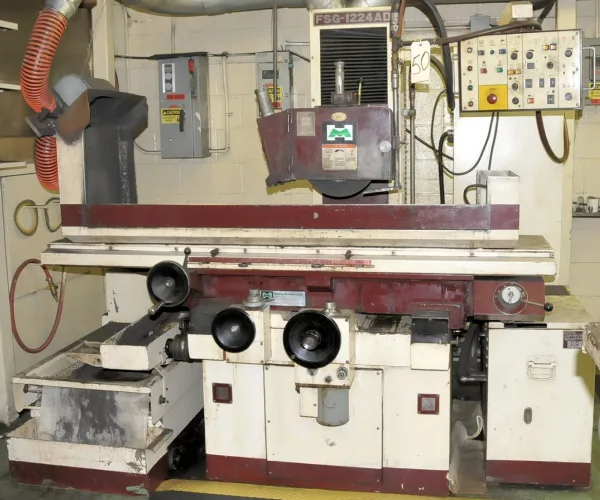

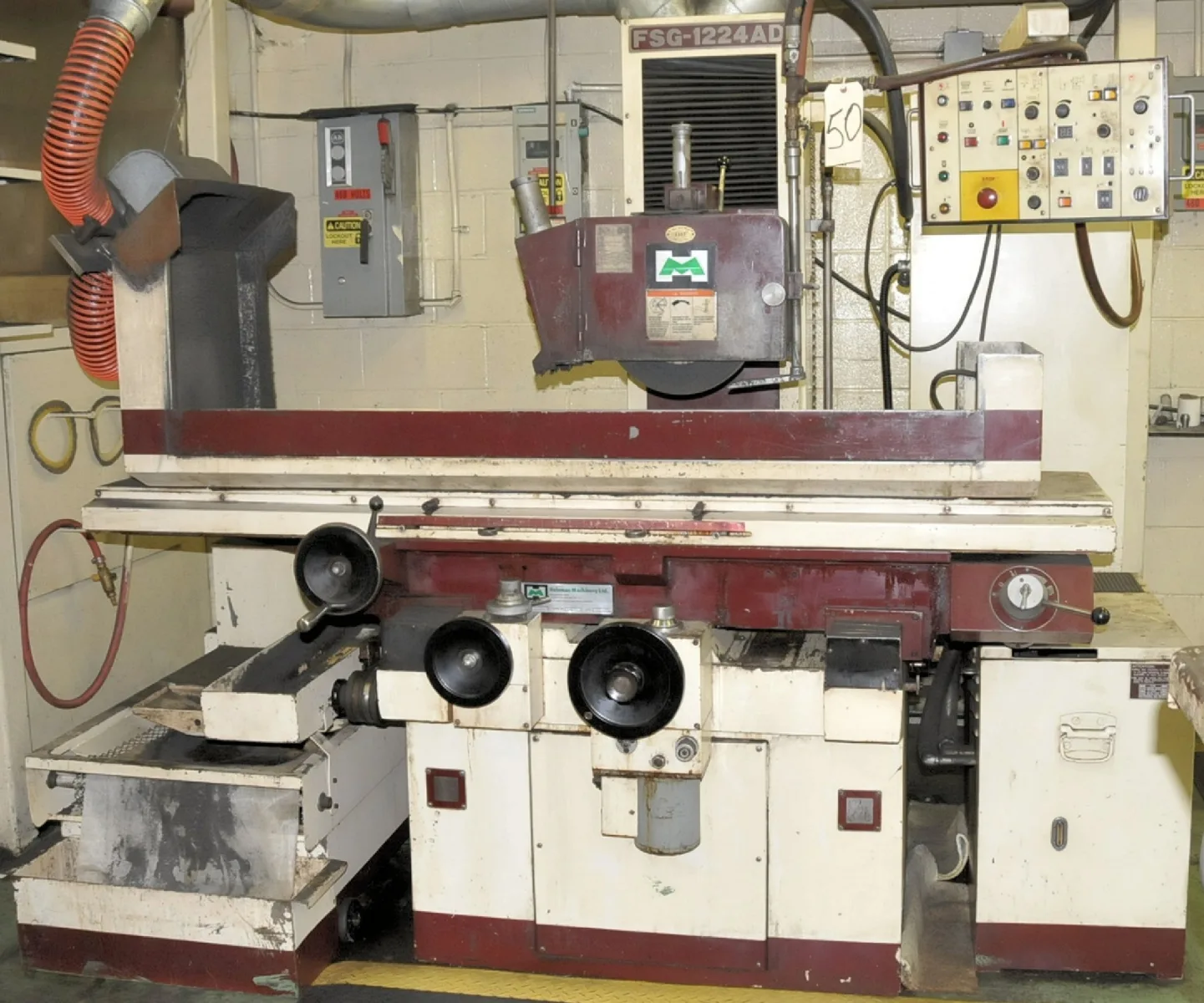

Chevalier Mdl: FSG1224AD Hydraulic Wheel Dresser, Paper Filter, S/N F182001
Miller 8" X 24" Hydraulic Surface, Wheel Dresser

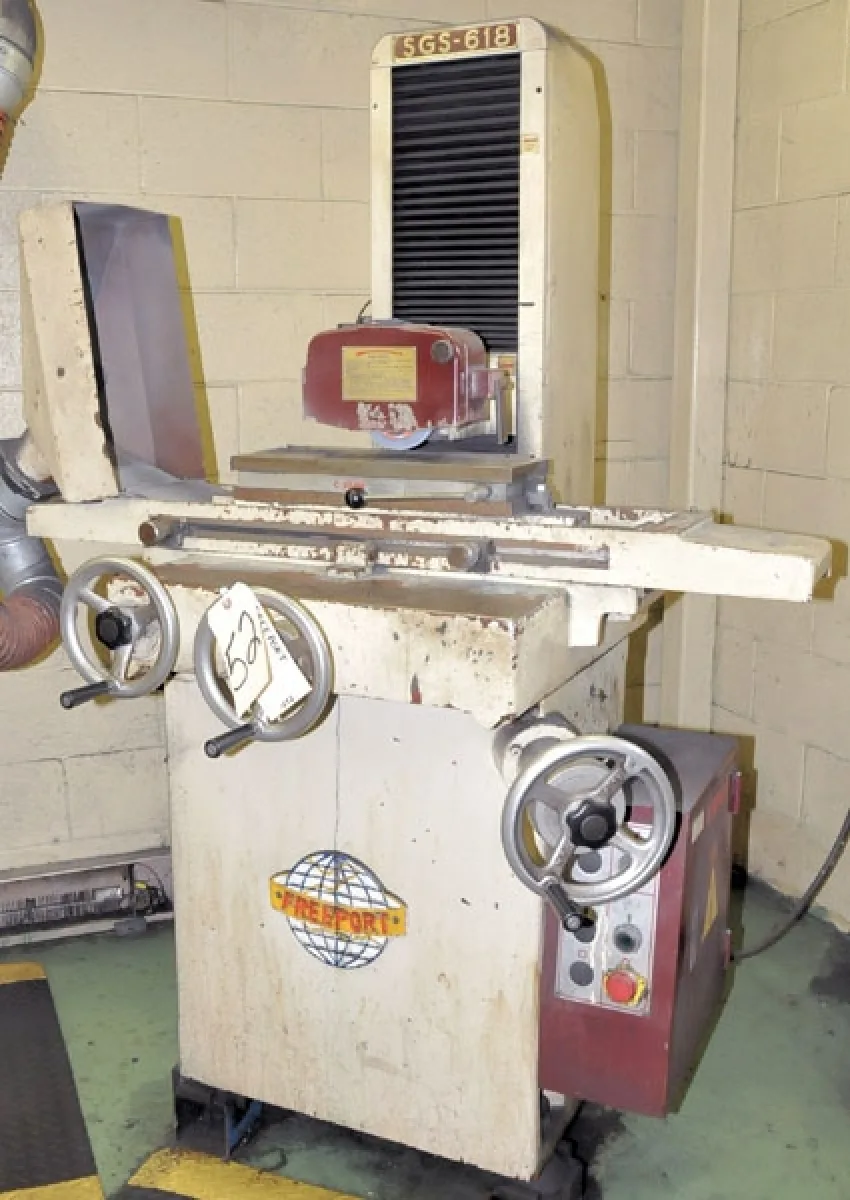

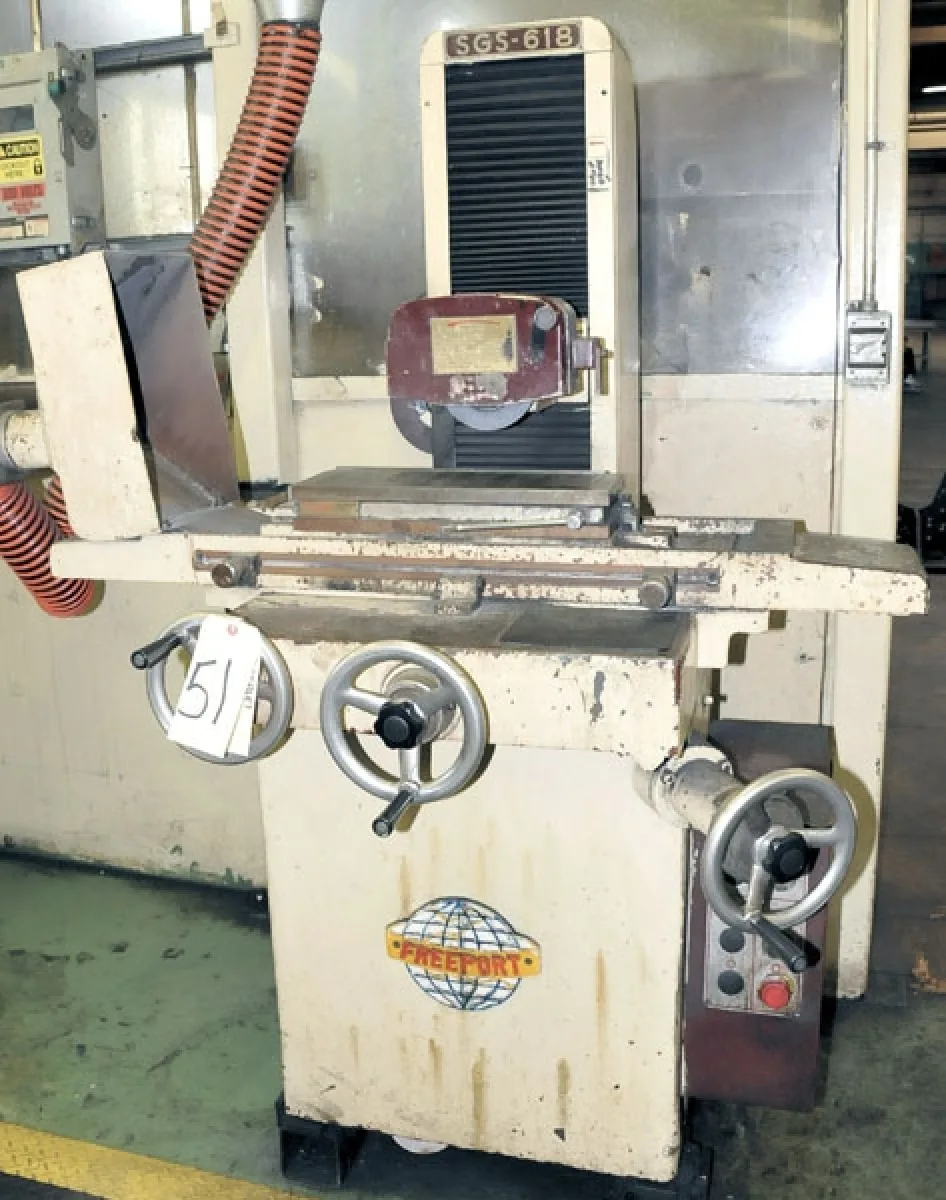

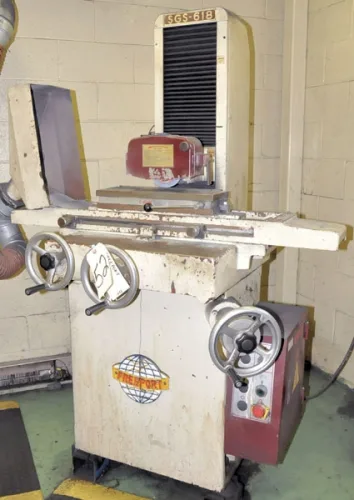

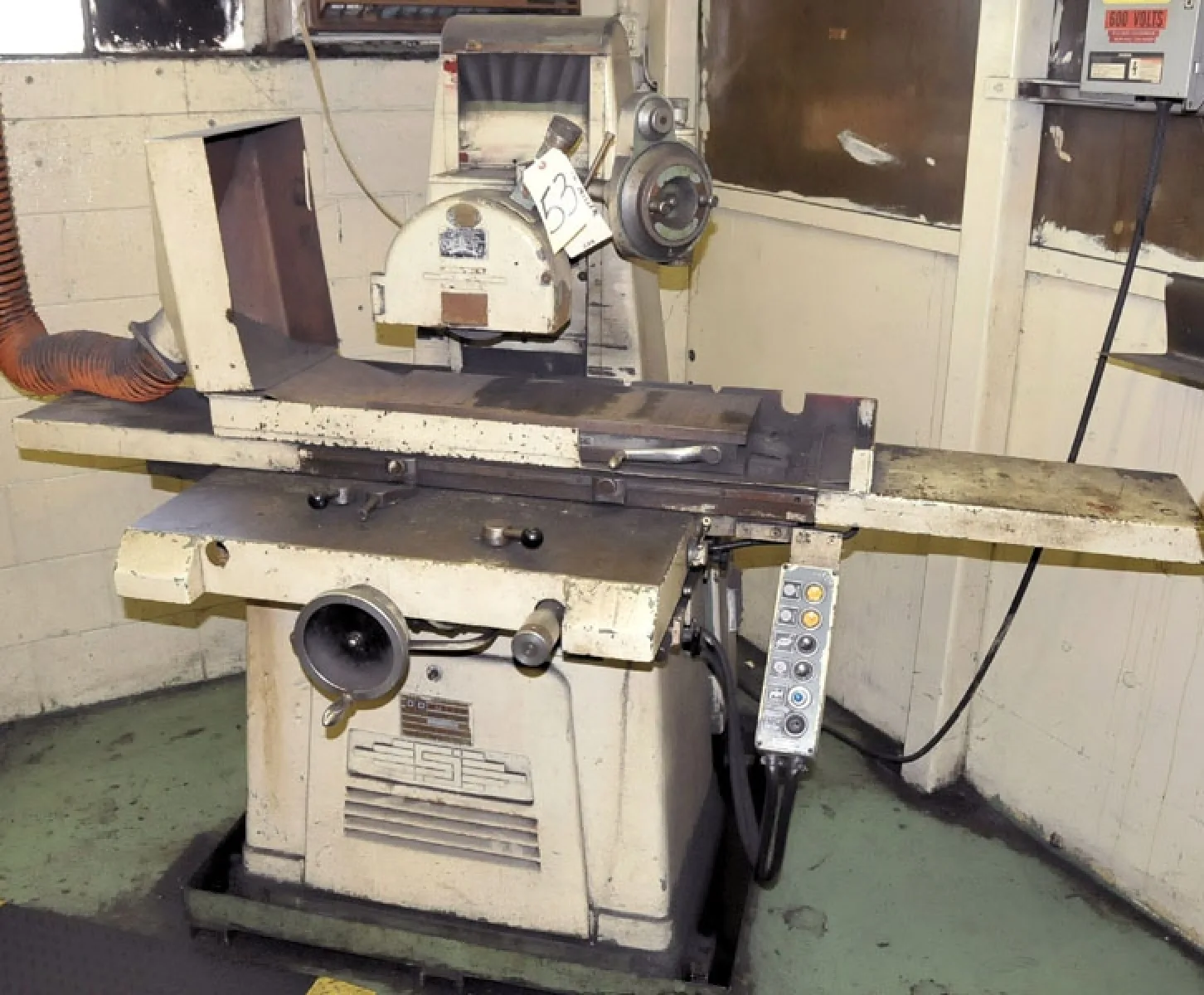

(2) Freeport Mdl: SGS 618 Manual, S/N 411015 & 411016

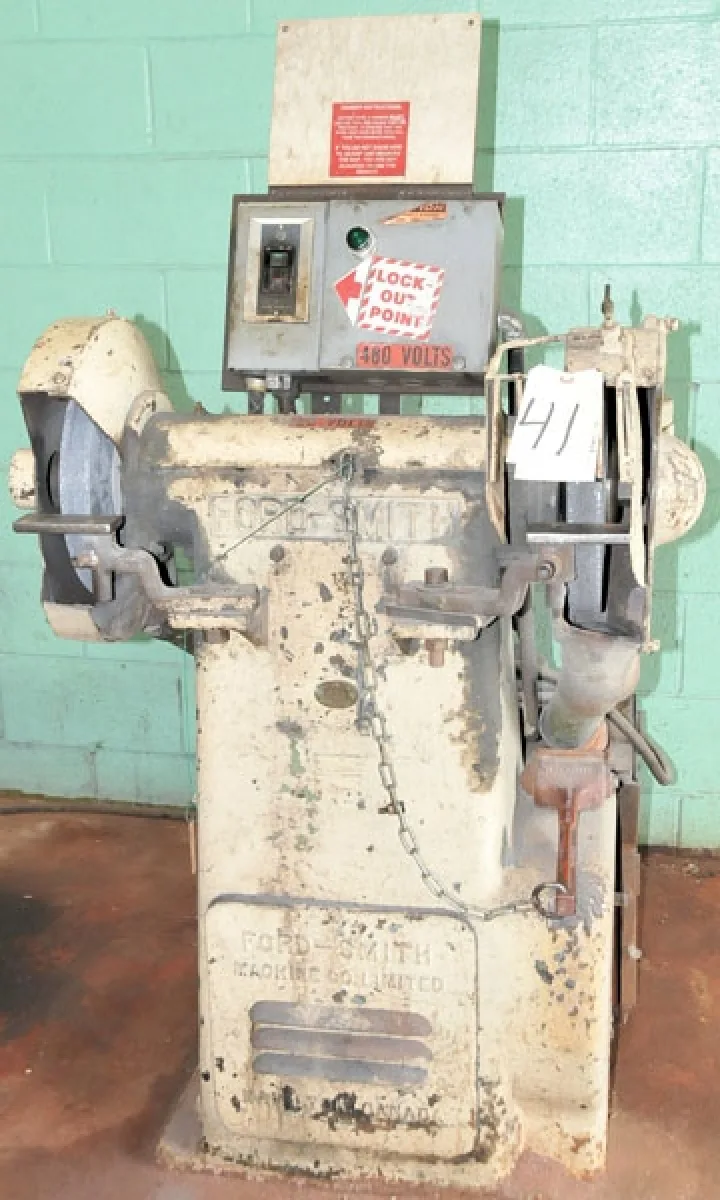

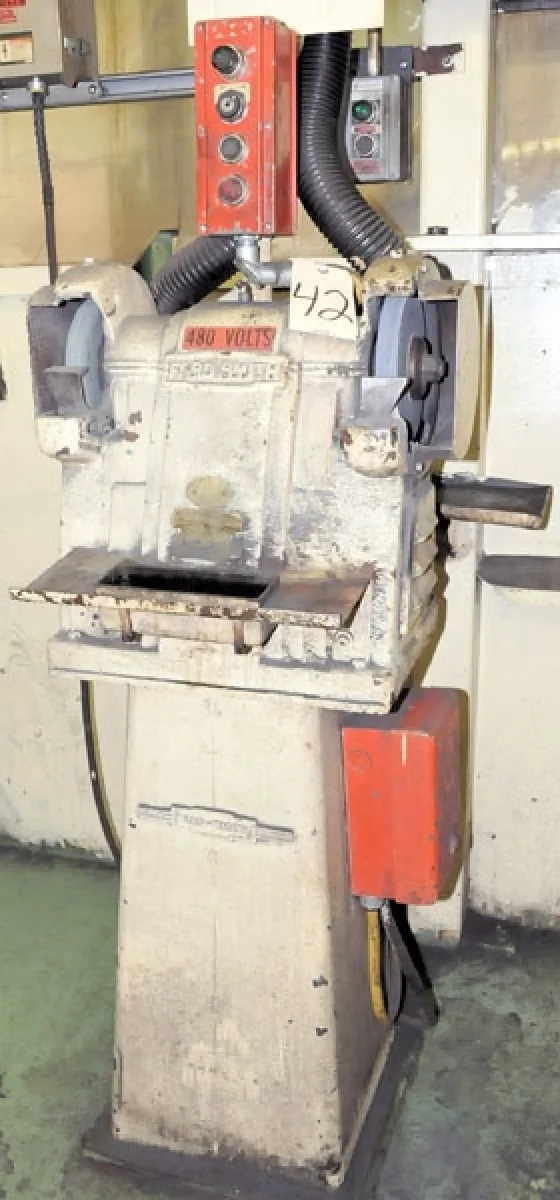

(2) Ford Smith Double End Grinder
SAWS

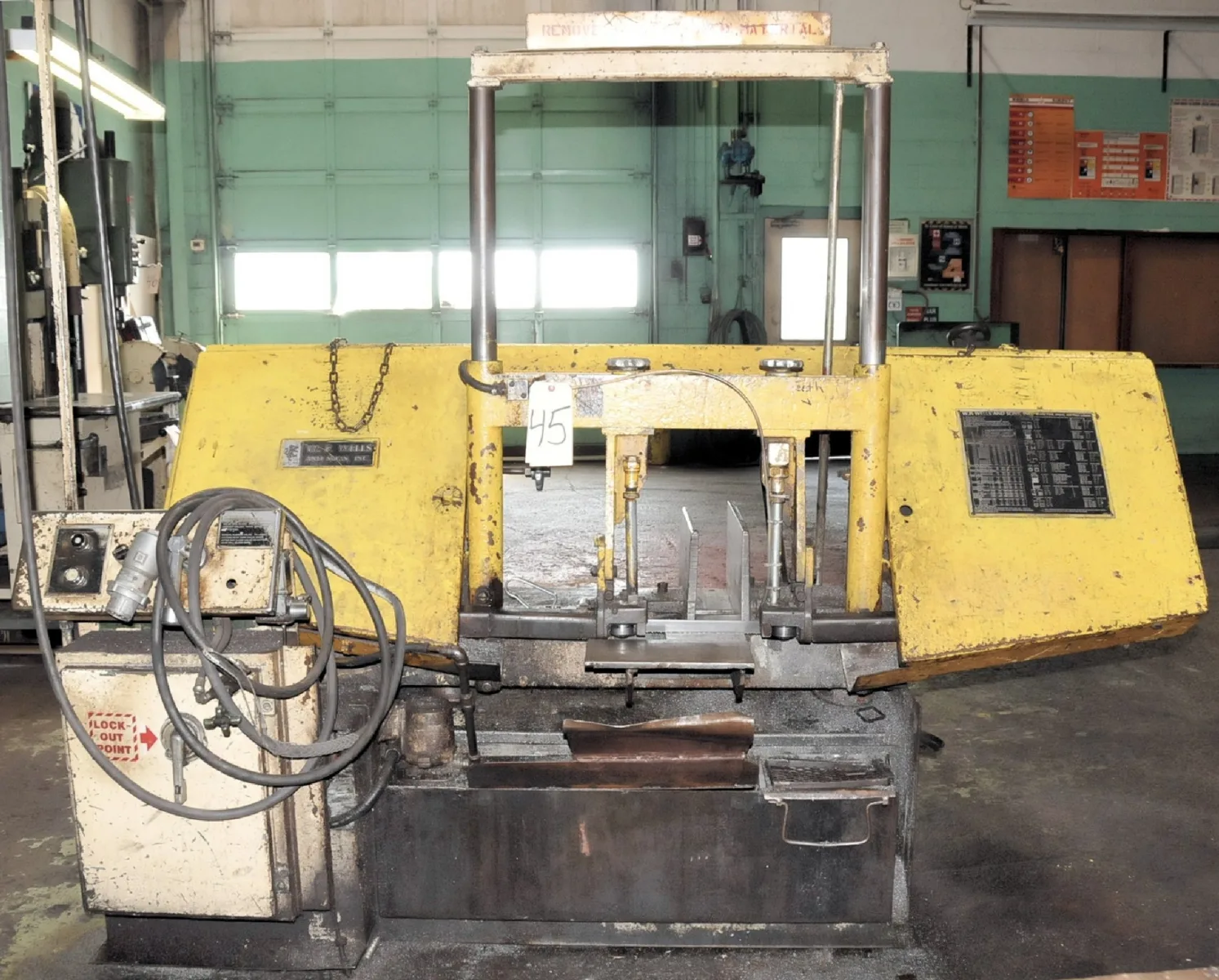

Wells Mdl: F15, 16" X 20" Horizontal Bandsaw, S/N 761046

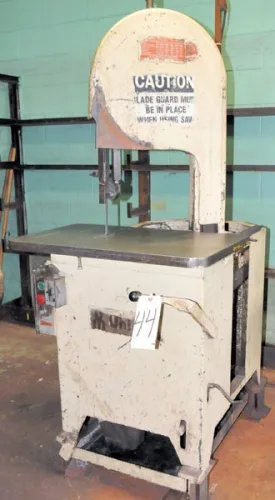

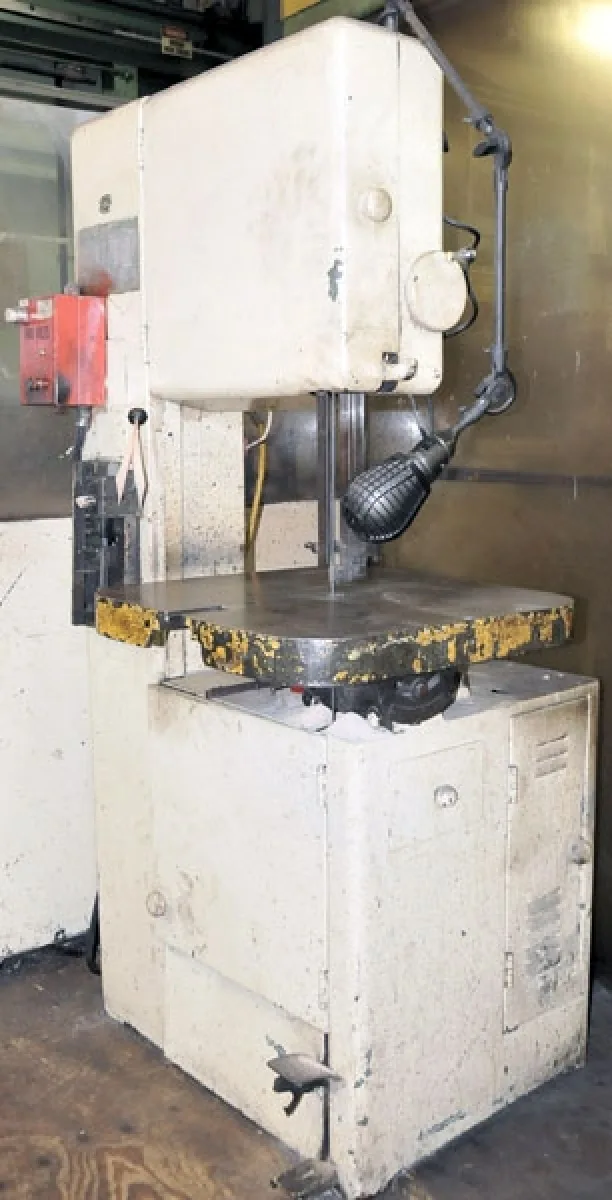

Grob 18" Vertical Bandsaw, Blade Welder & Grinder, Tilt Table 24" X 24"
K & K Roll In Vertical Band Saw, S/N 9225
Kalamazoo 18" Abrasive Cut-Off Saw
Dewalt Overarm Saw
VERTICAL MILLING

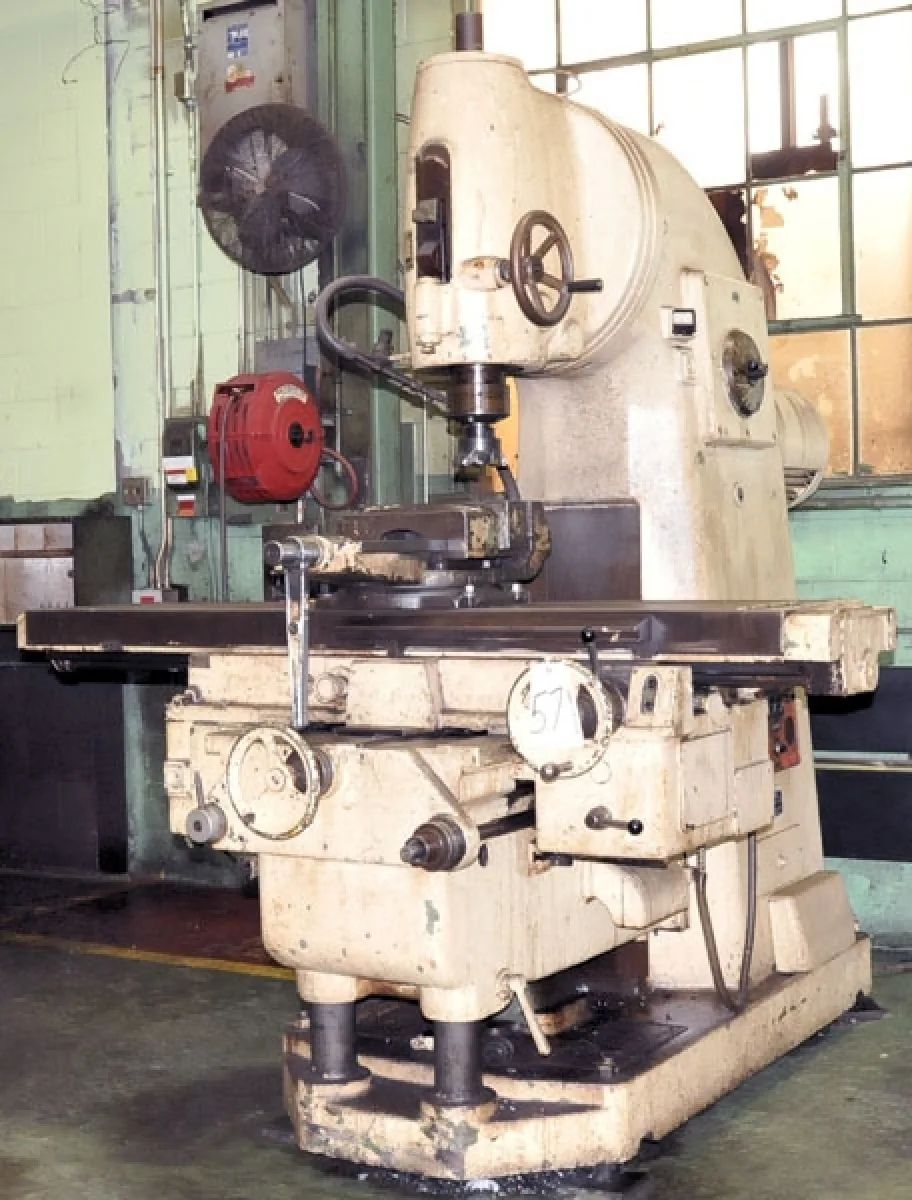

TOS Mdl: FA5AV, 18" X 77" Table, 16" Vise, S/N 44994

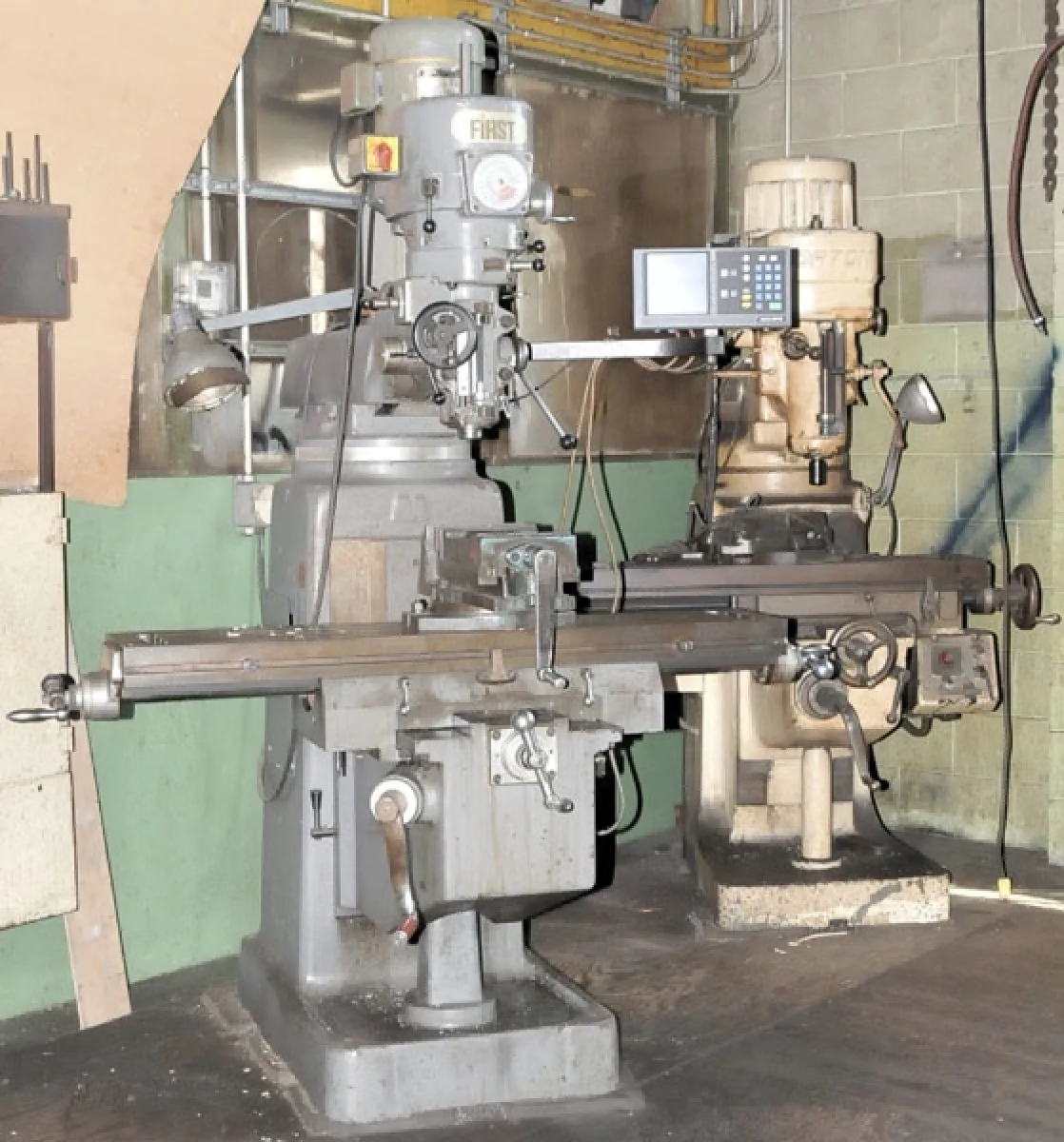

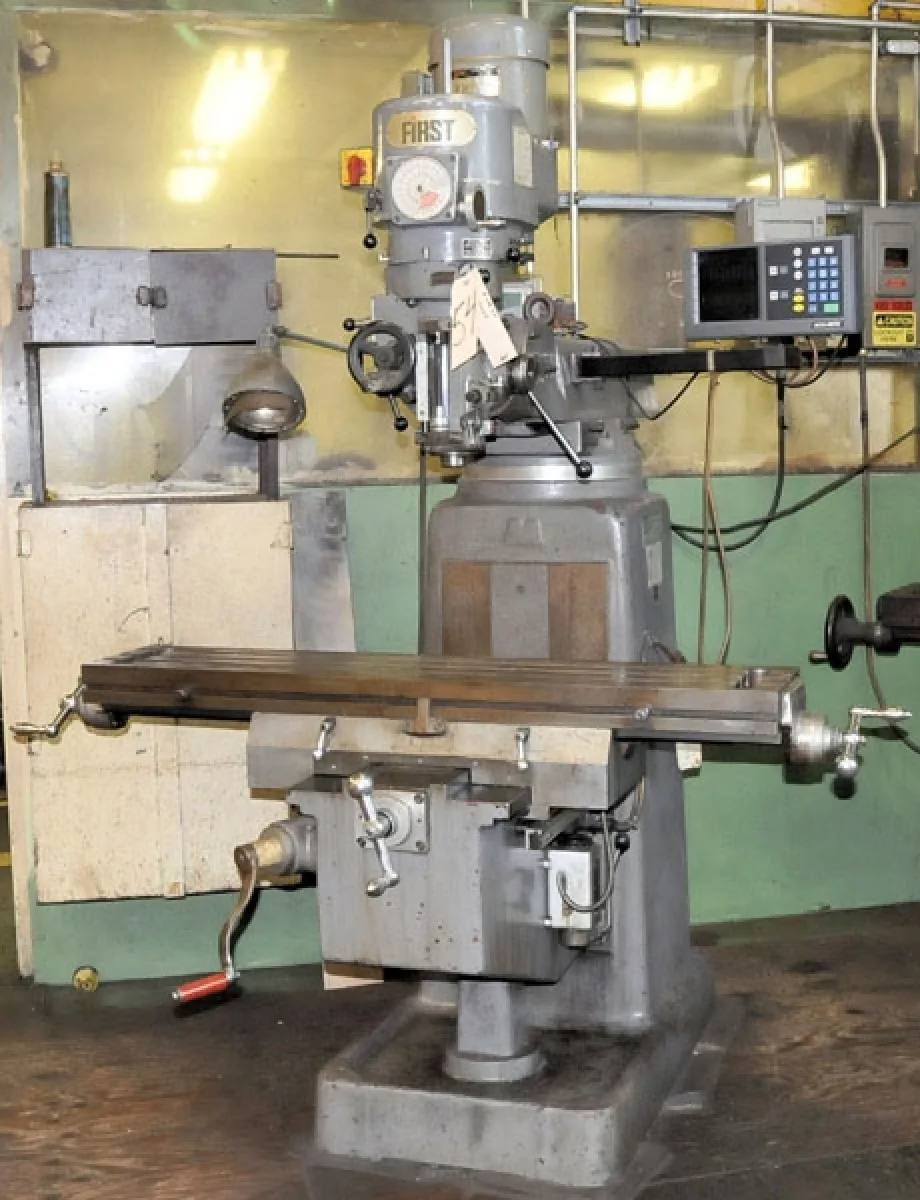

First Mdl: LC185VS, 9" X 42" Table, Speeds To 4200 RPM, 6" Vise, Acurite Digital Read Out, S/N 83060393

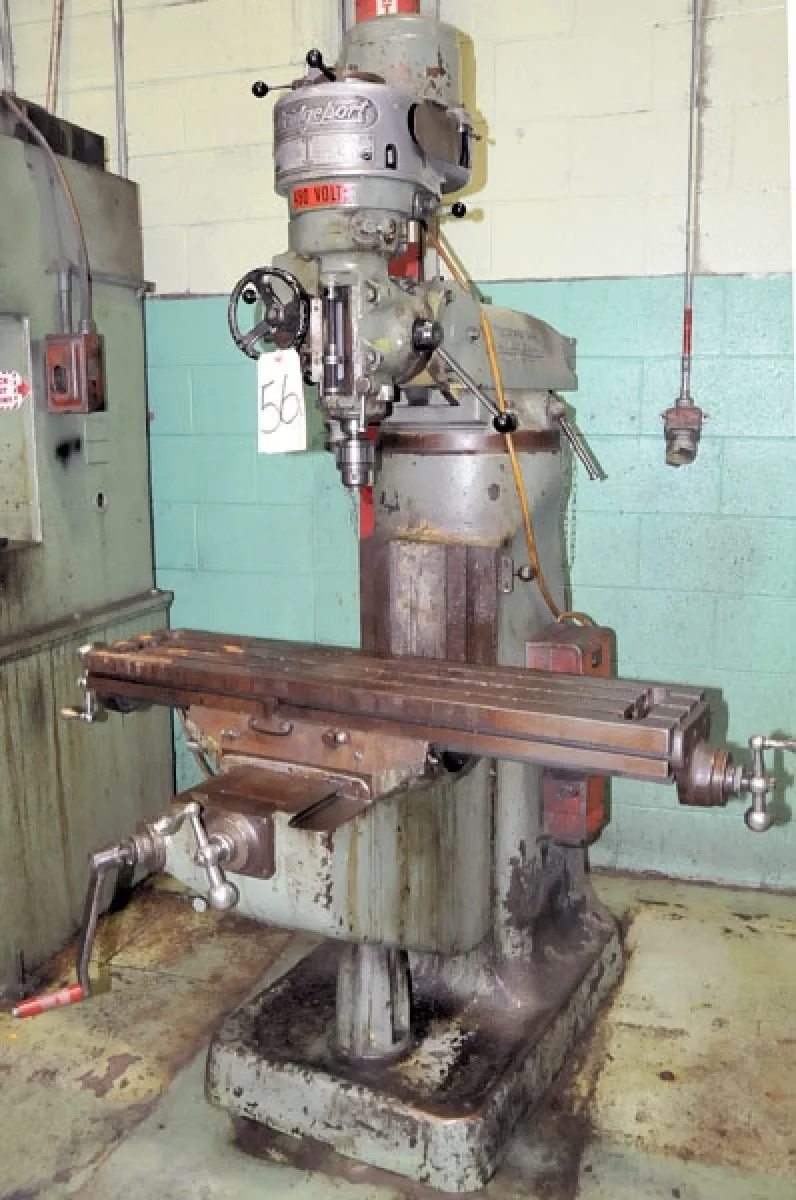

Bridgeport, 9" X 42" Table, Speeds To 2720 RPM, 6" Vise, S/N 113645
Gorton Mdl: I-22, 4" Vise
FABRICATING

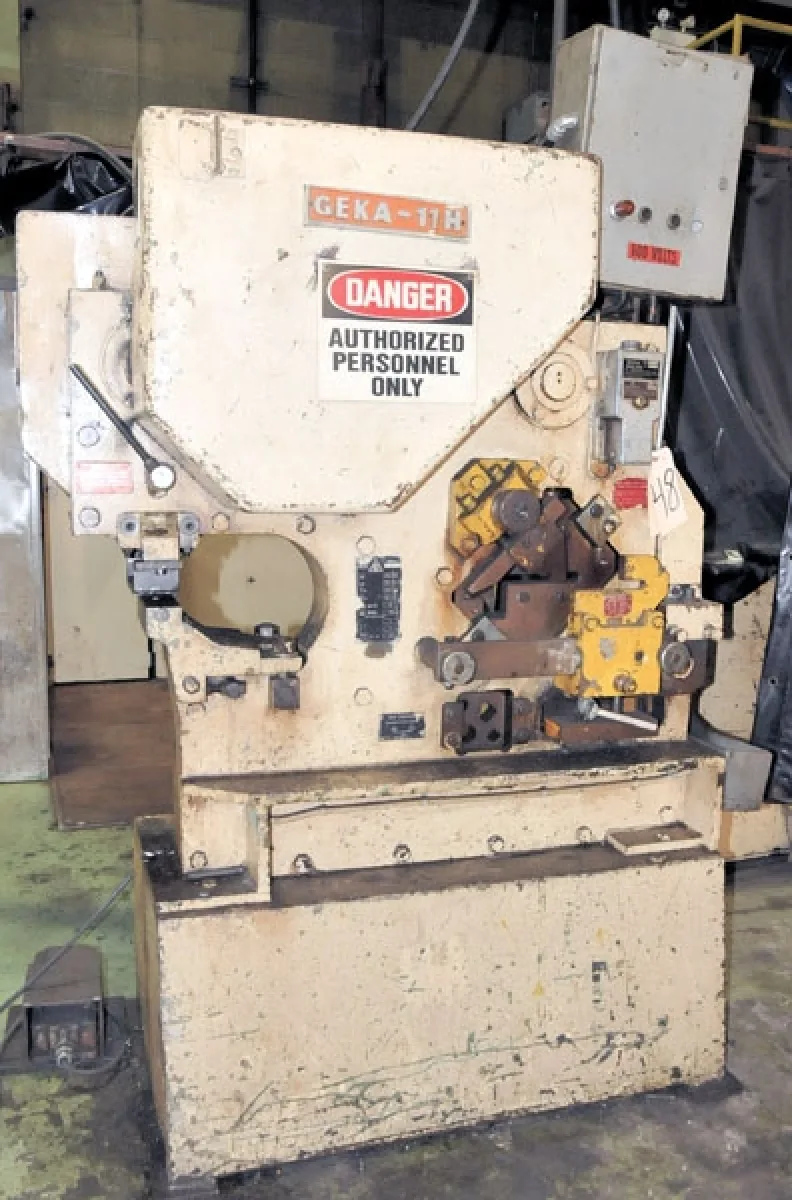

Geka Mdl: 11H, 4" X 4" X 9/16" Ironworker, Tooling, S/N 3346
Hand Brake, 4', Slip Rolls

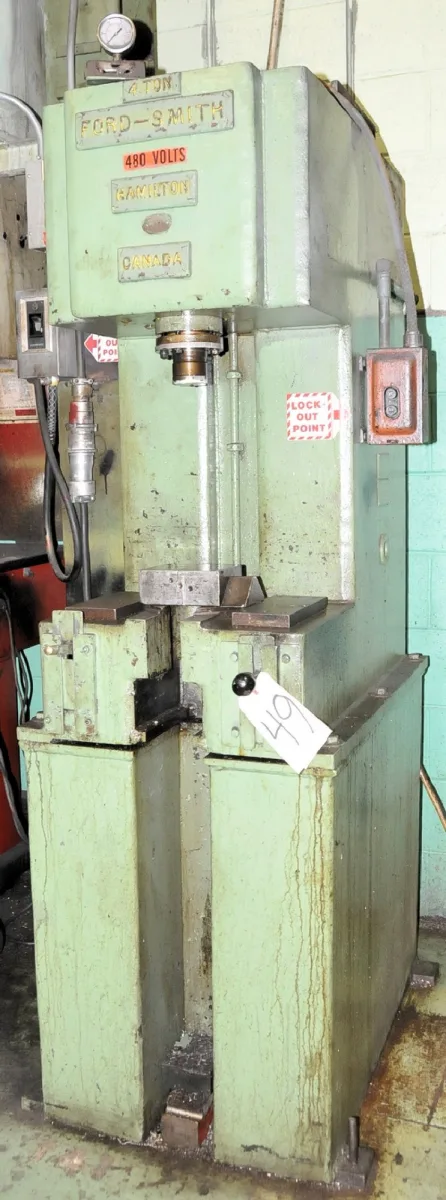

4-Ton Ford Smith Hydraulic C-Frame Press, Hand Lever

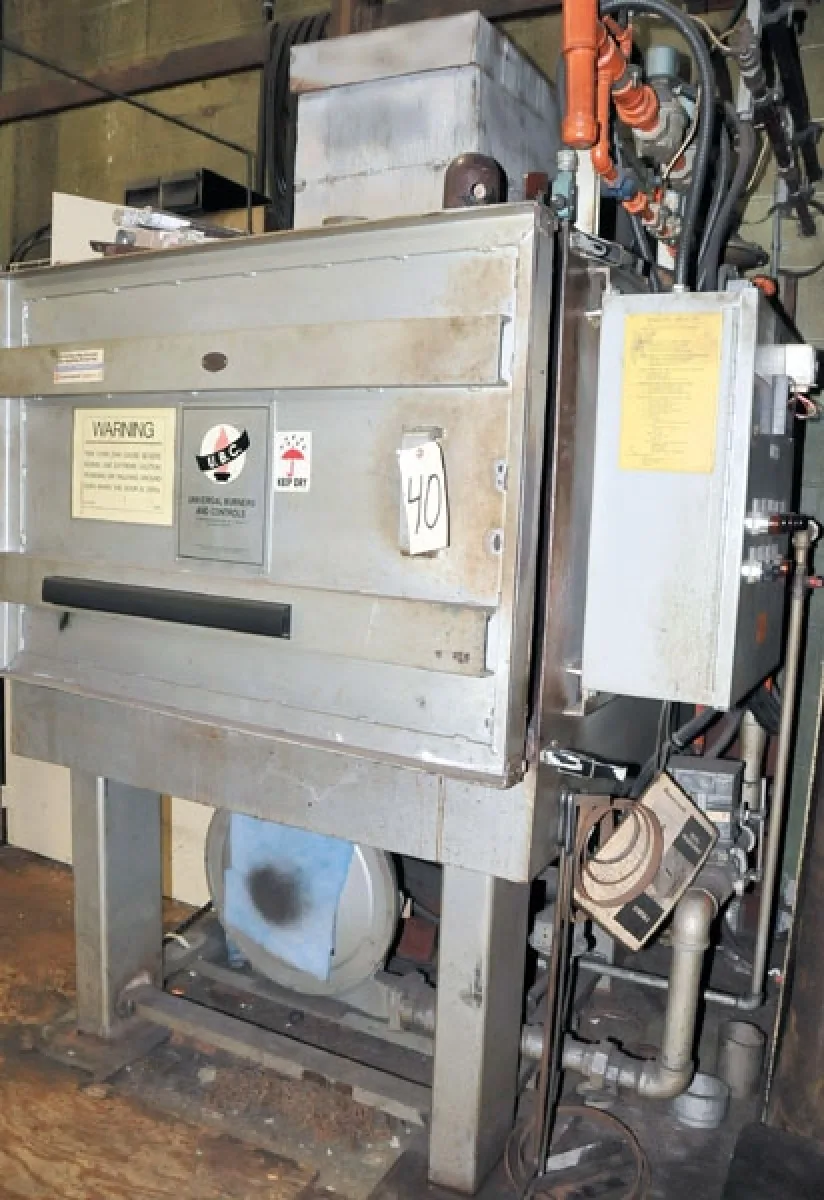

Universal Burners 400,000 BTU Gas Fired Oven, 36" W X 18" H X 40" D, S/N 940165

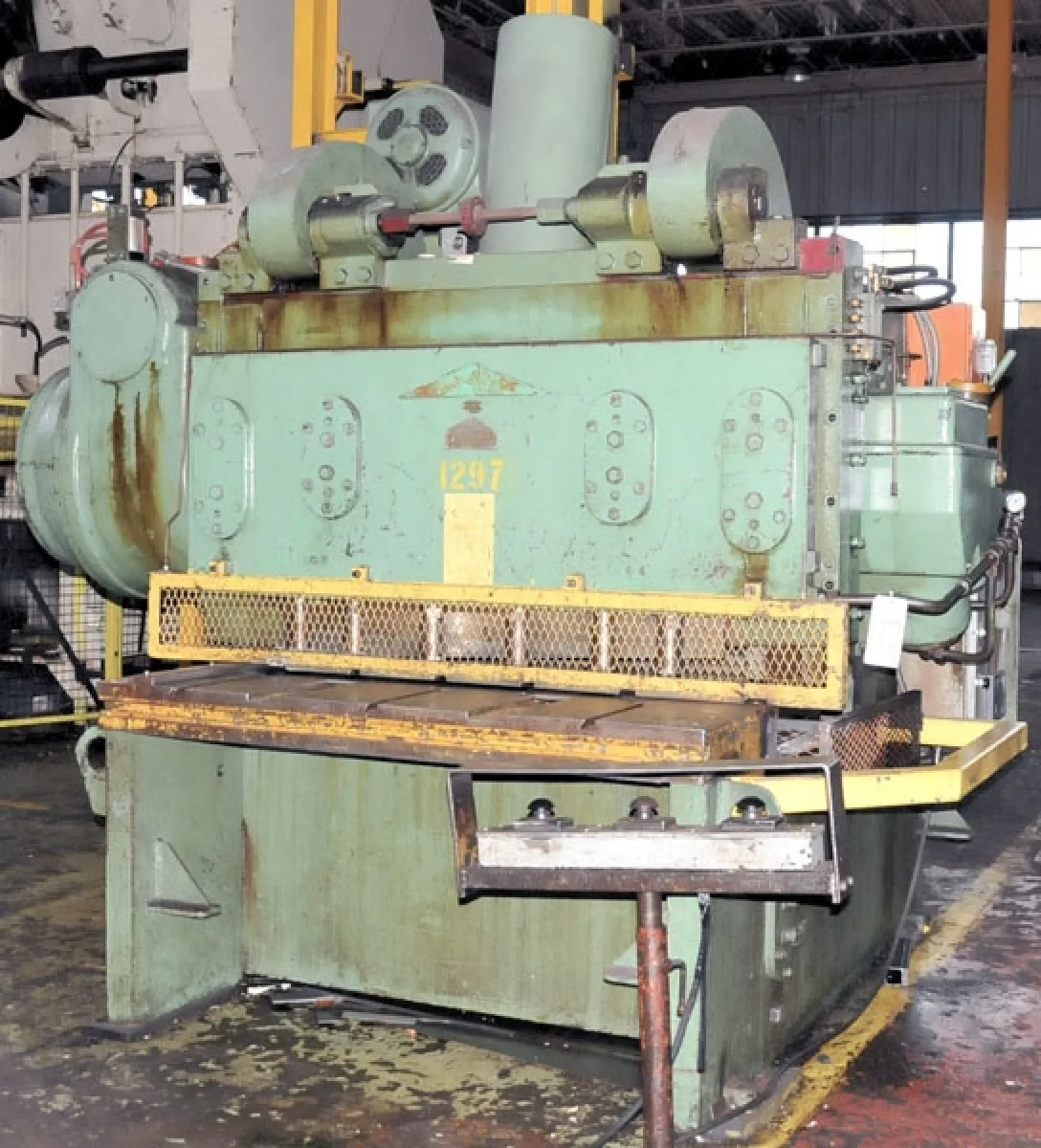

Bigwood Mdl: 0S7, 4' X 5/8" Mechanical Shear, 26" Throat, S/N 13738
PORTABLE WELDERS
Nordskog Mdl: 282D Electric Maintenance Cart S/N 205759 With Lincoln Idealarc Mdl: R3R-400 Welder, (2) Hose Reels, S/N AC-620955
Lincoln Mdl: RSR-400 Idealarc On Cart, S/N 25043
Lincoln Idealarc Mdl: R3R-400, S/N 252043

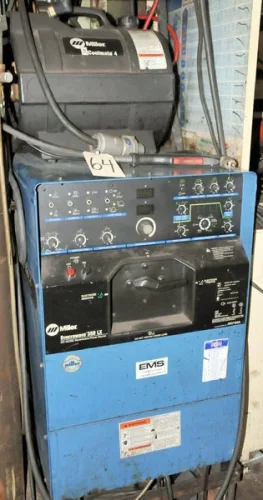

Miller Syncrowave 350LX Tig Welder S/N KK035610 With Miller Coolmate 4 Cooler
Hobart RC 256 Mig Welder, S/N 81WS11474
LIFT TRUCKS
15,000# Yale, LPG, 133" Vertical Lift
12,000# Allis Chalmers F120-24, LPG, 108" Vertical Lift, S/N 30971000

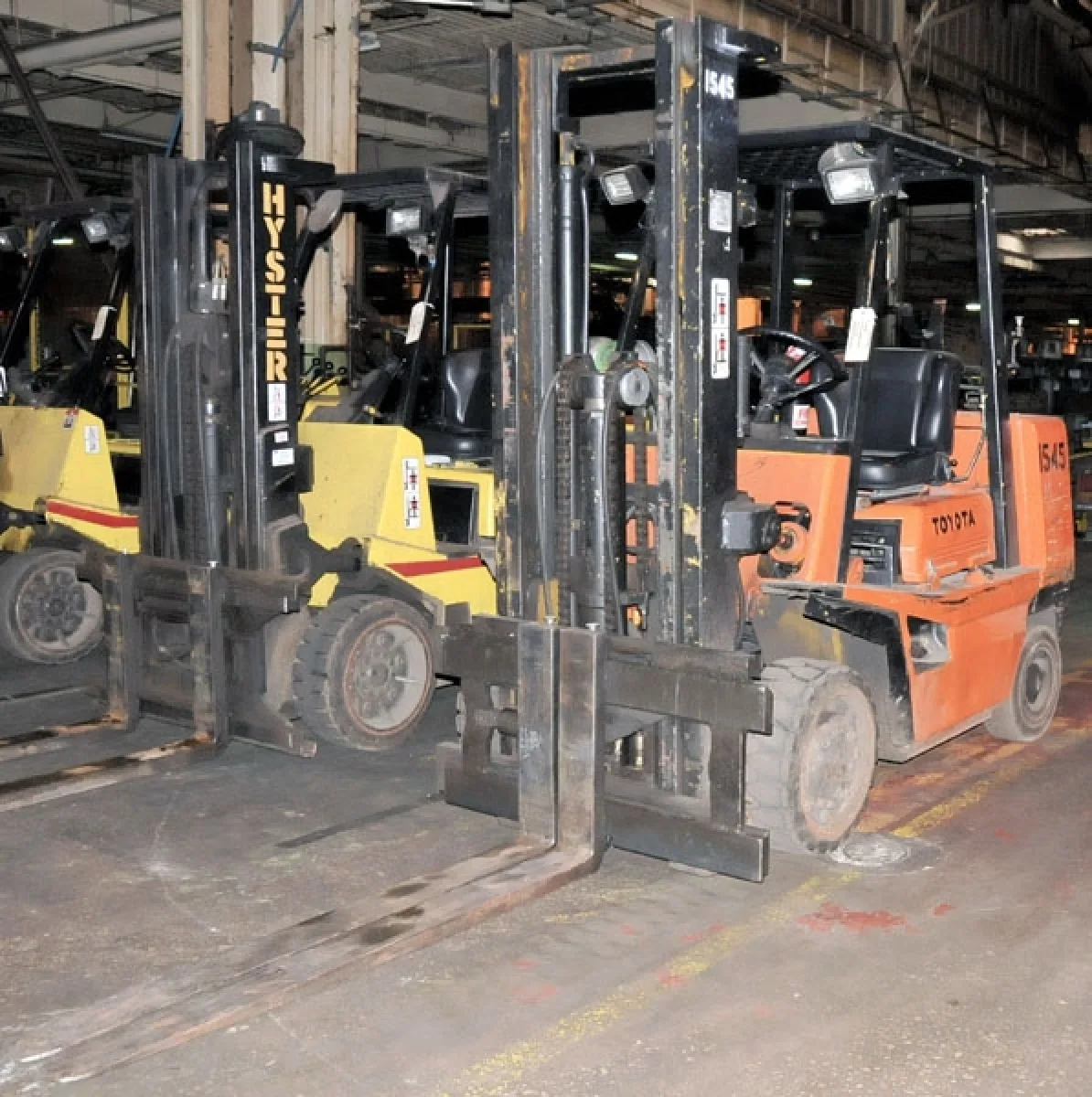

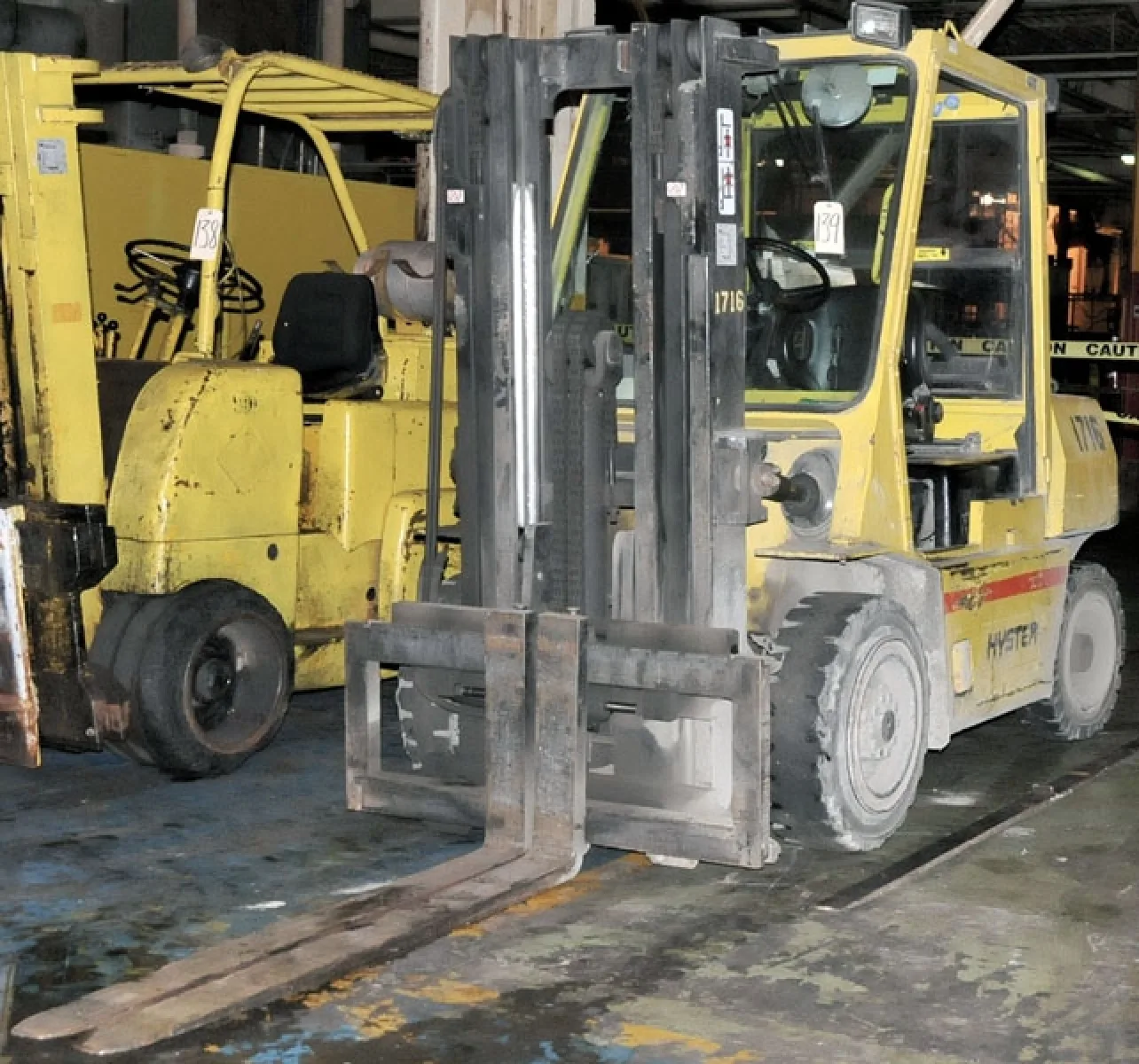

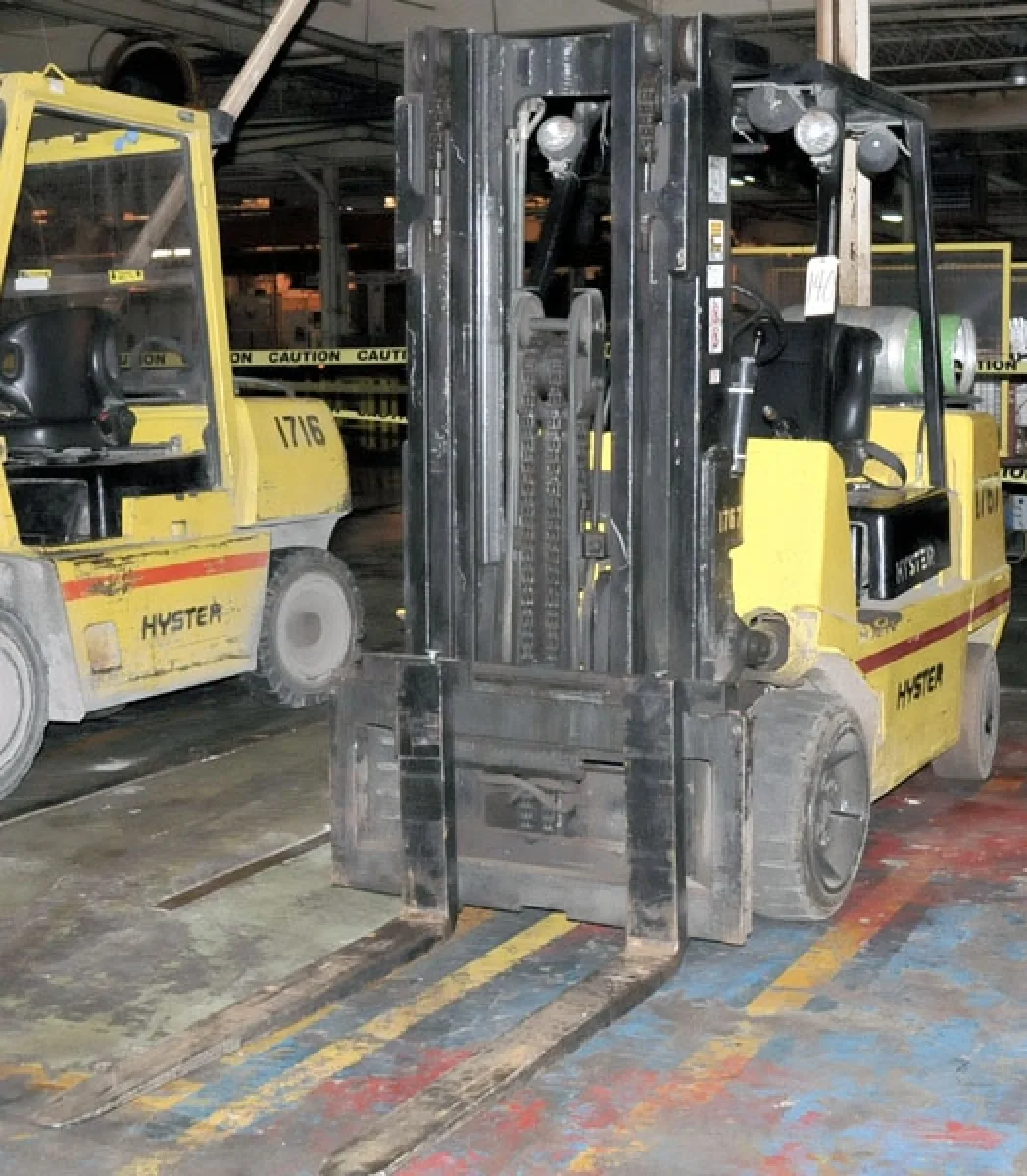

(2) 8,000# Hyster Mdl: H80XL, LPG, 172" Vertical Lift, 3 Stage Mast, S/N C005D080731 & D004D09236X
8,000# Hyster Mdl: S80XM, LPG, 122" Vertical Lift, 2 Stage Mast, S/N V01833B
(3) 8,000# Hyster Mdl: S80XL, LPG, 121" Vertical Lift, 2 Stage Mast, S/N D004V10378S, D00404353U & D004V10377S
8,000# Toyota Mdl: FGC35, LPG, 2 Stage Mast, S/N FGC4511611
FLOOR SWEEPER
Tennant Mdl: 7400 Electric Floor Sweeper, S/N 7400-3397
GANTRY HOIST
10,000# Portable Gantry Hoist

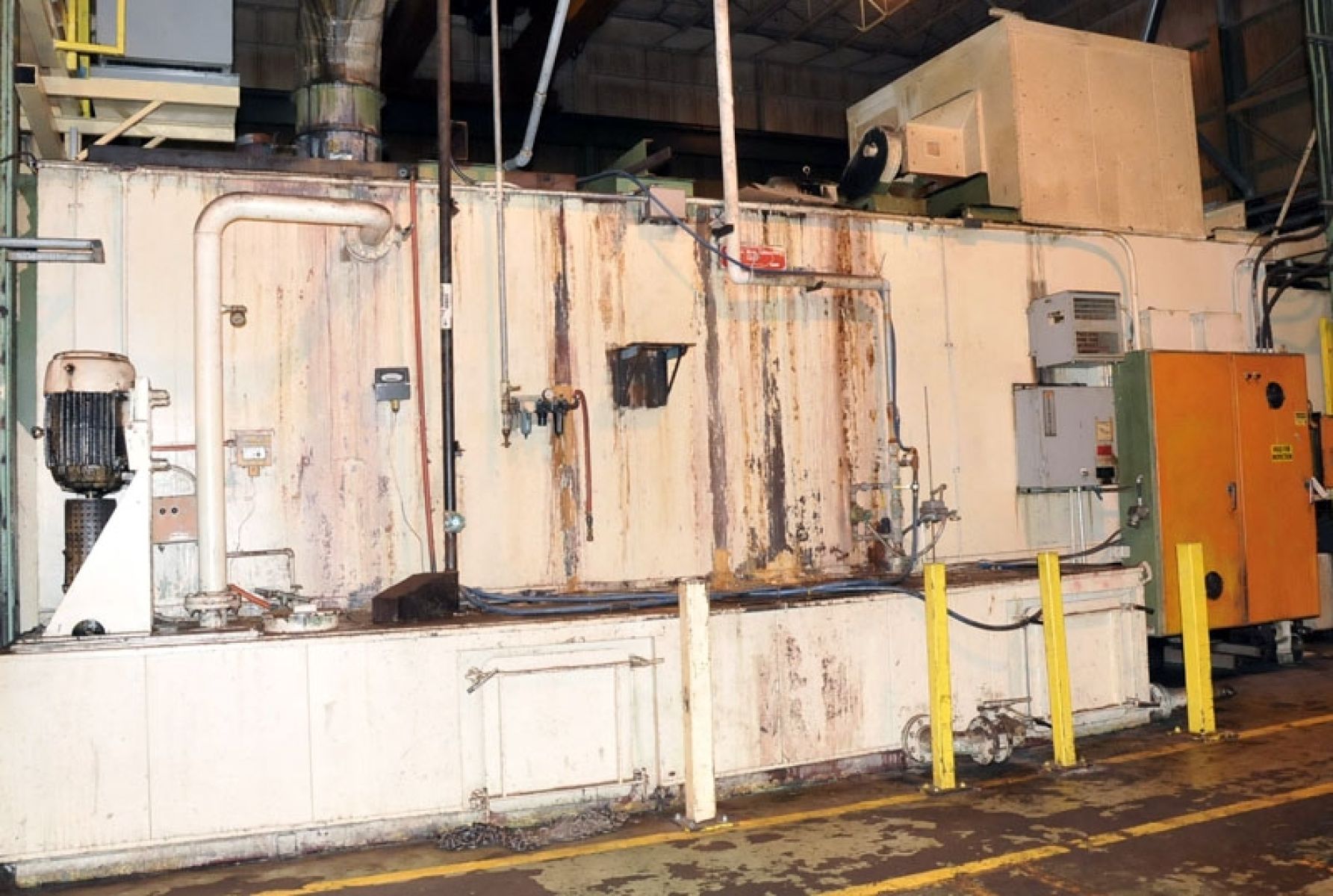

WASHERS

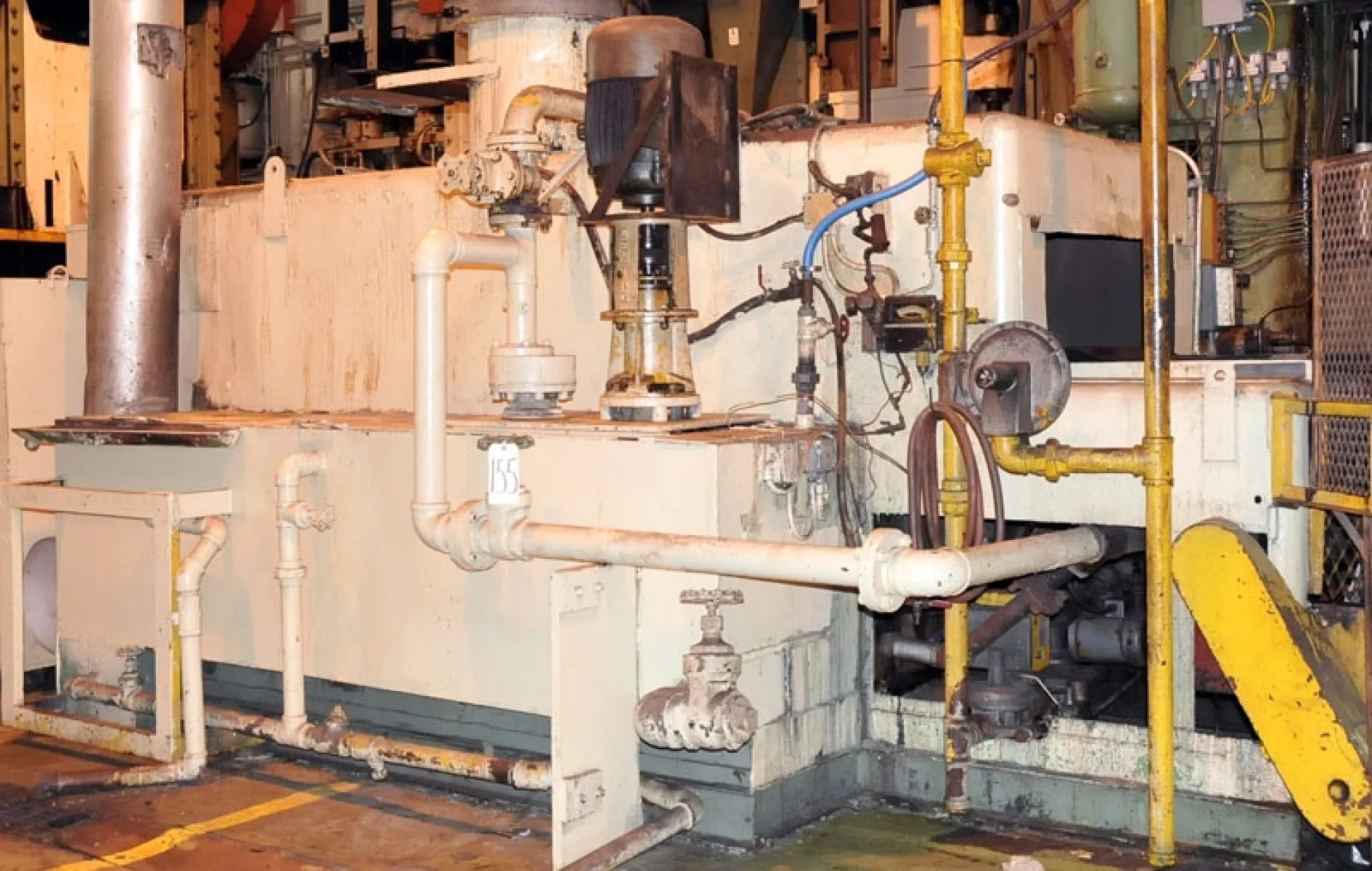

20' Tunnel Belt-Type, 16" X 42" Opening
Industrial Metal Fabricators Mdl: 12-80, Tunnel Type
FILTER PRESS & PUMPS
JWI Tri-Pak, 24" X 24"
Rupp & Gorman Rupp Pumps

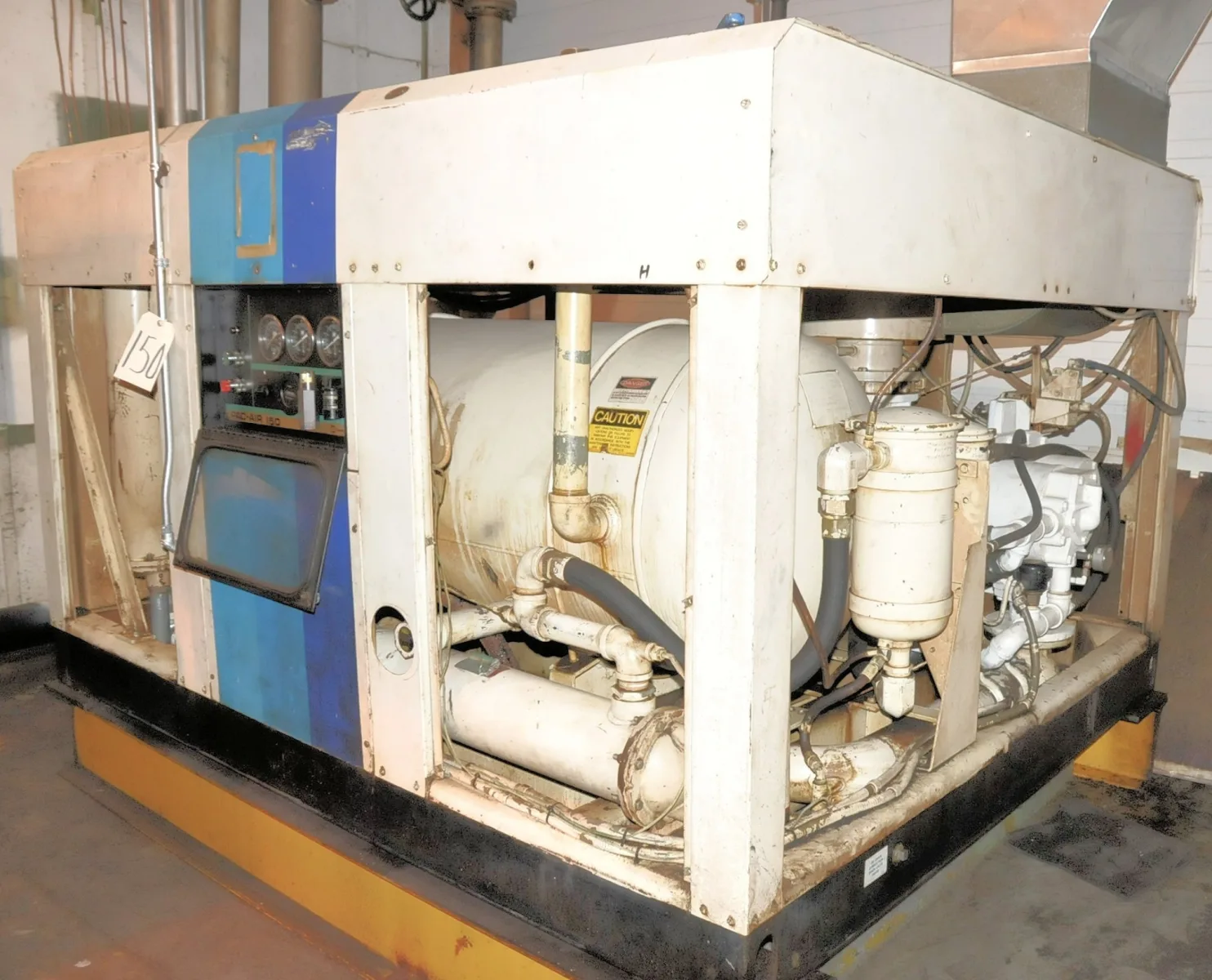

AIR COMPRESSORS

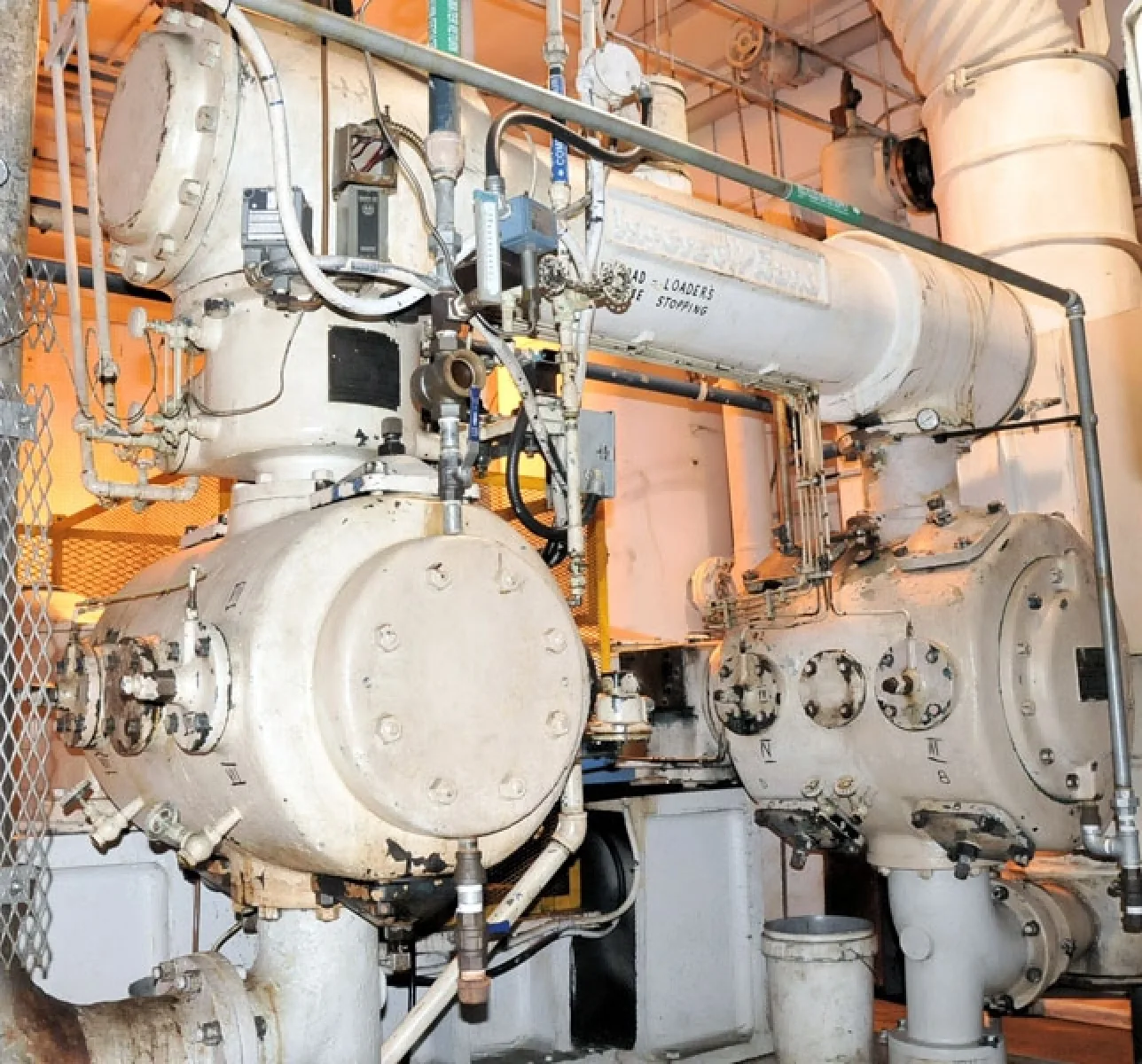

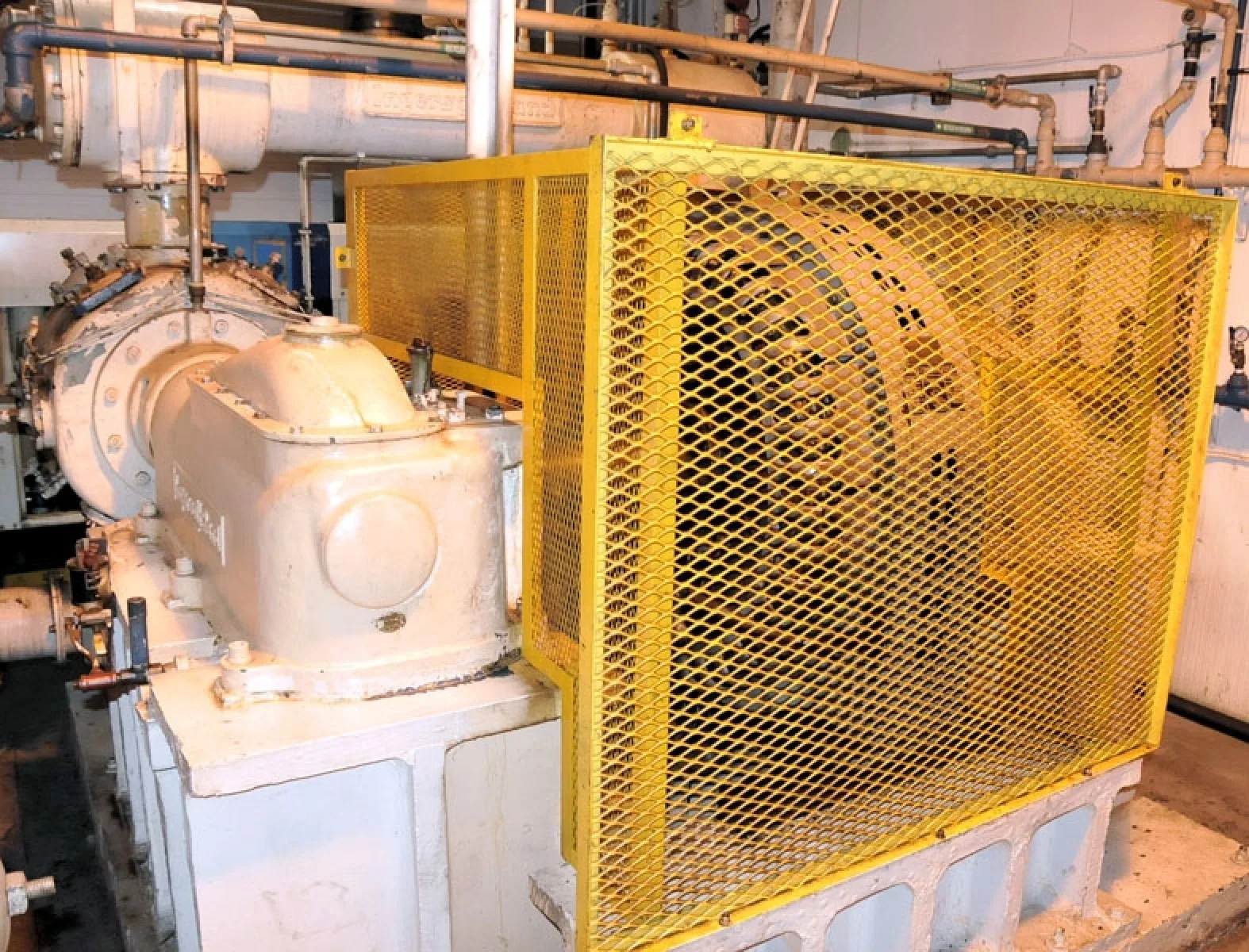

Ingersol Rand 250 HP, Size 20 1/2"–12 1/2" x 8 1/2", S/N JH42B
Ingersol Rand Pac Air 150 HP Mdl: 150, S/N 97164-U77-858
Ingersol Rand 125 HP, XRE, BE 2644/BE2645

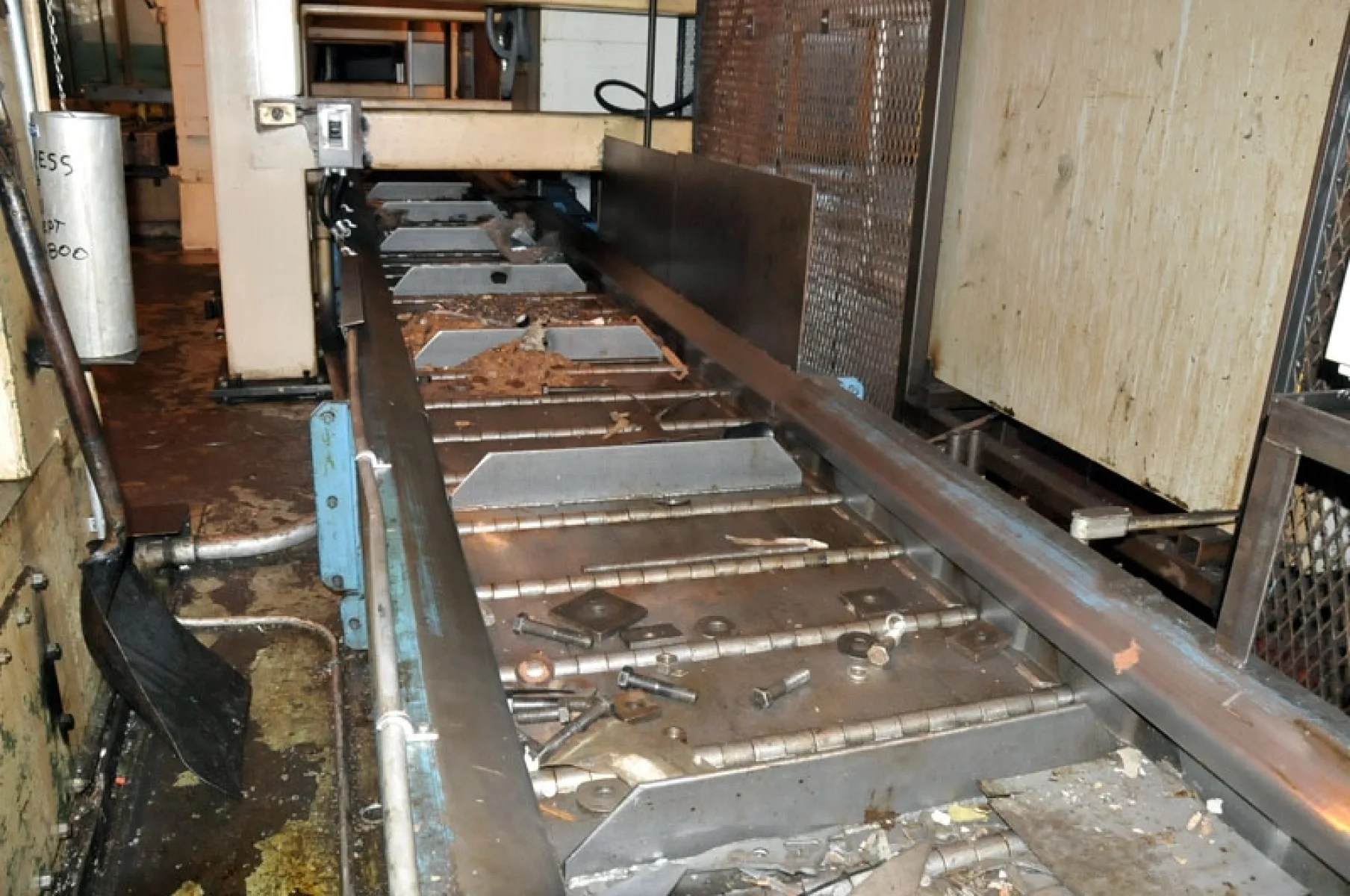

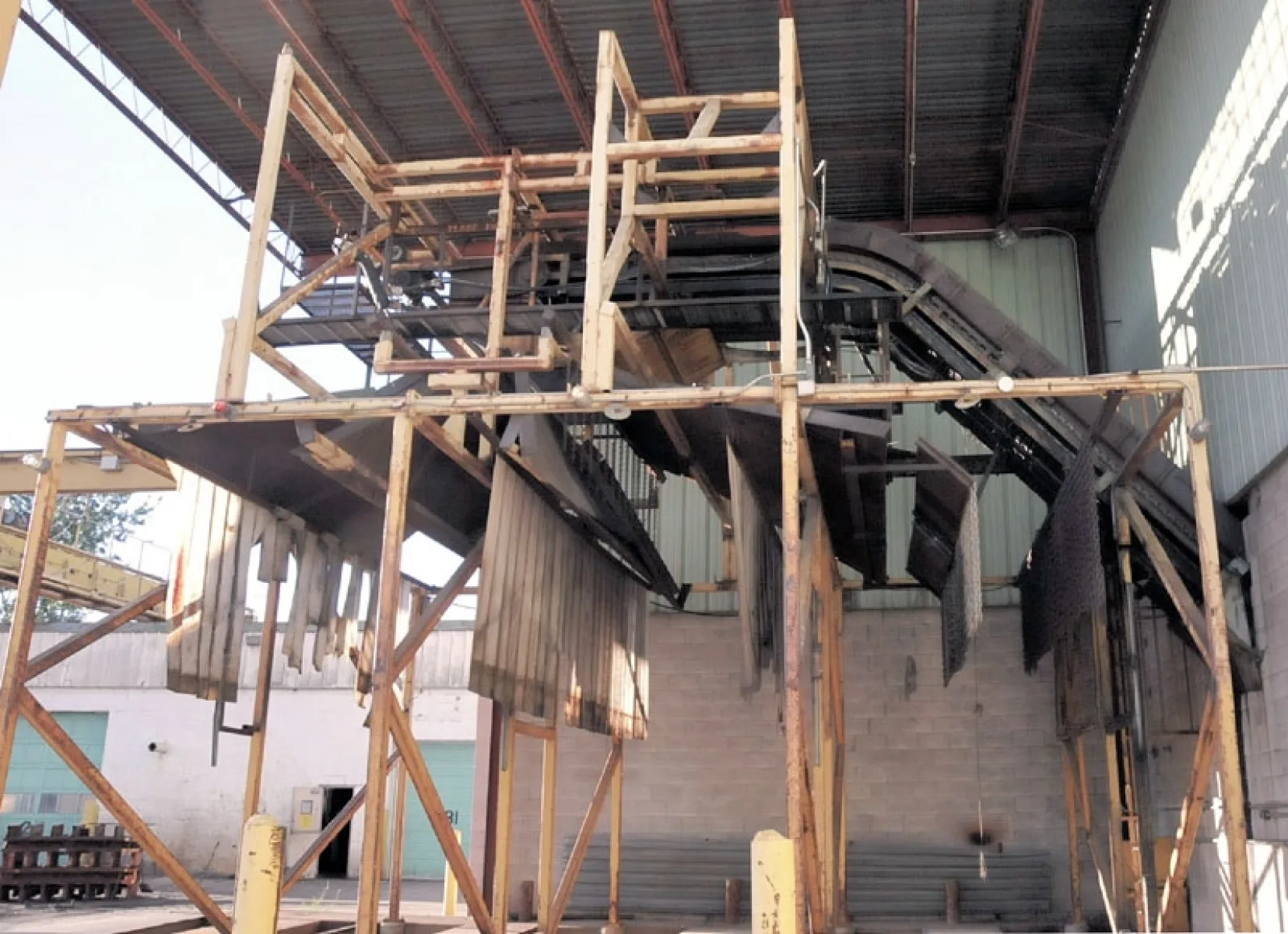

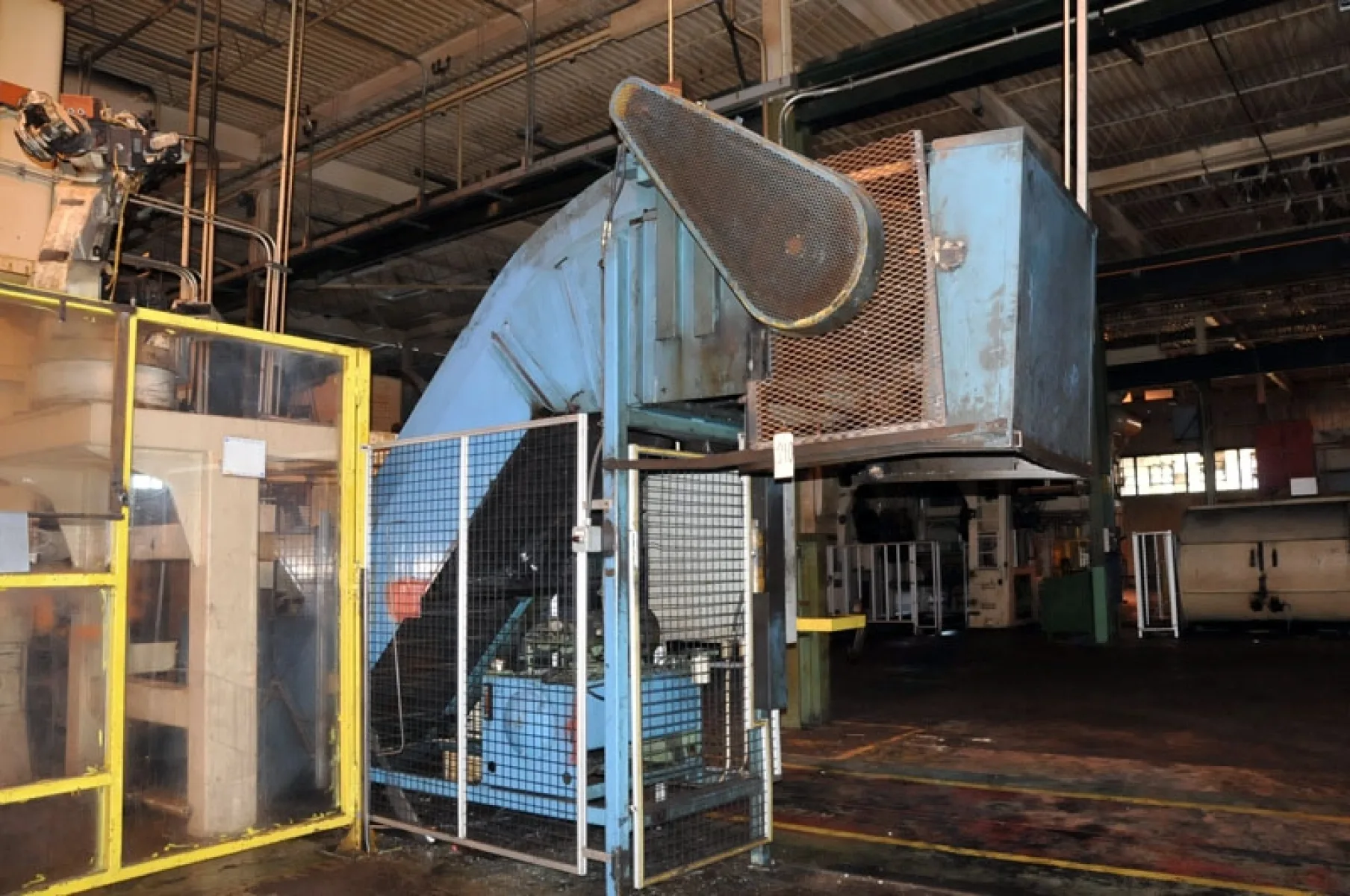

SCRAP REMOVAL CONVEYORS
Under Ground Scrap Conveyor Systems Under Major Press Lines
Discharge Chutes
Magnetic Conveyors
Exit Conveyors
Blank Destacking Units
MISCELLANEOUS

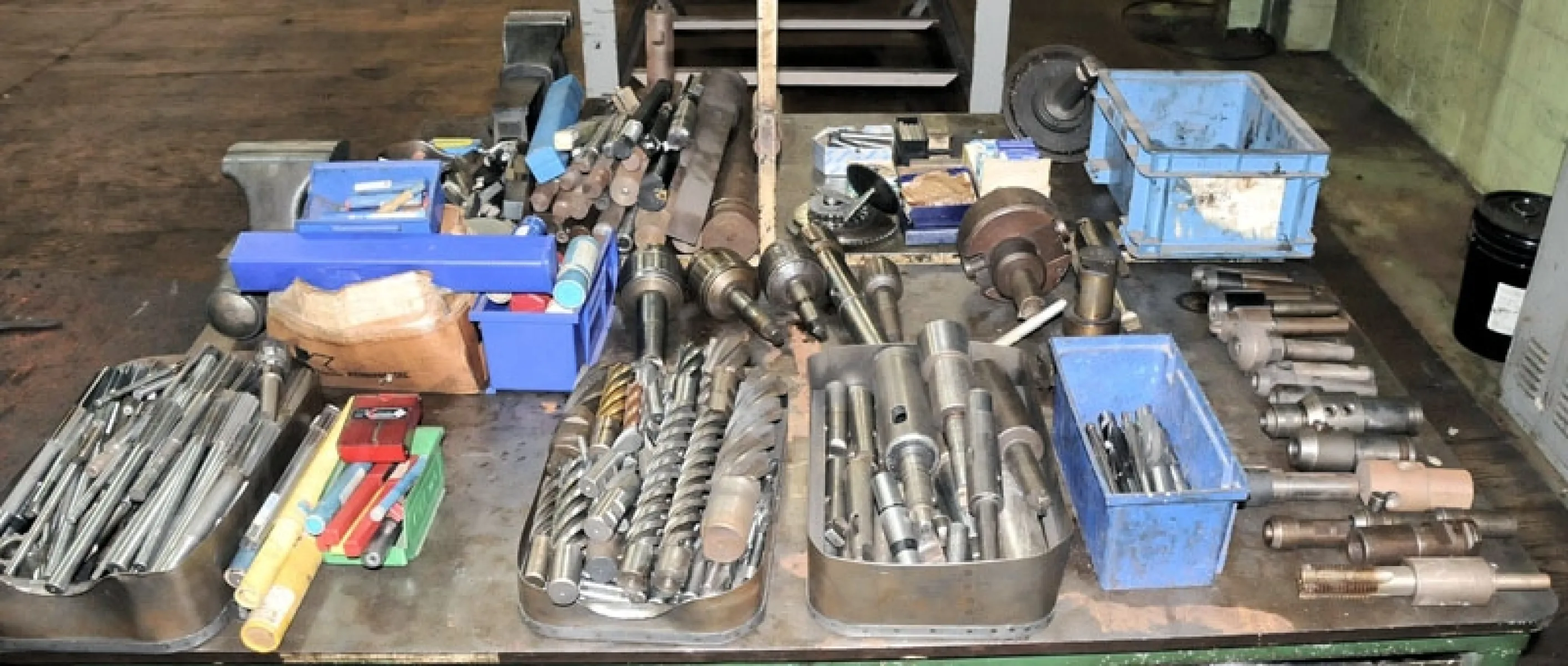

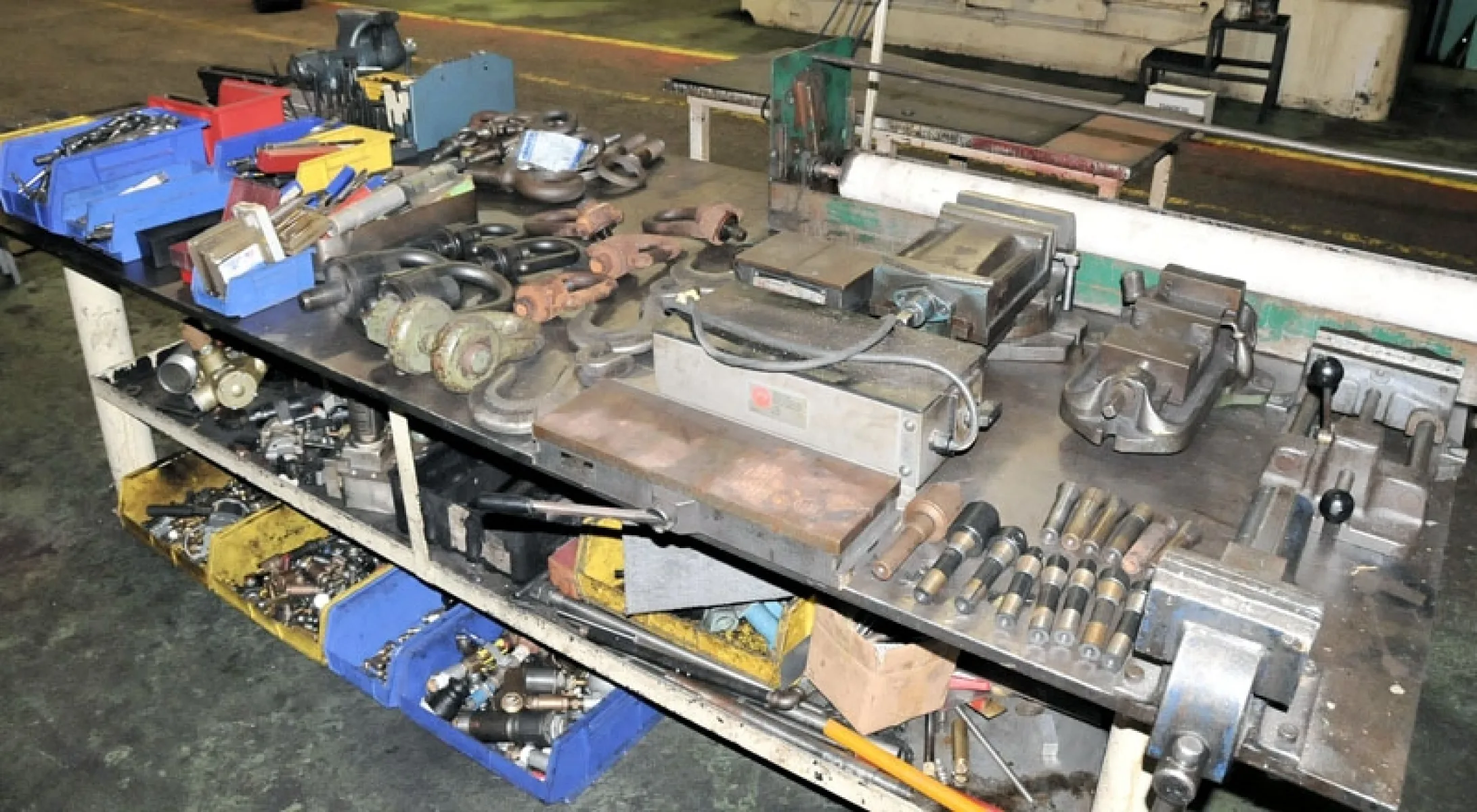

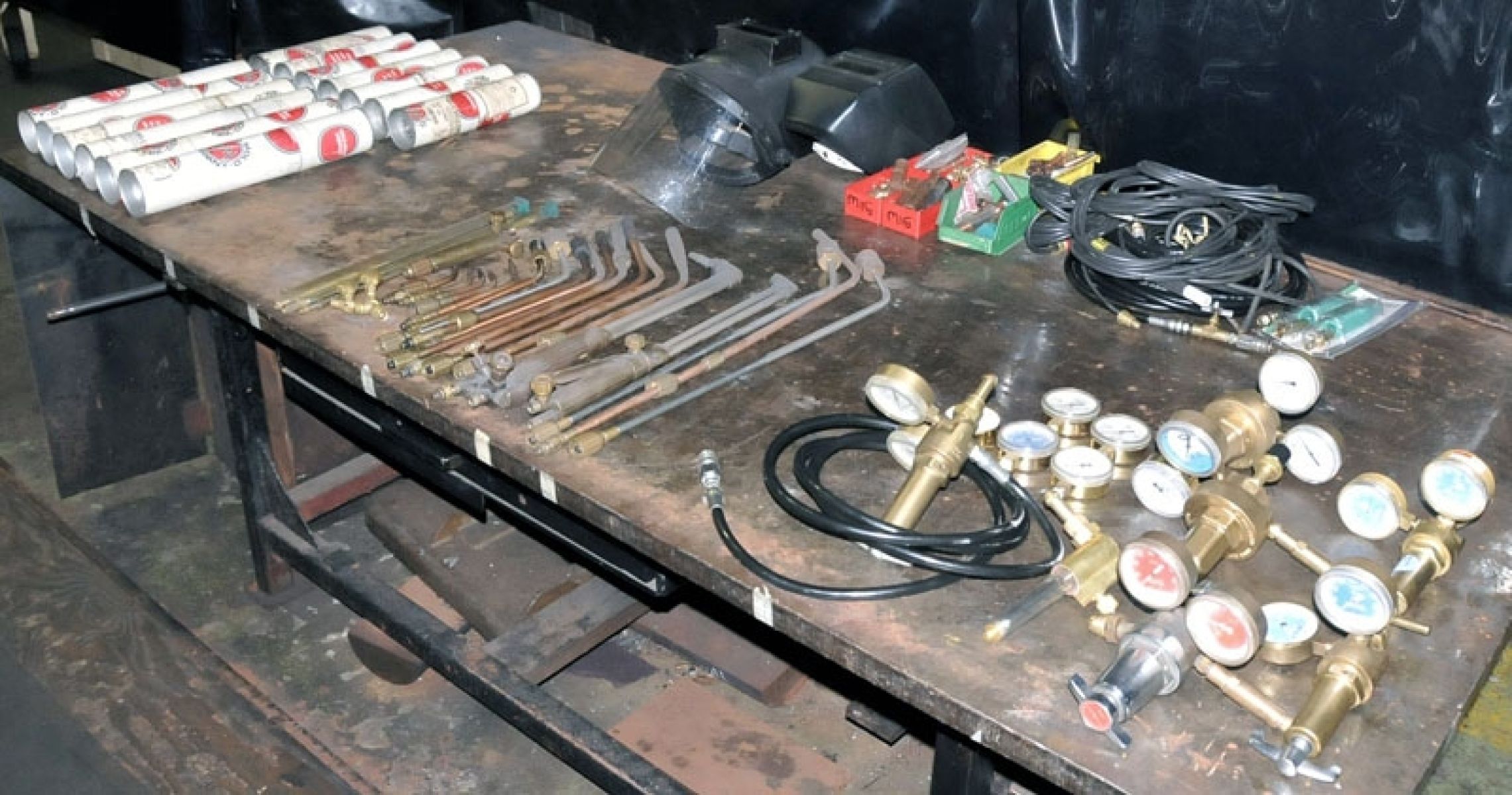

Racks, Conveyors, Carts, Cabinets, Steel Tables, Vises, Tooling, Lifting Accessories, Ladders, C-Clamps, Welding Supplies, Servo Drives, Valves, Anvil, Magnets, Drill Presses, Granite Plates, Die Pressure Washer, Lockers, Storage & Die Racks
