In Conjunction With Maynards Industries.
Models: KRM12-NC-Z-A/KRM12-CNC-A/ZRM12-NC-A/KRM12-NC-A
Serial #: 682/660/670/706
Max. Component Length (Min-Max)....................................... 175 - 1155mm
Max. Serration Length.............................................................. 900mm
Rollerhead Dia........................................................................... 207mm
Max. Serration Dia. (Min-Max)............................................... 50 - 210mm
Max. Workpiece & Chuck Dia................................................. 340mm
Possible Number Of Teeth In Discontinuous Process............. 10-60
Operating Speed Of Feed, Infinitely Variable Workpiece...... 0-1000 mm/min.
Rapid Travel.............................................................................. 10,000 mm/min.
Total Power Consumption......................................................... 22 kW

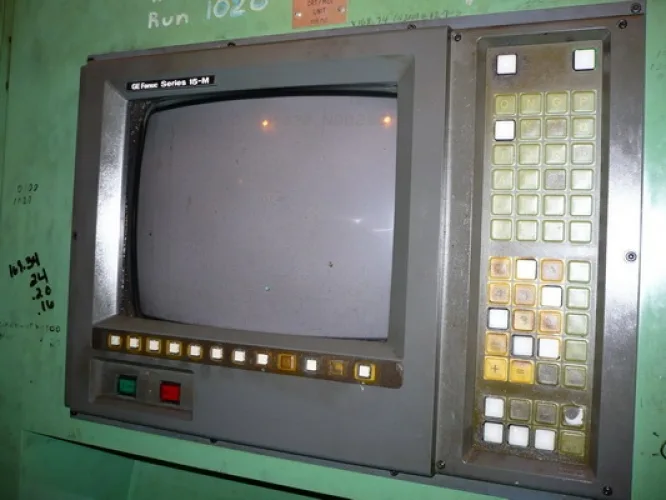

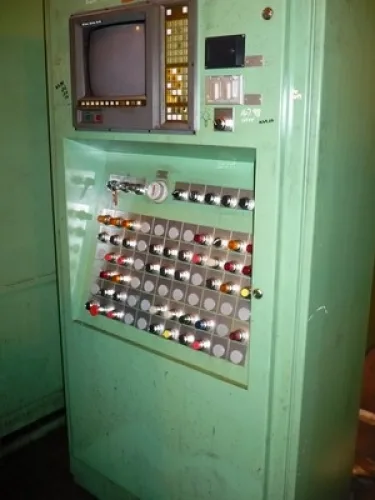

Machines Are Equipped With: Fanuc 15M Control, Automation Loading & Unloading, Soundproof Enclosure.

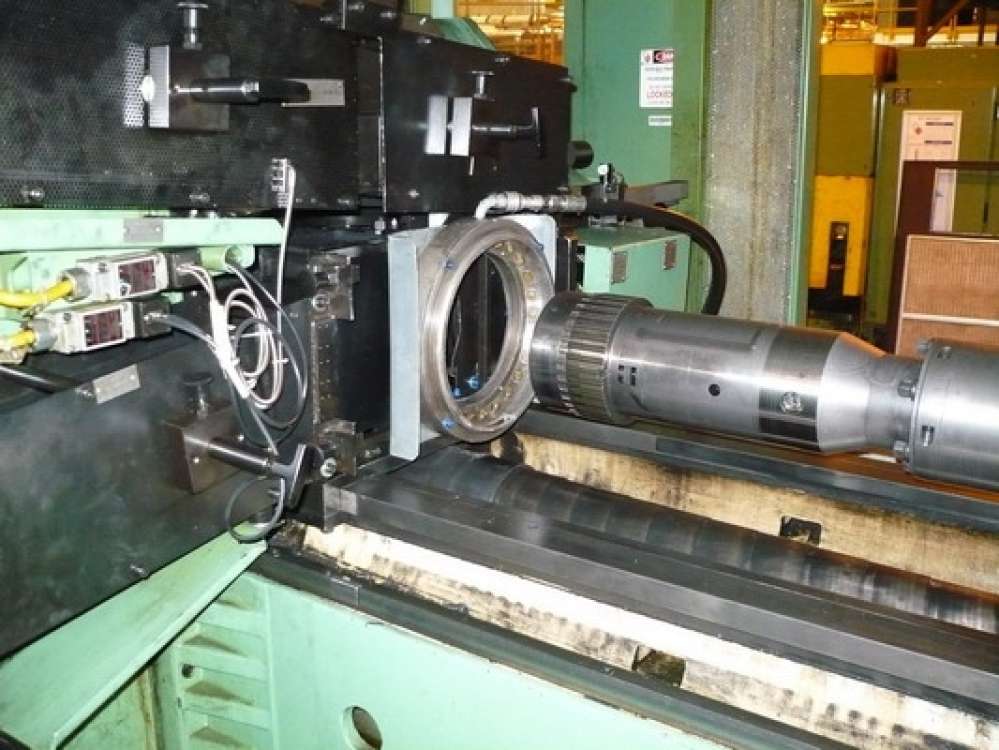

These Machines Are Tooled For Clutch Disc Carriers But Can Be Re-Tooled For Spline Shaft Production.
GLOBAL ONLINE AUCTION: (4) GROB MDL: KRM12 CNC SPLINE MACHINES
In Conjunction With Maynards Industries.
Models: KRM12-NC-Z-A/KRM12-CNC-A/ZRM12-NC-A/KRM12-NC-A
Serial #: 682/660/670/706
Max. Component Length (Min-Max)....................................... 175 - 1155mm
Max. Serration Length.............................................................. 900mm
Rollerhead Dia........................................................................... 207mm
Max. Serration Dia. (Min-Max)............................................... 50 - 210mm
Max. Workpiece & Chuck Dia................................................. 340mm
Possible Number Of Teeth In Discontinuous Process............. 10-60
Operating Speed Of Feed, Infinitely Variable Workpiece...... 0-1000 mm/min.
Rapid Travel.............................................................................. 10,000 mm/min.
Total Power Consumption......................................................... 22 kW
Machines Are Equipped With: Fanuc 15M Control, Automation Loading & Unloading, Soundproof Enclosure.
These Machines Are Tooled For Clutch Disc Carriers But Can Be Re-Tooled For Spline Shaft Production.
