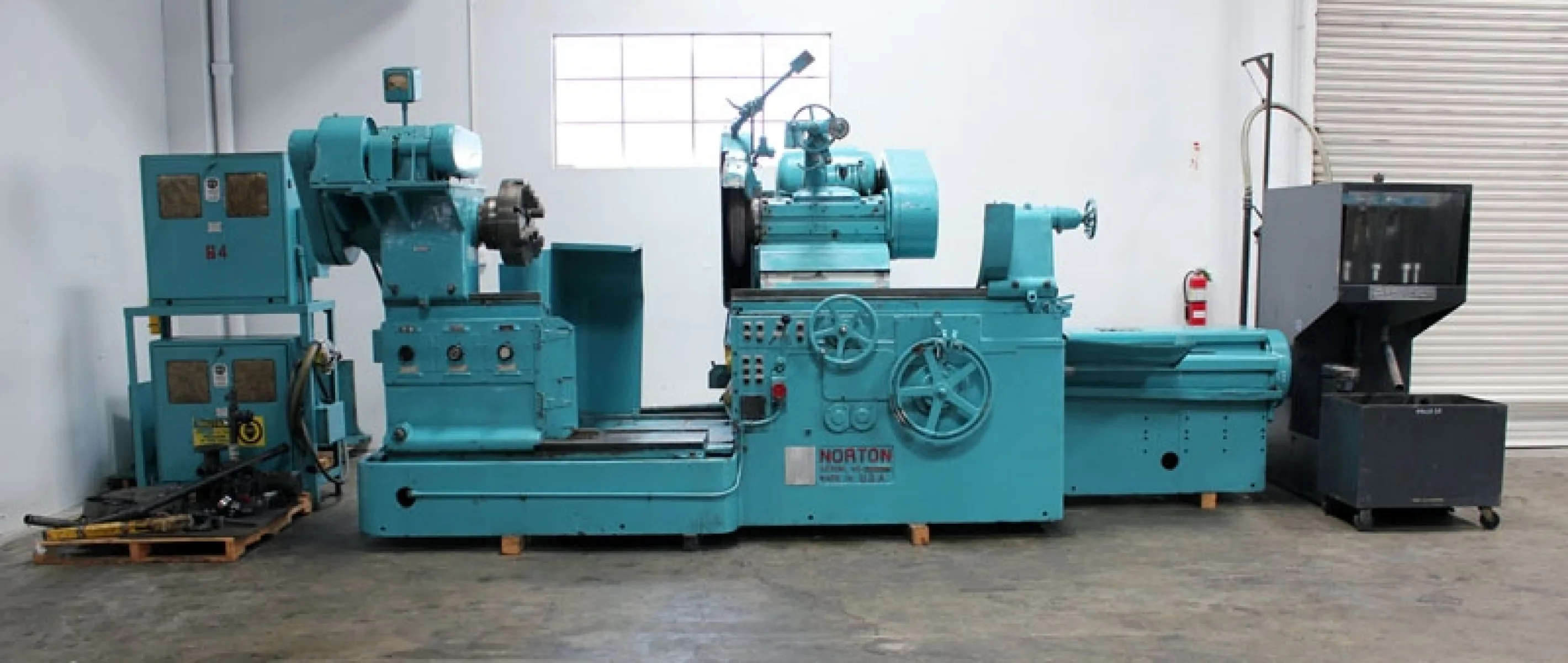

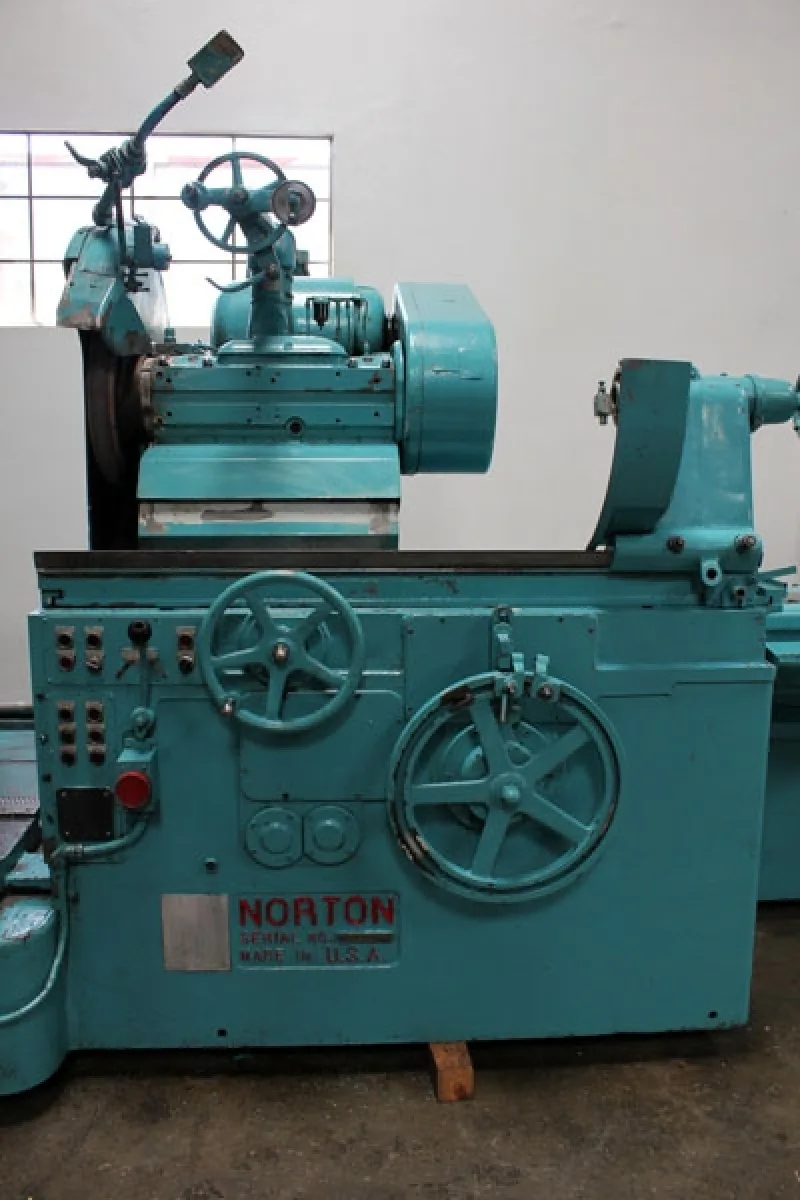

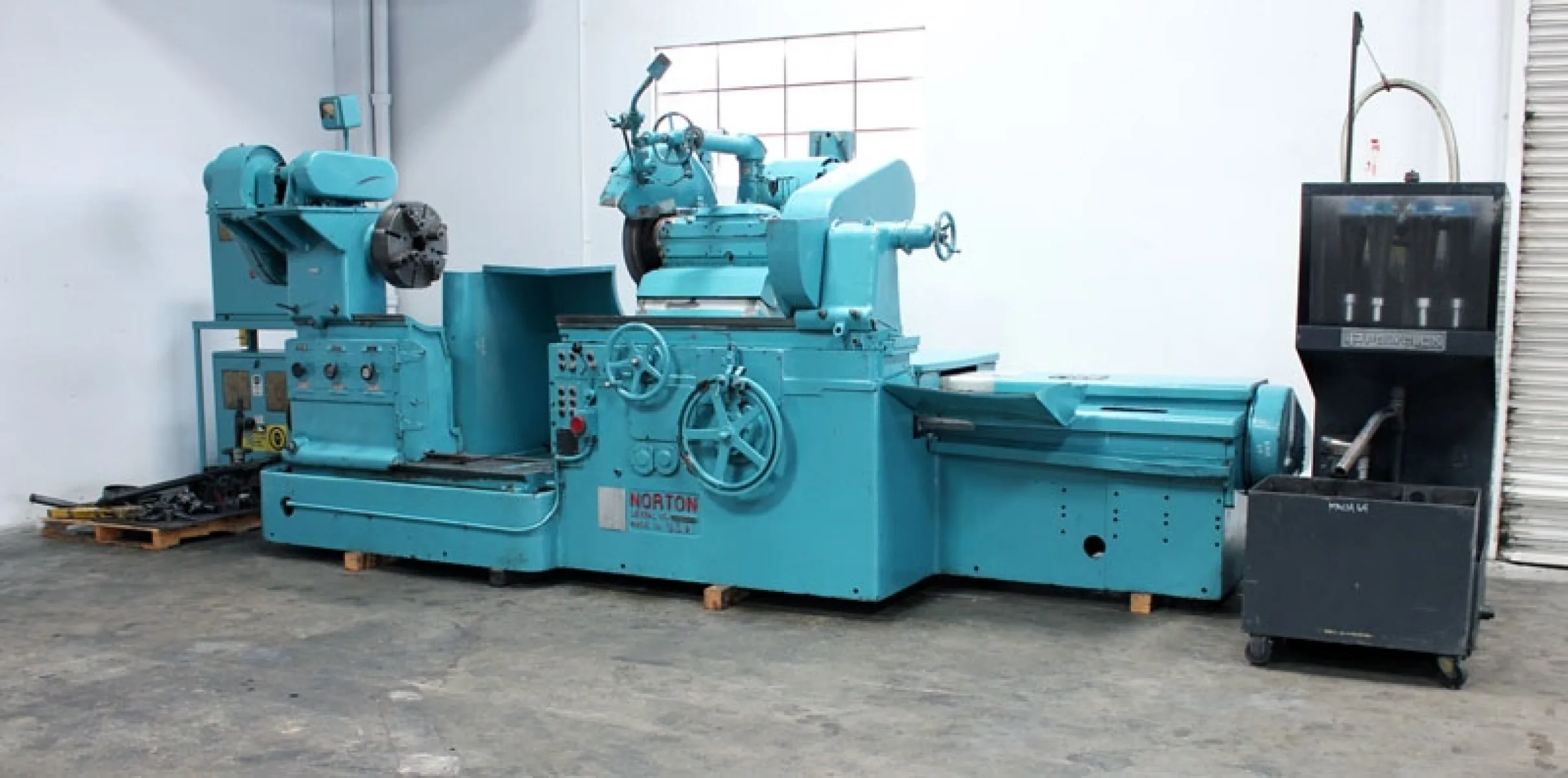

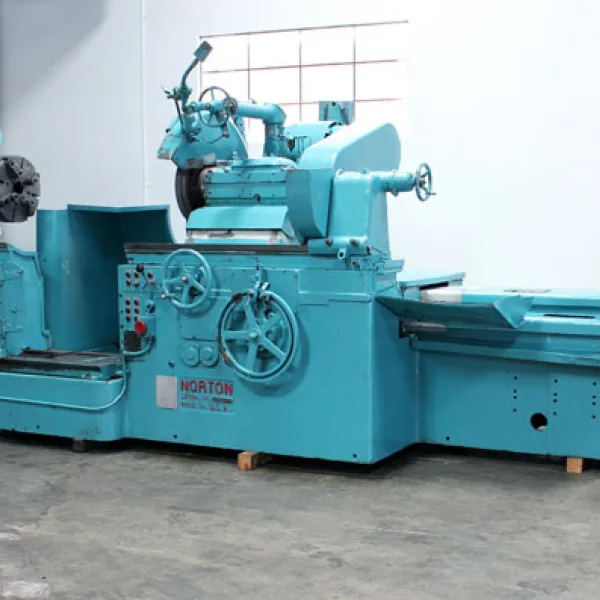

32/86" x 96" Norton Mdl: 32/86 x 96 Gap Bed Strut Cylindrical Grinder
Manufacturer: Norton

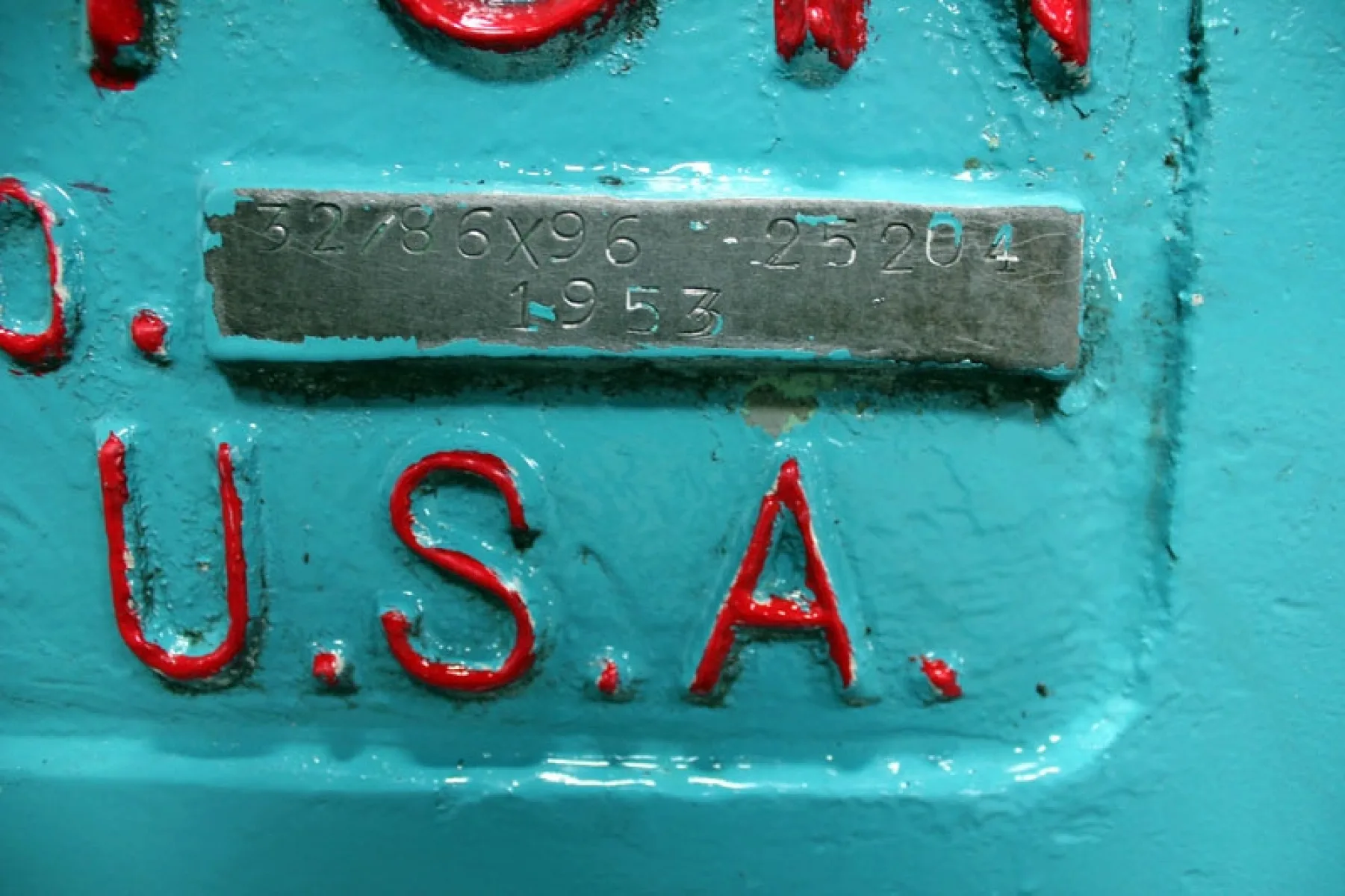

S/N: 25204
Specifications:
Capacity:
Swing Over Table: 32"
Swing in Gap: 86"
Maximum Swing in Gap: 89"
Distance Between Headstock and Footstock::
Gap Open: 96"
Width of Gap Open Adjustable To: 38"
Table Bed Swivel Graduated To An Angle Of:
Away From Wheelhead 10 Minutes
Towards Wheelhead 10 Minutes
Wheelhead Carriage Traverse Grinding Rate: Infinite

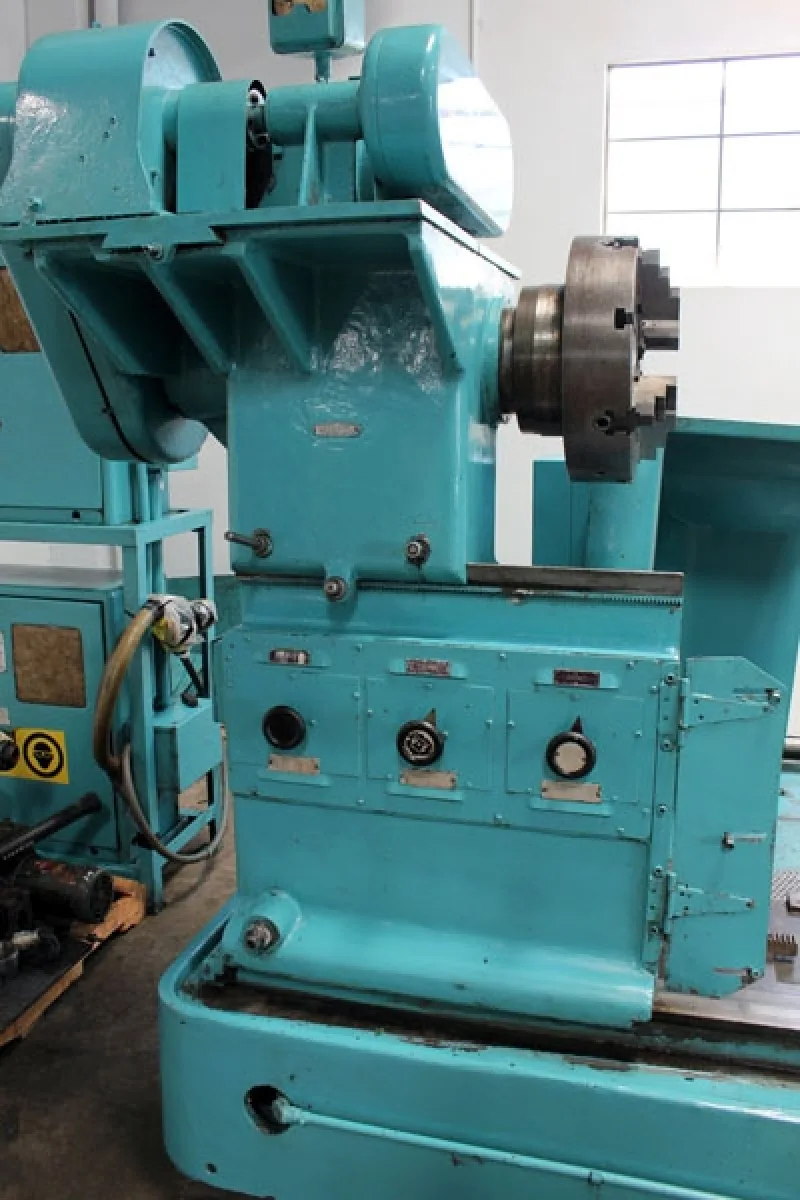

Headstock:
Live Spindle
Number of Work Rotation Speeds: Infinite
Range of Work Speed: 8 to 100 RPM
Headstock Adjustment Left/ Right on Rack Driven by: Hand
Footstock:
Adjustment Left/ Right On Tabel Rack Driven By Hand: 14 1/2"

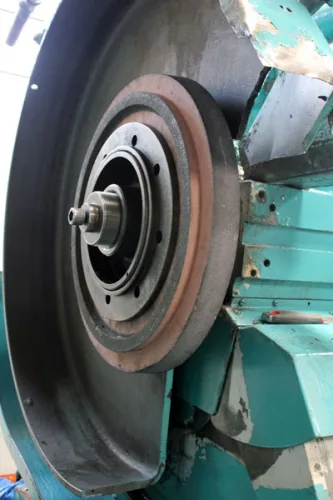

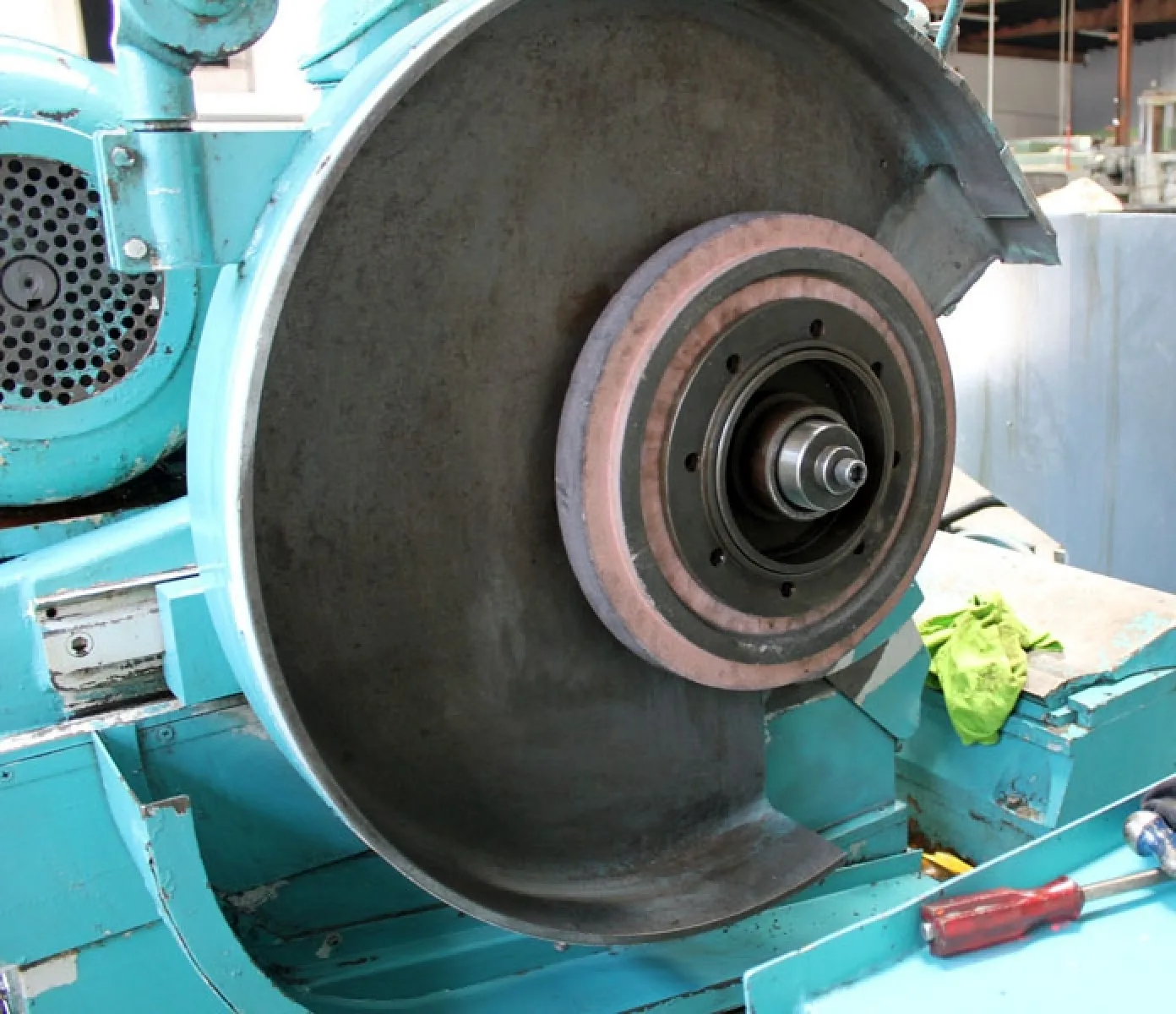

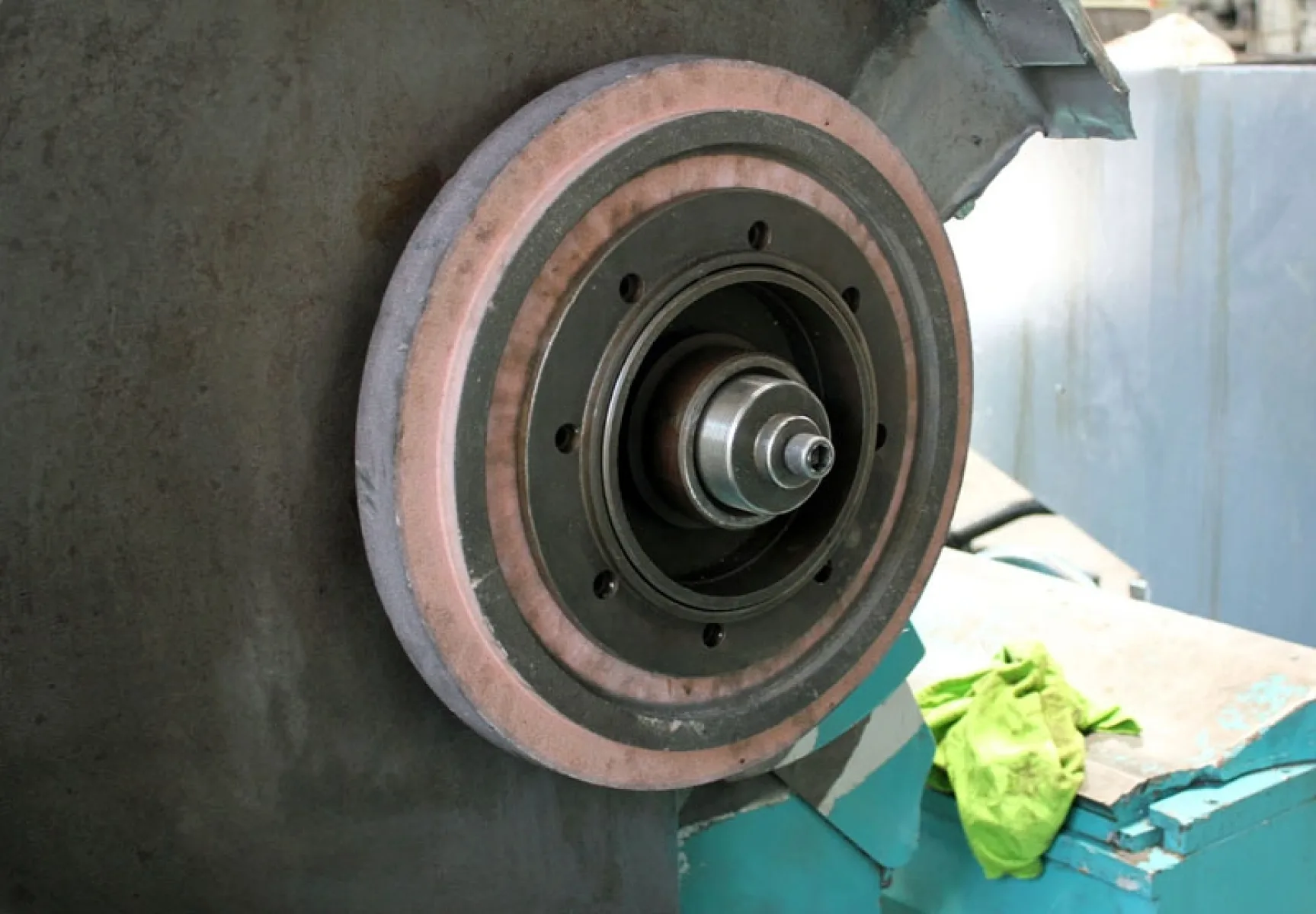

Grinding Wheel (Diameter x Face x Hole): 30" x 3" x 9"
Motor Drives: Wired 440 Volts 3 Phase

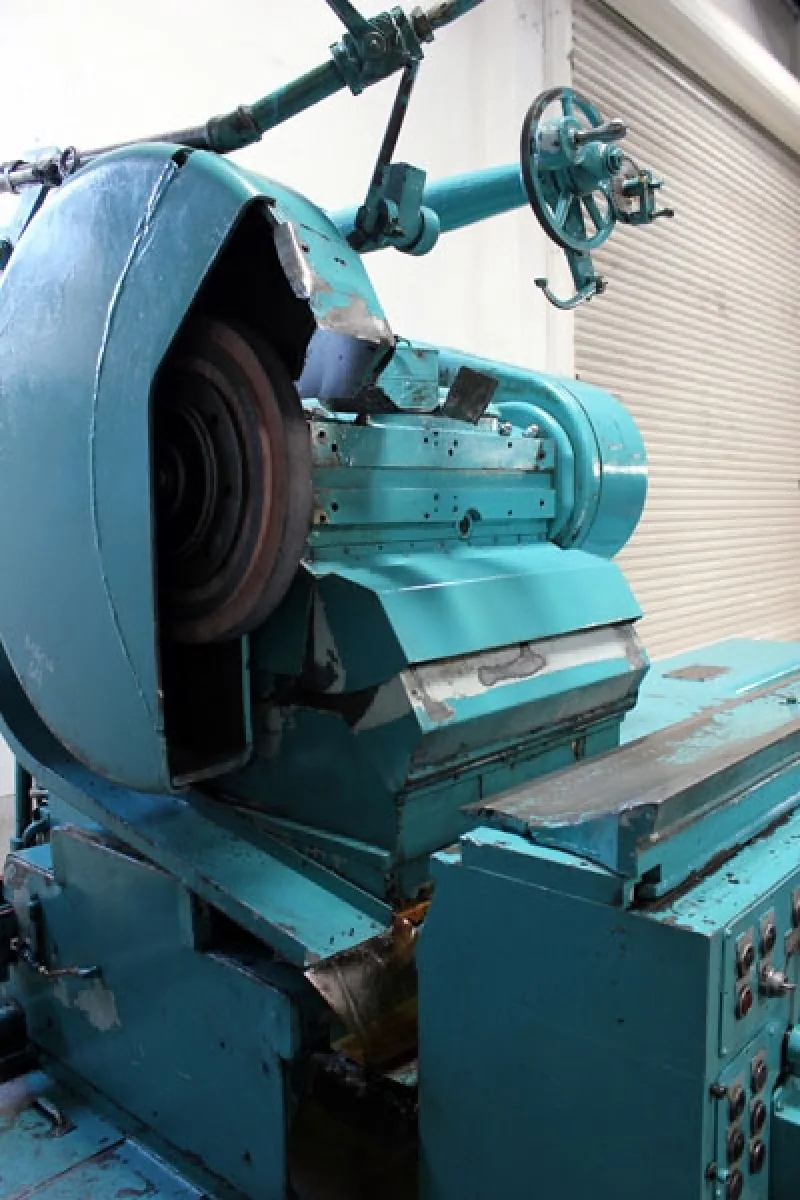

Wheelhead: 20 H.P. 240/440 Volt A.C.
Headstock (Work Spindle) Infinitely Variable: 3 H.P. 240 Volt D.C.
Table Table Carriage Drive Infinitely Variable: 3 H.P. 240 Volt D.C.
Oil Pump: 1/4 H.P. 240/440 Volts A.C.

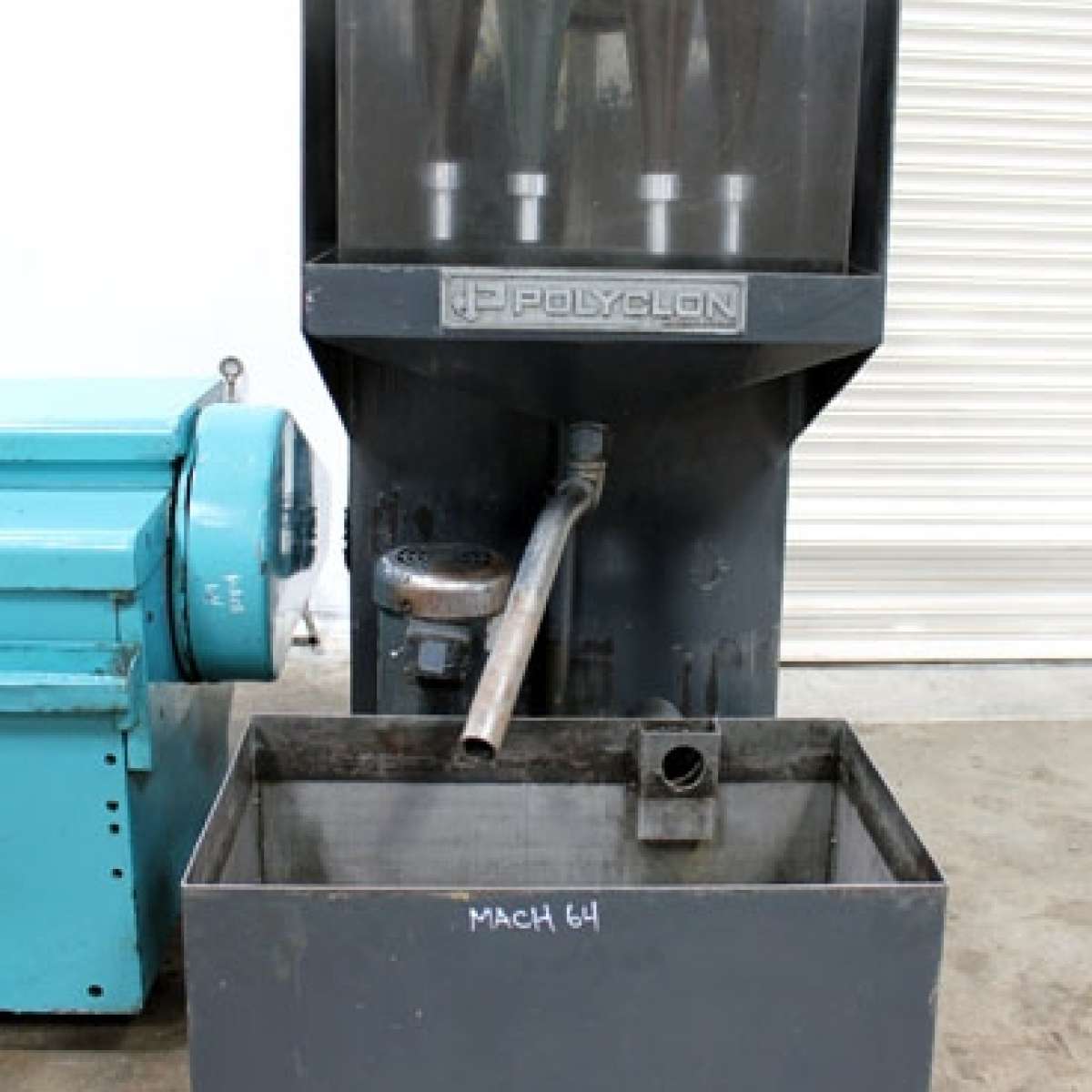

Coolant Pump: 1/2 H.P. 220/440 Volts A.C.

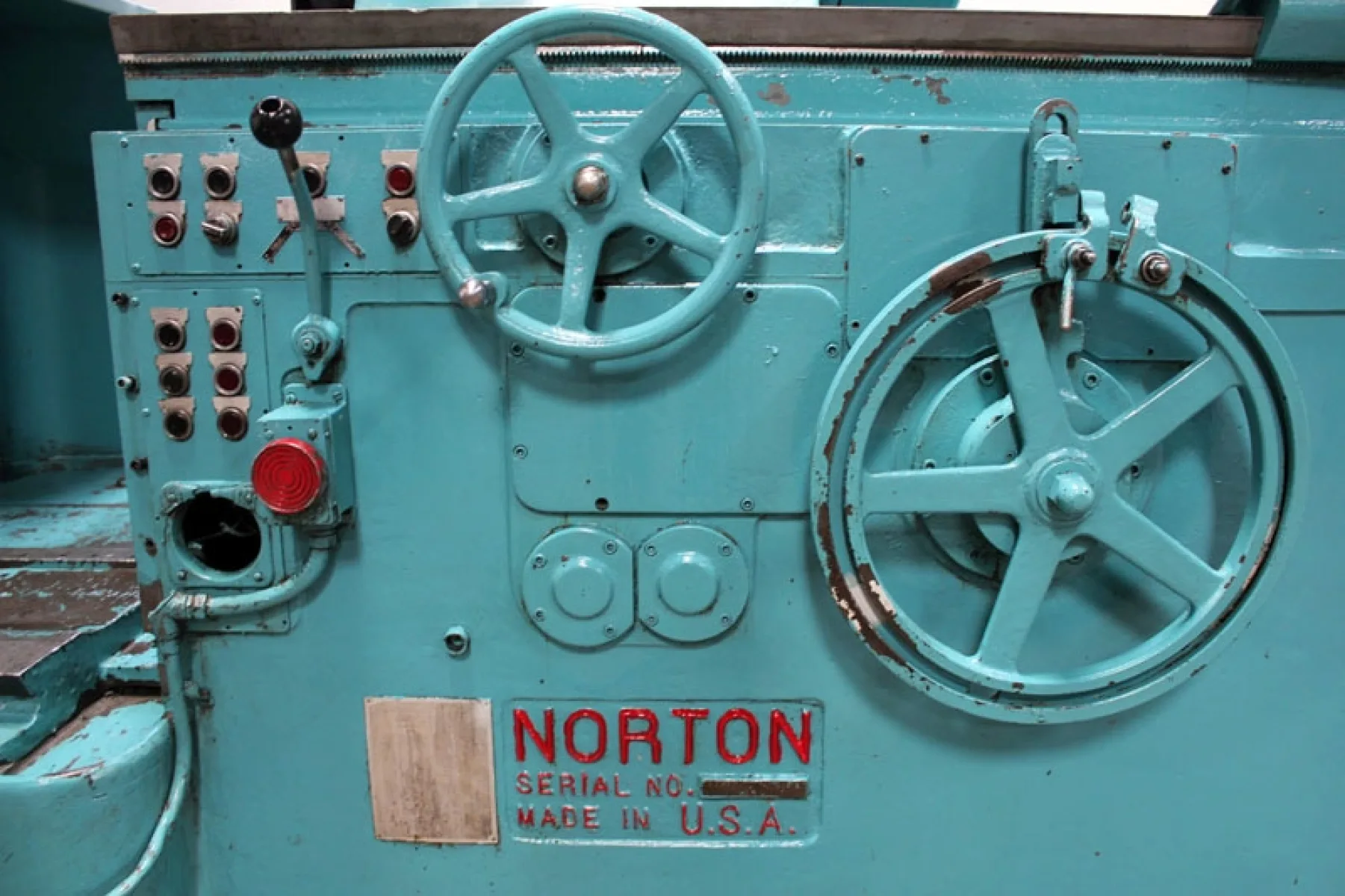

Equipped With:

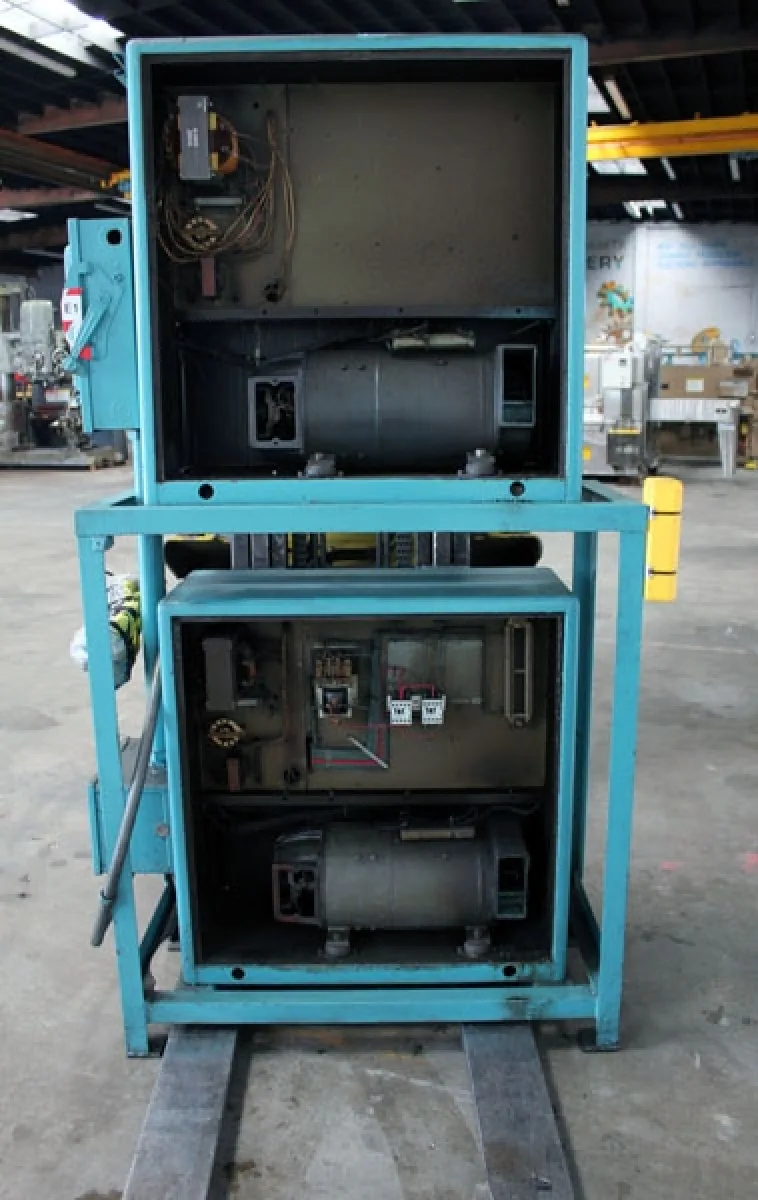

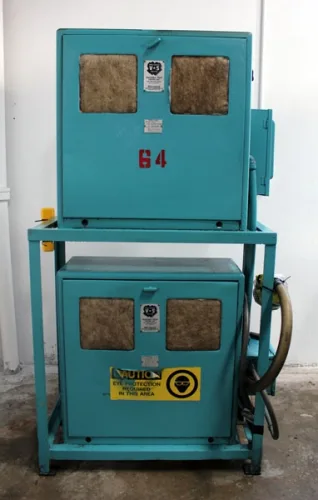

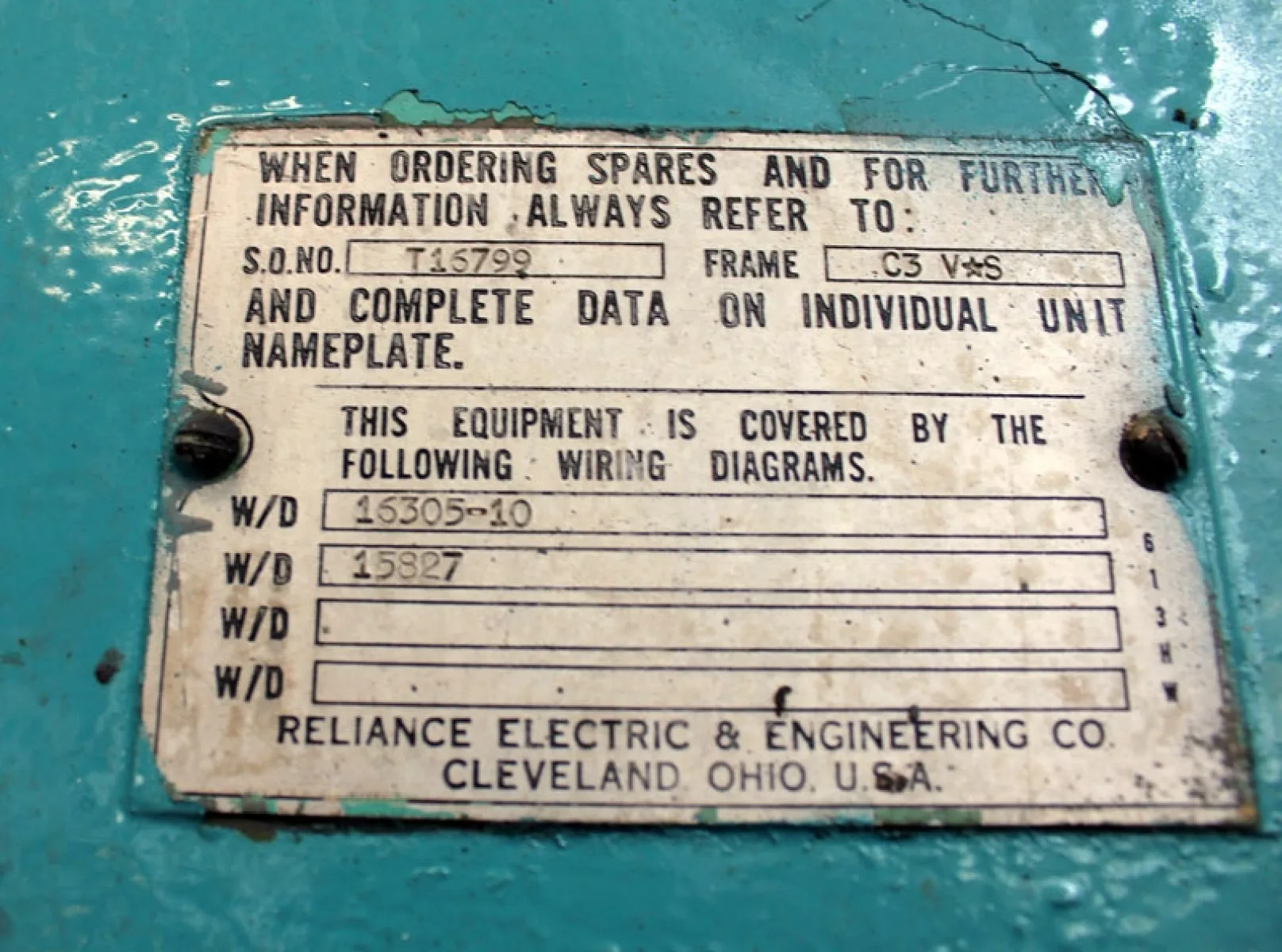

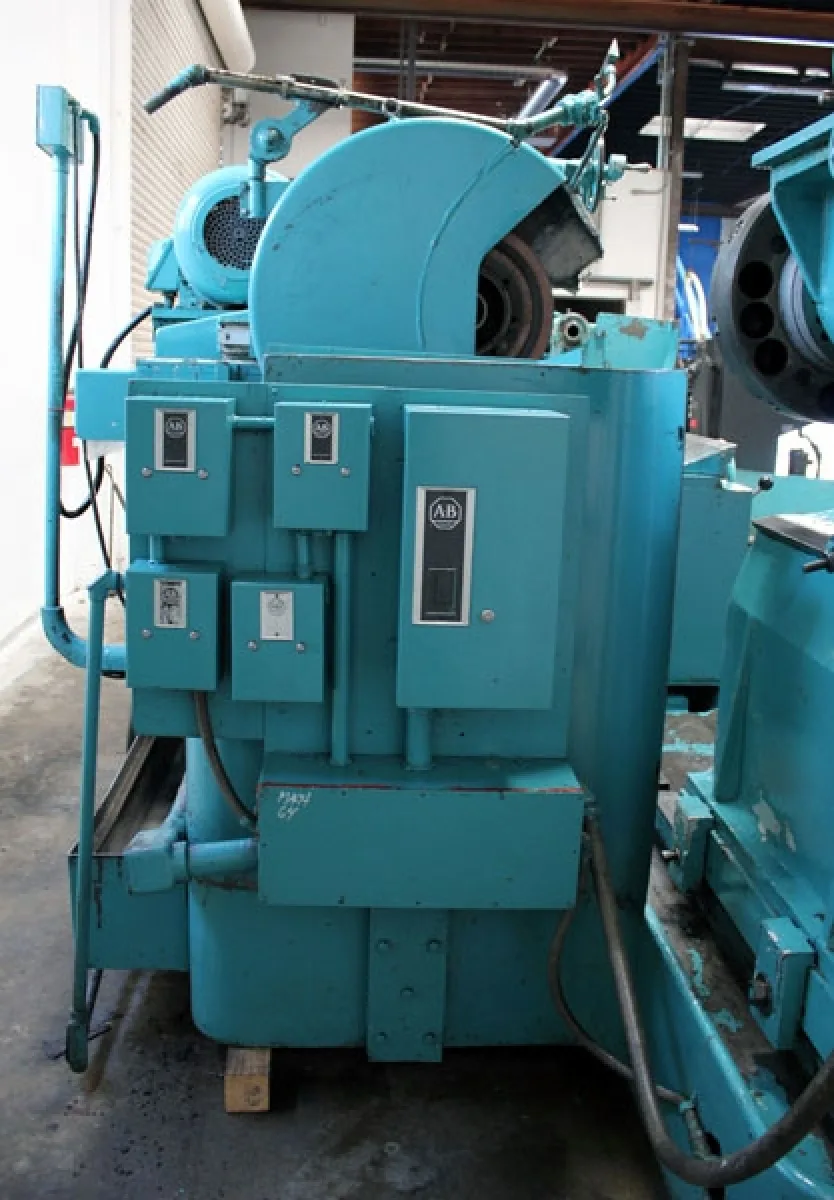

AC to DC Colt Converted by Two Motor Generators Located Within Control Cabinet
Wheel Start/ Stop Buttons
Oil Pump Start/ Stop Buttons
Coolant Pump Start/ Stop Buttons
Rheostat To Control Work
Rheostat To Control Truing
Rheostat To Control Grind
Work Stop and Jog Buttons
Table Start/ Stop Buttons
Table Jog Button
Table Swell On and Off Switch
Rheostat True/ Grind Switch

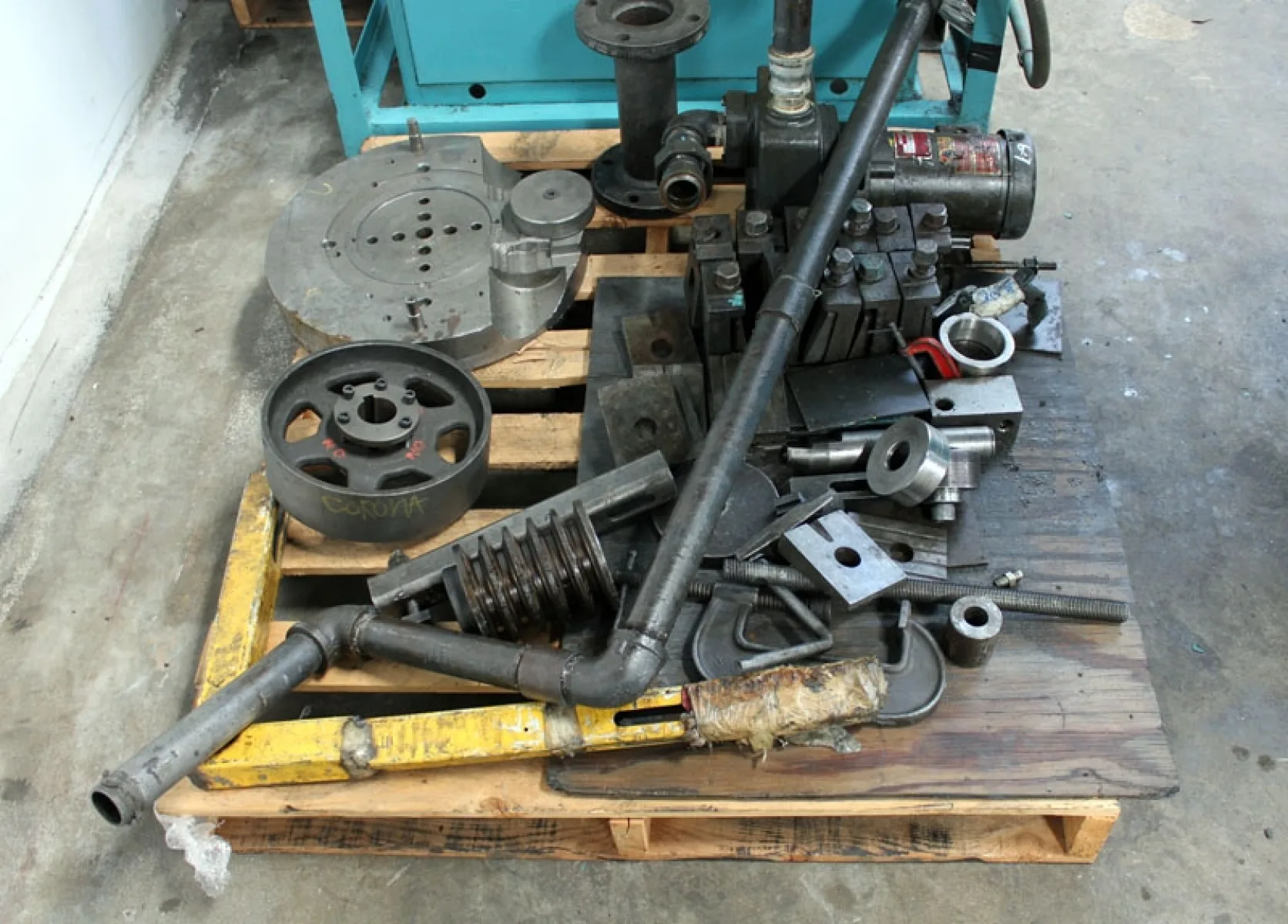

1 Grinding Wheel Hub

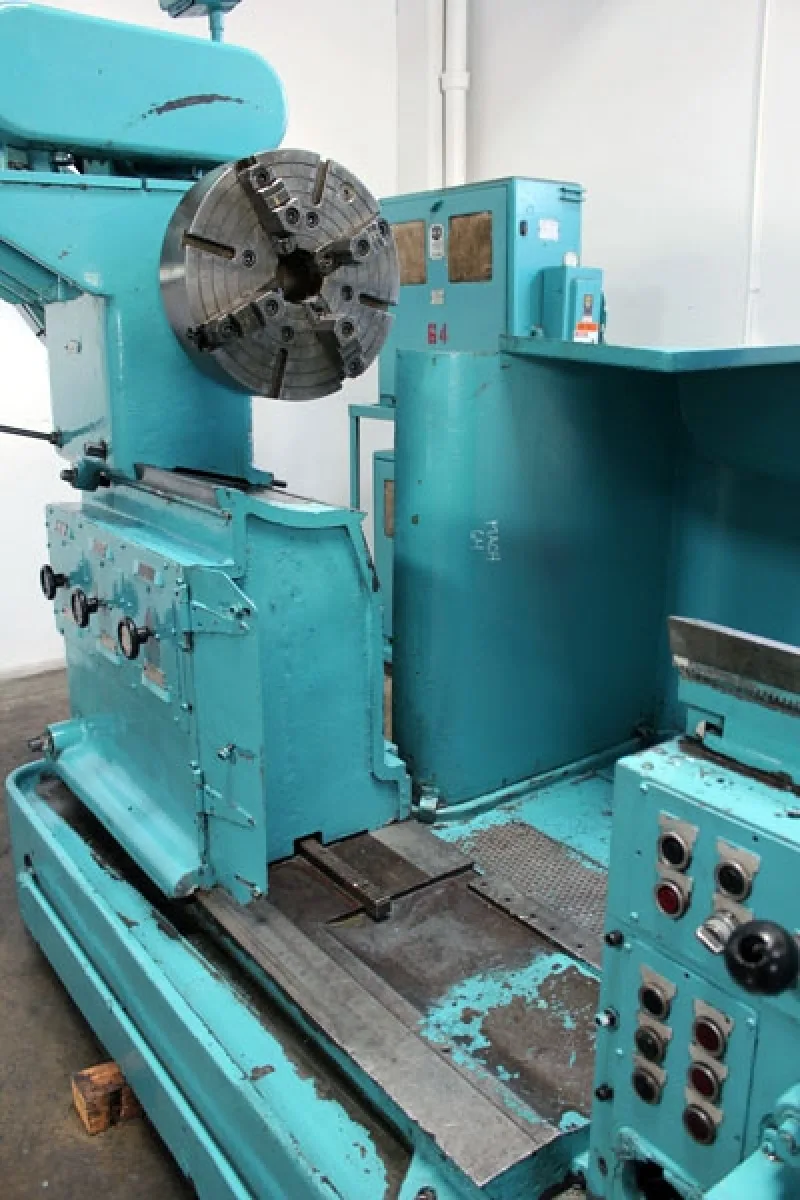

1 Chuck 19" Diameter with Four 2- Piece Reversible Top Jaws

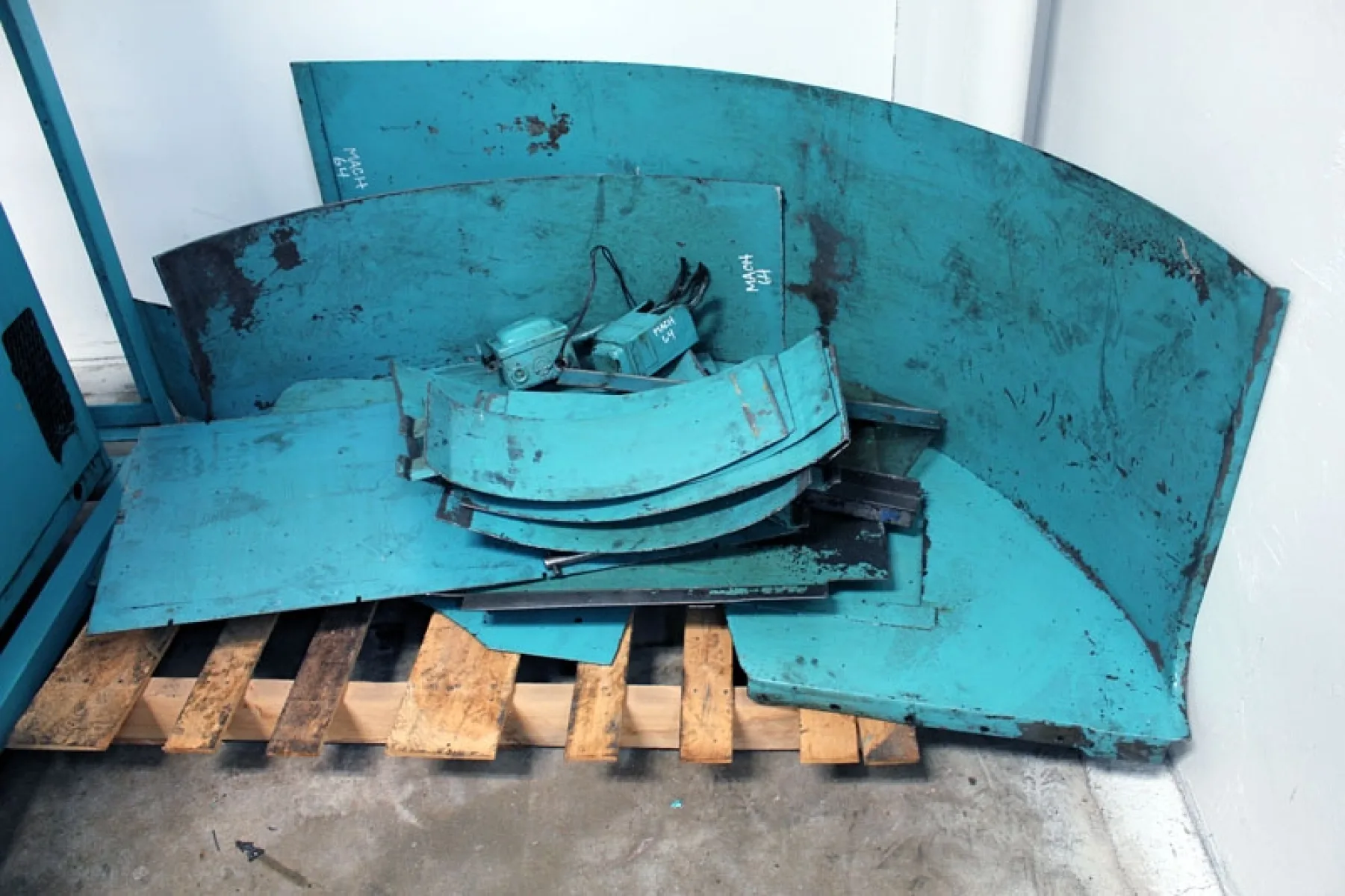

Misc. Splash Guards
Complete Factor Safety Guards
