The US Filter System And Facility Was Operated By Veolia Water (A World Leader In Water Management).
US Filter Filtration & Clarification Systems: Capacities Per System: 2,000,00 GPD @ 25 MG Liter Suspended Solids • 1,000,00 GPD @ 50 MG Liter Suspended Solids • 500,00 GPD @ 75 MG Liter Suspended Solids • 250,00 GPD @ 100 MG Liter Suspended Solids
"Gravisand" Traveling Bridge Filter: Including - Backwash Pump, Skimmer Pump, Perfection American Bridge Drive, 40" W Aluminum Bar Grating Bridge, Air Scour, Nema 4X Control Panel &Festooning System
All Machinery & Equipment Is Easily Accessible For Removal

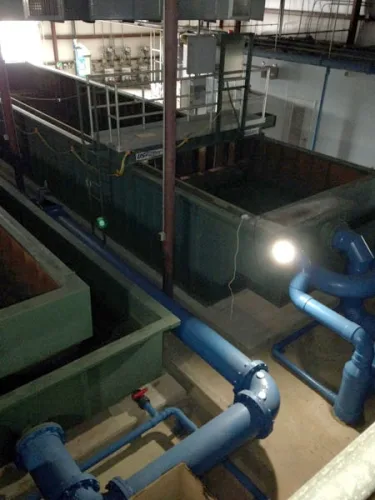

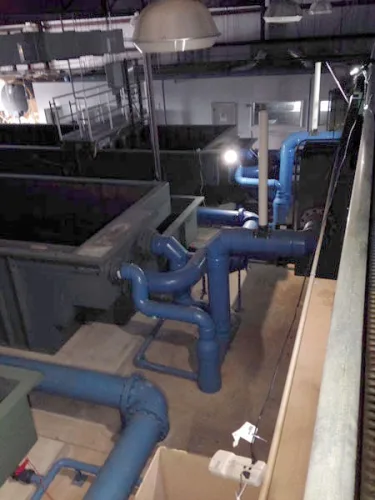

(3) 2,000,000 MGD US FILTER SYSTEMS TRAVELING BRIDGE & MICROFLOC TRIDENT WATER TREATMENT SYSTEMS - COST NEW VALUED AT OVER $2 MILLION
The US Filter System And Facility Was Operated By Veolia Water (A World Leader In Water Management).

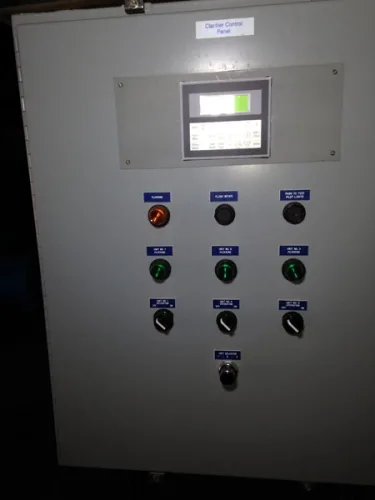

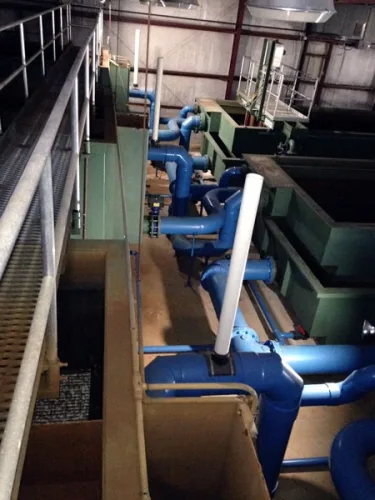

US Filter: Micorfloc Adsorption Clarifier, Model AC-140:
Click Here For More Information About Mircofloc Adsorption Water Treatment System
Capacities Per System:
• 2,000,00 GPD @ 25 MG Liter Suspended Solids
• 1,000,00 GPD @ 50 MG Liter Suspended Solids
• 500,00 GPD @ 75 MG Liter Suspended Solids
• 250,00 GPD @ 100 MG Liter Suspended Solids
Applications: Solids Filtration - Potable Water Treatment - Upgrading Existing Secondary Discharges - Polishing Effluents for Water Reuse - Suited for New or Existing Plant - Phosphorous Removal - Easily Retrofitted • Simple Bolt-In Design • Operator Friendly Control System • No "Cast-In" Components • Easily Retrofitted • Non-Corrosive Components • Combined Air/Water Backwash • Lower Capital Requirements • Lower Operating Costs • Simple–Effective–Economical • Small Footprint Required • Low Install Pump Horsepower • Adsorption Clarifier is a 2-in-1 Treatment Process • Single Step Flocculation and Clarification • Wastewater Reuse and Industrial Applications • Chemical Pretreatment • Potable Water Treatment • Domestic Wastewater Treatment • Industrial Water Treatment • Phosphorous Removal

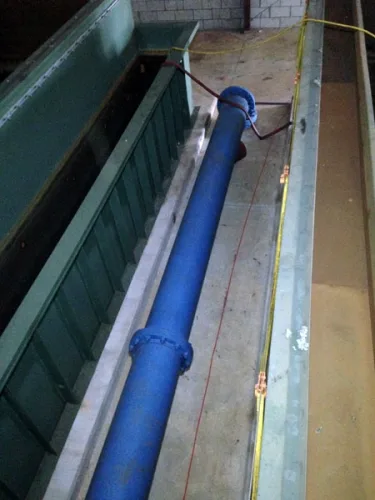

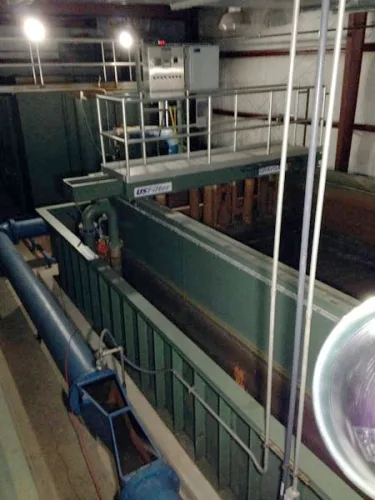

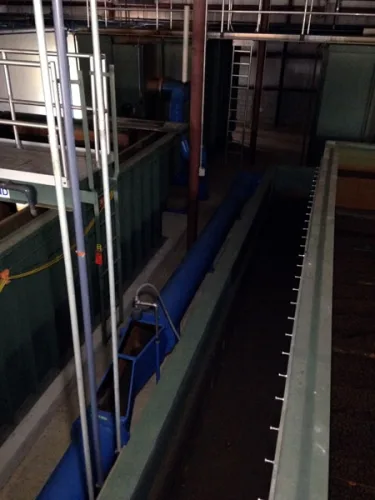

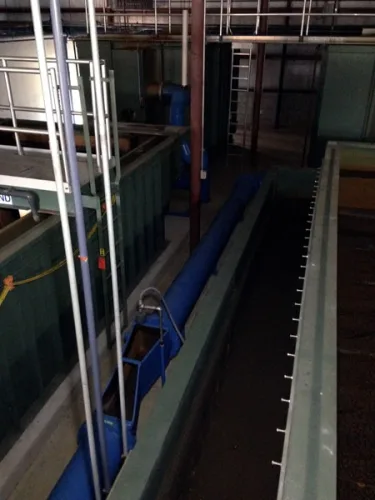

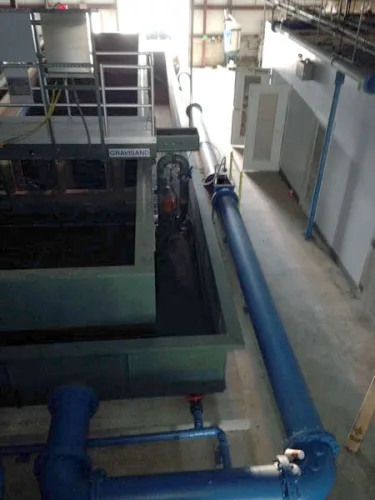

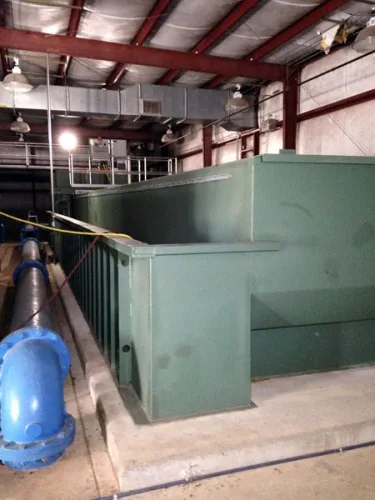

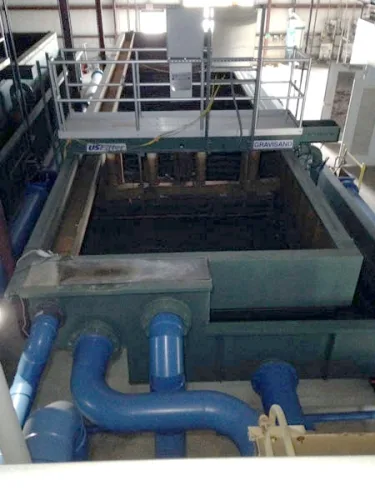

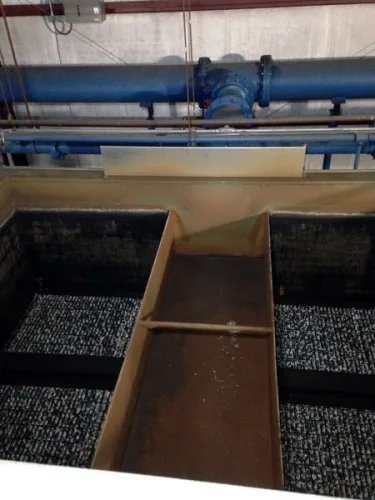

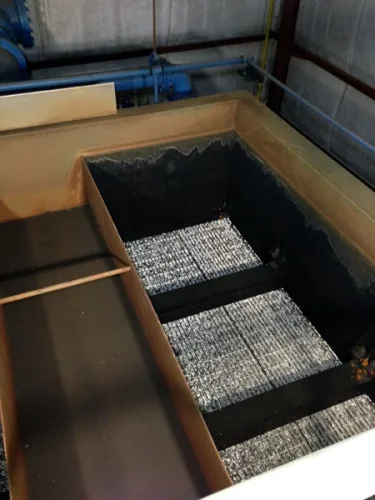

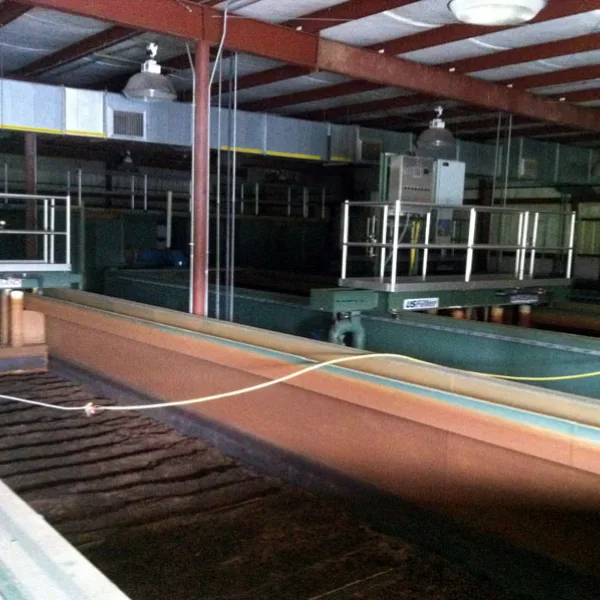

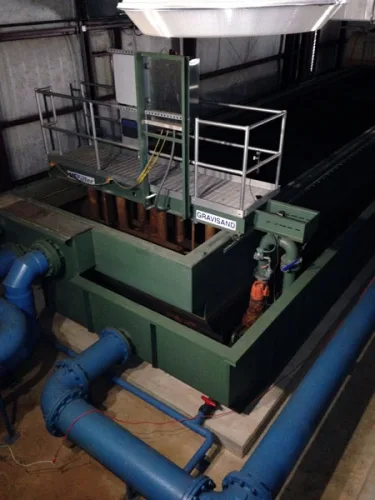

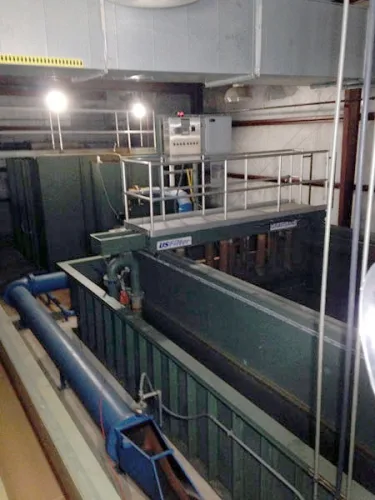

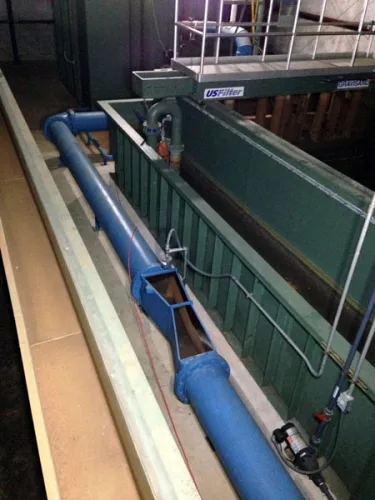

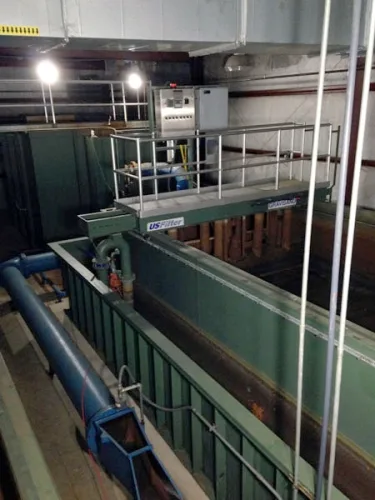

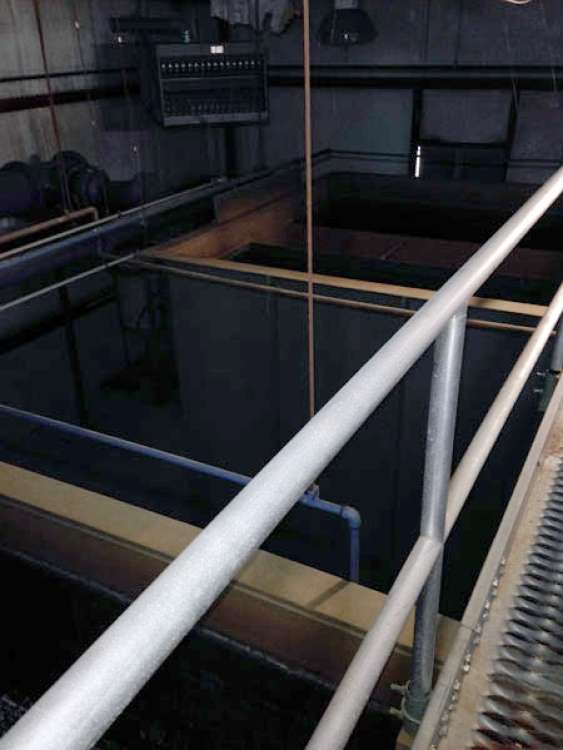

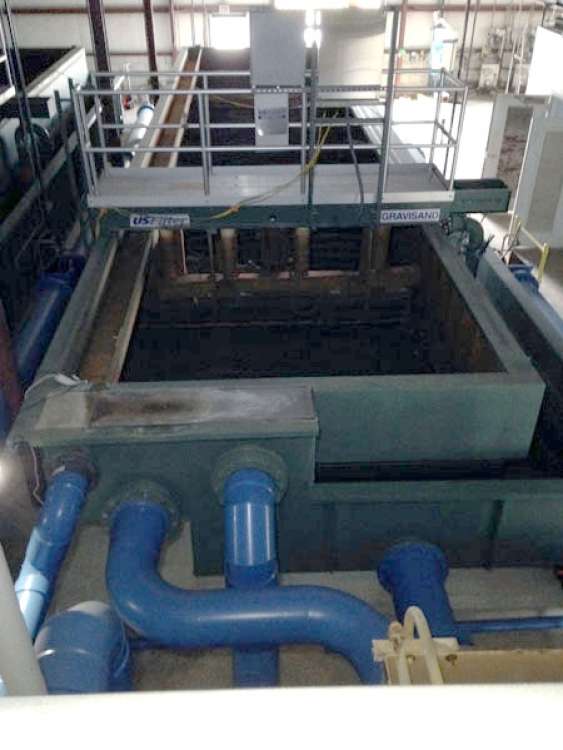

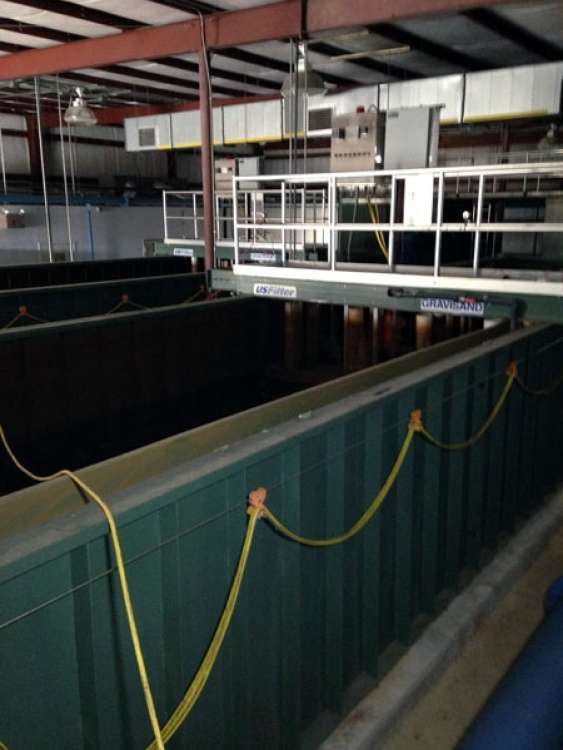

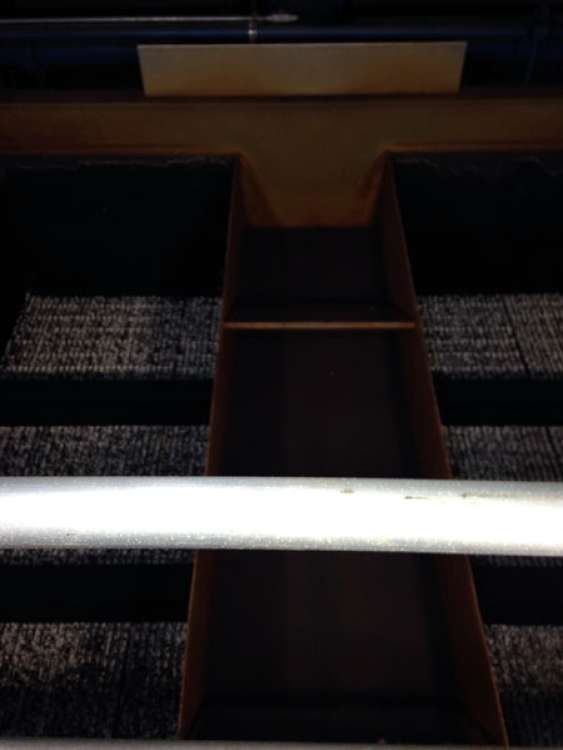

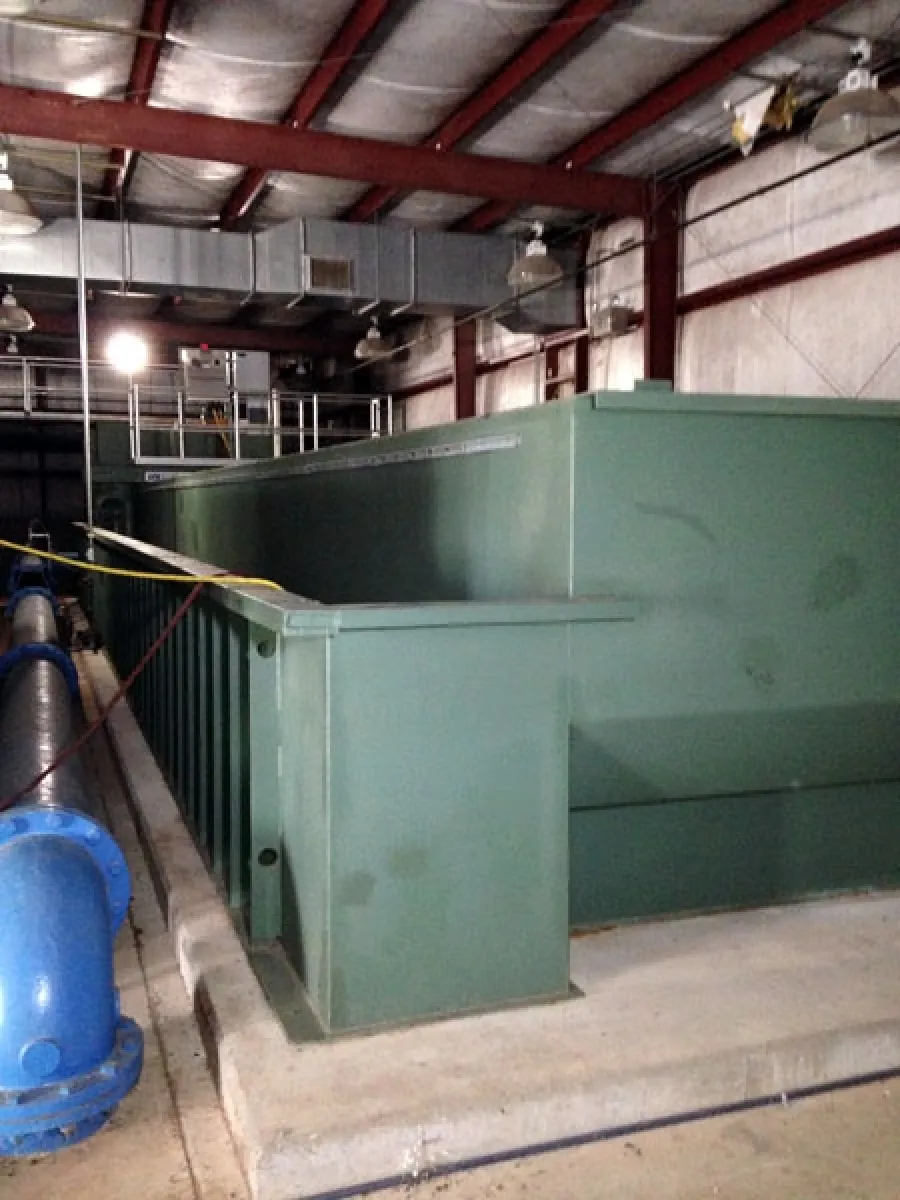

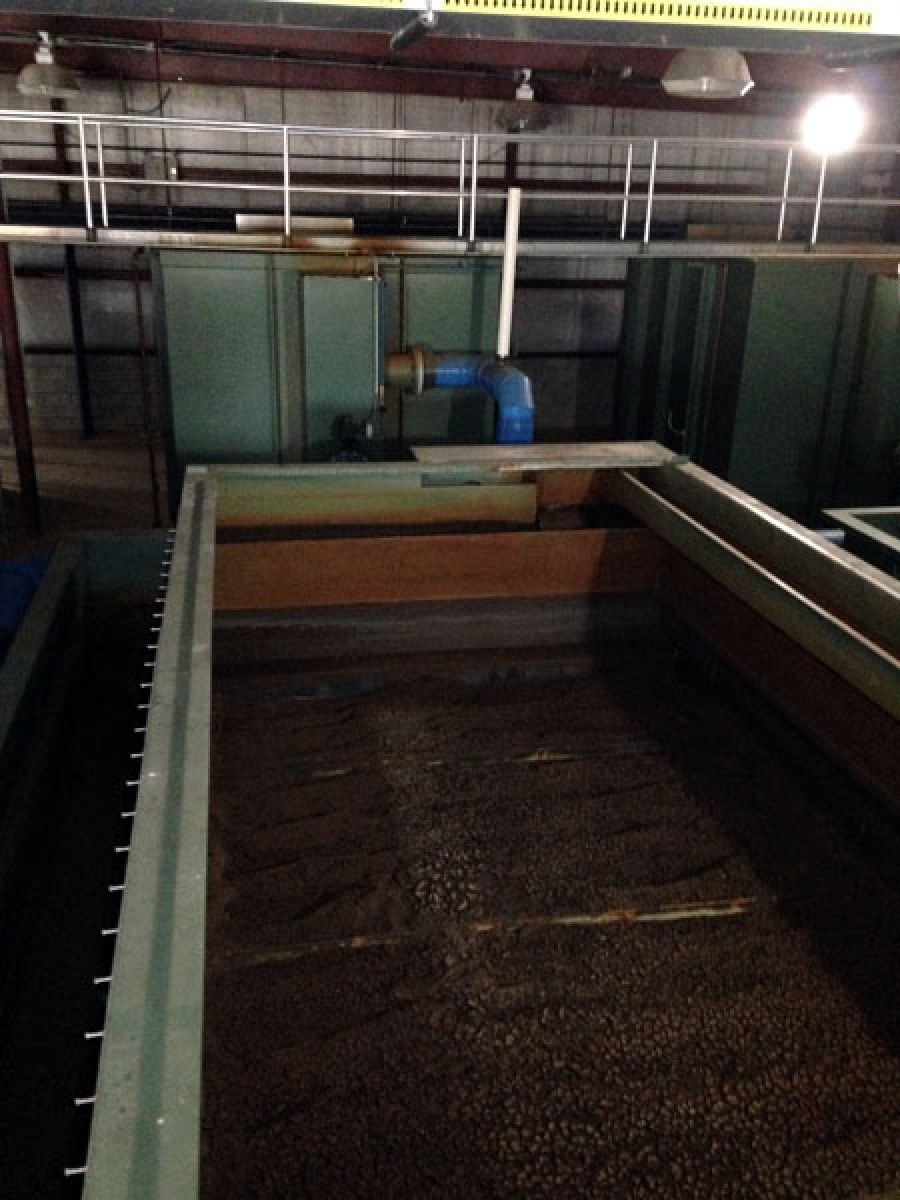

US Filter: Gravisand Traveling Bridge Filter:
Click Here For More Information About "Gravisand" Filtration System
Design Parameters (Each filter):
Average daily flow - 2,000,000 GDP (1389 GPM)
Dosing Rate @ Average Daily Flow - 2.63 GPM/SQ. FT.

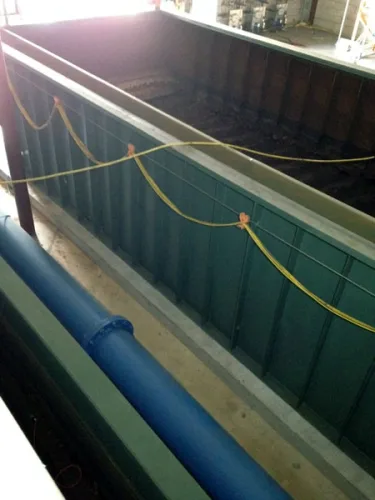

Tank Size: 52' 8 1/2" x 11' 6" Wide
Filter Bed Area - 528 Sq. Ft.

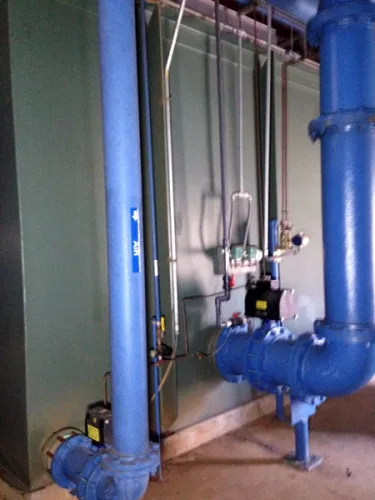

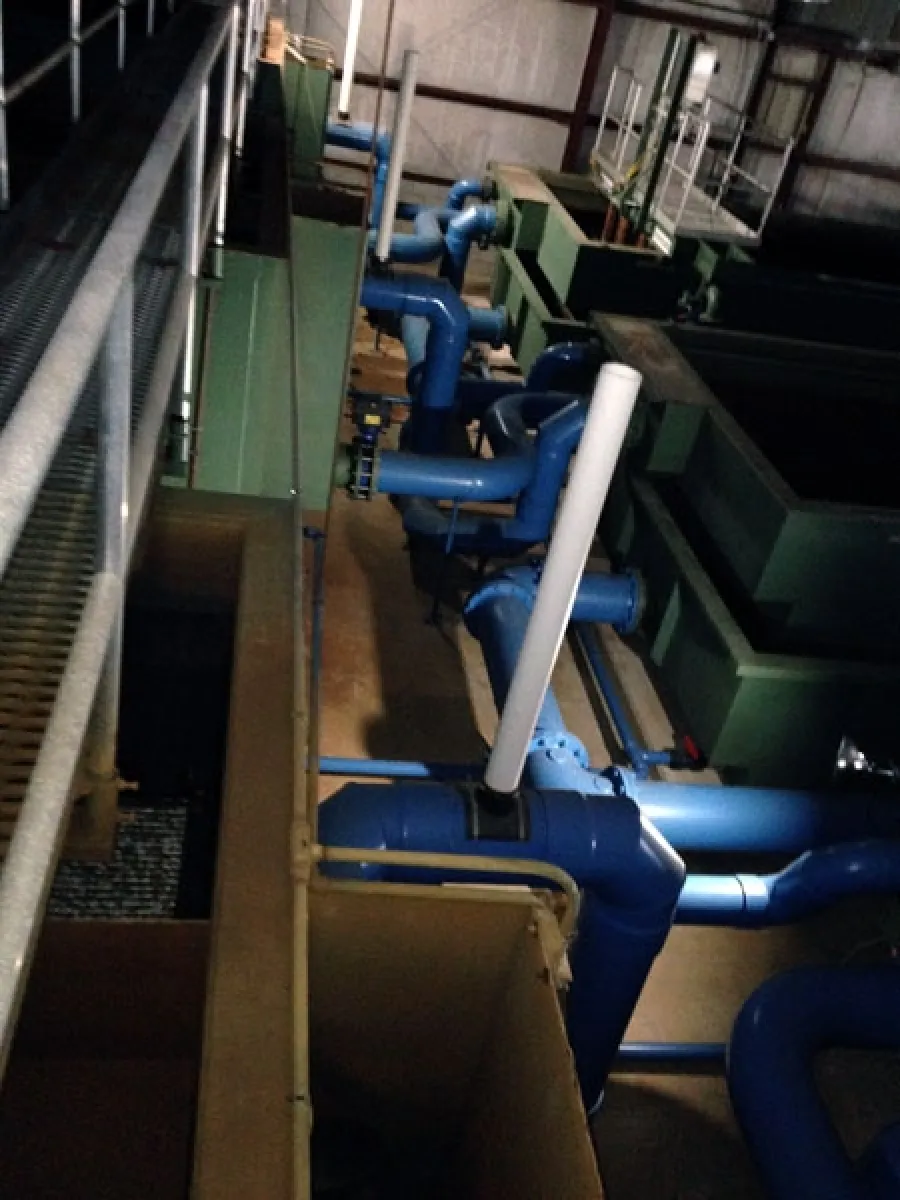

Backwash Pump:
Capacity - 383 GPM @ 30' TDH
USF/EMU FA10.41-183
5.4 HP, 1740 RPM, 3 PH, 60 HZ, 575 Volts

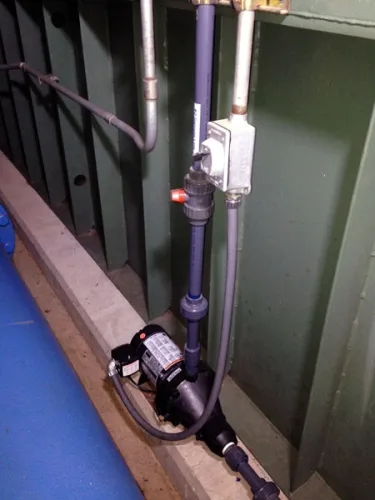

Skimmer Pump:
Capacity 50 GPM @ 10' TDH
USF/EMU FA45-80
.9 HP, 1750 RPM, 3 PH, 60 HZ, 575 Volts
Bridge Drive:
Perfection American Mdl: TCD240500B, Gear Reducer, 500:1 Ratio Motor, 1/4 HP, 1800 RPM, 3 PH, 60 HZ, 575 Volts, TEFC, Motor Is Reversible Rotation, With NEMA B, Class B Insulation

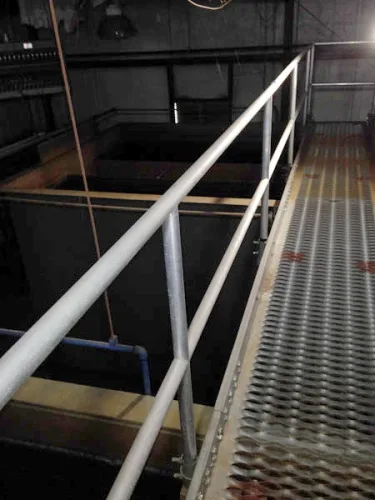

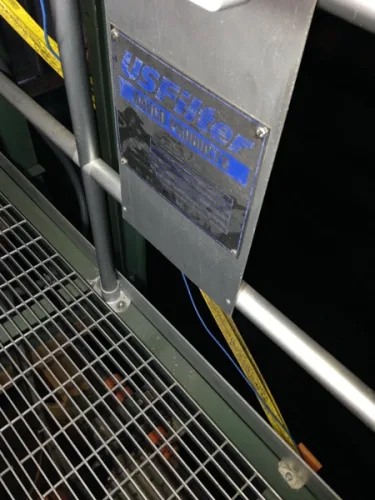

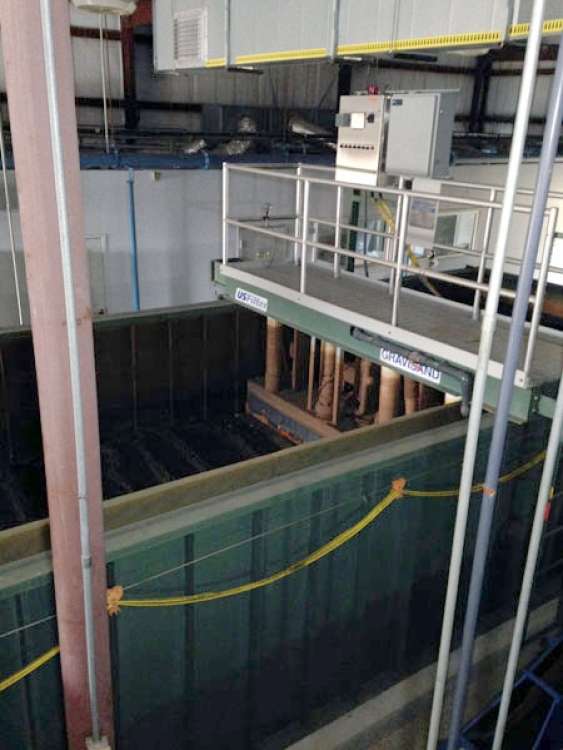

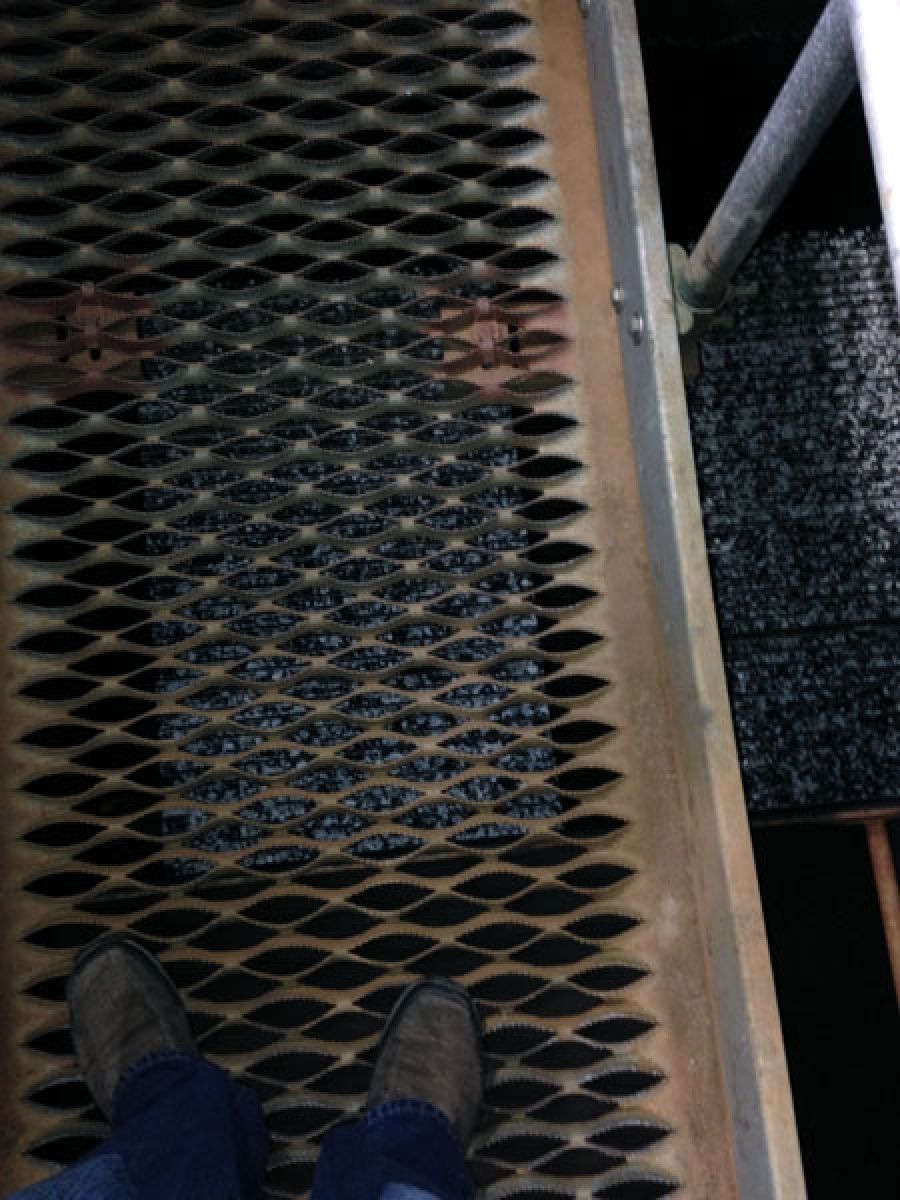

Bridge:

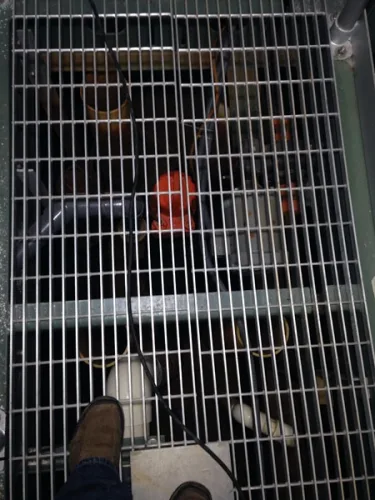

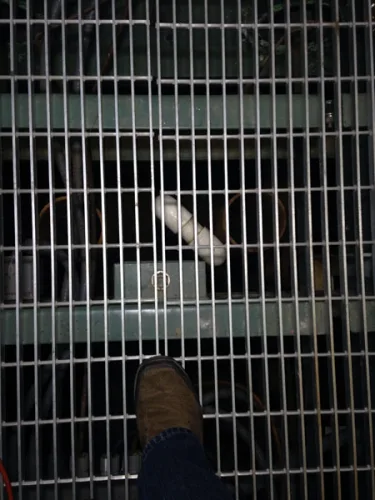

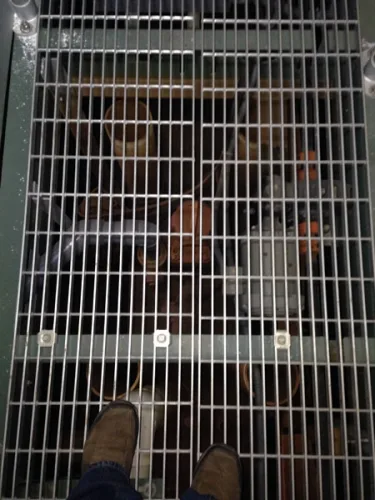

Walkway: 1" x 3/16" Aluminum Bar Grating
Handrails: 1 1/2" Dia. Aluminum With 1/4" x 4" Aluminum Toeplate
40" Wide Channel Constructed
Carbon Steel Backwash Hood

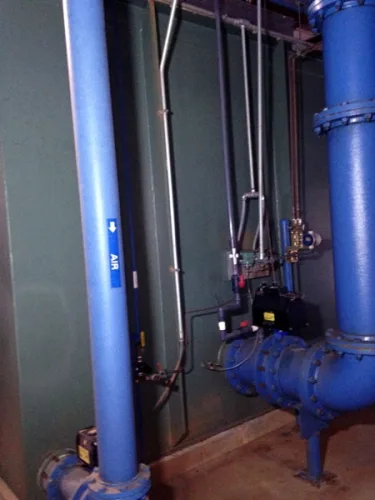

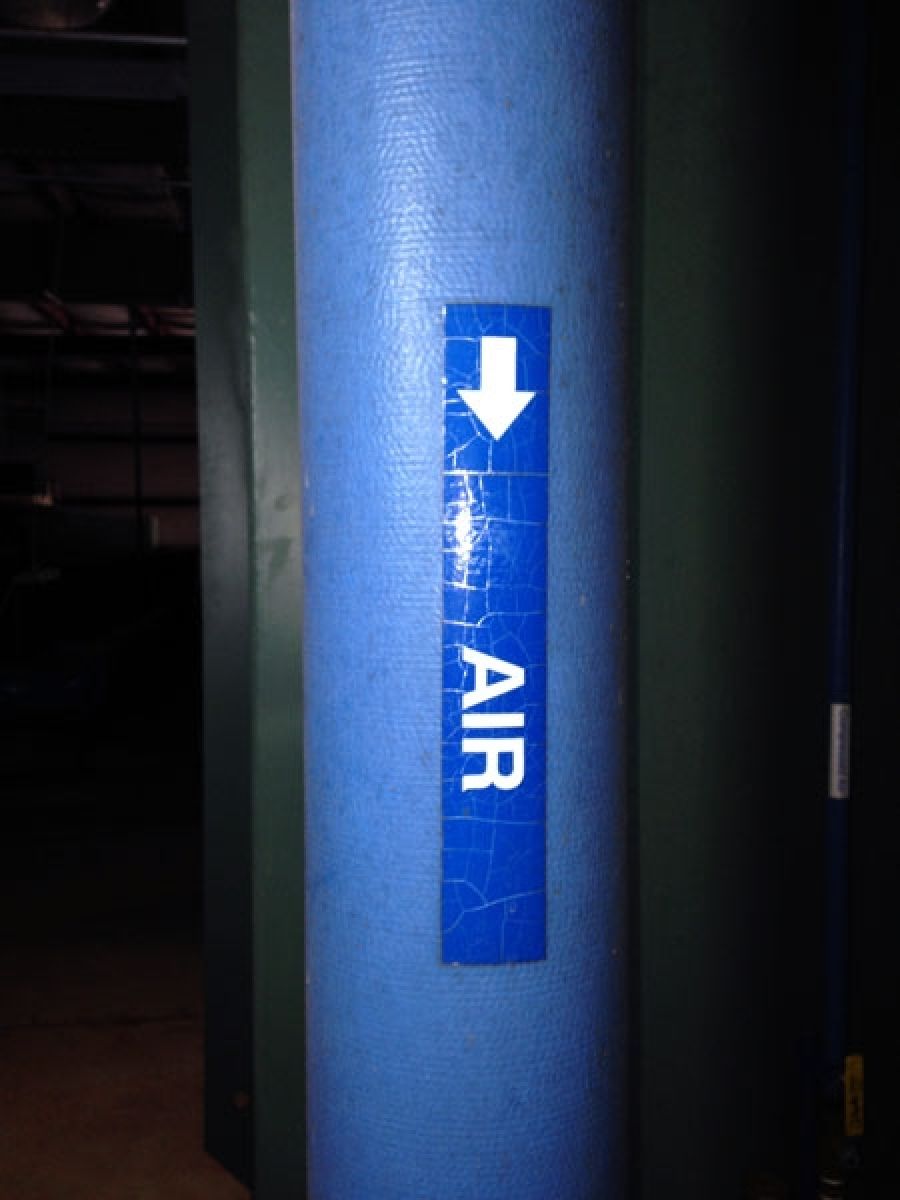

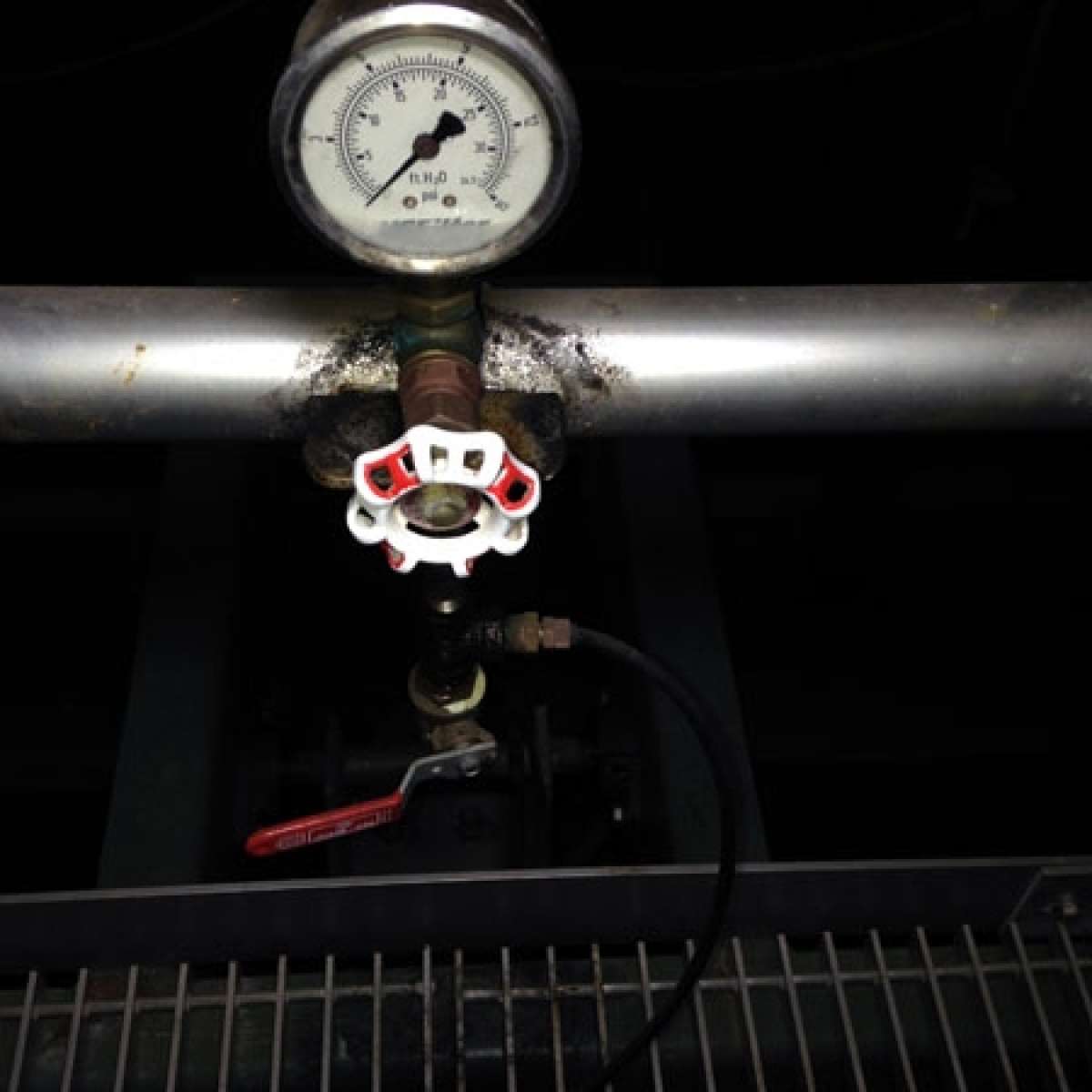

Air Scour:
Utilizing A Venturi & Solenoid Actuated Air Intake Mounted In The Discharge Line Of The Backwash Pump

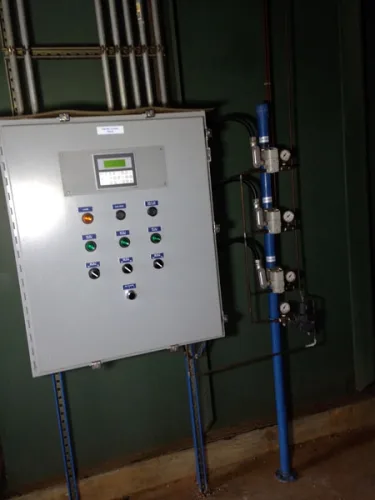

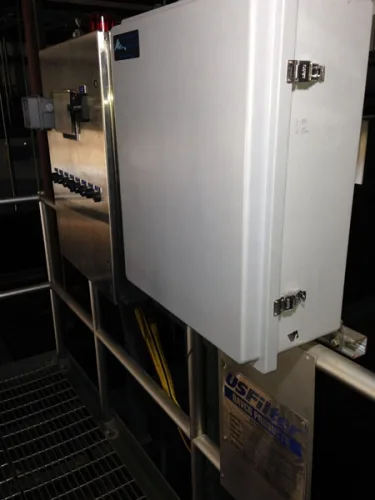

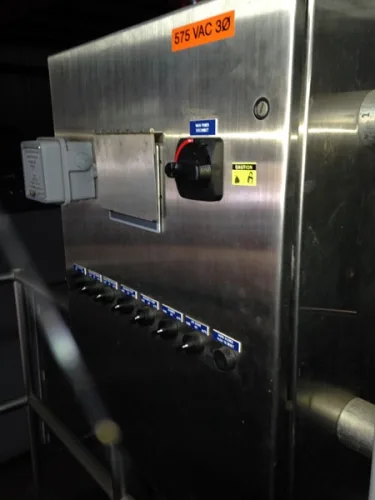

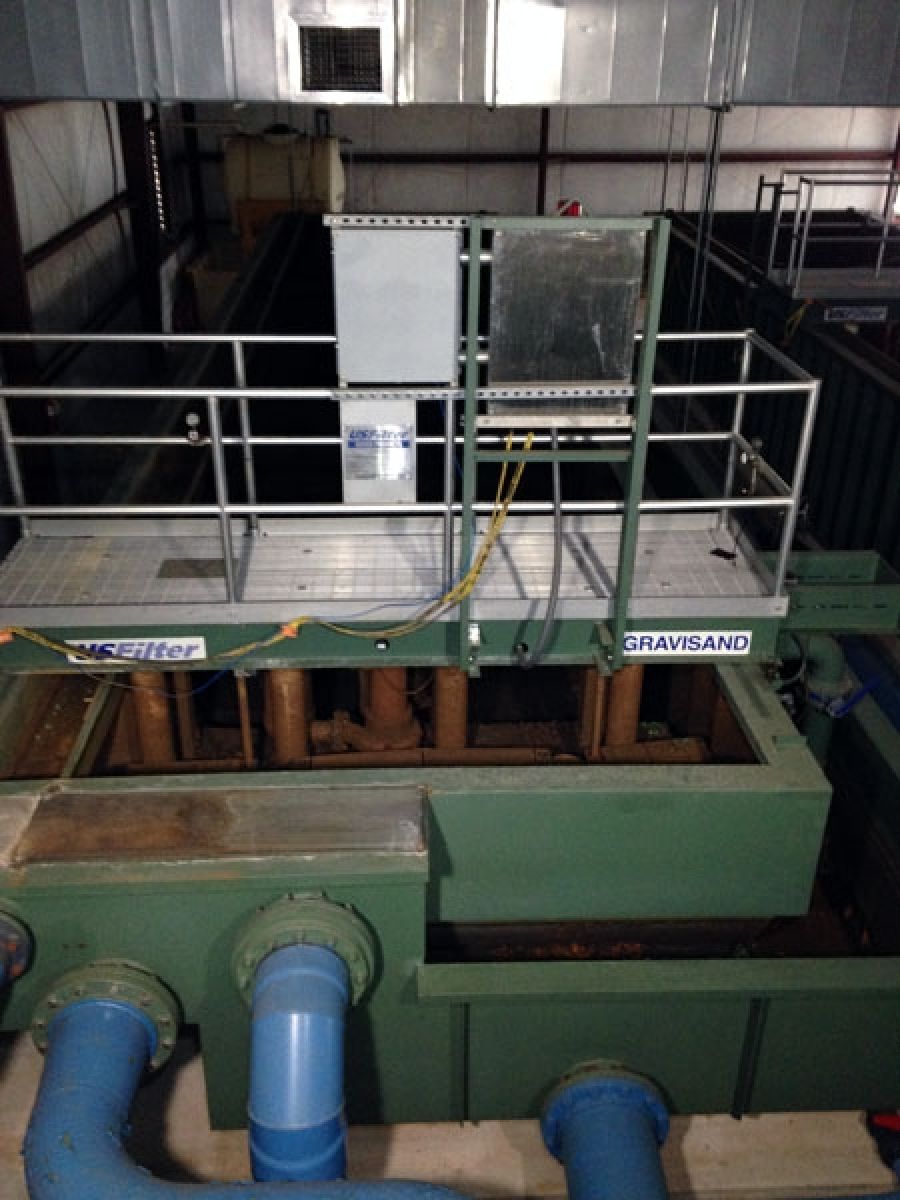

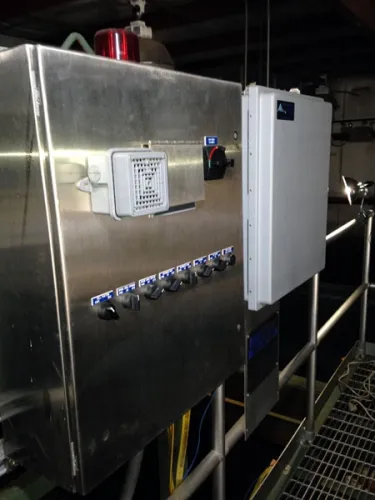

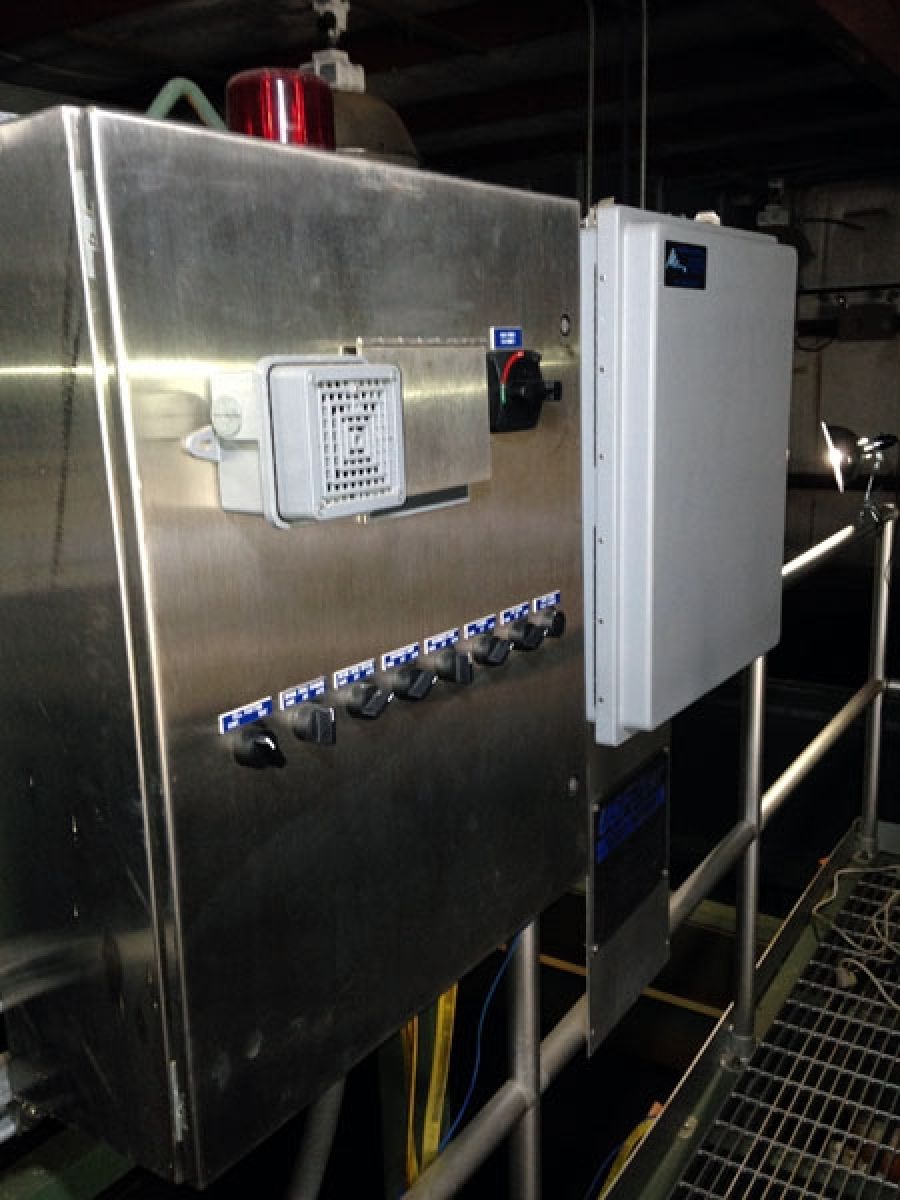

Control Panel:
NEMA 4X Stainless Steel
Bridge Mounted
Panel Mounted By Davco
Festooning System:
Motiv 8 Standard Stretched Wire System
4 Conductor, 10 Gauge Cable For Controls
8 Conductor, 16 Gauge Cable For Customer Status

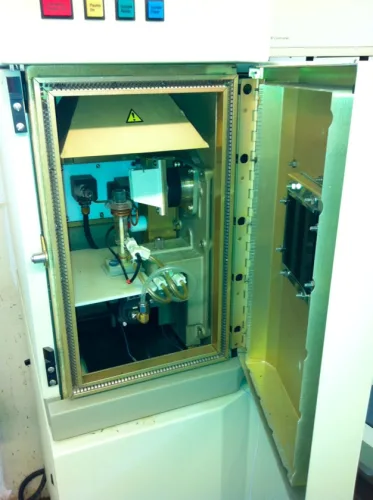

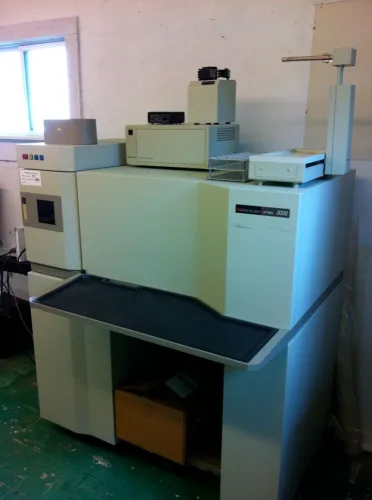

JUST ADDED: Perkin Elmer Optima 3000 Spectrometer:
Click Here For More Information About Perkin Elmer Optima 3000 Spectrometer
Perkin Elmer Optima 3000 Spectrometer Can Be Used To Detect Metals In Wastewater And Used Oil.
Components With Unit: PE-AS-S-90/AS-91 Controller & PE AS 90 PE Peristac Pump
Located in: Fort Mitchell, AL
All Machinery & Equipment Is Easily Accessible For Removal
